2002 SUBARU FORESTER steering

Maintenance and service11-7
–
CONTINUED –
Engine compartment overview
2.5 liter models
HBB036BB
1 Manual transmission oil level
gauge (MT) (page 11-23) or
Differential gear oil level gauge
(AT) (page 11-26)
2 Air cleaner element (page 11-18)
3 Clutch fluid reservoir (page 11-32)
4 Automatic transmission fluidlevel gauge (page 11-24)
5 Brake fluid reservoir (page 11-30)
6 Fuel filter 7
Windshield washer tank (page 11-47)
8 Fuse box (page 11-52)
9 Battery (page 11-51)
Q Engine oil filler cap (page 11-9)
W Engine coolant reservoir (page 11-15)
E Radiator cap (page 11-15)
R Engine oil level gauge (page 11-9)
T Power steering fluid reservoir (page 11-29)

11-8
3.0 liter models
HBB058BB
1 Air cleaner element (page 11-18)
2 Differential gear oil level gauge
(AT) (page 11-26)
3 Automatic transmission fluidlevel gauge (page 11-24)
4 Brake fluid reservoir (page 11-30)
5 Fuel filter
6 Windshield washer tank (page 11-47) 7
Fuse box (page 11-52)
8 Battery (page 11-51)
9 Engine oil filler cap (page 11-9)
Q Engine coolant reservoir (page 11-15)
W Engine oil level gauge (page 11-9)
E Radiator cap (page 11-15)
R Power steering fluid reservoir (page 11-29)

11-22
Drive belts
The alternator, power steering pump, and air conditioner compressor de-
pend on drive belts. Satisfactory performance requires that belt tension
be correct.2.5 liter models
HGA005BB
in (mm)
Deflection
New beltUsed belt
10.28 — 0.35
(7.0 — 9.0)0.35 — 0.43
(9.0 — 11.0)
20.30 — 0.33 (7.5 — 8.5)0.35 — 0.40
(9.0 — 10.0)
To check belt tension, place a straightedge (ruler) across two adja-
cent pulleys and apply a force of 22 lb (98 N, 10 kg) midway betweenthe pulleys by using a spring scale. Belt deflection should be the
amount specified. 3.0 liter models
It is unnecessary to check belt tension periodically because your
engine is equipped with an automatic belt tension adjuster. However,
replacement of the belt should be done according to the maintenance

Maintenance and service11-29
–
CONTINUED –
SAE viscosity No. and Applicable Temperature
OM-H0205
Power steering fluid
Checking the fluid level
WARNING
Be careful not to burn yourself because the fluid may be hot.
CAUTION
When power steering fluid is being added, use only clean fluid,
and be careful not to allow any dirt into the tank. And never use
different brands together. Avoid spilling fluid when adding it in the tank.
The power steering fluid expands greatly as its temperature rises; the
fluid level differs according to fluid temperature. Therefore, the reser-
voir tank has two different checking ranges for hot and cold fluids.
Check the power steering fluid level monthly.
1. Park the vehicle on a level surface, and stop the engine.
2. Check the fluid level of the reservoir tank.
When the fluid is hot after the vehicle has been run: Check that the oillevel is between “HOT MIN ” and “HOT MAX ” on the surface of the
reservoir tank.

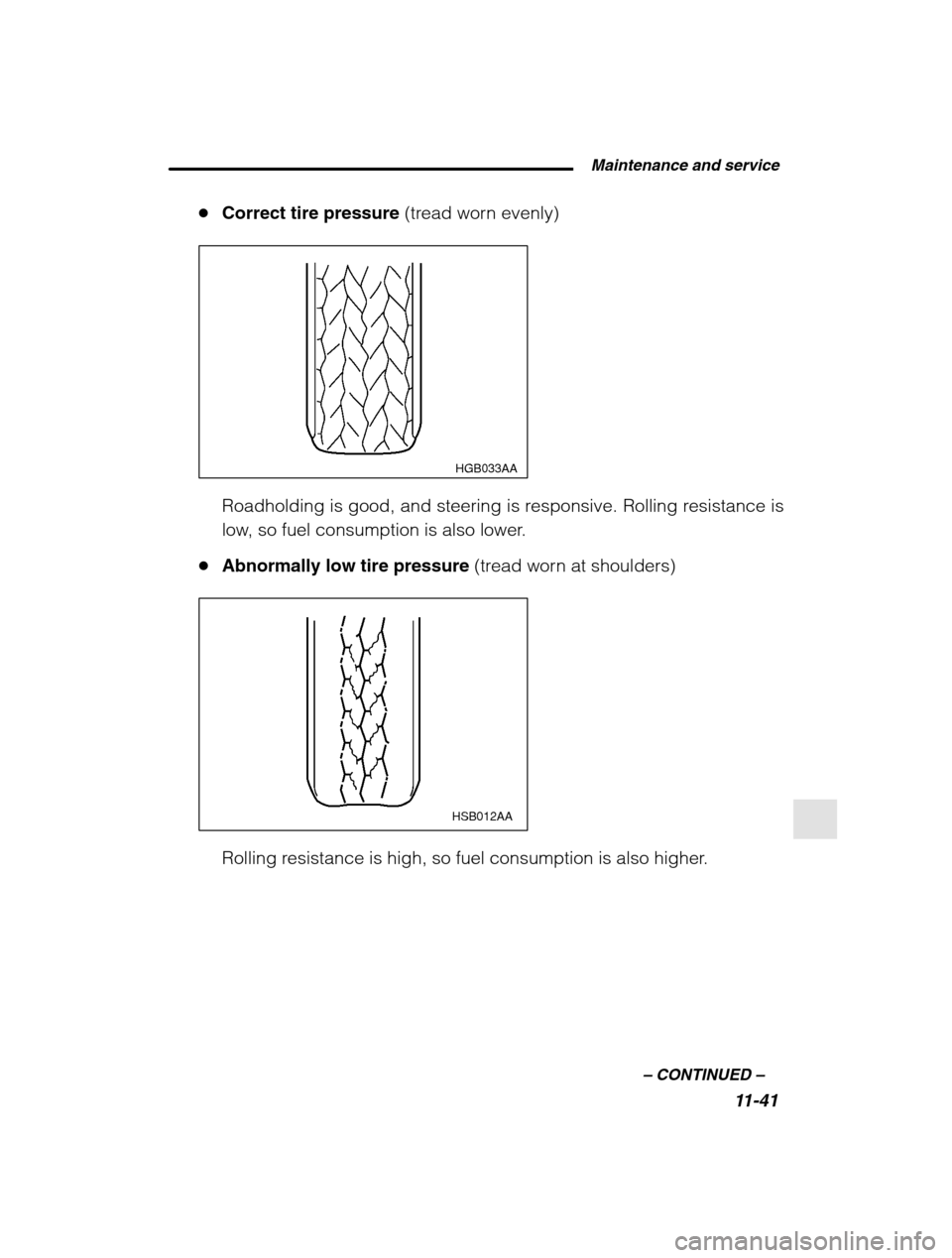

Maintenance and service11-41
–
CONTINUED –
Correct tire pressure (tread worn evenly)
HGB033AA
Roadholding is good, and steering is responsive. Rolling resistance is
low, so fuel consumption is also lower.
Abnormally low tire pressure (tread worn at shoulders)
HSB012AA
Rolling resistance is high, so fuel consumption is also higher.

11-42
Abnormally high tire pressure (tread worn in center)
HSB013AA
Ride comfort is poor. Also, the tire magnifies the effects of road-sur-
face bumps and dips, possibly resulting in vehicle damage.
If the tire placard shows tire pressures for the vehicle when fully loaded
and for the vehicle when towing a trailer, adjust the tire pressures to the
values that match current loading conditions.
WARNING
Driving at high speeds with excessively low tire pressures can
cause the tires to deform severely and to rapidly become hot. Asharp increase in temperature could cause tread separation, and
destruction of the tires. The resulting loss of vehicle controlcould lead to an accident.
Wheel balance
Each wheel was correctly balanced when your vehicle was new, but the
wheels will become unbalanced as the tires become worn during use.
Wheel imbalance causes the steering wheel to vibrate slightly at certain
vehicle speeds and detracts from the vehicle ’s straight-line stability. It
can also cause steering and suspension system problems and abnormal
tire wear. If you suspect that the wheels are not correctly balanced, have
them checked and adjusted by your SUBARU dealer. Also have them
adjusted after tire repairs and after tire rotation.

12-4
Spark plugs type RC10YC4 (Champion)BKR6E-11 (NGK) BKR5E-11 (NGK)
3.0 liter
Battery type and capacity 75D23L
Alternator 12V-100A
Spark plugs type PLFR6A-11 (NGK)
Capacities
Fuel tank 16.9 US gal (64 liters, 14.1 Imp gal)
Engine oil 2.5 liter 4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0 liter 6.0 US qt (5.7 liters, 5.0 Imp qt)
Transmission oil (MT) 3.7 US qt (3.5 liters, 3.1 Imp qt)
Transmission fluid (AT) 9.8 US qt (9.3 liters, 8.2 Imp qt)
AT differential gear oil 1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil Brighton, L (AT) 0.9 US qt (0.9 liter, 0.8 Imp qt)
Others 0.8 US qt (0.8 liter, 0.7 Imp qt)
Power steering gear fluid 0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant 2.5 liter MT 7.2 US qt (6.8 liters, 6.0 Imp qt) AT 7.1 US qt (6.7 liters, 5.9 Imp qt)
3.0 liter 8.4 US qt (7.9 liters, 7.0 Imp qt)
Tires Legacy
Type Steel belted radial, Tubeless
Size Brighton P195/60R15 87H L P205/60R15 90H
GT P205/55R16 89H
Temporary spare T135/70D16
Pressure Front Brighton 33 psi (230 kPa, 2.3 kg/cm 2
)
GT, L 32 psi (220 kPa, 2.2 kg/cm 2
)
Rear Brighton 32 psi (220 kPa, 2.2 kg/cm 2
)
GT, L 30 psi (210 kPa, 2.1 kg/cm 2
)
