2002 SUBARU FORESTER load capacity

6-18

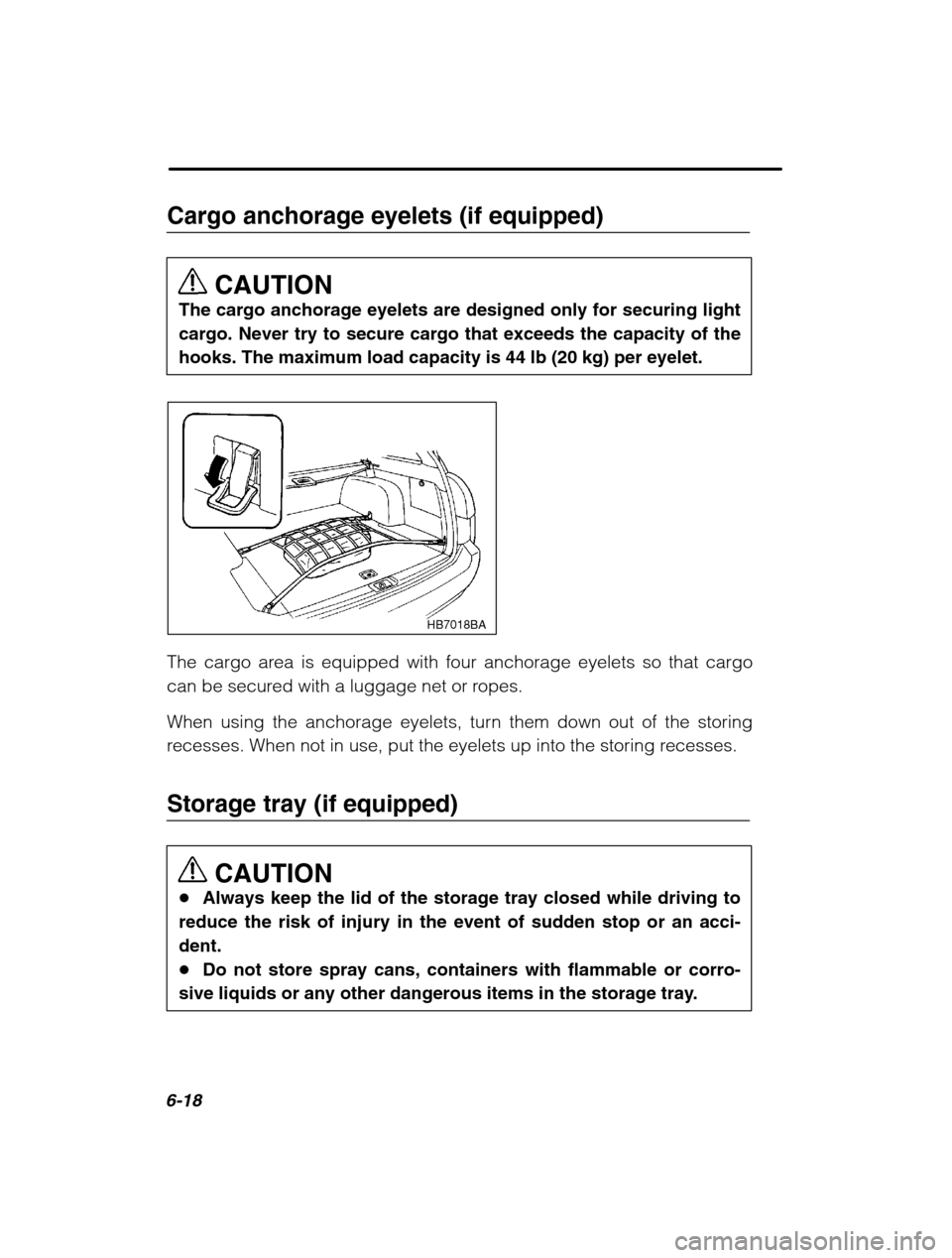

Cargo anchorage eyelets (if equipped)CAUTION
The cargo anchorage eyelets are designed only for securing light
cargo. Never try to secure cargo that exceeds the capacity of thehooks. The maximum load capacity is 44 lb (20 kg) per eyelet.
HB7018BA
The cargo area is equipped with four anchorage eyelets so that cargo
can be secured with a luggage net or ropes.
When using the anchorage eyelets, turn them down out of the storing
recesses. When not in use, put the eyelets up into the storing recesses.
Storage tray (if equipped)
CAUTION
Always keep the lid of the storage tray closed while driving to
reduce the risk of injury in the event of sudden stop or an acci- dent. Do not store spray cans, containers with flammable or corro-
sive liquids or any other dangerous items in the storage tray.

8
Driving tips New vehicle break-in driving –
the first 1,000 miles (1,600 km) 8-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel economy hints 8-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust gas (Carbon monoxide) 8-3 . . . . . . . . . . . . . . . . . . . . . . . . . .
Catalytic converter 8-4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Periodic inspections 8-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving in foreign countries 8-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving tips for AWD vehicles 8-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Off road driving 8-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Winter driving 8-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Snow tires 8-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire chains 8-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rocking the vehicle 8-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading your vehicle 8-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle capacity weight 8-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR and GAWR (Gross Vehicle Weight Rating and Gross Axle Weight Rating) 8-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof rail and crossbar (if equipped) 8-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer hitch (if equipped) 8-24
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trailer towing 8-28
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-18
NOTE
For better fuel economy, do not carry unneeded cargo. Vehicle capacity weight
HB0382
HB8015BA
The load capacity of your vehicle is determined by weight, not by avail-
able cargo space. The maximum load you can carry in your vehicle is
shown as the Vehicle Capacity Weight on the tire information label at-
tached to the driver ’s side door jamb. It includes the total weight of driver
and all passengers and their belongings, any optional equipment such
as a trailer hitch, roof rack or bike carrier, etc., and the tongue load of a
trailer.

Driving tips8-19
–
CONTINUED –
GVWR and GAWR (Gross Vehicle Weight Rating and
Gross Axle Weight Rating)
HBF019BB
The certification label attached to the driver ’s side door shows GVWR
(Gross Vehicle Weight Rating) and GAWR (Gross Axle Weight Rating).
The GVW (Gross Vehicle Weight) must never exceed the GVWR. GVW is
the combined total of weight of the vehicle, fuel, driver, all passengers,
luggage, any optional equipment and trailer tongue load. Therefore, theGVW changes depending on the situation. The GVWR equals Curb
Weight (actual weight of your vehicle – including standard equipment,
fluids, emergency tools and spare tire assembly) plus the vehicle capac-ity weight.
In addition, the total weight applied to each axle (GAW) must never ex-
ceed the GAWR. The front and rear GAWs can be adjusted by relocating
luggage inside the vehicle.Even if the total weight of your luggage is lower than the vehicle capacity
weight, either front or rear GAW may exceed the GAWR, depending onthe distribution of the luggage.
If you carry heavy loads in the vehicle, you should confirm that GVW and
front and rear GAWs are within the GVWR and GAWR by putting your
vehicle on a vehicle scale, found at a commercial weighing station.
Do not use replacement tires with a lower load range than the originals
because they may lower the GVWR and GAWR limitations. Replacement
tires with a higher load range than the originals do not increase the
GVWR and GAWR limitations.

8-36
Connection of trailer lights to your vehicle’s electrical system requires
modifications to the vehicle ’s lighting circuit to increase its capacity
and accommodate wiring changes. To ensure the trailer lights are
connected properly, please consult your SUBARU dealer. Check for
proper operation of the turn signals, the brake lights and parkinglights each time you hitch up. n Tires
WARNING
Never tow a trailer when the temporary spare tire is used. The temporary spare tire is not designed to sustain the towing load.
Use of the temporary spare tire when towing can result in failureof the spare tire and/or less stability of the vehicle.
Make sure that all the tires on your vehicle are properly inflated. OUTBACK: The recommended cold tire pressure under trailer
towing conditions is indicated on the tire placard located under thedoor striker on the driver ’s side. Adjust the rear tire pressure to the
recommended pressure shown on the tire placard when the tires
are cold. Normal pressure should be maintained in the front tires.Other models: It is recommended to inflate the rear tires to 3 psi
(20 kPa, 0.2 kg/cm 2
) above their normal operating pressure when
the tires are cold. Normal pressure should be maintained in the
front tires.
Trailer tire condition, size, load rating and proper inflation pressure
should be in accordance with the trailer manufacturer ’s specifications.
In the event your vehicle gets a flat tire when towing a trailer, ask a
commercial road service to repair the flat tire.
If you carry a regular size spare tire in your vehicle or trailer as a pre-
caution against getting a flat tire, be sure that the spare tire is firmly
secured.
