2002 PONTIAC BONNEVILLE display

2-105
Automatic Door Locks
The door lock modes when shifting in and out of
PARK (P), can be changed through the DIC. You can
change these modes using different selections of the
following DIC displays:

AUTO DOOR LOCKS
-- OFF/ON

UNLOCK
-- OFF/ON

UNLOCK
-- KEY OFF/PARK

DOOR TO UNLOCK
-- DRIVER/ALL
If you choose OFF for AUTO DOOR LOCKS,
your door locks will operate normally with no
automatic feature.
If you choose ON for AUTO DOOR LOCKS, ON for
UNLOCK and KEY OFF, your doors will lock every
time you shift out of PARK (P), and the doors will
unlock every time you stop and turn the ignition to OFF.
If you choose ON for AUTO DOOR LOCKS, ON for
UNLOCK and PARK, your doors will lock every time
you shift out of PARK (P), and the doors will unlock
every time you stop and shift into PARK (P).If you choose ON for AUTO DOOR LOCKS, and OFF
for UNLOCK, your doors will lock every time you shift
out of PARK (P), and there will be no automatic door
unlock when shifting back into PARK (P).
If you choose ON for UNLOCK and DRIVER for
DOOR TO UNLOCK, only the driver's door will
automatically unlock when shifting into PARK (P) or
turning the key to OFF.
If you choose ON for UNLOCK and ALL for DOOR
TO UNLOCK, all doors will automatically unlock when
shifting into PARK (P) or turning the key to OFF.
To change modes do the following:
1. Move the arrow on the display between the
selections by pressing the RESET button.
2. Once you have made your selection, press the
SELECT button and your choice will be retained
in memory.
See ªAutomatic Door Locksº in the Index for more
information about this feature.

2-106
Window Lockout Personalization
The number of passenger windows locked out by the
window LOCK switch can be programmed through
the DIC.
If you choose R + PASS, all three passenger window
switches will be inactive when the window LOCK
switch is enabled.
If you choose REAR, only the two rear passenger
window switches will be locked out when the window
LOCK switch is enabled.
To change modes do the following:
1. Move the arrow on the display between R + PASS
and REAR by pressing the RESET button.
2. Once you have made your selection, press the
SELECT button. Your choice will be retained
in memory.
For more information on this feature, see ªWindow
Lockº in the Index.Security Feedback
By choosing different combinations of these selections,
you can choose the type of transmitter activated
feedback when locking and unlocking your vehicle with
your transmitter. Each time you make a selection by
pressing the RESET button, press the SELECT button to
record your choice.

KEYLESS FEEDBACK
-- OFF/ON

LIGHTS FEEDBACK
-- OFF/ON

HORN FEEDBACK
-- OFF/ON
If you choose ON for KEYLESS FEEDBACK you will
also need to choose LIGHTS and/or HORN FEEDBACK.
You can select the following modes:

If you choose OFF for KEYLESS FEEDBACK, you
will receive no security feedback when locking or
unlocking your vehicle.

If you choose ON for KEYLESS FEEDBACK and
ON for LIGHTS FEEDBACK, the exterior lamps
will flash twice when unlocking your vehicle and
once when locking your vehicle.

2-107

If you choose ON for KEYLESS FEEDBACK and
ON for HORN FEEDBACK, your horn will chirp
when locking and unlocking your vehicle.

If you choose ON for KEYLESS, LIGHTS and
HORN FEEDBACK, your exterior lamps will flash
twice at the first unlock button press, your exterior
lamps will flash twice and your horn will chirp once
at the second unlock button press, and the exterior
lamps will flash once and the horn will chirp once
when locking your vehicle.
For more information on this feature, see ªSecurity
Feedbackº in the Index.
Delayed Locking
The delayed locking feature, which delays the actual
locking of the vehicle, can be made active or inactive
through the DIC. When DELAYED LOCKING
-
OFF/ON appears on the display, use the RESET button
to toggle the arrow between OFF and ON. When you
have made your choice, press the SELECT button to
record your selection.
For more information on this feature, see ªDelayed
Lockingº in the Index.Perimeter Lighting Personalization
When the button with the unlock symbol on the
transmitter is pressed, the Daytime Running Lamps
(high
-beams at reduced intensity), parking lamps and
back
-up lamps will turn on if it is dark enough
according to the Twilight Sentinel.
You can control activation of this feature by choosing
OFF or ON when the PERIMETER LIGHTS choice is
displayed on the DIC. Make your choice by pressing the
RESET button and record your choice by pressing the
SELECT button. You will then be prompted to choose a
TIMEOUT period.
The PERIMETER LIGHTS TIMEOUT feature can be
changed to desired setting by using the RESET button to
toggle from 5 to 30 seconds. Each toggle will increase
the time by five seconds. Once the desired timeout is
displayed, press select to record your choice and move
on to the next personalization feature.
For more information on this feature, see ªPerimeter
Lightingº in the Index.

2-108
Memory Seat Recall (If Equipped)
This feature recalls the position of your seat. When this
feature is active, the memory seat and mirror positions
will be recalled for the identified driver when the remote
keyless entry transmitter is used to enter the vehicle.
You can program this feature to be active by choosing
ON when the SEAT RECALL choice appears, or
inactive by choosing OFF when the SEAT RECALL
choice appears on the DIC. Make your choices by
pressing the RESET button and store them to memory
by pressing the SELECT button.
You can also program this feature to recall your memory
seat position or the exit seat position.

Memory Position: Choose ON when the
SEAT RECALL choice appears and then choose
MEMORY when the RECALL POSITION
choice appears.

Exit Position: Choose ON when the SEAT
RECALL choice appears and then choose EXIT
when the RECALL POSITION choice appears.
The seat will move when you enter the vehicle after
unlocking it with a remote keyless entry transmitter.
This will allow for easy entry.
For more information on this feature, see ªMemory Seat
and Mirrorsº in the Index.Parallel Park Assist (If Equipped)
The parallel park assist mirror, which tips the passenger
mirror while the vehicle is in REVERSE (R), can be
made active or inactive through the DIC. When TILT
MIRROR
- OFF/ON appears on the display, use the
RESET button to toggle the arrow between OFF and
ON. When you have made your choice, press the
SELECT button to record your selection. For more
information on this feature, see ªMirrorsº in the Index.
Driver ID
This feature displays the DRIVER ID, as identified by
the DIC. If this feature is ON, the DRIVER ID will be
displayed every time the ignition is turned on. If the
DRIVER ID is OFF, the DRIVER ID can be displayed
by pressing either a button on the remote keyless entry
transmitter or a memory seat button.

2-109
Head-Up Display (HUD) (Option)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If you have the optional Head-Up Display (HUD), you
can see some of the driver information also available on
your instrument panel cluster. The information may
be displayed in English or metric units and appears
as a reflection on the windshield. The HUD shows
the following:

Speedometer Reading

Turn Signal Indicators

High
-beam Indicator Symbol
CHECK GAGES Message (for low oil pressure,
high coolant temperature, low oil level, high/low
battery, brake, ABS and air bag.)

Low Fuel Warning Symbol

Radio Frequency and Playback Mode
HUD shows these images when they are lighted on the
instrument panel.
The speedometer may display a difference of 1.5 mph
(2.4 km/h) from the HUD image. This is normal.

2-110
When the ignition key is turned to ON, all possible
HUD images will come on, then the HUD will
operate normally.
If you never look at your instrument panel cluster, you
may not see something important, such as a warning
light. So be sure to scan your displays and controls and
the driving environment just as you would in a vehicle
without HUD.
NOTICE:
Although the HUD image appears to be near
the front of the vehicle, do not use it as a parking
aid. The HUD was not designed for that purpose.
If you try to use it that way, such as in a parking
lot, you may misjudge distance and run
into something.

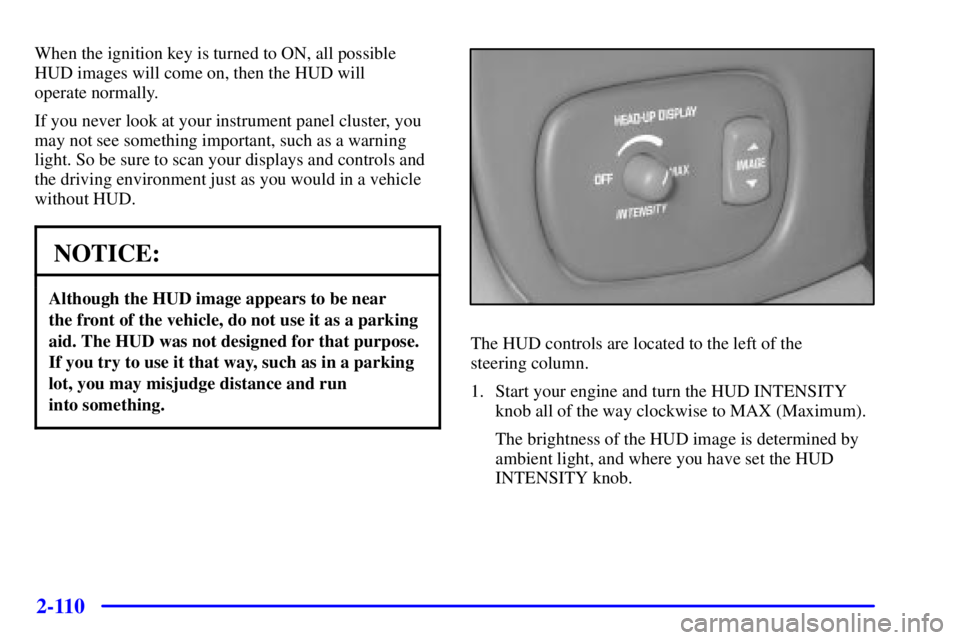

The HUD controls are located to the left of the
steering column.
1. Start your engine and turn the HUD INTENSITY
knob all of the way clockwise to MAX (Maximum).
The brightness of the HUD image is determined by
ambient light, and where you have set the HUD
INTENSITY knob.

3-4
When the weather is cool or damp, operating in
RECIRC for extended periods of time may cause
fogging of the vehicle's windows. To clear the fog,
switch back to outside air by turning off RECIRC, select
either defog or FRONT defrost mode and increase the
fan speed. To avoid refogging of the windows, minimize
your use of recirculation under these conditions and turn
the A/C on to help dehumidify the air.
A/C (Air Conditioning): Press this button to turn
the air conditioning compressor on and off. The system
will cool and dehumidify the air inside your vehicle. If
your comfort control system is off, you can also turn it
back on in vent mode by selecting the A/C button.
Even though A/C is not selected, in FRONT defrost
mode the A/C compressor will run automatically at
temperatures over approximately 40
F (4
C) to
improve windshield clearing performance.
Electronic Climate Control System (Option)
DRIVER (Driver's Side Temperature): The knob
on the left is used to change the temperature of the air
coming through the system on the driver's side of the
vehicle. Push this knob to turn the system on and off.
Turn the knob toward the blue area to decrease the set
temperature. Turn the knob toward the red area to
increase the set temperature. When this knob is
adjusted, the word DRIVER will be displayed
under the set temperature.
When the passenger's set temperature is not active,
this knob controls both the driver's and passenger's side,
and both DRIVER and PASS will be displayed under the
set temperature.

3-5
PASS (Passenger's Side Temperature): The knob on
the right is used to change the temperature of the air
coming through the system on the passenger's side of
the vehicle. Push this knob to turn the system on and off.
Turn the knob toward the blue area to decrease the set
temperature. Turn the knob toward the red area to
increase the set temperature. When this knob is
adjusted, only the word PASS will be displayed
under the set temperature.
(Fan): The button with the fan symbol allows
you to manually adjust the fan speed. Press the HIGH
side to increase fan speed and the LOW side to decrease
fan speed.
MODE: Press this button repeatedly to cycle through
the choices on the display to select the air delivery mode
of airflow into the vehicle. The system will stay in the
selected mode until MODE is pressed again or until the
AUTO button is pressed.

FLOOR: This setting directs most of the airflow to
the floor ducts.

DEFOG: This setting directs most of the airflow to
the floor ducts and the windshield outlets.
BI
-LEVEL: This setting directs airflow through
both the instrument panel outlets and the floor ducts.
This mode will deliver slightly warmer air through
the floor ducts.

PANEL: This setting directs airflow through the
instrument panel outlets.
Whenever MODE is pressed, the display will show the
current system settings for five seconds before returning
the display to the exterior temperature.
FRONT (Defrost): This setting directs most
of the airflow to the windshield with some airflow to the
side window outlets and floor ducts.
To improve windshield clearing performance when you
select FRONT defrost, the air conditioning compressor
will run automatically when outside temperatures are
above approximately 40F (4C). This dehumidifies
the air to help dry the windshield. Even though the
compressor may be running, the A/C light will not
come on in FRONT defrost unless you select A/C.
OUTSIDE AIR: Press this button to send
outside air through the system.
