2002 PEUGEOT 807 navigation

YOUR 807 IN DETAIL
76
Select the Navigation/Guidance icon
using the dial, then validate by
pressing the dial to access the main
"Navigation Guidance"menu.
General menu
Switch on the RT3 audio/telephone
and insert the navigation CD ROM.
Press the "MENU"button to access
the general menu .

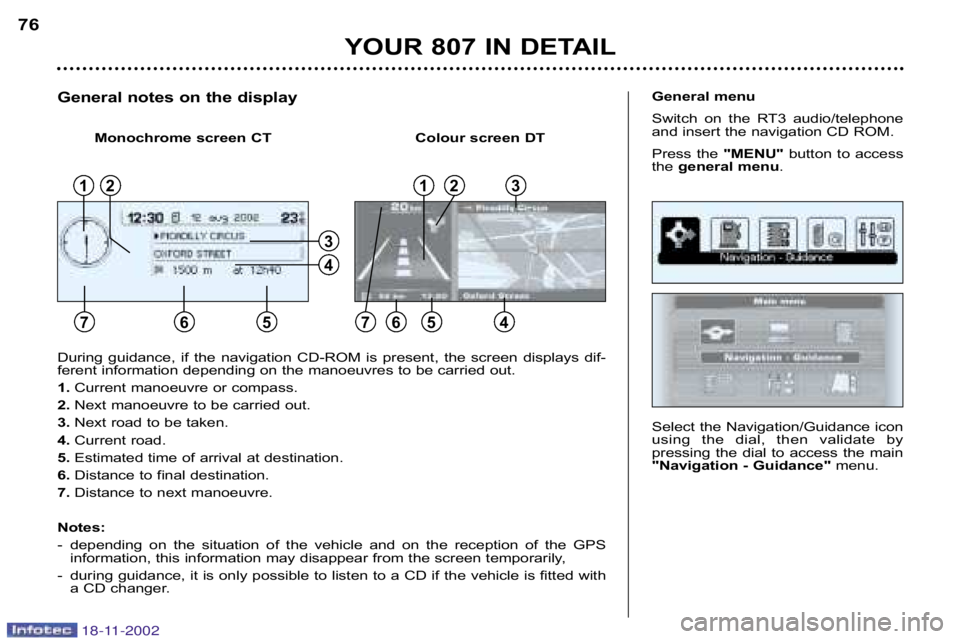

During guidance, if the navigation CDROM is present, the scre en displays dif
ferent information depending on the manoeuvres to be carried out.
1. Current manoeuvre or compass.
2. Next manoeuvre to be carried out.
3. Next road to be taken.
4. Current road.
5. Estimated time of arrival at destination.
6. Distance to final destination.
7. Distance to next manoeuvre.
Notes:
depending on the situation of the vehicle and on the reception of the GPS
information, this information may disappear from the screen tempora rily,
during guidance, it is only possible to listen to a CD if the vehicle is fitted with
a CD changer.
General notes on the display
12
765
13
654
4
3
Monochrome screen CT Colour screen DT
2
7
18-11-2002

YOUR 807 IN DETAIL77

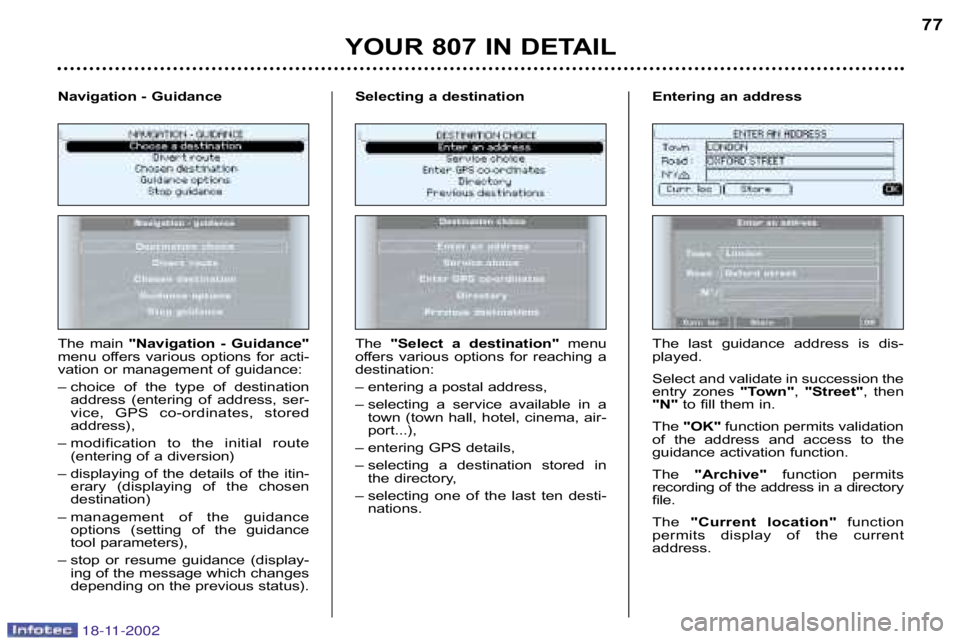

The main "Navigation Guidance"
menu offers various options for acti
vation or management of guidance:
– choice of the type of destination address (entering of address, ser
vice, GPS coordinates, stored
address),
– modification to the initial route (entering of a diversion)
– displaying of the details of the itin erary (displaying of the chosen
destination)
– management of the guidance options (setting of the guidance
tool parameters),
– stop or resume guidance (display ing of the message which changes
depending on the previous status).
Navigation Guidance
The
"Select a destination" menu
offers various options for reaching a
destination:
– entering a postal address,
– selecting a service available in a town (town hall, hotel, cinema, air
port...),
– entering GPS details,
– selecting a destination stored in the directory,
– selecting one of the last ten desti nations.
Selecting a destinationThe last guidance address is dis
played.
Select and validate in succession the
entry zones
"Town","Street" , then
"N" to fill them in.
The "OK" function permits validation
of the address and access to the
guidance activation function.
The "Archive" function permits
recording of the address in a directory
file.
The "Current location" function
permits display of the current
address.
Entering an address
18-11-2002

YOUR 807 IN DETAIL81
The menu ''Guidance options'' pro
vides access to the following func
tions:
changing of the route calculation criteria,
voice synthesis adjustment of guid ance messages,
description of the information relat ing to the navigation CDRom,
management of the addresses stored in the directory.
Guidance options
The last criteria used are displayed.
Select a criterion from the list, then
validate by pressing the dial.
When the criterion of your choice
has been selected, select the
"OK"
function then confirm by pressing the
dial.
Adjusting the voice synthesiser
Select the type of voice "male"or
"female" , after inserting the configu
ration CDROM. Adjust the volume
of the voice synthesis by turning the
dial, then validate by pressing the
dial.
Note: the volume can also be adjusted
during a message, using the
audio/telephone button on the steering
wheel control. Management of the directory
This function enables you to rename
or delete an address stored in the
directory.
Select the description corresponding
to the stored address to be changed.
Select the
"Delete" function or the
"Rename" function, then confirm by
pressing the dial.
Select the "OK" function, then con
firm by pressing the dial to record the
changes made.
Stopping / Resuming guidance
"Stop guidance"
During guidance, select this function
then validate.
"Resume guidance"
In the absence of guidance select
this function then validate to activate
guidance to the last destination
programmed.
Calculation criteria
18-11-2002

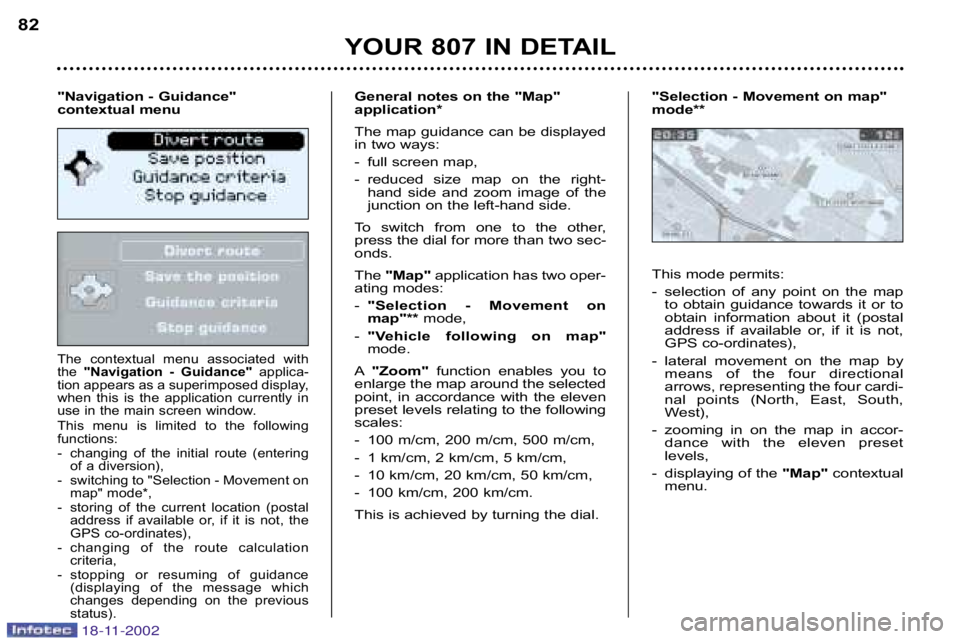

The contextual menu associated with
the "Navigation Guidance" applica
tion appears as a superimposed display,
when this is the application currently in
use in the main screen window.
This menu is limited to the following
functions:
changing of the initial route (entering of a diversion),
switching to "Selection Movement on map" mode*,
storing of the current location (postal address if available or, if it is not, the
GPS coordinates),
changing of the route calculation criteria,
stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status).
General notes on the "Map"
application*
The map guidance can be displayed
in two ways:
full screen map,
reduced size map on the righthand side and zoom image of the
junction on the lefthand side.
To switch from one to the other,
press the dial for more than two sec
onds.
The "Map" application has two oper
ating modes: "Selection Movement on
map"** mode,
"Vehicle following on map"
mode.
A "Zoom" function enables you to
enlarge the map around the selected
point, in accordance with the eleven
preset levels relating to the following
scales:
100 m/cm, 200 m/cm, 500 m/cm,
1 km/cm, 2 km/cm, 5 km/cm,
10 km/cm, 20 km/cm, 50 km/cm,
100 km/cm, 200 km/cm.
This is achieved by turning the dial. This mode permits:
selection of any point on the map
to obtain guidance towards it or to
obtain information about it (postal
address if available or, if it is not,
GPS coordinates),
lateral movement on the map by means of the four directional
arrows, representing the four cardi
nal points (North, East, South,
West),
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Map" contextual
menu.
YOUR 807 IN DETAIL
82
"Navigation Guidance"
contextual menu
"Selection Movement on map"
mode**
18-11-2002

The contextual menu associated with
the "Navigation Guidance" applica
tion appears as a superimposed display,
when this is the application currently in
use in the main screen window.
This menu is limited to the following
functions:
changing of the initial route (entering of a diversion),
switching to "Selection Movement on map" mode*,
storing of the current location (postal address if available or, if it is not, the
GPS coordinates),
changing of the route calculation criteria,
stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status).
General notes on the "Map"
application*
The map guidance can be displayed
in two ways:
full screen map,
reduced size map on the righthand side and zoom image of the
junction on the lefthand side.
To switch from one to the other,
press the dial for more than two sec
onds.
The "Map" application has two oper
ating modes: "Selection Movement on
map"** mode,
"Vehicle following on map"
mode.
A "Zoom" function enables you to
enlarge the map around the selected
point, in accordance with the eleven
preset levels relating to the following
scales:
100 m/cm, 200 m/cm, 500 m/cm,
1 km/cm, 2 km/cm, 5 km/cm,
10 km/cm, 20 km/cm, 50 km/cm,
100 km/cm, 200 km/cm.
This is achieved by turning the dial. This mode permits:
selection of any point on the map
to obtain guidance towards it or to
obtain information about it (postal
address if available or, if it is not,
GPS coordinates),
lateral movement on the map by means of the four directional
arrows, representing the four cardi
nal points (North, East, South,
West),
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Map" contextual
menu.
YOUR 807 IN DETAIL
82
"Navigation Guidance"
contextual menu
"Selection Movement on map"
mode**
18-11-2002

YOUR 807 IN DETAIL83
This mode permits:
displaying of the vehicle on the map with the route proposed by
the navigation if the guidance is
active,
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Navigation
Guidance" contextual menu.

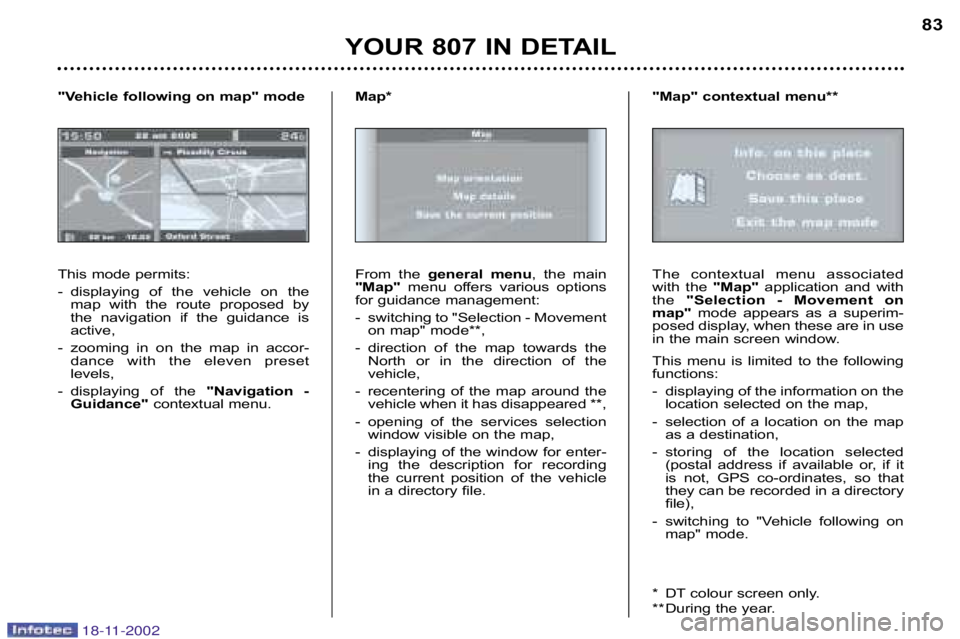

"Vehicle following on map" mode
From the
general menu , the main
"Map" menu offers various options
for guidance management:
switching to "Selection Movement on map" mode**,
direction of the map towards the North or in the direction of the
vehicle,
recentering of the map around the vehicle when it has disappeared **,
opening of the services selection window visible on the map,
displaying of the window for enter ing the description for recording
the current position of the vehicle
in a directory file.
Map*The contextual menu associated
with the
"Map"application and with
the "Selection Movement on
map" mode appears as a superim
posed display, when these are in use
in the main screen window.
This menu is limited to the following
functions:
displaying of the information on the location selected on the map,
selection of a location on the map as a destination,
storing of the location selected (postal address if available or, if it
is not, GPS coordinates, so that
they can be recorded in a directory
file),
switching to "Vehicle following on map" mode.
* DT colour screen only.
** During the year.
"Map" contextual menu**
18-11-2002

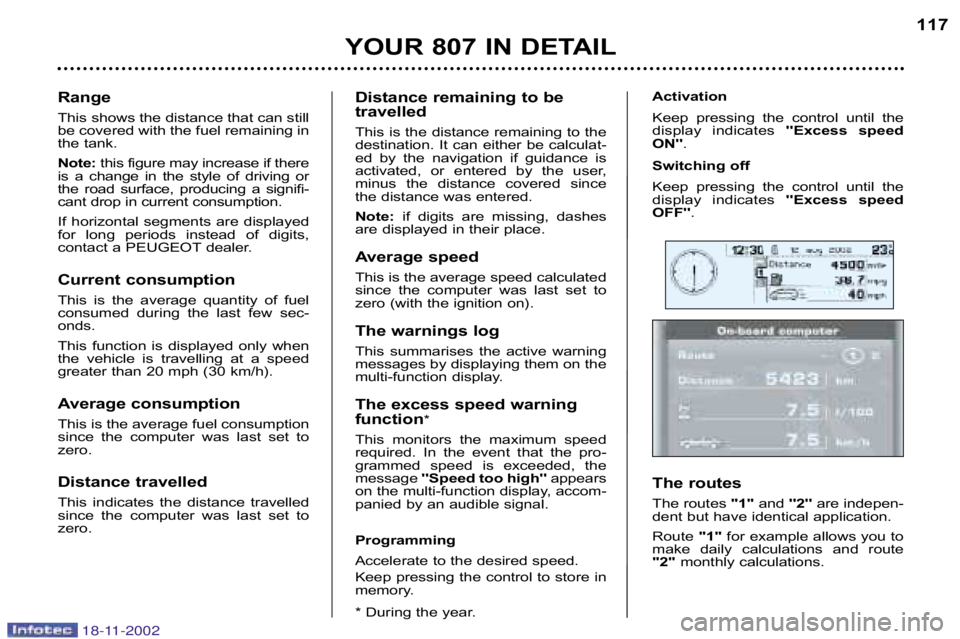

Distance remaining to be
travelled
This is the distance remaining to the
destination. It can either be calculat
ed by the navigation if guidance is
activated, or entered by the user,
minus the distance covered since
the distance was entered.
Note:if digits are missing, dashes
are displayed in their place.
Average speed
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
The warnings log
This summarises the active warning
messages by displaying them on the
multifunction display.
The excess speed warning
function *
This monitors the maximum speed
required. In the event that the pro
grammed speed is exceeded, the
message ''Speed too high'' appears
on the multifunction display, accom
panied by an audible signal.
Programming
Accelerate to the desired speed.
Keep pressing the control to store in
memory.
* During the year.
YOUR 807 IN DETAIL 117
Range
This shows the distance that can still
be covered with the fuel remaining in
the tank.
Note:
this figure may increase if there
is a change in the style of driving or
the road surface, producing a signifi
cant drop in current consumption.
If horizontal segments are displayed
for long periods instead of digits,
contact a PEUGEOT dealer.
Current consumption
This is the average quantity of fuel
consumed during the last few sec
onds.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
Average consumption
This is the average fuel consumption
since the computer was last set to
zero.
Distance travelled
This indicates the distance travelled
since the computer was last set to
zero. Activation
Keep pressing the control until the
display indicates
''Excess speed
ON'' .
Switching off
Keep pressing the control until the
display indicates ''Excess speed
OFF'' .
The routes
The routes "1" and ''2''are indepen
dent but have identical application.
Route "1"for example allows you to
make daily calculations and route
"2" monthly calculations.
18-11-2002

Distance remaining to be
travelled
This is the distance remaining to the
destination. It can either be calculat
ed by the navigation if guidance is
activated, or entered by the user,
minus the distance covered since
the distance was entered.
Note:if digits are missing, dashes
are displayed in their place.
Average speed
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
The warnings log
This summarises the active warning
messages by displaying them on the
multifunction display.
The excess speed warning
function *
This monitors the maximum speed
required. In the event that the pro
grammed speed is exceeded, the
message ''Speed too high'' appears
on the multifunction display, accom
panied by an audible signal.
Programming
Accelerate to the desired speed.
Keep pressing the control to store in
memory.
* During the year.
YOUR 807 IN DETAIL 117
Range
This shows the distance that can still
be covered with the fuel remaining in
the tank.
Note:
this figure may increase if there
is a change in the style of driving or
the road surface, producing a signifi
cant drop in current consumption.
If horizontal segments are displayed
for long periods instead of digits,
contact a PEUGEOT dealer.
Current consumption
This is the average quantity of fuel
consumed during the last few sec
onds.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
Average consumption
This is the average fuel consumption
since the computer was last set to
zero.
Distance travelled
This indicates the distance travelled
since the computer was last set to
zero. Activation
Keep pressing the control until the
display indicates
''Excess speed
ON'' .
Switching off
Keep pressing the control until the
display indicates ''Excess speed
OFF'' .
The routes
The routes "1" and ''2''are indepen
dent but have identical application.
Route "1"for example allows you to
make daily calculations and route
"2" monthly calculations.
18-11-2002
