2002 PEUGEOT 807 fuel

THE KEYS
The keys allow you to switch on
the ignition and to independently
operate the front doors, the fuel
filler cap, the glove box, the pas
senger air bag disarming switch
and the mechanical child lock.
Central locking
From the driver’s or passenger
door, the keys allow you to lock,
deadlock or unlock the doors and
the tailgate and to fold back the
exterior mirrors.
If one of the doors or the boot is
open, it is impossible to operate
the central locking.
The remote control performs
the same functions at a
distance.The remote control key
Locking
Press button
Ato lock the vehicle.
Button Aalso locates the vehicle
and reinitialises the remote con- trol.
Deadlocking
Press button Ato deadlock the
vehicle and close the windows
automatically.
A second press on button Ain
the five seconds following dead
locking, changes deadlocking to
normal locking.
Deadlocking renders the
internal and external doorlocking controls inoperative. Do not leave anyoneinside the vehicle when it is deadlocked.
Unlocking/Ventilation
Press button Bto unlock the vehi
cle.
A second press on buttonBin
the five seconds following unlock
ing opens the windows. Opening/Closing the electric
sliding side doors
Along press on button
C or D
unlocks the vehicle, then permits
opening or closing of the corre
sponding rear door.
Folding/Unfolding the key
Press button Eto unfold or fold
the key in its case.
STARTING
1 STOP position: the ignition is off.
2 1 st
notch, Accessories
position:
the ignition is off but the
accessories can be used.
3 2 nd
notch, Running posi
tion:
the ignition is on.
4 Starting position: operates the starter.
4
103
18-11-2002
YOUR 807 AT A GLANCE

YOUR 807 AT A GLANCE12Inside the vehicle: lift the cover
at the left foot of the passenger
seat and pull the control upwards. FILLING WITH FUEL
This operation must be carried out with
the engine switched off.
➜ Open the fuel filler cap.
➜ Insert the key then turn it to the left.
➜ Remove the cap and hook it onto the clip on the inside of the flap.
A label on the inside of the flap shows which type of fue l to use.
When you fill your tank, do not continue after the third cu toff of the pump.
This could cause a malfunction.
The capacity of the tank is approximately 17 gallons (80 litres).
➜ After filling the tank, lock the cap and close the flap.
Low fuel level warning light
From the time this light comes on, accompanied by the
message "Fuel level low" , the range remaining is
approximately 30 miles(50 km).
OPENING THE BONNET
Outside the vehicle:
lift the control, raise the
bonnet and secure the
strut to keep the bonnet
open.
11111 0
18-11-2002

PEUGEOT SERVICING Your vehicle's servicing schedule is based on level Aservices (engine oil change, checks and topups) and level Cservices
( level A + workshop operations carried out every 40,000/36,000 miles (60 00 0 km)) in accordance with the tables on the fol
lowing pages.
Irrespective of the conditions in which your vehicle is used, the interval between two level Aservices may not exceed:
• For petrol engines, 20,000 miles (30 000 km) or 2 years .
• For HDI turbo diesel engines, 12,000 miles (20 000 km) or 2 years .
In all cases, the extension of the service intervals mea ns that the engine oil level must be checked regularly: top
ping up of the oil between oil changes is normal.
It is for this reason that your PEUGEOT dealer invites you to make an intermediate visit between each service. The
service indicator does not indicate when this visit is d ue.
This visit is to be made between two services.
A Peugeot professional will carry out a quick check and will top up the levels if necessary (oil, coolant, screenwash up to
2 litres).
If the oil level is too low there is a risk of serious d amage to the engine: check the engine oil level at least every
3,000 miles (5 000 km)
This extended servicing has been made possible by modifications t o our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMEN DED BY THE
MANUFACTURER (see "Lubricants" pages).
Arduous conditions of use
If the vehicle is used in certain particularly arduous condition s such ascontinuous doortodoor use, town use (e.g. taxi),
repeated short journeys, with the engine cold in low tem peraturesor for long stays in hot countries with temperatures
often above 30 °C , cold countrieswith temperatures often below minus 15 °C, countries with a dusty atmosphere, and
countries whose lubricantsor fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule w hich includes special operations and shorter service
intervals:
• Every 12,000 miles (20 000 km) or every year for petrol vehicles.
• Every 10,000 miles (15 000 km) or every year for HDI Turbo Diesel en gine vehicles.
PEUGEOT SERVICING
18
18-11-2002

Level
Operations Description of operation 1st service
AC Intermediate
LEVEL
CHECK
DRAIN/REFILL
REPLACE
PEUGEOT SERVICING 19
Oil filter.
Fuel filter
*(petrol). Fuel filter element (diesel). Air filter element. Spark plugs (petrol).
Engine oil. Bleed fuel filter (diesel).
Engine oil (check + topup). Manual gearbox oil (check + topup). Battery (check + topup) if cap is removable. Screen wash (check + topup). Coolant (check + topup). Brake fluid (check + topup). Power steering fluid (check + top up according to specification). Operation of lights and indicators. Condition of glass, headlamp and light lenses and mirrors. Horn. Windscreen washer jets. Condition of wiper blades. Condition and tension of the ancillary drive belts. Handbrake. Condition of hydraulic circuits (hoses and covers).
Condition of rubber boots and gaiters. Brake pads.
o Play in hubs, link rods, ball joints, flexible mountings. Shock absorbers. Rear drum brake lining wear. Condition and pressure of tyres (including spare wheel). Emission control check as per current legislation (petrol). Smoke opacity (diesel). Pollen filter (according to specification).

oVisual check of the whole vehicle.

: All driving conditions o: Arduous conditions * According to destination
ROAD TEST
A AND C SERVICE LEVELS AND THE INTERMEDIATE VISIT
18-11-2002

PEUGEOT SERVICING
20
THE SERVICE LEVELS
Each vehicle has its own servicing cycle, defined by th e manufacturer in terms of its engine type.
This cycle consists of alternating 2 types of service, A and C, int ermediate visits and a few additional operations specific to
your vehicle; these correspond to key stages in the life of your 8 07.
At the first and each subsequent service, your dealer wi ll advise you of the type and content of the next service d ue.
Intermediate topup visit
included in the fixed inter
val services.
MAINTENANCE CYCLE FOR YOUR PETROL ENGINE 807
2 litre and 2.2 litre petrol engines: service every 2 y ears or 20 000 miles (30 000 km) maximum
1st service at
6,000 miles (10 000 km) or 6 months*.
This is necessary in order to benefit from the warranty.
MILES (KM) 20,000 (30 000) 40,000 (60 000) 60,000 (90 000) 80,0 00 (120 000) 100,000 (150 000) 120,000 (180 000)
* Whichever comes first.
These services at fixed times are carried out with a minimum of synth
etically based oil but
may also be carried out with synthetic based oilor fuel economy oil (except 2.2 litre petrol
engine)
Arduous conditions of use (see corresponding section)
18-11-2002

PEUGEOT SERVICING21
Intermediate topup visit
included in the fixed inter
val services.
MAINTENANCE CYCLE FOR YOUR 807 TURBO DIESEL HDI
2 litre HDI and 2.2 litre HDI turbo diesel engines: ser vice every 2 years or 12,000 miles (20 000km) maximum
1st service at 6,000
miles (10 000 km) or 6 months*.
This is necessary in order to benefit
from the warranty.
MILES (KM) 12,000 (20 000) 24,000 (40 000) 36,000 (60 000) 48,000 (80 000)
60,000 (100 000) 72,000 (120 000) 84,000 (140 000) 96,000 (160 000) 108,000 (180 000)
+ maintenance of the
particulate emission filter
+ maintenance of the
particulate emission filter
These fixed interval services are carried out with synthetically based oil. Fuel Economy oil or synthetic oil may also be
used.
Warning: use only 5W 40 oil for the 2.2 litre HDI engine.
Intermediate topup visit included in the fixed interval se rvices.
* Whichever comes first.
18-11-2002

24
(1) Minimum grade: Petrol engines: ACEA A3 and API SH/SJ; diesel engines: ACEA B3 and API CF/CD ACEA = Association de Constructeurs Européens Automobiles (Association of European automobile Manufa cturers) API = American Petroleum Institute
If oil is used which does not conform to ACEA A3B3 standard, th is requires the 'Arduous conditions' servicing schedule to be follow ed, which involves shorter intervals between services.
Use only 5W 40 oil for the 2.2 litre HDI engine.
* Fuel Economy oil can not be used for the 2.2 l 16V petrol engine.

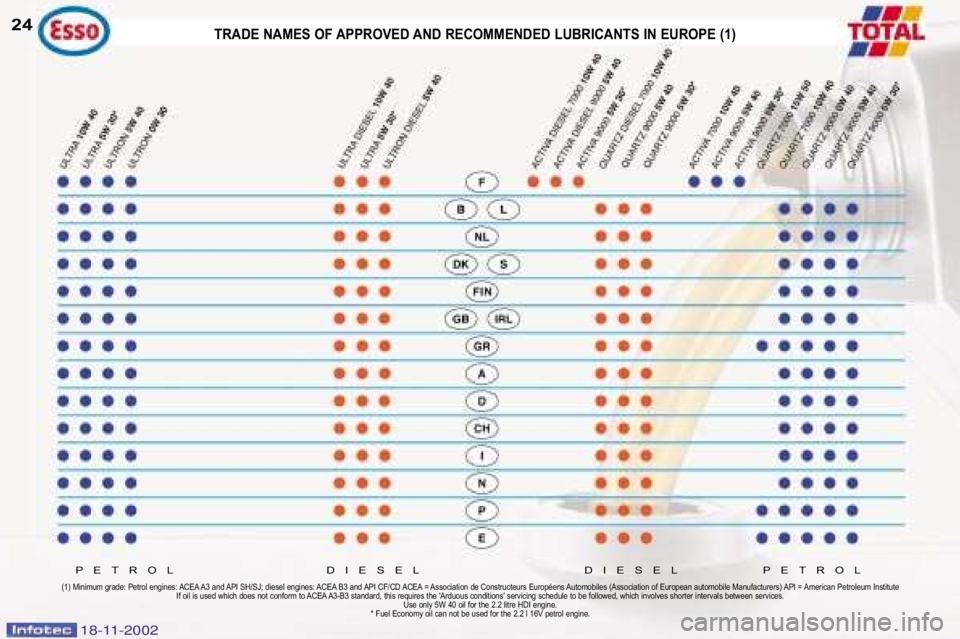

TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
PETROL DIESEL DIESEL PETROL
18-11-2002

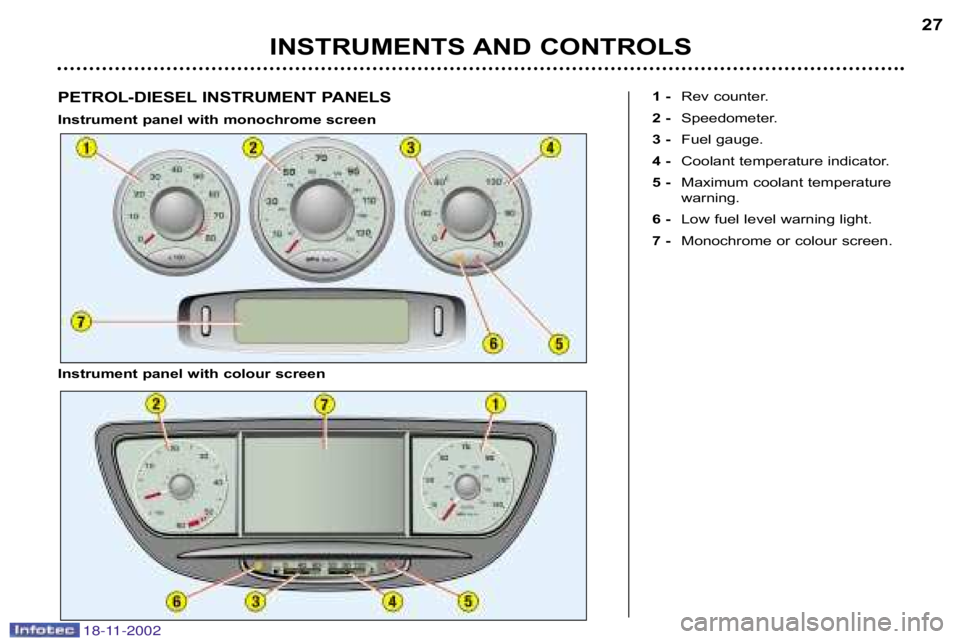

1 Rev counter.
2 Speedometer.
3 Fuel gauge.
4 Coolant temperature indicator.
5 Maximum coolant temperature
warning.
6 Low fuel level warning light.
7 Monochrome or colour screen.
INSTRUMENTS AND CONTROLS 27
Instrument panel with colour screen
PETROLDIESEL INSTRUMENT PANELS
Instrument panel with monochrome screen
18-11-2002
