2002 PEUGEOT 807 fuse box

18-11-2002
14 Windscreen washwipe
stalk.
Trip computer stalk.
15 Audio remote control stalk.
16 Interior alarm disarming
switch.
17 Electric mirror controls.
Window controls.
Rear window locking control.
18 Steering lock and ignition.
19 Dynamic stability control
(ESP/ASR) switch.
20 Headlamp height
adjustment.
21 Fuse box.
22 Handbrake.
23 Steering wheel adjustment
control.
24 Battery / Fuse box.
25 Heated seat switches.
26 Storage. 27
Gear lever.
28 Cooled compartment.
29 Ashtray / Can holder.
30 Storage compartment
or remote control keypad.
31 Lighter / 12 V accessories
socket.
32 Hazard warning lights
switch.
33 Air conditioning controls.
34 Passenger compartment
temperature sensor.
35 Passenger lower glove box.
36 Passenger air bag.
37 Side vent.
38 Bonnet release.
39 Passenger air bag disarming
switch*.
* According to country.
YOUR 807 AT A GLANCE3
1 Side window demisting
vents.
2 Speaker (tweeter).
3 Windscreen demisting
vents.
4 Passenger upper glove box.
5 Brightness sensor.
6 Instrument panel /
Multifunction display.
7 RB3, RD3, RT3 audio
equipment with flap.
8 Central vents.
9 Driver’s upper glove box.
10 Lights and direction
indicators stalk.
11 Cruise control controls.
12 Check unit.
13 Driver’s air bag.
Horn.

YOUR 807 IN DETAIL125
INTERIOR LAYOUT
1. Spectacles holder
2. Glove box To open the glove box, press the
button.
To close it, press the lid.
It has dedicated compartments
for storing a pen, a mobile tele
phone, a pair of spectacles,
coins or tokens and credit cards.
3. Audio equipment concealing flap
Lower the flap fully to lock it.
Press the flap to raise it.
4. Central storage compartment
5. Passenger upper glove box To open the glove box, press the
button.
To close it, press the lid.
It has dedicated compartments
for storing a pair of spectacles,
keys, five audio CDs and four
audio cassettes or nine audio
CDs. 6. Passenger lower glove box
This is fitted with a lock.
To open the glove box, lift the
handle.
The glove box lights when the lid
is opened.
It contains three sockets for
connecting video equipment.
It has dedicated compartments
for storing maps, a packet of
cigarettes, an A4 format docu
ment, etc.
7. Lighter or 12 volt accessories socket
8. Cooled compartment This can hold up to three cans.
Turn the closer, at the top, to
open or close the air feed.
9. Can holder and ashtray This retractable support, with
light, contains up to two can
holders, a removable ashtray
and a location for the lighter
when it is used as a 12V socket. 10. Storage compartment or
remote control keypad
The storage compartment must
not be used as an ashtray.
11. Storage
12. Door tray with storage compartment for a bottle
of water
13. Instrument panel fuse box
18-11-2002

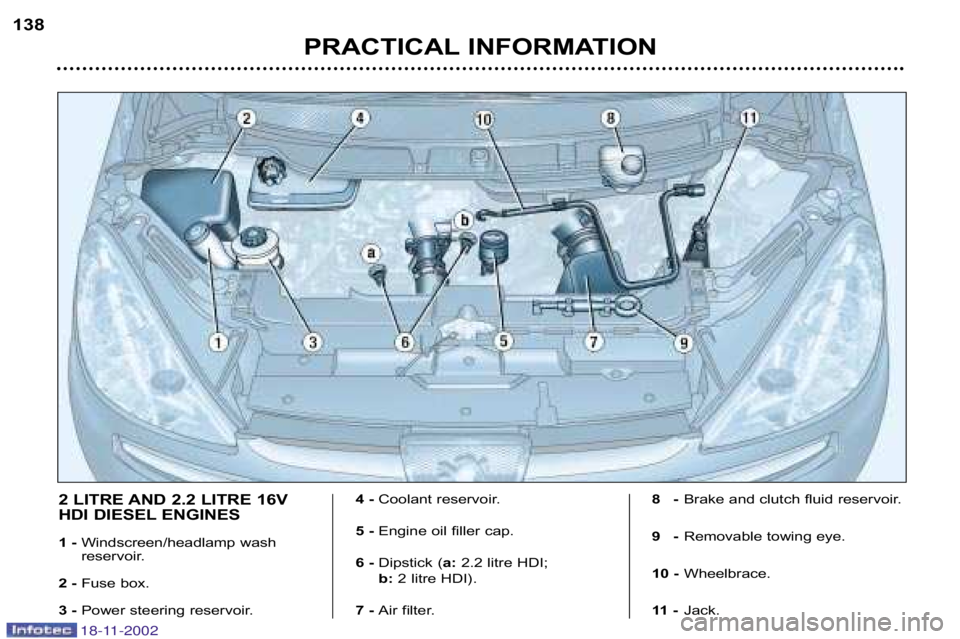

2 LITRE AND 2.2 LITRE 16V
PETROL ENGINES
1 Windscreen/headlamp wash
reservoir.
2 Fuse box.
3 Power steering reservoir. 4
Coolant reservoir.
5 Engine oil filler cap.
6 Dipstick.
7 Air filter. 8
Brake and clutch fluid reservoir.
9 Removable towing eye.
10 Wheelbrace.
11 Jack.
PRACTICAL INFORMATION
137
18-11-2002

PRACTICAL INFORMATION
138

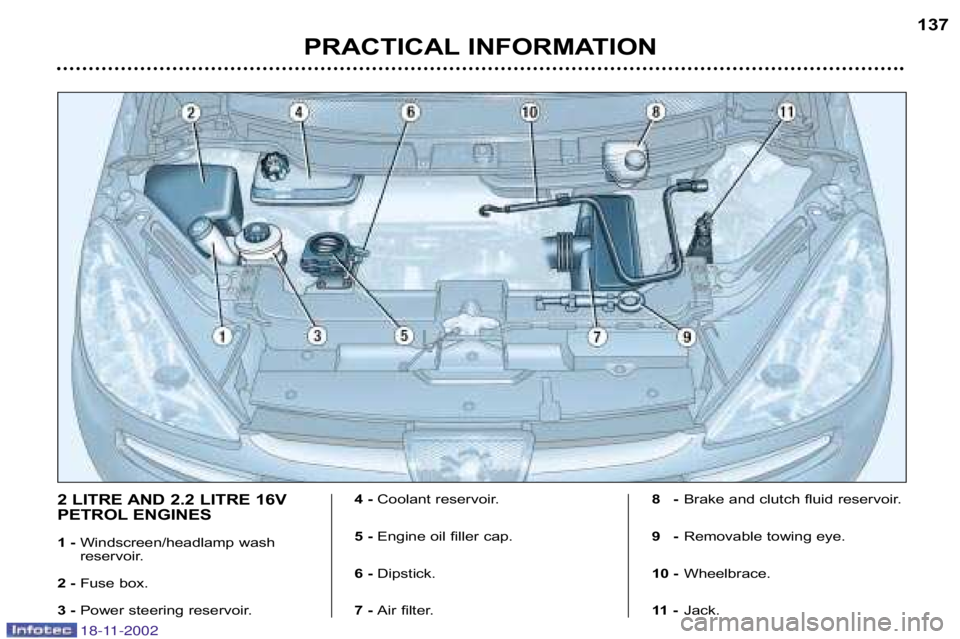

2 LITRE AND 2.2 LITRE 16V
HDI DIESEL ENGINES
1
Windscreen/headlamp wash
reservoir.
2 Fuse box.
3 Power steering reservoir. 4
Coolant reservoir.
5 Engine oil filler cap.
6 Dipstick ( a:2.2 litre HDI;
b: 2 litre HDI).
7 Air filter. 8
Brake and clutch fluid reservoir.
9 Removable towing eye.
10 Wheelbrace.
11 Jack.
18-11-2002

PRACTICAL INFORMATION
144
CHANGING A BULB
Front lights
Note:
handle the bulbs with a dry cloth.

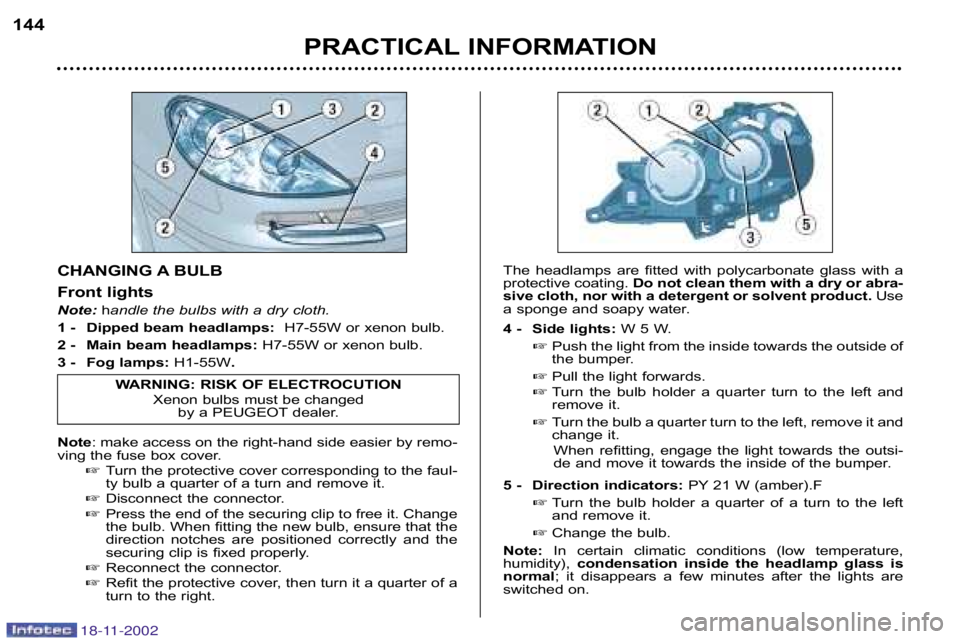

1 Dipped beam headlamps: H755W or xenon bulb.
2 Main beam headlamps: H755W or xenon bulb.
3 Fog lamps: H155W.
Note : make access on the righthand side easier by remo
ving the fuse box cover.
Turn the protective cover corresponding to the faul
ty bulb a quarter of a turn and remove it.
 Disconnect the connector.
 Press the end of the securing clip to free it. Change
the bulb. When fitting the new bulb, ensure that the
direction notches are positioned correctly and the
securing clip is fixed properly.
 Reconnect the connector.
 Refit the protective cover, then turn it a quarter of a
turn to the right. The headlamps are fitted with polycarbonate glass with a
protective coating.
Do not clean them with a dry or abra
sive cloth, nor with a detergent or solvent product. Use
a sponge and soapy water.
4 Side lights: W 5 W.
 Push the light from the inside towards the outside of
the bumper.
 Pull the light forwards.
 Turn the bulb holder a quarter turn to the left and
remove it.
 Turn the bulb a quarter turn to the left, remove it and
change it.
When refitting, engage the light towards the outsi
de and move it towards the inside of the bumper.
5 Direction indicators: PY 21 W (amber).F
 Turn the bulb holder a quarter of a turn to the left
and remove it.
 Change the bulb.
Note: In certain climatic conditions (low temperature,
humidity), condensation inside the headlamp glass is
normal ; it disappears a few minutes after the lights are
switched on.
WARNING: RISK OF ELECTROCUTION
Xenon bulbs must be changed by a PEUGEOT dealer.
18-11-2002

PRACTICAL INFORMATION
146

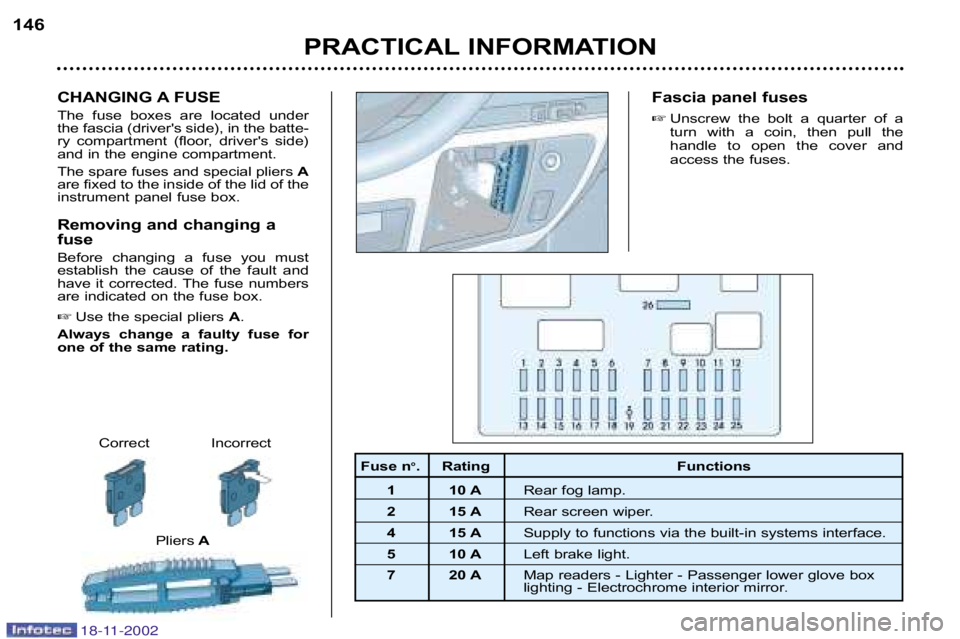

Fuse n
o
. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Supply to functions via the builtin systems interface.
5 10 A Left brake light.
7 20 A Map readers Lighter Passenger lower glove box
lighting Electrochrome interior mirror .
Fascia panel fuses
 Unscrew the bolt a quarter of a
turn with a coin, then pull the
handle to open the cover and
access the fuses.CHANGING A FUSE
The fuse boxes are located under
the fascia (driver's side), in the batte
ry compartment (floor, driver's side)
and in the engine compartment.
The spare fuses and special pliers A
are fixed to the inside of the lid of the
instrument panel fuse box.
Removing and changing a
fuse
Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
 Use the special pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect
Pliers A
18-11-2002

PRACTICAL INFORMATION
148
Battery compartment fuses
Fuse box
To access the fuse box in the battery
compartment (floor in front of the dri
ver's seat):
 unclip the cover.
Carefully close the cover when
you have finished.

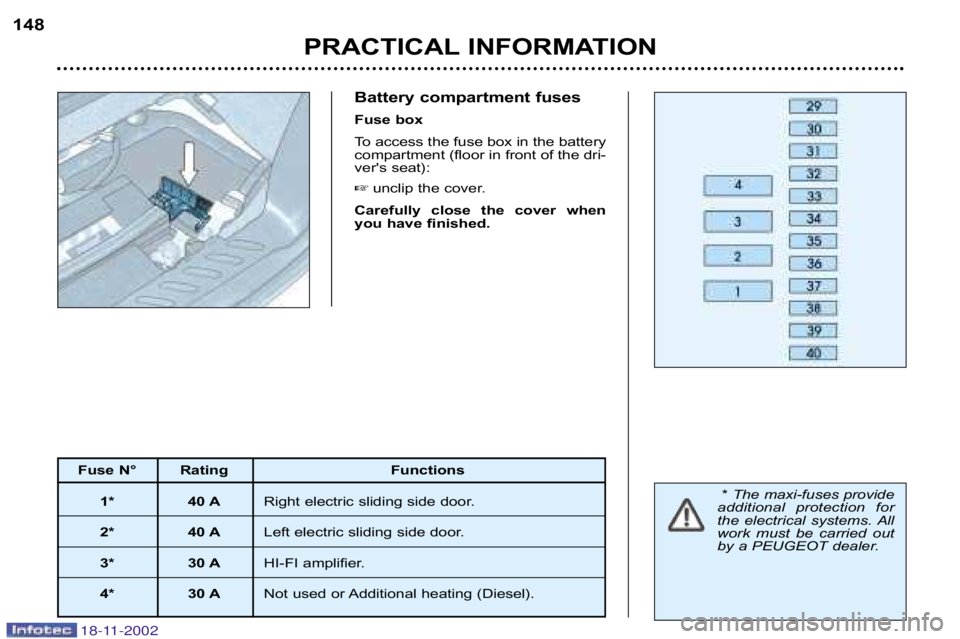

Fuse N° Rating Functions
1* 40 A Right electric sliding side door.
2* 40 A Left electric sliding side door.
3* 30 A HIFI amplifier.
4* 30 A Not used or Additional heating (Diesel).
* The maxifuses provide
additional protection for
the electrical systems. All
work must be carried out
by a PEUGEOT dealer.
18-11-2002

PRACTICAL INFORMATION
150
Engine compartment fuses
Fuse box
To access the fuse box in the engine
compartment (to the left of the
coolant reservoir):
 unclip the cover.
Carefully close the cover when
you have finished. The electrical system of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dea
ler.
PEUGEOT will not accept respon
sibility for the cost incurred in
repairing your vehicle or for recti
fying the malfunctions resulting
from the installation of accesso
ries not supplied and not recom
mended by PEUGEOT and not
installed in accordance with its
instructions, in particular where
the equipment in question
consumes more than 10 milliam
peres.
* The maxifuses provide additio
nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.

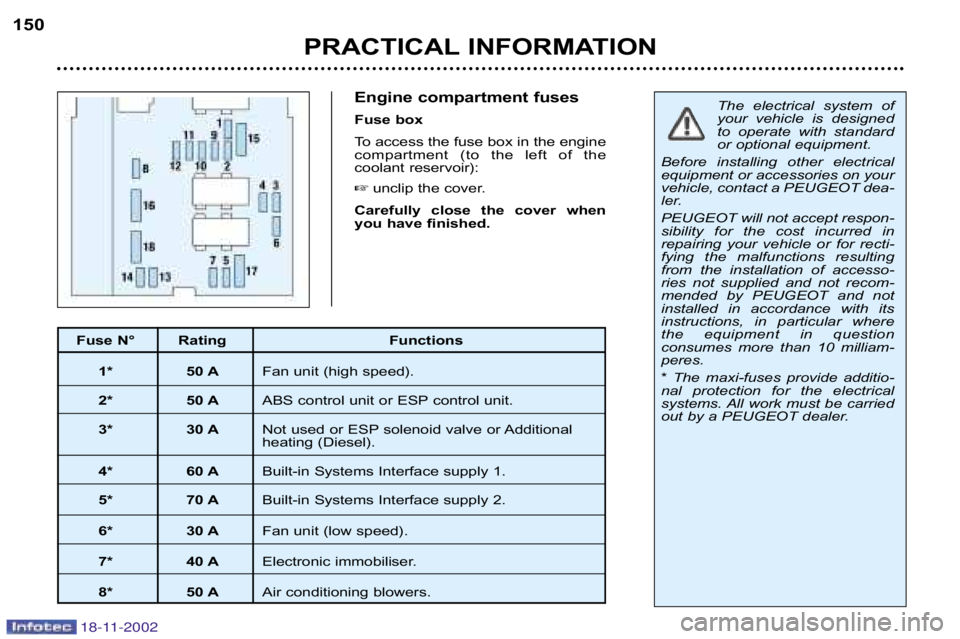

Fuse N° Rating Functions
1* 50 A Fan unit (high speed).
2* 50 A ABS control unit or ESP control unit.
3* 30 A Not used or ESP solenoid valve or Additional
heating (Diesel).
4* 60 A Builtin Systems Interface supply 1.
5* 70 A Builtin Systems Interface supply 2.
6* 30 A Fan unit (low speed).
7* 40 A Electronic immobiliser.
8* 50 A Air conditioning blowers.
