2002 PEUGEOT 807 fuse box

PRACTICAL INFORMATION151
Fuse N° Rating
Functions
1 10 A Manual gearbox reversing lights switch Xenon headlamps Fan uni t relay control
Engine coolant level Oil heater or preheat unit (Diesel) V ehicle speed sensor or air flow
sensor (Diesel).
2 15 A Fuel pump Exhaust gas recirculation and Turbo pressure regulation solenoid valves
(Diesel).
3 10 A ABS or ESP control unit.
4 10 A Engine wiring housing ignition positive supply
5 10 A Not used or particle emission filter injector (Diesel) Particle emi ssion filter control unit (Diesel).
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Supply via the engine wiring housing relay Fan unit relay co ntrol (Diesel) –
Diesel high pressure regulation and exhaust gas recirculation sol enoid valves
(Diesel).
9 15 A Left dipped beam Headlamp height adjuster.
10 15 A Right dipped beam.
11 10 A Left main beam.
12 10 A Right main beam.
13 15 A Horn.
14 10 A Front and rear washwipe pump.
15 30 A Oxygen sensor Injectors Ignition coil Canister, timing and exhaust gas recriculation
solenoid valves (Petrol) Injection pump solenoid valve (Diesel).
16 30 A Not used or air pump (Petrol).
17 30 A Front wiper.
18 40 A Additional blowers.
18-11-2002

PRACTICAL INFORMATION
146
Fuse n
o
. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Supply to functions via the builtin systems interface.
5 10 A Left brake light.
7 20 A Map readers Lighter Passenger lower glove box
lighting Electrochrome interior mirror .
Fascia panel fuses
 Unscrew the bolt a quarter of a
turn with a coin, then pull the
handle to open the cover and
access the fuses.CHANGING A FUSE
The fuse boxes are located under
the fascia (driver's side), in the batte
ry compartment (floor, driver's side)
and in the engine compartment.
The spare fuses and special pliers A
are fixed to the inside of the lid of the
instrument panel fuse box.
Removing and changing a
fuse
Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
 Use the special pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect
Pliers A
18-11-2002

PRACTICAL INFORMATION147
Fuse n
o

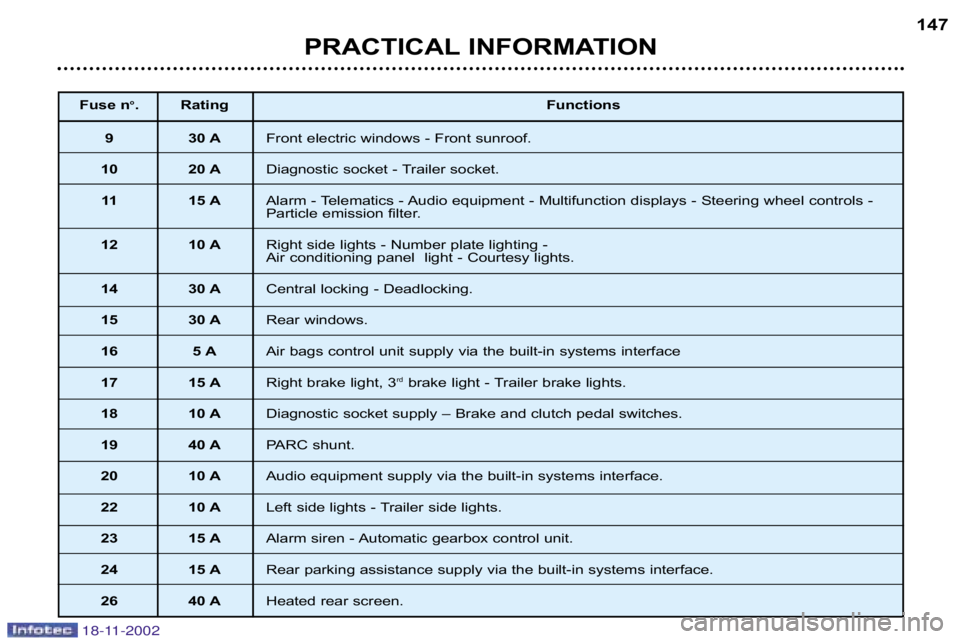

. Rating Functions
9 30 A Front electric windows Front sunroof.
10 20 A Diagnostic socket Trailer socket.
11 15 A Alarm Telematics Audio equipment Multifunction displays Steeri ng wheel controls
Particle emission filter.
12 10 A Right side lights Number plate lighting
Air conditioning panel light Courtesy lights.
14 30 A Central locking Deadlocking.
15 30 A Rear windows.
16 5 A Air bags control unit supply via the builtin systems interface
17 15 A Right brake light, 3rd
brake light Trailer brake lights.
18 10 A Diagnostic socket supply – Brake and clutch pedal switches.
19 40 A PARC shunt.
20 10 A Audio equipment supply via the builtin systems interface.
22 10 A Left side lights Trailer side lights.
23 15 A Alarm siren Automatic gearbox control unit.
24 15 A Rear parking assistance supply via the builtin systems interface.
26 40 A Heated rear screen.
18-11-2002
