2002 Peugeot 307 SW key code

GENERAL FUNCTIONSOn/off With the ignition key in the accessories or ignition position, press button Mto switch the set on or off.
The set can operate for 30 minutes without the vehicle ignition being switched on.
Anti-theft systemThe audio system is coded in such a way that it can operate only on your vehicle. It would not function if fitted to another vehicle. The anti-theft system is automatic and requires no action on your part. ADJUSTING THE VOLUME Press button Oto increase the volume, or button Nto decrease it.
Continuous pressure on buttons Oand Nallows a gradual adjustment of the volume.
AUDIO SETTINGS Press button Gseveral times in succession to access the bass (BASS), treble (TREB), loudness (LOUD),
fader ( FAD), balance (BAL)and automatic volume correction.
Exit from audio mode is automatic after a few seconds without pressing any button, or by pressing button G
after configuration of the automatic volume correction. Note : bass and treble settings are specific to each source. It is possible to set them differently for radio,
cassette (RB3), CD (RD3) and CD changer.
YOUR 307 SW IN DETAIL
40

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 SW IN DETAIL 71

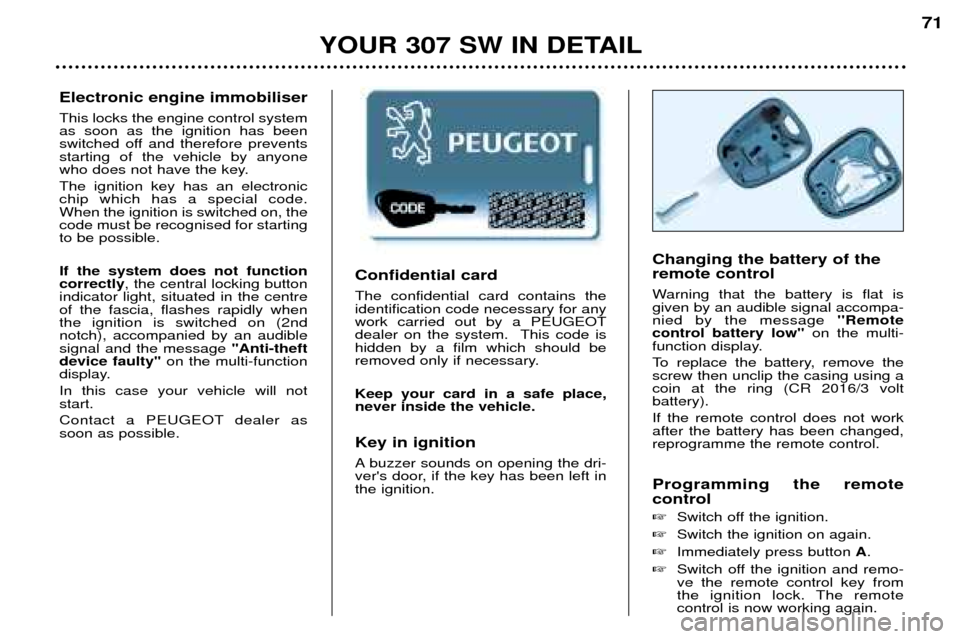

Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message "Anti-theft
device faulty" on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL
72

Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle. Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition.Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control. Programming the remote control Switch off the ignition.
Switch the ignition on again.
Immediately press button A.
Switch off the ignition and remo- ve the remote control key from
the ignition lock. The remotecontrol is now working again.
YOUR 307 SW IN DETAIL 71
Electronic engine immobiliser This locks the engine control system as soon as the ignition has been
switched off and therefore preventsstarting of the vehicle by anyone
who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode must be recognised for startingto be possible. If the system does not function correctly
, the central locking button
indicator light, situated in the centreof the fascia, flashes rapidly whenthe ignition is switched on (2ndnotch), accompanied by an audiblesignal and the message "Anti-theft
device faulty" on the multi-function
display. In this case your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.

Make a careful note of the number on each key. The key number is coded on the label attached to the key. If the key is lost, your PEUGEOT dealer can rapidly supply you with new keys. The high-frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle without your knowledge.
The remote control cannot operate if the key is in the ignition, even if the ignition is switched off, except for reprogram-ming. Nevertheless, do not operate the deadlocking device if there is someone inside the vehicle.As a safety measure (when there are children on board), remove the ignition key when leaving the vehicle, even for a short time.
Do not handle the buttons of your remote control when out of range of your vehicle. You run the risk of stopping it from working. It would then be necessary to reprogramme the remote control. When buying a second-hand car: - Ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones that can start your vehicle.
Do not make any modifications to the electronic engine immobiliser system.
YOUR 307 SW IN DETAIL
72

Special features of alloy wheels Bolt coversAlloy wheel bolts are covered by chrome trims. Use tool 6to remove the trims befo-
re slackening the bolts. Fitting the spare wheel If your vehicle is fitted with a steel spare wheel, when fitting it, it is normal
, when tightening the bolts, to
notice that the washers do not come
into contact with the rim. The sparewheel is secured by the cone shapeof each bolt. Fitting snow tyres If you fit snow tyres mounted on steel wheels, it is essential to use special
bolts available from your PEUGEOT
dealer. Anti-theft bolts* If your wheels are fitted with an anti- theft bolt (one per wheel), the chro-me trim and then the plastic covermust be removed using tool
6, befo-
re unscrewing the bolt using one ofthe two anti-theft sockets (whichwere given to you on delivery of yourvehicle along with the duplicate keysand the confidential card) and thewheel brace 1.
Note : make a careful note of the
code number engraved on the head
of the anti-theft socket. This willenable you to obtain duplicate anti-
theft sockets from a PEUGEOT dealer.
* According to model and country
PRACTICAL INFORMATION
110
