2002 PEUGEOT 206 Owners Manual

YOUR 206 IN DETAIL89
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped / main beam headlamps
Automatic switchingon of lights Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp
This only operates with the dipped /main beam headlamps.
Vehicles fitted with front fog lamps and a rear fog lamp (ring C) Front fog lamps (first rota-tion of the ring forwards) Front and rear foglamps (2nd rotation ofthe ring forwards)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringbackwards twice in succession.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
Dipped / Main beam change Pull the stalk towards you. Note:with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lightson. Front fog lamps and rear fog lamp Rotate the ring forwards to switch on
and backwards to switch off. Thestatus is confirmed by the indicatorlight on the instrument panel.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazz-
ling and are prohibited. Do not forget to switch the fog lamp off when it is no longer nee-ded.
17-06-2002

YOUR 206 IN DETAIL
90
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if the
light is poor.
They switch off when the light becomes bright enough. Note: In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Start with the key in the accesso-
ries position (1st notch),
- Press the end of the lights stalk for more than four seconds.
Note: after the ignition is switched
off and depending on the brightness, the lights remain on for about 45seconds or until the vehicle is loc-ked.
Note: the brightness sensor, cou-
pled with the rain sensor, is loca-ted in the centre of the wind-
screen, behind the interior mirror.It is used for automatic switchingon of the lights. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting acti-
ve" on the multi-function display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by anaudible signal, accompanied by themessage "Automatic switching on
of lights faulty" on the multi-func-
tion display.
Contact a PEUGEOT dealer to have the system checked.
17-06-2002

YOUR 206 IN DETAIL91
Stalk with intermittent wipe Front windscreen wiper 2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (pressdownwards).
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and head- lamp wash operate simultaneouslyfor a few seconds, only if the dip-
ped beam or main beam head-lamps are on .
Operation In position 1or 2, when the vehicle
stops, the windscreen wiper changes to a lower wiping speed,then resumes its initial speed whenthe vehicle starts again. In the Intermittent position, the
wiping speed is proportional to the speed of the vehicle. In the AUTOposition, the wiping
speed is proportional to the heaviness of the rainfall. When the ignition has been switched off for more than oneminute with the stalk in the wipeposition, it is necesary toreactivate this function. To do this,
move the stalk to any position, thenmove it back to the requiredposition.WINDSCREEN WIPER STALK
Stalk with automatic wipe Front windscreen wiper2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (pressdownwards).
17-06-2002

YOUR 206 IN DETAIL
92
Automatic timed windscreen wipers In the AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall. Operating checkActivation When the function is activated, the message "Automatic windscreen
wiping active" appears on the mul-
tifunction display. In the event of malfunction, the
driver is informed by an audible signal and the message "Auto
windscreen wiper faulty" on the
multifunction display. In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the system checked.
When using an automa- tic car wash, switch offthe ignition or check thatthe wiper stalk is not in
the automatic position.
In winter, it is advisable to waitfor the windscreen to completelyclear of ice before operating theautomatic wipe.Rear screen wiper
Turn ring Ato the first
notch for intermittent wiping.
Rear screen wash Turn ring Apast the first
notch; the screen washthen the wiper operate fora fixed period.
206 SW: the rear screen wiper and
rear screen wash functions aredisarmed when the rear screen isopen.
17-06-2002

YOUR 206 IN DETAIL93
TRIP COMPUTER Pressing the button on the end of the wiper stalkenables the following data to be
displayed:
Display B
- the range,
- the distance travelled,
- the average consumption,
- the current consumption,
- the average speed. Zero reset Press the stalk for more than two seconds. Display C
- the current consumption and the range,
- the average consumption, the distance travelled and the
average speed calculated over a period "1",
- the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.
17-06-2002

YOUR 206 IN DETAIL
94
Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note: this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.
Current fuel consumption This gives the fuel consumption recorded during the last two
seconds. This function is only dis-played when the vehicle is travellingat more than 12 mph (20 km/h).
Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero.
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving,
contact a PEUGEOT dealer.
17-06-2002

YOUR 206 IN DETAIL95

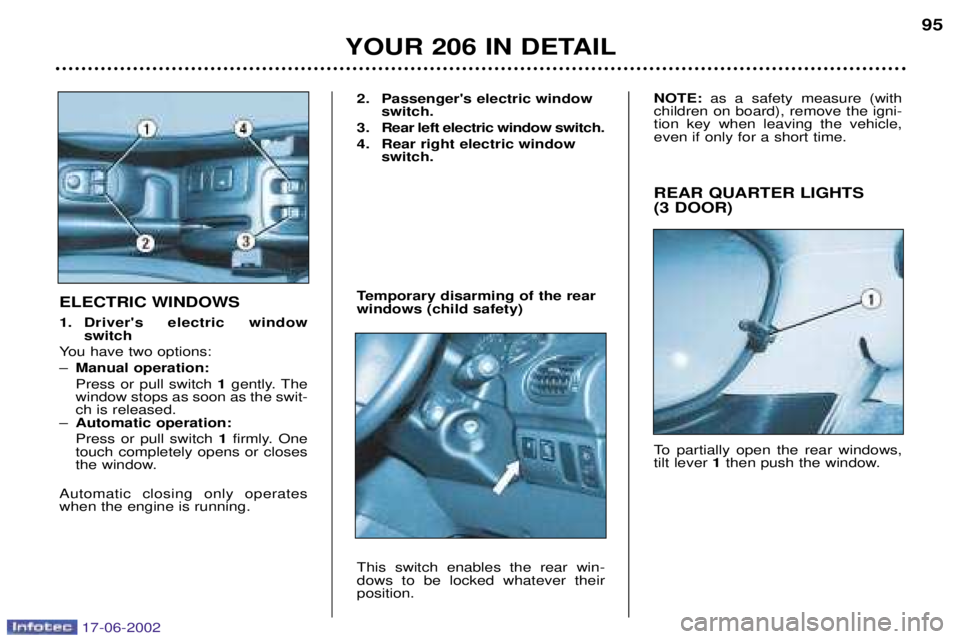

REAR QUARTER LIGHTS (3 DOOR)
To partially open the rear windows, tilt lever 1then push the window.
ELECTRIC WINDOWS
1. Driver's electric window
switch
You have two options: Ð Manual operation:Press or pull switch 1gently. The
window stops as soon as the swit- ch is released.
Ð Automatic operation: Press or pull switch 1firmly. One
touch completely opens or closes
the window.
Automatic closing only operateswhen the engine is running. 2. Passenger's electric window
switch.
3. Rear left electric window switch.
4. Rear right electric window switch.
Temporary disarming of the rear windows (child safety) This switch enables the rear win- dows to be locked whatever theirposition. NOTE:
as a safety measure (with
children on board), remove the igni-tion key when leaving the vehicle,even if only for a short time.
17-06-2002

YOUR 206 IN DETAIL
96
Manual interior mirror The interior mirror has two positions:
Ð day (normal),
Ð night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror. Manual exterior mirrors Move the lever in all four directions to adjust. When the vehicle is parked, the exterior mirrors can be folded back
manually.
ELECTRIC MIRRORS
Turn knob
1to the right or to the left
to select the corresponding mirror. Move knob 1in all four directions to
adjust. Electric folding mirrors With the ignition on, turn knob 1to
position A.
The exterior mirror on the driver's side is convex (outer edge defined by a dotted line) in order to eliminate the 'blind spot'. As a result, objects observed in the driver's and passenger's mirrors
are in reality closer than they appear.
This must be taken into account to correctly judge the distance of vehiclesapproaching from behind.
17-06-2002
