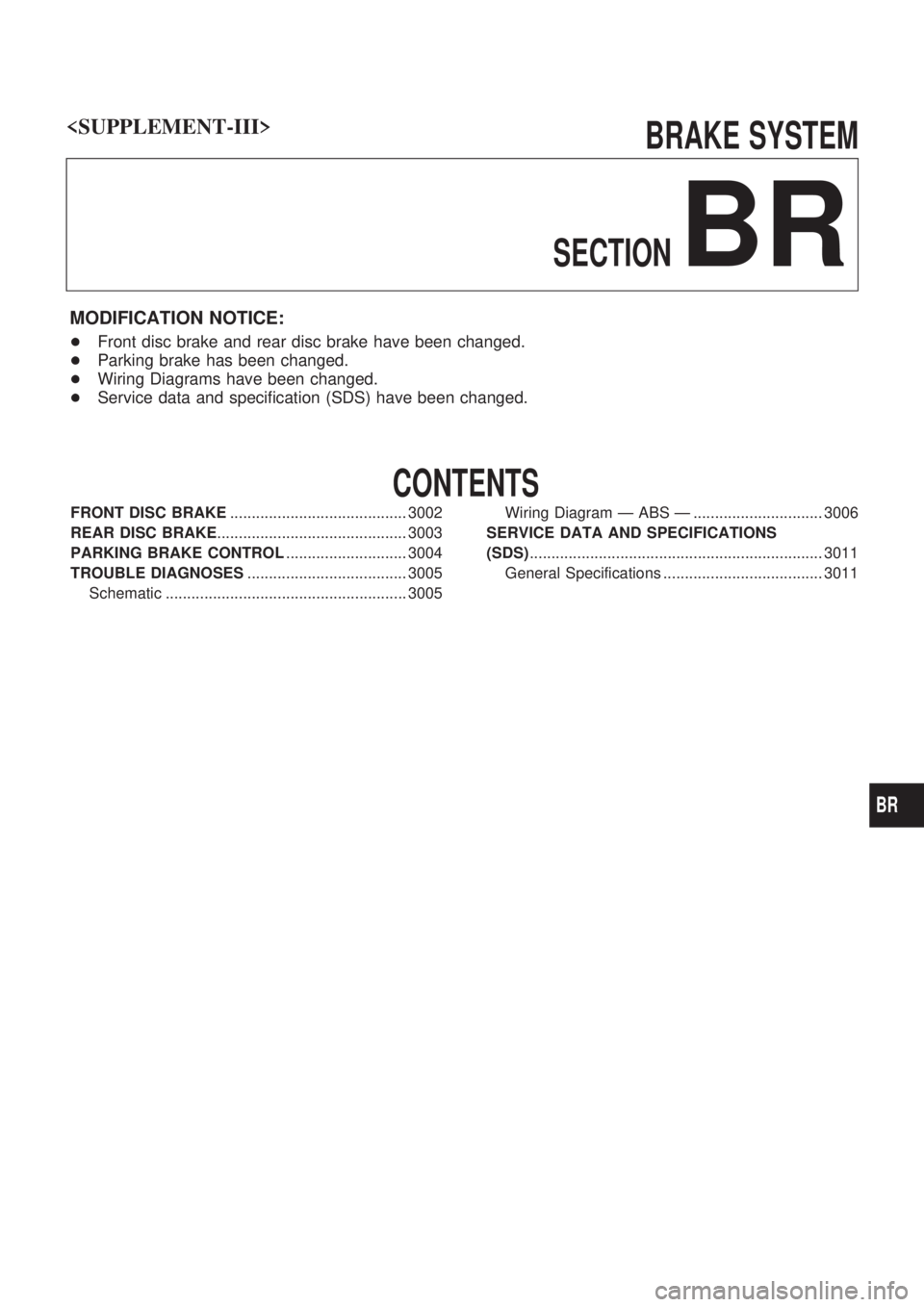

QUICK REFERENCE INDEX

BRAKE SYSTEM
SECTION
BR
MODIFICATION NOTICE:
+Front disc brake and rear disc brake have been changed.
+Parking brake has been changed.
+Wiring Diagrams have been changed.
+Service data and specification (SDS) have been changed.
CONTENTS
FRONT DISC BRAKE......................................... 3002
REAR DISC BRAKE............................................ 3003
PARKING BRAKE CONTROL............................ 3004
TROUBLE DIAGNOSES..................................... 3005
Schematic ........................................................ 3005Wiring Diagram Ð ABS Ð .............................. 3006
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 3011
General Specifications ..................................... 3011

BR

V1Main pin
V2Pin boot
V3Shim cover
V4Inner shim
V5Inner pad
V6Torque member fixing bolt
V7Washer
V8Torque member
V9Outer pad
V10Outer shim
V11Pad retainer
V12Connecting bolt
V13Copper washer
V14Main pin bolt
V15Cylinder body
V16Piston seal
V17Piston
V18Piston boot
SBR235F
FRONT DISC BRAKE
BR-3002

V1Main pin
V2Pin boot
V3Shim cover
V4Inner shim
V5Inner pad
V6Torque member fixing bolt
V7Washer
V8Torque member
V9Outer pad
V10Outer shim
V11Pad retainer
V12Connecting bolt
V13Copper washer
V14Main pin bolt
V15Cylinder body
V16Piston seal
V17Piston
V18Piston boot
SBR236F
REAR DISC BRAKE
BR-3003

SBR241F
PARKING BRAKE CONTROL
BR-3004

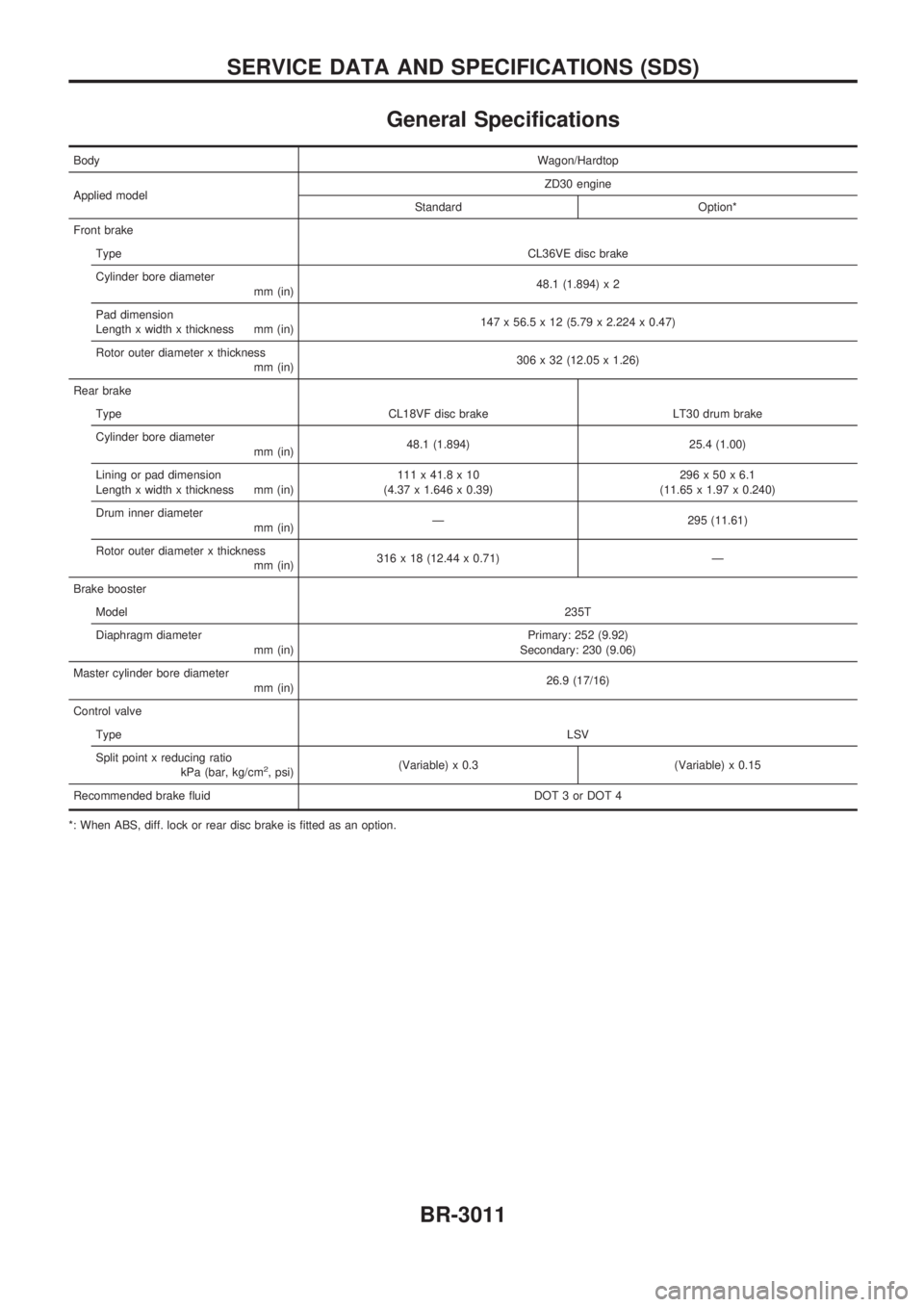

General Specifications
BodyWagon/Hardtop
Applied modelZD30 engine
Standard Option*
Front brake
TypeCL36VE disc brake
Cylinder bore diameter
mm (in)48.1 (1.894) x 2
Pad dimension
Length x width x thickness mm (in)147 x 56.5 x 12 (5.79 x 2.224 x 0.47)
Rotor outer diameter x thickness
mm (in)306 x 32 (12.05 x 1.26)
Rear brake
Type CL18VF disc brake LT30 drum brake
Cylinder bore diameter
mm (in)48.1 (1.894) 25.4 (1.00)
Lining or pad dimension
Length x width x thickness mm (in)111 x 41.8 x 10
(4.37 x 1.646 x 0.39)296x50x6.1
(11.65 x 1.97 x 0.240)
Drum inner diameter
mm (in)Ð 295 (11.61)
Rotor outer diameter x thickness
mm (in)316 x 18 (12.44 x 0.71) Ð
Brake booster
Model235T
Diaphragm diameter
mm (in)Primary: 252 (9.92)
Secondary: 230 (9.06)
Master cylinder bore diameter
mm (in)26.9 (17/16)
Control valve
TypeLSV
Split point x reducing ratio
kPa (bar, kg/cm
2, psi)(Variable) x 0.3 (Variable) x 0.15
Recommended brake fluid DOT 3 or DOT 4
*: When ABS, diff. lock or rear disc brake is fitted as an option.
SERVICE DATA AND SPECIFICATIONS (SDS)
BR-3011

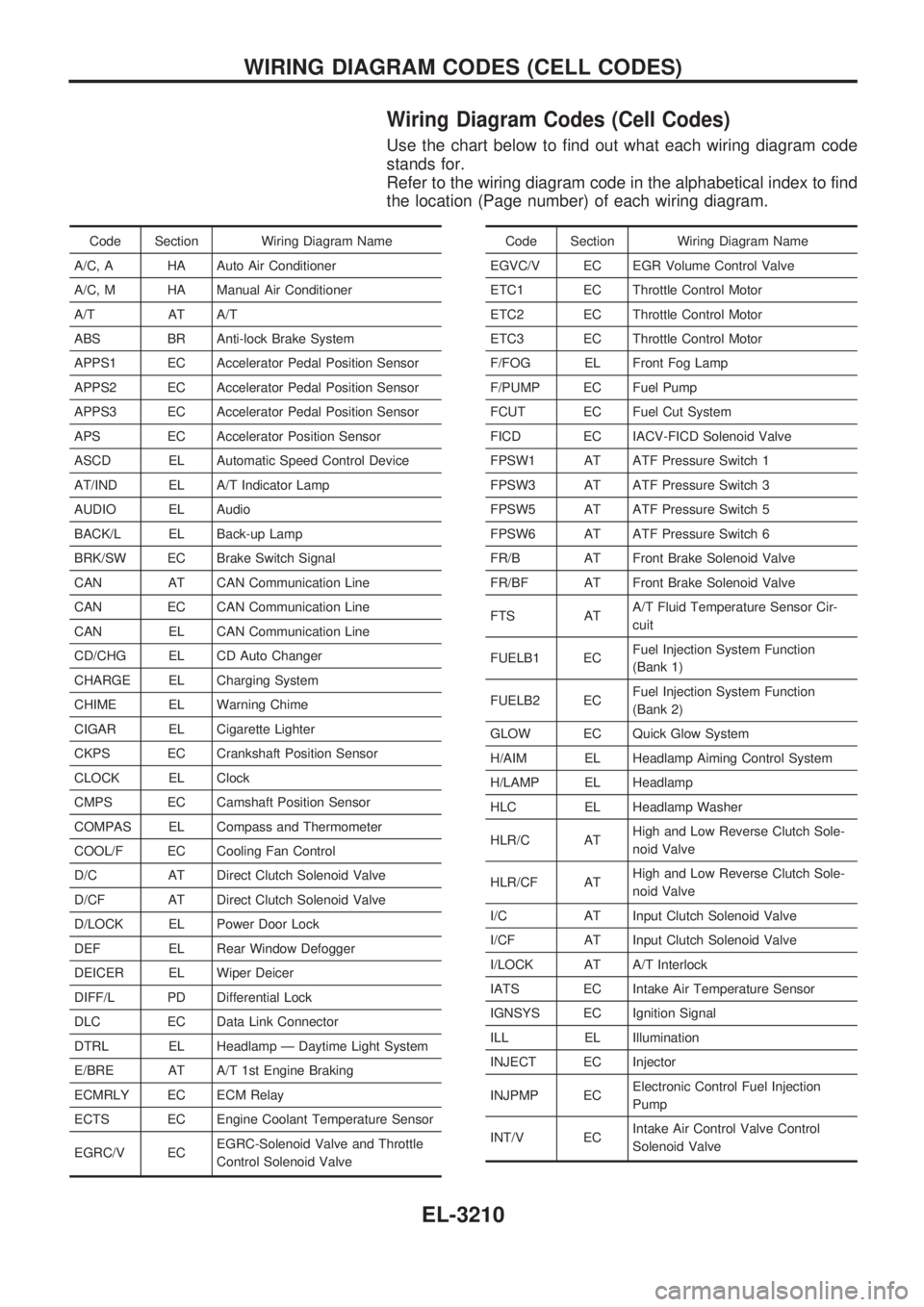

Wiring Diagram Codes (Cell Codes)
Use the chart below to find out what each wiring diagram code
stands for.
Refer to the wiring diagram code in the alphabetical index to find
the location (Page number) of each wiring diagram.
Code Section Wiring Diagram Name
A/C, A HA Auto Air Conditioner
A/C, M HA Manual Air Conditioner
A/T AT A/T
ABS BR Anti-lock Brake System
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
APS EC Accelerator Position Sensor
ASCD EL Automatic Speed Control Device
AT/IND EL A/T Indicator Lamp
AUDIO EL Audio
BACK/L EL Back-up Lamp
BRK/SW EC Brake Switch Signal
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN EL CAN Communication Line
CD/CHG EL CD Auto Changer
CHARGE EL Charging System
CHIME EL Warning Chime
CIGAR EL Cigarette Lighter
CKPS EC Crankshaft Position Sensor
CLOCK EL Clock
CMPS EC Camshaft Position Sensor
COMPAS EL Compass and Thermometer
COOL/F EC Cooling Fan Control
D/C AT Direct Clutch Solenoid Valve
D/CF AT Direct Clutch Solenoid Valve
D/LOCK EL Power Door Lock
DEF EL Rear Window Defogger
DEICER EL Wiper Deicer
DIFF/L PD Differential Lock
DLC EC Data Link Connector
DTRL EL Headlamp Ð Daytime Light System
E/BRE AT A/T 1st Engine Braking
ECMRLY EC ECM Relay
ECTS EC Engine Coolant Temperature Sensor
EGRC/V ECEGRC-Solenoid Valve and Throttle
Control Solenoid ValveCode Section Wiring Diagram Name
EGVC/V EC EGR Volume Control Valve
ETC1 EC Throttle Control Motor
ETC2 EC Throttle Control Motor
ETC3 EC Throttle Control Motor
F/FOG EL Front Fog Lamp
F/PUMP EC Fuel Pump
FCUT EC Fuel Cut System
FICD EC IACV-FICD Solenoid Valve
FPSW1 AT ATF Pressure Switch 1
FPSW3 AT ATF Pressure Switch 3
FPSW5 AT ATF Pressure Switch 5
FPSW6 AT ATF Pressure Switch 6
FR/B AT Front Brake Solenoid Valve
FR/BF AT Front Brake Solenoid Valve
FTS ATA/T Fluid Temperature Sensor Cir-
cuit
FUELB1 ECFuel Injection System Function
(Bank 1)
FUELB2 ECFuel Injection System Function
(Bank 2)
GLOW EC Quick Glow System
H/AIM EL Headlamp Aiming Control System
H/LAMP EL Headlamp
HLC EL Headlamp Washer
HLR/C ATHigh and Low Reverse Clutch Sole-
noid Valve
HLR/CF ATHigh and Low Reverse Clutch Sole-
noid Valve
I/C AT Input Clutch Solenoid Valve
I/CF AT Input Clutch Solenoid Valve
I/LOCK AT A/T Interlock
IATS EC Intake Air Temperature Sensor
IGNSYS EC Ignition Signal
ILL EL Illumination
INJECT EC Injector
INJPMP ECElectronic Control Fuel Injection
Pump
INT/V ECIntake Air Control Valve Control
Solenoid Valve
