23 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 1Parking brake pedal, see page 246
2Hood lock release, see page 339
3Parking brake release, see page 246
4Exterior lamp switch, see page 158
5Easy-entry / exit feature, see page 63
Steering wheel adjustment, see page 102
6Headlamp washer button, see page 161
7Combination switch, see page 162
8Cruise control switch, see page 258, or
Distronic (DTR) switch, see page 2619Multifunction steering wheel, see page 118
Horn (with electronic key in starter switch
position 1 or 2)
Airbag, see page 91
10Instrument cluster, see page 112
11Voice recognition system switch, see separate
operating instructions
12Starter switch, see page 230
13Glove box lock, see page 197
14Glove box lid release, see page 197

24 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Center console1ESP (Electronic Stability Program) control switch,
see page 280
2ADS (Adaptive Damping System) adjustment switch,
see page 289
Level control switch for vehicles with ABC (Active
Body Control), see page 286
3Level control switch for vehicles with Airmatic,
seepage285
ABC (Active Body Control) control switch, see
page 284
4Switch for rear seat head restraints, see page 76
Switch for rear seat head restraints, automatic,
seepage77
5Hazard warning flasher switch, see page 165
6Central locking switch, see page 48
Indicator lamp for antitheft alarm system, see
page 60
7Antitheft Alarm System, see page 60
Switch for Tow-Away alarm, see page 61
8Parking assist (Parktronic system) deactivation
switch (optional), see page 291
9Switch for rear window sunshade, see page 193
P68.20-2314-27

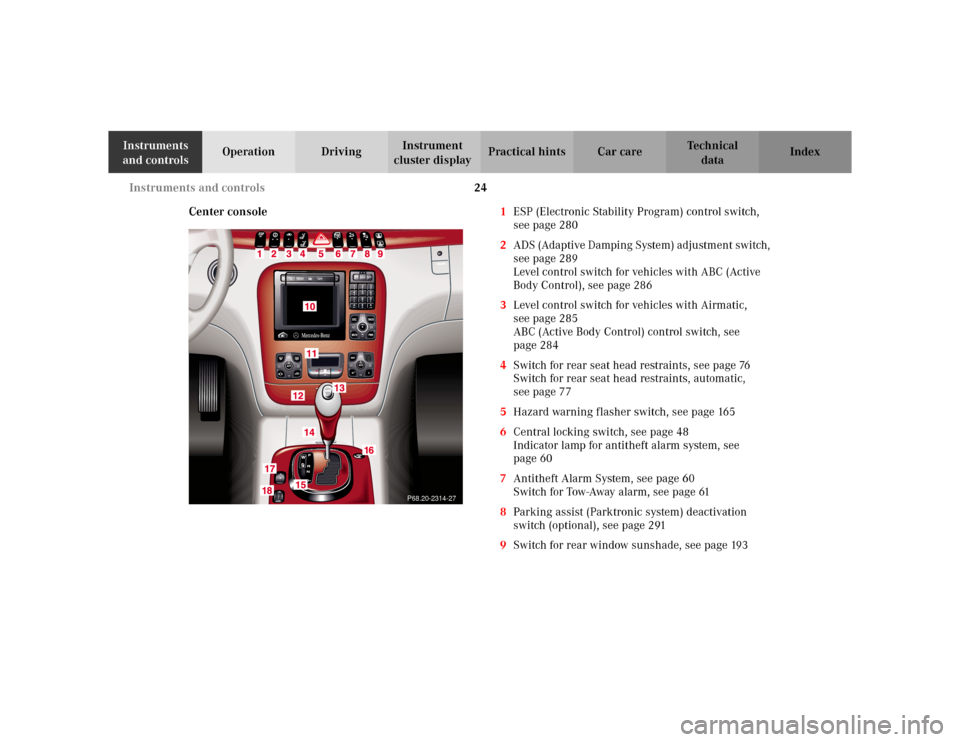

25 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index 10COMAND system, see separate operating
instructions
11Automatic climate control, see page 166
Rear window defroster switch, see page 183
12Ashtray, see page 204
Lighter, see page 206
13Start-/Stop button
Starter switch for KEYLESS-GO only, see page 23214Lower storage space, see page 198
15Automatic transmission, see page 237
16AIRBAG OFF indicator lamp, see page 308
17Distronic (DTR) – switch for distance warning
function, see page 273.
18Distronic (DTR) – thumbwheel for setting distance,
see page 273.
