2002 MERCEDES-BENZ S-Class navigation system

153 Destination input
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings Select city/suburb
Press the rotary/pushbutton
to confirm the “City/
Suburb...” menu field. An entry menu will appear.
5Input line, selected characters are shown inverted;
the last city selected is also shown here
6Character set
7Delete symbol, delete the last or all characters
8Zoom, enlarges the currently selected character9Move the insertion point one position to the right
10Activate the city list
Selecting a new destination:
Selections are made from the city list, call up via the
menu field (10). First enter in the input line (5) the re-
quired destination or adopt the destination last
selected.
Entering the destination via the input menu:
Turn the rotary/pushbutton
to select the desired let-
ter from the character set (6), it will appear magnified
(8).
Press the rotary/pushbutton to confirm your
selection, the letter selected will appear highlighted in
the input line (5). The new entry will be completed with
additional letters to form one of the city/suburb names
available on the list.
Note:
For quicker input, the system will offer available
characters from the character set (6) based on your
selections and the names of the cities stored on the
navigation CD.
P82.85-6452-26
10
8
7
6
5
9
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 153

154
Destination input
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Move the insertion point one position to the right:
Use the rotary/pushbutton
to highlight the symbol
(9) and confirm by pressing.Correcting the entry:
To delete the last character entered, use the rotary/
pushbutton
to highlight the delete symbol (7) and
press to confirm.
To delete all of the characters entered, highlight the
delete symbol (7) and press the rotary/pushbutton
for longer than 2 seconds.
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 154

155 Destination input
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings
P82.85-2597-26
1312
11
To access the list of places:
Press the rotary/pushbutton
for longer than
2 seconds or highlight and confirm menu field (10).
11Selected City/Suburb, already highlighted
12Display to previous page
13Display to next pageThe next/previous page can be reached by turning the
rotary/pushbutton
past the last/first entry.
Turn the rotary/pushbutton
to highlight the desired
destination and press it to confirm.
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 155

156
Destination input
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
P82.85-2598-26
141615
17
If the destination selected is stored on the CD more
than once, a menu will appear so you can confirm the
desired place name.
Otherwise, the selection menu illustrated above will
appear on the screen.14City previously selected
15Selecting a street, page 157
16Selecting a city center, page 162
17Activates the map to select a destination, page 163
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 156

157 Destination input
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings Selecting a street
Press the rotary/pushbutton
to confirm the “Street...”
menu field. The street input menu will appear.
18Input line, enter the letters of your desired street
destination
19Character set
20Delete symbol
21Zoom, enlarges the currently selected character22Move the insertion point one position to the right
23Activate the street list
Selecting the street:
The selection is made from the street list, activated via
the menu field (23). First enter the desired street in the
input line (18).
Enter a street:
Turn the rotary/pushbutton
to select the desired
character from the character set (19), the character
selected will appear in magnified form (21).
Press the rotary/pushbutton to confirm your
selection, the letter selected will be highlighted in the
input line (18), the previous entry will be deleted.
The new entry will be completed with additional letters
to form one of the street names available on the list.
Note:
For quicker input, the system will offer available
characters from the character set (19) based on your
selections and the names of the streets stored on the
navigation CD.
P82.85-6453-261819
20
21
22
23
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 157

158
Destination input
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Move the insertion point one position to the right:
Use the rotary/pushbutton
to highlight the symbol
(22) and confirm by pressing.Correcting the entry:
To delete the last character entered, use the rotary/
pushbutton
to highlight the delete symbol (20) and
press to confirm.
To delete all of the characters entered, highlight the
delete symbol (20) and press the rotary/pushbutton
for longer than 2 seconds.
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 158

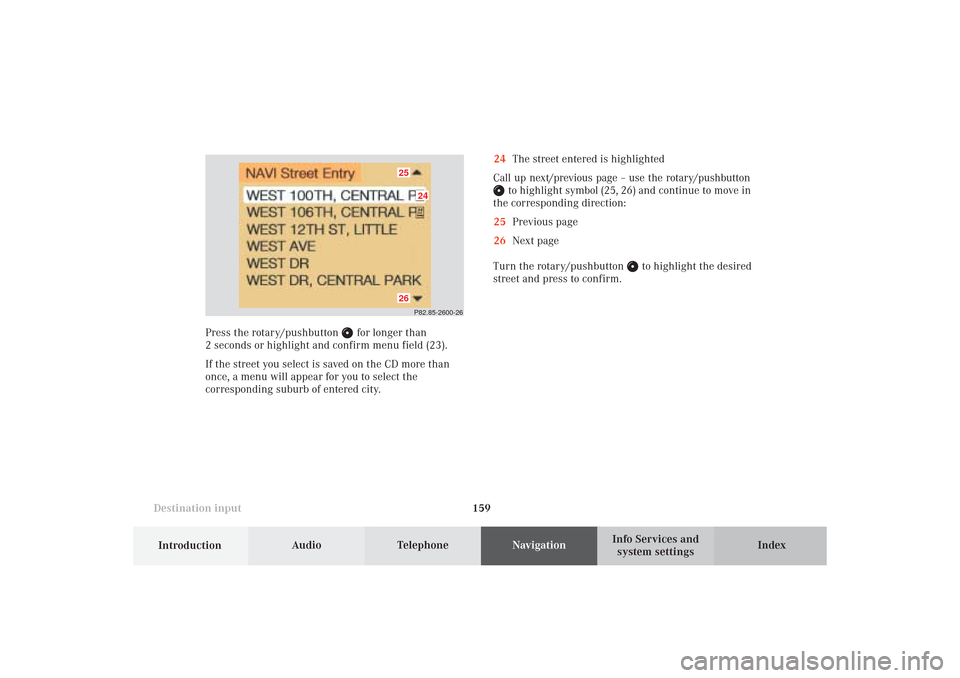

159 Destination input
Introduction
Audio
Telephone
Navigation
Index Info Services and
system settings
P82.85-2600-2624
2526
24The street entered is highlighted
Call up next/previous page – use the rotary/pushbutton
to highlight symbol (25, 26) and continue to move in
the corresponding direction:
25Previous page
26Next page
Turn the rotary/pushbutton
to highlight the desired
street and press to confirm.
Press the rotary/pushbutton
for longer than
2 seconds or highlight and confirm menu field (23).
If the street you select is saved on the CD more than
once, a menu will appear for you to select the
corresponding suburb of entered city.
09-NAVI1-25-US.pm509.07.2004, 14:26 Uhr 159

160
Destination input
Audio TelephoneNavigation
Index Info Services and
system settings Introduction
Continue destination input
You can define your destination address more precisely
by adding an intersection or a house number or by
selecting it on the map.
If you do not want to add anything to your destination
input, select the route calculation mode and have the
route calculated, page 175.Note:
Whether or not there is a menu field for the house
number depends on the data stored on the navigation
CD you are using.
Use the rotary/pushbutton
to highlight the menu
field and press to confirm:
1Selecting an intersection, page 161
2Entering the house number, page 162
3Selecting a destination via the map, page 163
4Saves the destination address in the destination
memory, page 215
5Confirms the destination,
Select the route calculation mode and the route will
be calculated, page 175
P82.85-6095-26
1
2
3
4
5
