2002 MERCEDES-BENZ S-Class display

System settings233Introduction
Audio Telephone
Navigation
Index Info Services and
system settings GPS reception: setting the time in 30 minute
increments
Activating the setting mode:
Press the rotary/pushbutton
. The minutes will
appear in red lettering.
Altering the time to a 30 minute increments:
Setting the clock ahead – Turn the rotary/pushbutton
to the right, the time will move back 30 minutes
with each click.
Setting the clock back – Turn the rotary/pushbutton
to the left, the time will move back 30 minutes with
each click.Canceling the setting mode:
Press the rotary/pushbutton
. The minutes will
appear in black lettering.
To activate the main System settings menu, either:
• Press
• Press the rotary/pushbutton
longer than
2 seconds.
The new time will appear in the display.
P82.85-2677-26
P82.85-2678-26
12-System-25-US.pm517.10.2001, 11:06 Uhr 233

System settings235Introduction
Audio Telephone
Navigation
Index Info Services and
system settings
P82.85-2686-26
P82.85-3076-26
For countries with several time zones (e.g. Canada,
USA):
After you have confirmed the country, the “Timezone”
menu is activated. Highlight the zone you want with the
rotary/pushbutton
and confirm by pressing.In the next menu, press the rotary/pushbutton
to set
the menu field “Automatic S/W time”.
“Automatic S/W time” menu field - there is change of
time in this country/timezone and the dates of time
changes are known. Checkmark
indicates that
automatic time change is active.
“Summer time” menu field – the dates of time changes
are unknown, the change to the winter time must be
made manually, page 236.
Press the rotary/pushbutton
longer than 2 seconds.
The settings are adopted, and the main system menu is
displayed.
12-System-25-US.pm517.10.2001, 11:06 Uhr 235

System settings237Introduction
Audio Telephone
Navigation
Index Info Services and

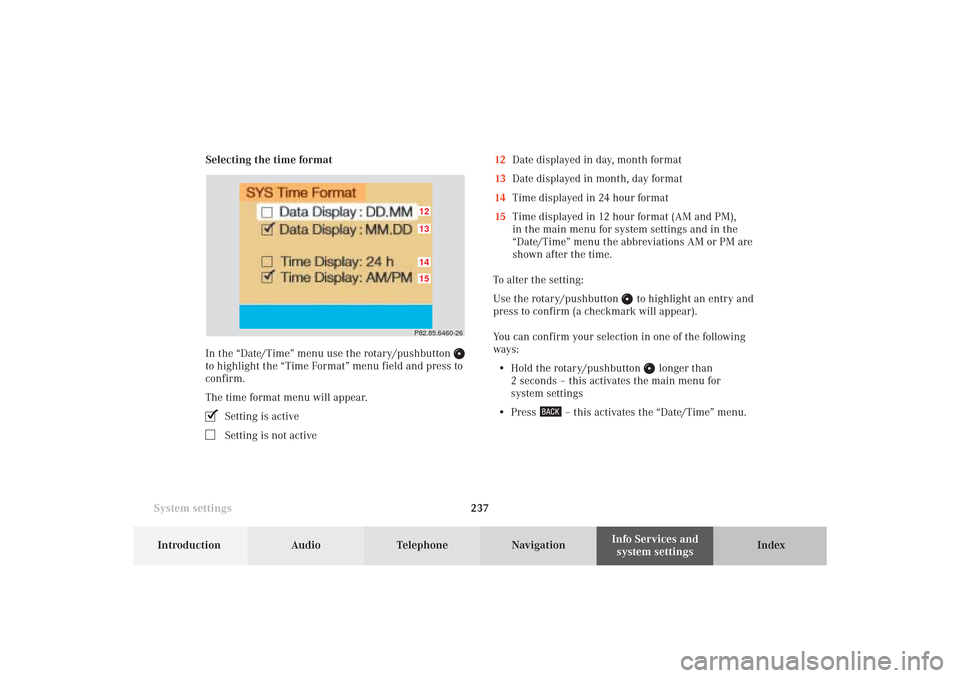

system settings Selecting the time format
In the “Date/Time” menu use the rotary/pushbutton
to highlight the “Time Format” menu field and press to
confirm.
The time format menu will appear.
Setting is activeSetting is not active12Date displayed in day, month format
13Date displayed in month, day format
14Time displayed in 24 hour format
15Time displayed in 12 hour format (AM and PM),
in the main menu for system settings and in the
“Date/Time” menu the abbreviations AM or PM are
shown after the time.
To alter the setting:
Use the rotary/pushbutton
to highlight an entry and
press to confirm (a checkmark will appear).
You can confirm your selection in one of the following
ways:
• Hold the rotary/pushbutton
longer than
2 seconds – this activates the main menu for
system settings
• Press
– this activates the “Date/Time” menu.
P82.85.6460-2615121413
12-System-25-US.pm517.10.2001, 11:06 Uhr 237

System settings239Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Reset all settings to the factory settings
Use the rotary/pushbutton
to highlight the “Factory
settings” menu field in the settings menu and press to
confirm.
An inquiry menu will appear.To accept the factory settings:
Press the rotary/pushbutton
confirm the “Yes” menu
field). A screen with the factory settings is shown for a
few seconds. The main menu for system settings is
reactivated.
The factory settigs are:
• Acknowledgement beep - off
• Info beep – off
• Language – English (imp.)
• Time display – AM/PM
• Date display – MM.DD (MM – month, DD – day)
If you do not wish to reset settings:
Use the rotary/pushbutton to highlight “No” and press
to confirm. This activates the main menu for system
settings.
P82.85-3081-26
12-System-25-US.pm517.10.2001, 11:07 Uhr 239

Audio Telephone Navigation
Index Info Services and
system settings Introduction
240 Index
AAccepting a call (using the multifunction
steering wheel) ................................................................ 102
Accepting calls using COMAND ................................... 103
Activating the location map .......................................... 184
Activating the route map ................................................ 187
Acknowledgement beep .................................................... 15
Adjusting the brightness ............................................... 228
Adjusting the volume ........................................................ 15
Alarm beep ......................................................................... 15
Altering the map scale ........................................... 166, 197
Altering the voice output volume ................................ 190
AM (Ante Meridiem) ...................................................... 237
Audio sources .................................................................... 83
Automatic Station Scan ................................................... 28BBeep tones, Switching on/off ........................................ 238
BOSE amplifier .................................................................. 83CCalibration ....................................................................... 221Canceling route guidance ............................................... 212
CDs scan .............................................................................. 76
CD track scan .................................................................... 70
Changing to map display during route guidance ...... 195
City list ............................................................................. 155
COMAND (Cockpit Management and Data System) ...... 2
Compass needle .............................................................. 198
Coordinate destination .................................................... 167
Cross hairs ....................................................................... 164
Current map scale .................................................. 166, 180
Current vehicle position ........................................ 180, 184
DDate and Time, Setting ................................................... 231
Delete CD name ................................................................. 73
Destination address, Entering ...................................... 152
Destination, Coordinate destination ............................. 167
Destination memory, Sorting ......................................... 218
Destination, Selecting via the map .............................. 163
Destination, Reaching your ........................................... 209
Destination, Saving in the memory .............................. 215
Deviating from the calculated route ............................ 207
Dialing a number from the phone book ...................... 109
13-INDEX-25-US.pm517.10.2001, 11:12 Uhr 240

Index241Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Displaying the route list ................................................ 182
Distance bar ..................................................................... 179
Dolby B, Dolby C ............................................................... 50
Dolby Laboratories Licensing Corporation ................... 50
EEmergency call ................................................................. 121
Entering CD names ........................................................... 71
Entering destination address ........................................ 152
Entering the house number .......................................... 162
Entering the station frequency in the presets ............. 37FFactory settings ............................................................... 239
FM, AM ............................................................................... 23
Frequency ranges ....................................................... 23, 27
Fast forward/rewinding ............................................. 46, 69
Function “RPT” ................................................................. 48
Function “SB” .................................................................... 49
GGeographical latitude and longitude of your
current position .............................................................. 184
GPS reception, set the time ........................................... 233
GPS-signals ...................................................................... 145HHeading-up ...................................................................... 198
House numbers, Entering ............................................. 162IInformation/status line .................................................... 12
Increase the map scale .......................................... 166, 197
Info beep .................................................................... 15, 238
Interrupt route guidance during a journey ................ 208LLast destinations, Selecting ........................................... 174
List of languages ............................................................. 230
Lists ...................................................................................... 12
13-INDEX-25-US.pm517.10.2001, 11:12 Uhr 241

Audio Telephone Navigation
Index Info Services and
system settings Introduction
242 Index
Message “Data Connection Cannot
be Established” ............................................................... 225
Message “Data transmission failure” .......................... 225
Message “DEST AREA” .................................................. 179
Message “Error” ................................................................ 78
Message “Error: Phone defective” .................................. 93
Message “Error: Phone not connected” ......................... 93
Message “Forward”, “Rewind” .................................. 46, 69
Message “Magazine empty” ............................................ 77
Message “Manual route exclusions being reset” ....... 208
Message “Navigation cannot be activated,
an error has occured” .................................................... 149
Message “NEW ROUTE” ....................................... 179, 203
Message “No CD. Please insert NAV-CD
type DX only” .................................................................. 149
Message “No CD changer” .............................................. 77
Message “No Cellular Connection Available” ............ 225
Message “No information available at this time.
Press SVC button later.” ................................................ 225
Message “No magazine” .................................................. 77
Message “NO ROUTE” .................................................... 179
Message “No Service” .............................................. 93, 100
Message “No Service, redial?” ........................................ 93
Message “OFF MAP” ...................................................... 179
MMap display ..................................................................... 180
Map orientation, Selecting ............................................ 198
Map scale, Current ................................................. 166, 197
Map scale, Reduce .................................................. 166, 197
Map scale, Increasing ............................................ 166, 197
Menus .................................................................................. 12
Message “Activating Navigation.
Please obey all traffic rules!” ................................ 148, 149
Message “Attention, name memory is full;
new entry only possible after cleaning an old one!” .. 72
Message “Being activated” .............................................. 77
Message “CALC. ROUTE” .............................................. 179
Message “Caution. Please turn on ignition.
Otherwise system will shut down in 3 minutes” ......... 15
Message “Caution. Please turn on ignition.
Otherwise system will shut down in 10 seconds” ........ 15
Message “Caution. The system will shut down.” .......... 15
Message “CD changer: No CD” ....................................... 68
Message “CD loading” ................................................ 64, 68
Message “CD-Reading error. Please change CD” ....... 149
Message “Cellular System Busy” ................................. 225
Message “Compiling Route List” .................................. 182
13-INDEX-25-US.pm517.10.2001, 11:12 Uhr 242

Index243Introduction
Audio Telephone
Navigation
Index Info Services and
system settings Message “OFF ROAD” .................................................... 179
Message “Reading error” ................................................. 77
Message “Ready” ............................................................ 109
Message “Seek” .................................................................. 47
Message “System busy, redial?” ............................. 93, 137
Message “Tele Aid Call in Progress” ........................... 225
Message “Tele Aid. Please visit workshop” ................ 225
Message “Telephone is being activated.
Please wait” ....................................................................... 93
Message “Temperature too high” ................................... 78
Message “The route is being recalculated” ................ 208
Message “To subscribe to information services
dial phone number” ....................................................... 225
Message “Voice output is muted” ................................ 190
Mixture (Mix) .......................................................... 179, 196
Mobile telephone handset ............................................. 105
Moving the cross hairs .................................................. 164
Multifunction steering wheel, multifunction
display (telephone) ............................................................ 94
Multifunction steering wheel, multifunction
display (CD) ....................................................................... 82
Multifunction steering wheel, multifunction
display (radio) ................................................................... 39Multifunction steering wheel, multifunction
display (tape) ..................................................................... 55
NNorth-up ........................................................................... 198
Notebook .......................................................................... 124
Number keypad .................................................................... 8
Number of satellites received ....................................... 184QQuick-dialing ................................................................... 123PPersonal Service Number .............................................. 140
Phone book .............................................................. 109, 111
Phone book, Editing the
PM (Post Meridiem) ....................................................... 237
Points of interest ............................................................. 170
Pop-up window ................................................................... 16
Principle of route guidance ........................................... 178
13-INDEX-25-US.pm517.10.2001, 11:12 Uhr 243
