Driving Your Mazda
Switches and Controls
Form No. 8Q47-EA-01F

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes— and hold it there. It
will return to the off position when
released.Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press OFF or
turn the headlight switch off.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Right lane
change
Left lane
changeOFF
Left turn
Fog Lights
ON
OFF
J76Y.book Page 32 Wednesday, March 27, 2002 5:04 PM

6-4
Interior Comfort
Climate Control System
Form No. 8Q47-EA-01F

Selecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
J76Y.book Page 4 Wednesday, March 27, 2002 5:04 PM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 MAIN 120AFor protection of all
circuits
2 AD.FAN 30AAdditional cooling
fan for air conditioner
3 EGI INJ 30A Fuel injection system
4 HEAD 40A Headlights
5 IG KEY 60ARADIO, TURN,
METER, ENGINE,
S/ROOF and P/WIND
fuses, Ignition system
6COOLING
FA N30A Cooling fan
7 ABS 60A Antilock brake system
8 HEATER 40AHeater, Air
conditioner
9DEFOG 40ARear window
defroster
10 BTN 60ASTOP, ROOM and
D/LOCK fuses, Fuel
lid opener, Power
door lockDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
11 AUDIO 20A Audio system
12 P/WINDOW 30A Power windows
13 P.SEAT 30A Power seat
14 HORN 10A Horn
15 IDL UP 10AEngine control
system
16 ST.SIGN 10A Engine control unit
17 FOG 15A Fog lights
18 S.WARM 20A Seat warmer
19 TAIL 15ATaillights, Parking
lights, License plate
lights, Dashboard
illumination, Glove
box light, Clock
20—— —
21—— —
22—— —
J76Y.book Page 36 Wednesday, March 27, 2002 5:04 PM

8-37
Maintenance and Care
Owner Maintenance
Form No. 8Q47-EA-01F
Fuse panel (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 HAZARD 15AHazard warning
light
2 ROOM 15AClock, Interior
light
3 S/ROOF 15A Sunroof
4 METER 15AGauges, Reverse
lights, Turn signals,
Cruise control
5 STOP 20A Brake lights
6—— —
7 IIA 15A IIA
8 R.DEF 10ARear window
defroster
9 A/C 10A Air conditioner
10 WIPER 20AWindshield wipers
and washer
11 M.DEF 10A Mirror defroster
12 START 15A Starter
13 TURN 10A Turn signal lights
14 BLOWER 10A Air conditioner
15—— —
16—— —DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
17—— —
18 RADIO 10A Audio system
19 ENGINE 15AEngine control
system
20 ILLUMI 10ADashboard
illumination
21 OPENER 15ATrunk lid opener,
Fuel-lid opener
22—— —
23 CIGAR 15A Cigar lighter
24—— —
25—— —
26 SPARE 30A—
27—— —
28—— —
29 D/LOCK 30A Power door lock
J76Y.book Page 37 Wednesday, March 27, 2002 5:04 PM

8-43
Maintenance and Care

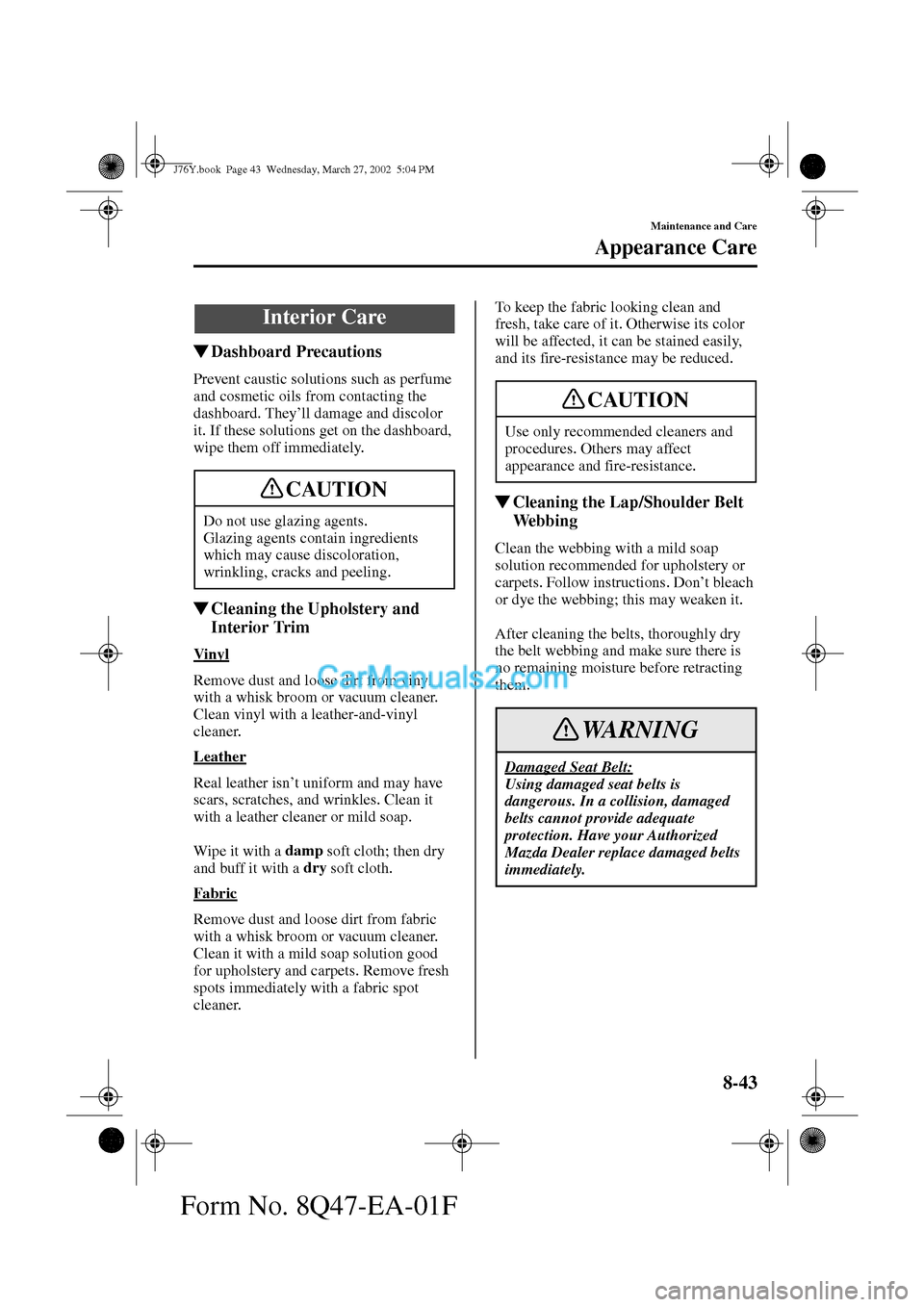

Appearance Care
Form No. 8Q47-EA-01F

Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They’ll damage and discolor
it. If these solutions get on the dashboard,
wipe them off immediately.

Cleaning the Upholstery and
Interior Trim
Vi ny l
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leather
Real leather isn’t uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
Wipe it with a damp
soft cloth; then dry
and buff it with a dry
soft cloth.
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.

Cleaning the Lap/Shoulder Belt
We b b i n g
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don’t bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
Interior Care
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have your Authorized
Mazda Dealer replace damaged belts
immediately.
CAUTION
WARNING
J76Y.book Page 43 Wednesday, March 27, 2002 5:04 PM

10-2
Form No. 8Q47-EA-01F
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label
Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J76Y.book Page 2 Wednesday, March 27, 2002 5:04 PM

11-3
Index
Form No. 8Q47-EA-01F
