MANUAL GEARBOX - R380
37-14 REPAIRS
24.Remove clevis pin and 'C' washer securing low
ratio selector cable to lever and release cable
from lever housing.
25.Remove 2 cable ties securing cable to fuel
pipes.
26.Disconnect 2 Lucars from oil temperature
sensor and disconnect reverse lamp switch
multiplug.
27.Remove banjo bolts securing breather pipes
and discard sealing washers. 28.Remove bolt securing breather pipe 'P' clip and
release breather pipes.
29. If fitted: Disconnect 2 Lucars from differential
lock switch, release and disconnect transfer
box neutral sensor multiplug.
30. If fitted: Release harness from 2 retaining
clips.
31.Position container to catch oil spillage
32.Remove 3 bolts securing oil cooling pipe
housing to gearbox, release housing and
discard 'O' rings.
33.Using a second jack support the weight of the
engine.

MANUAL GEARBOX - R380
REPAIRS 37-15
34.Remove 14 bolts securing gearbox to engine.
35.With assistance, remove gearbox from engine.
Refit
1.Clean gearbox to engine mating faces, dowels
and dowel holes.
2.Raise gear gearbox on jack and align to clutch
and engine.
3.Fit bolts securing gearbox to engine and
tighten to 45 Nm (33 lbf.ft).
4.Lubricate and fit new 'O' rings to oil cooling
pipe housing.
5.Position coolant pipe housing, fit bolts and
tighten to 25 Nm (18 lbf.ft).
6. If fitted: Secure harness in retaining clips,
connect Lucars to differential lock warning
switch and multiplug to neutral sensor.
7.Position breather pipes and secure 'P' clip with
bolt.
8.Using new sealing washers fit breather pipe
banjo bolts and tighten to 15 Nm (11 lbf.ft).
9.Connect oil temperature sensor Lucars and
reverse lamp switch multiplug.
10.Position low ratio selector cable to housing and
secure with 'C' washer and clevis pin.
11.Secure cable to fuel pipes with new cable ties.
12.Raise gearbox, ensuring gear change lever is
located in grommet.
13.Fit gearbox mountings and tighten bolts to 85
Nm (63 lbf.ft). 14.Fit nuts to mountings and tighten to 48 Nm (37
lbf.ft).
15.Remove 3 bolts securing support plate to
gearbox.
16.Position clutch slave cylinder and heat shield,
fit bolts and tighten to 25 Nm (18 lbf.ft).
17.Clean handbrake back plate and mating face.
18.Position handbrake back plate, fit bolts and
tighten to 75 Nm (46 lbf.ft).
19.Clean handbrake drum.
20.Fit handbrake drum and tighten retaining
screw.
21.Clean propeller shafts and mating faces.
22.Position propeller shafts, align to marks and
tighten bolts to 47 Nm (35 lbf.ft).
23.Clean exhaust silencer and tail pipe mating
faces.
24.Position silencer and secure on mountings,
using a new gasket align to tail pipe, fit nuts
and tighten to 25 Nm (18 lbf.ft).
25.Position rear cross member, fit bolts and
tighten to 25 Nm (18 lbf.ft).
26.Refill gearbox with oil.

+ MAINTENANCE, PROCEDURES,
Manual gearbox.
27.Refill transfer gearbox oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
28.Fit front exhaust pipe.

+ MANIFOLDS AND EXHAUST
SYSTEMS - V8, REPAIRS, Front pipe.
29.Fit gear lever extension, fit clamp bolt and
tighten to 25 Nm (18 lbf.ft).
30.Fit gear lever trim and gear change knob.
31.Connect battery earth lead.
32. Fit battery cover and cooling fan cover and
secure fixings.

MANUAL GEARBOX - R380
37-18 REPAIRS
23.Remove clevis pin and 'C' washer securing low
ratio selector cable to lever and release cable
from lever housing.
24.Remove 2 cable ties securing cable to fuel
pipes.
25.Disconnect 2 Lucars from oil temperature
sensor and disconnect reverse lamp switch
multiplug.
26.Remove banjo bolts securing breather pipes
and discard sealing washers.
27.Remove bolt securing breather pipe 'P' clip and
release breather pipes. 28. If fitted: Disconnect 2 Lucars from differential
lock switch, release and disconnect transfer
box neutral sensor multiplug. Release harness
from 2 retaining clips.
29.Position container to catch oil spillage
30.Remove 2 bolts securing oil cooling pipe
housing to gearbox, release housing and
discard 'O' rings.
CAUTION: Always fit plugs to open
connections to prevent contamination.
31.Using a second jack support the weight of the
engine.

MANUAL GEARBOX - R380
REPAIRS 37-19
32.Remove 8 bolts securing gearbox to engine.
33.With assistance, remove gearbox from engine.
Refit
1.Clean gearbox to engine mating faces, dowels
and dowel holes.
2.With assistance raise gearbox on jack and
align to clutch and engine.
3.Fit bolts securing gearbox to engine and
tighten to 50 Nm (37 lbf.ft).
4.Clean oil cooling pipe housing mating faces.
5.Lubricate and fit new 'O' rings to oil cooling
pipe housing.
6.Position cooling pipe housing, fit bolts and
tighten to 25 Nm (18 lbf.ft).
7. If fitted: Secure harness in retaining clips,
connect Lucars to differential lock warning
switch and multiplug to transfer box neutral
switch.
8.Position breather pipes and secure 'P' clip with
bolt.
9.Using new sealing washers fit breather pipe
banjo bolts and tighten to 15 Nm (11 lbf.ft).
10.Connect oil temperature sensor Lucars and
reverse lamp switch multiplug.
11.Position low ratio selector cable to housing and
secure with 'C' washer and clevis pin.
12.Secure cable to fuel pipes with new cable ties. 13.Raise gearbox, ensuring gear change lever is
located in grommet.
14.Fit gearbox mountings and tighten bolts to 85
Nm (63 lbf.ft).
15.Fit nuts to gearbox mountings and tighten to 48
Nm (37 lbf.ft).
16.Remove 3 bolts securing support plate to
gearbox.
17.Position clutch slave cylinder and heat shield,
fit bolts and tighten to 25 Nm (18 lbf.ft).
18.Clean handbrake back plate and mating face.
19.Position handbrake back plate, fit bolts and
tighten to 75 Nm (55 lbf.ft).
20.Clean handbrake drum.
21.Fit handbrake drum and tighten retaining
screw.
22.Fit front propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - front..
23.Fit rear propeller shaft.

+ PROPELLER SHAFTS, REPAIRS,
Propeller shaft - rear.
24.Clean exhaust silencer and tail pipe mating
faces.
25.Position silencer and secure on mountings,
using a new gasket align to tail pipe, fit nuts
and tighten to 25 Nm (18 lbf.ft).
26.Fit exhaust front pipe.

+ MANIFOLDS AND EXHAUST
SYSTEMS - Td5, REPAIRS, Pipe - front.
27.Refit starter motor.

+ CHARGING AND STARTING,
REPAIRS, Starter motor - diesel.
28.Refill gearbox with oil.

+ MAINTENANCE, PROCEDURES,
Manual gearbox.
29.Refill transfer gearbox with oil.

+ MAINTENANCE, PROCEDURES,
Transfer box.
30.Fit gear lever extension, fit clamp bolt and
tighten to 25 Nm (18 lbf.ft).
31.Fit gear lever trim and gear change knob.
32.Connect battery earth lead.
33.Fit cooling fan cowl and battery cover and
secure fixings.

TRANSFER BOX - LT230SE
DESCRIPTION AND OPERATION 41-3
1Rear output housing
2Differential rear bearing
3High range gear and bush
4Main casing
5High/low selector sleeve and hub
6Low range gear
7Differential assembly
8Front output housing
9Differential front bearing
10Selective shim - differential bearing pre-load
11Dog clutch - Differential lock - If fitted
12Front output flange
13Differential lock selector shaft - Differential lock
- If fitted
14Selector fork - Differential lock - If fitted
15Front output shaft
16Selective spacer - intermediate gear bearing
pre-load
17Mainshaft input gear
18Selective shim - input gear bearing pre-load
19Intermediate shaft
20Intermediate gear cluster
21Rear output shaft
22Rear output flange

TRANSFER BOX - LT230SE
41-6 DESCRIPTION AND OPERATION

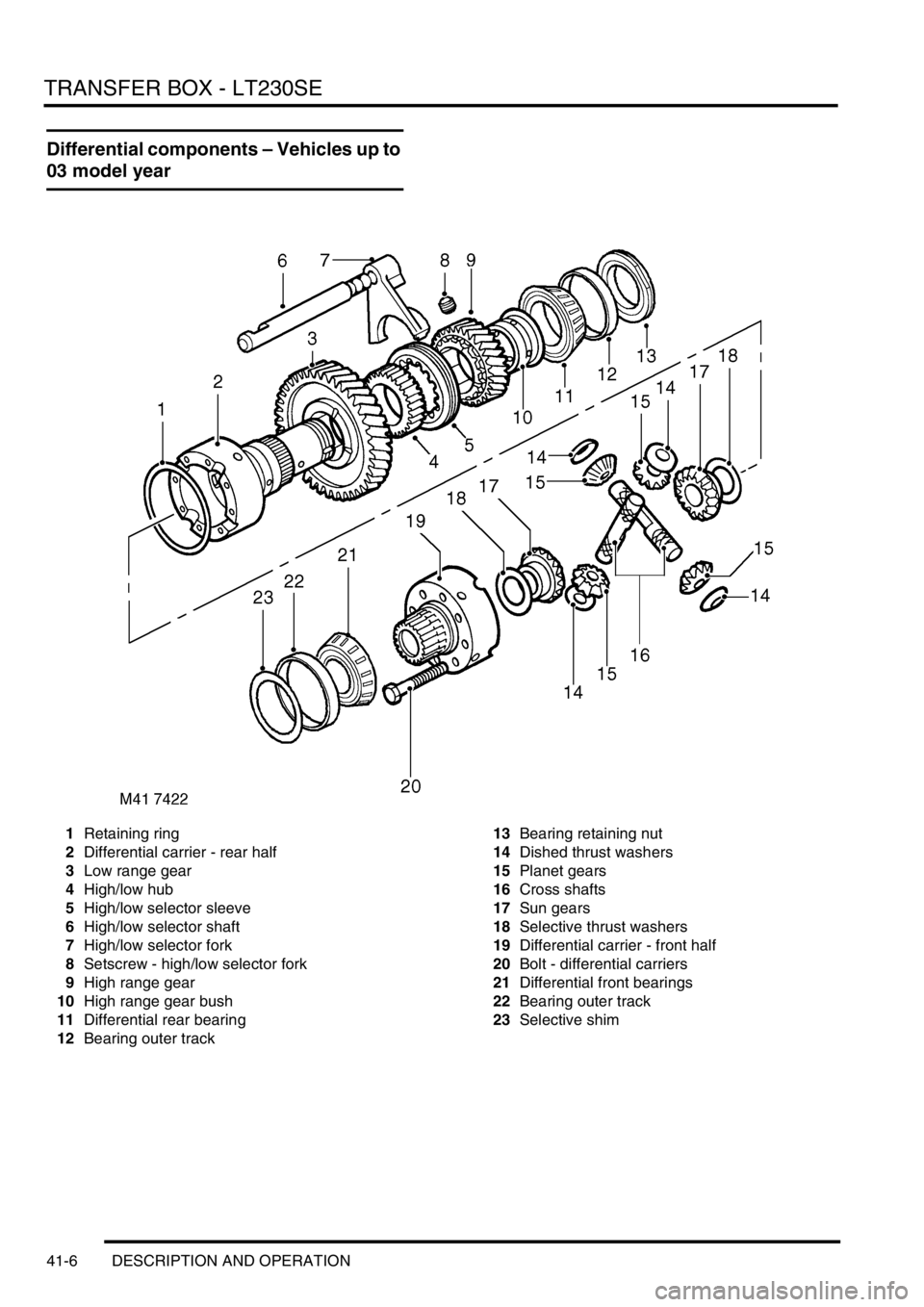

Differential components – Vehicles up to
03 model year
1Retaining ring
2Differential carrier - rear half
3Low range gear
4High/low hub
5High/low selector sleeve
6High/low selector shaft
7High/low selector fork
8Setscrew - high/low selector fork
9High range gear
10High range gear bush
11Differential rear bearing
12Bearing outer track13Bearing retaining nut
14Dished thrust washers
15Planet gears
16Cross shafts
17Sun gears
18Selective thrust washers
19Differential carrier - front half
20Bolt - differential carriers
21Differential front bearings
22Bearing outer track
23Selective shim

TRANSFER BOX - LT230SE
DESCRIPTION AND OPERATION 41-7

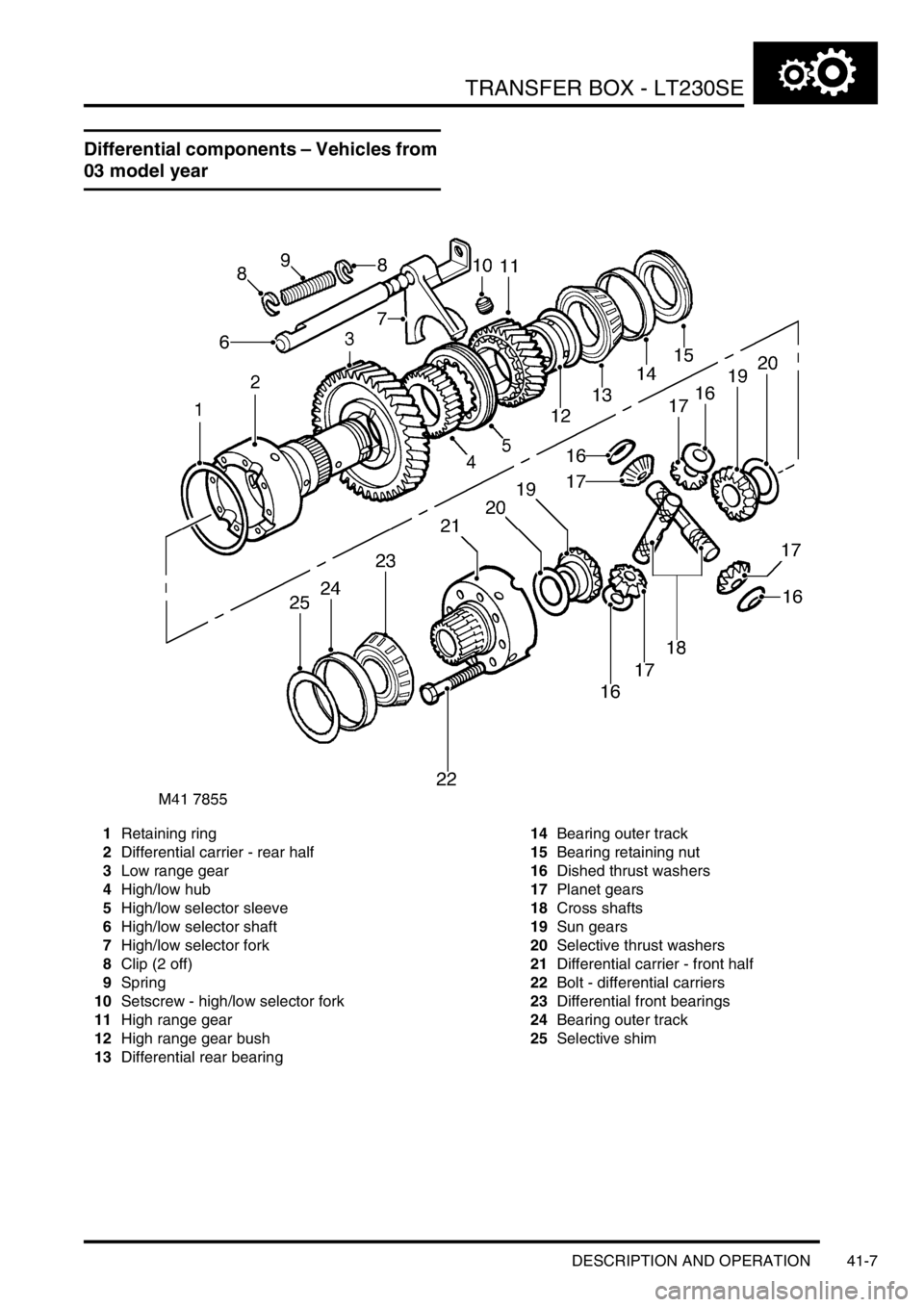

Differential components – Vehicles from
03 model year
1Retaining ring
2Differential carrier - rear half
3Low range gear
4High/low hub
5High/low selector sleeve
6High/low selector shaft
7High/low selector fork
8Clip (2 off)
9Spring
10Setscrew - high/low selector fork
11High range gear
12High range gear bush
13Differential rear bearing14Bearing outer track
15Bearing retaining nut
16Dished thrust washers
17Planet gears
18Cross shafts
19Sun gears
20Selective thrust washers
21Differential carrier - front half
22Bolt - differential carriers
23Differential front bearings
24Bearing outer track
25Selective shim

TRANSFER BOX - LT230SE
DESCRIPTION AND OPERATION 41-9
1Breather pipe, banjo bolt and sealing washers
2Bolt - high/low cross shaft housing and
abutment bracket
3Selector cable abutment bracket
4Multiplug bracket
5Hollow plug
6High/low cross shaft housing
7'O' ring
8High/low cross shaft and lever
9Front output shaft - Differential lock - If fitted
10Dog clutch - Differential lock - If fitted
11Warning lamp switch - Differential lock - If fitted
12Detent plug - Differential lock - If fitted
13Detent spring - Differential lock - If fitted
14Selector shaft - Differential lock - If fitted
15Detent ball - Differential lock - If fitted
16Threaded spacer - Differential lock - If fitted
17Front output housing
18Spring and clips - Differential lock - If fitted
19Bolt - cover plate
20Cover plate21Selector fork - Differential lock - If fitted
22Bolt - front output housing
23Hollow plug
24Circlip
25Front output flange
26Steel washer
27Self-locking nut
28Felt washer
29Oil seal
30Output shaft bearing
31Bearing spacer
32High/low detect switch
33Selector finger and shaft - Differential lock - If
fitted
34'O' rings - Differential lock - If fitted
35Bolt - selector housing - Differential lock - If
fitted
36Selector housing - Differential lock - If fitted
37High/low selector finger
38Front output shaft - Vehicles not fitted with
differential lock
