6E±233
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

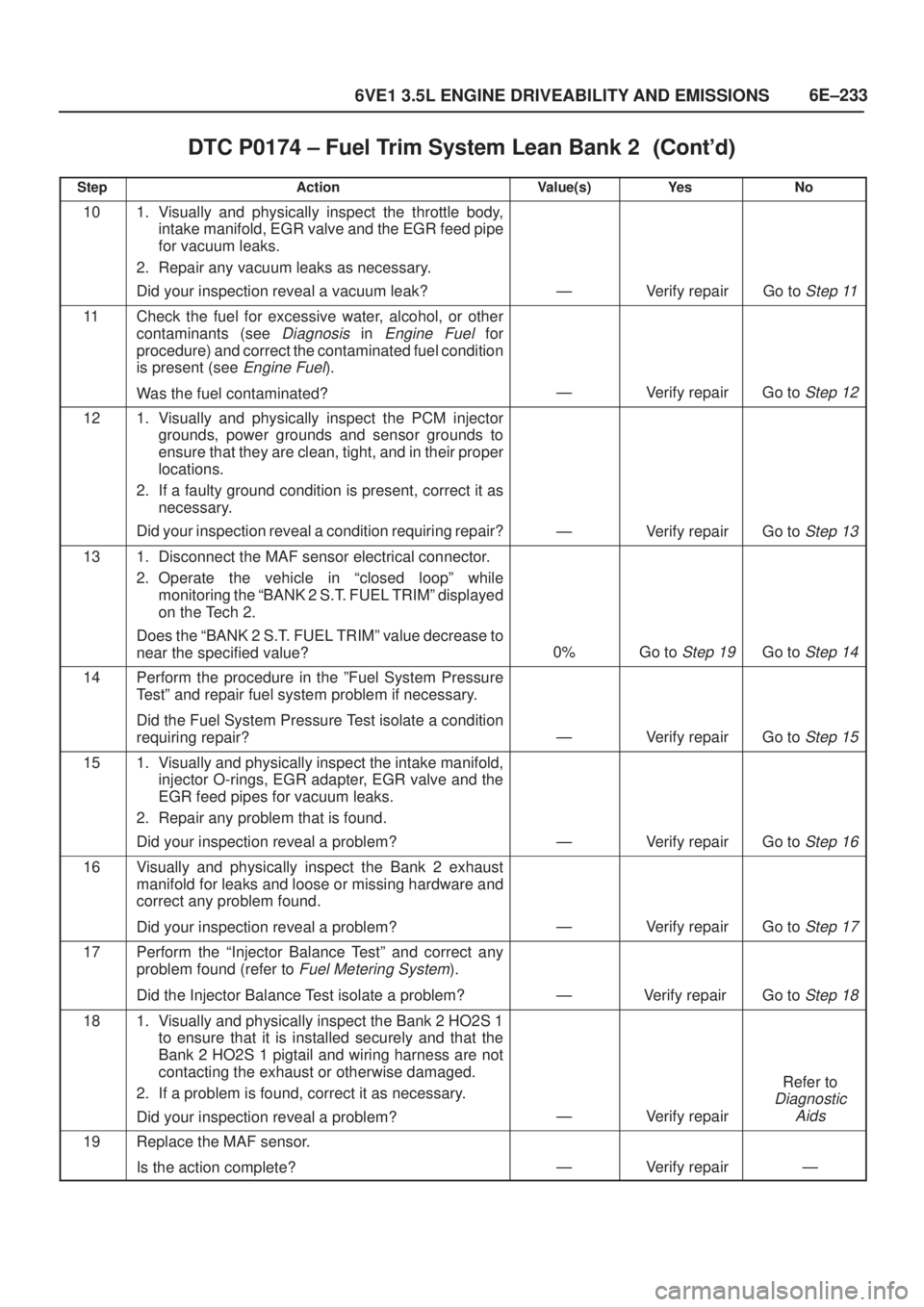

DTC P0174 ± Fuel Trim System Lean Bank 2


StepNo Ye s Value(s) Action
101. Visually and physically inspect the throttle body,
intake manifold, EGR valve and the EGR feed pipe
for vacuum leaks.
2. Repair any vacuum leaks as necessary.
Did your inspection reveal a vacuum leak?
ÐVerify repairGo to Step 11
11Check the fuel for excessive water, alcohol, or other
contaminants (see
Diagnosis in Engine Fuel for
procedure) and correct the contaminated fuel condition
is present (see
Engine Fuel).
Was the fuel contaminated?
ÐVerify repairGo to Step 12
121. Visually and physically inspect the PCM injector
grounds, power grounds and sensor grounds to
ensure that they are clean, tight, and in their proper
locations.
2. If a faulty ground condition is present, correct it as
necessary.
Did your inspection reveal a condition requiring repair?
ÐVerify repairGo to Step 13
131. Disconnect the MAF sensor electrical connector.
2. Operate the vehicle in ªclosed loopº while
monitoring the ªBANK 2 S.T. FUEL TRIMº displayed
on the Tech 2.
Does the ªBANK 2 S.T. FUEL TRIMº value decrease to
near the specified value?
0%Go to Step 19Go to Step 14
14Perform the procedure in the ºFuel System Pressure
Testº and repair fuel system problem if necessary.
Did the Fuel System Pressure Test isolate a condition
requiring repair?
ÐVerify repairGo to Step 15
151. Visually and physically inspect the intake manifold,
injector O-rings, EGR adapter, EGR valve and the
EGR feed pipes for vacuum leaks.
2. Repair any problem that is found.
Did your inspection reveal a problem?
ÐVerify repairGo to Step 16
16Visually and physically inspect the Bank 2 exhaust
manifold for leaks and loose or missing hardware and
correct any problem found.
Did your inspection reveal a problem?
ÐVerify repairGo to Step 17
17Perform the ªInjector Balance Testº and correct any
problem found (refer to
Fuel Metering System).
Did the Injector Balance Test isolate a problem?
ÐVerify repair Go to Step 18
181. Visually and physically inspect the Bank 2 HO2S 1
to ensure that it is installed securely and that the
Bank 2 HO2S 1 pigtail and wiring harness are not
contacting the exhaust or otherwise damaged.
2. If a problem is found, correct it as necessary.
Did your inspection reveal a problem?
ÐVerify repair
Refer to
Diagnostic
Aids
19Replace the MAF sensor.
Is the action complete?
ÐVerify repairÐ

6E±236
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

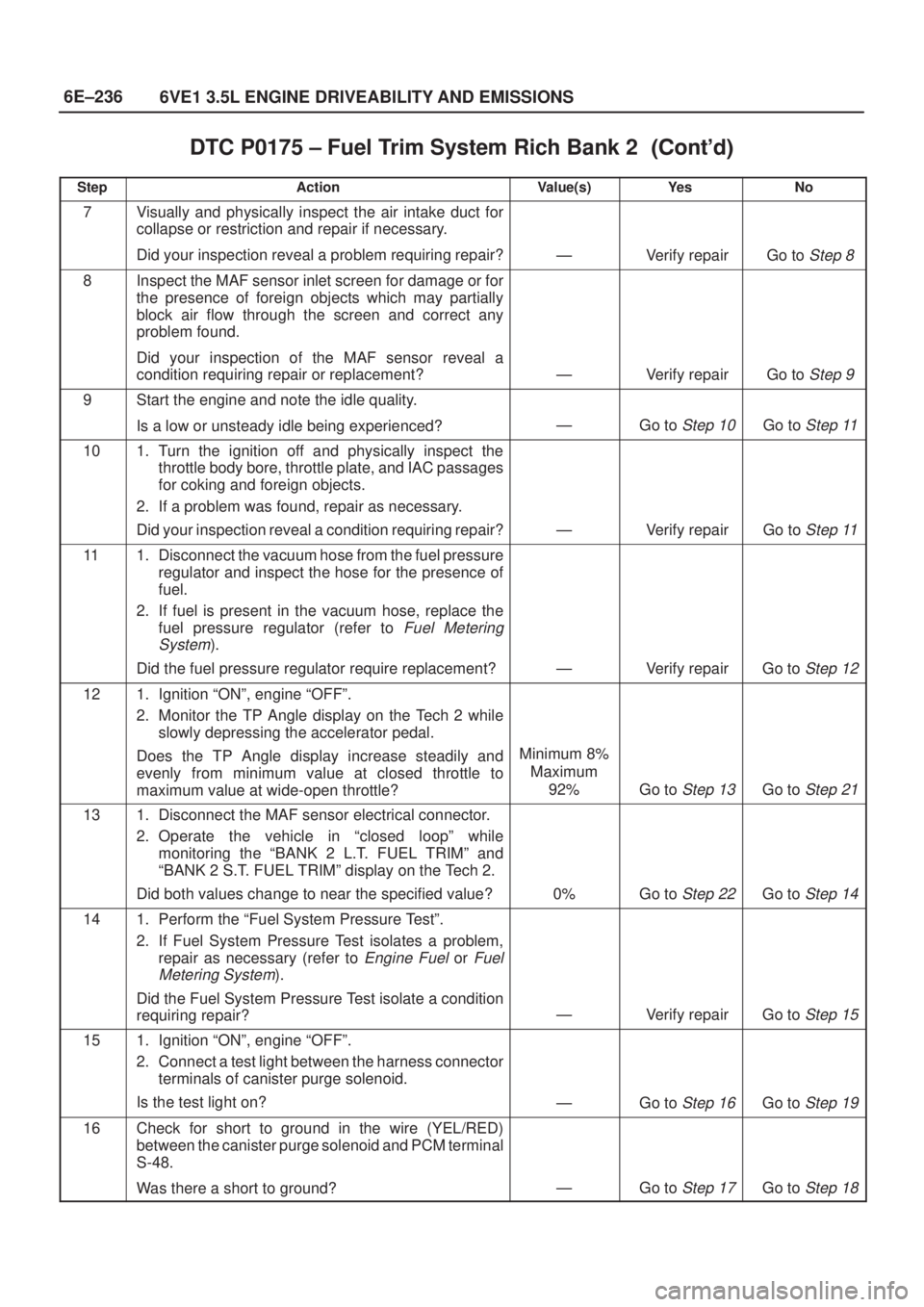

DTC P0175 ± Fuel Trim System Rich Bank 2


StepNo Ye s Value(s) Action
7Visually and physically inspect the air intake duct for
collapse or restriction and repair if necessary.
Did your inspection reveal a problem requiring repair?
ÐVerify repairGo to Step 8
8Inspect the MAF sensor inlet screen for damage or for
the presence of foreign objects which may partially
block air flow through the screen and correct any
problem found.
Did your inspection of the MAF sensor reveal a
condition requiring repair or replacement?
ÐVerify repairGo to Step 9
9Start the engine and note the idle quality.
Is a low or unsteady idle being experienced?
ÐGo to Step 10Go to Step 11
101. Turn the ignition off and physically inspect the
throttle body bore, throttle plate, and IAC passages
for coking and foreign objects.
2. If a problem was found, repair as necessary.
Did your inspection reveal a condition requiring repair?
ÐVerify repairGo to Step 11
111. Disconnect the vacuum hose from the fuel pressure
regulator and inspect the hose for the presence of
fuel.
2. If fuel is present in the vacuum hose, replace the
fuel pressure regulator (refer to
Fuel Metering
System
).
Did the fuel pressure regulator require replacement?
ÐVerify repairGo to Step 12
121. Ignition ªONº, engine ªOFFº.
2. Monitor the TP Angle display on the Tech 2 while
slowly depressing the accelerator pedal.
Does the TP Angle display increase steadily and
evenly from minimum value at closed throttle to
maximum value at wide-open throttle?
Minimum 8%
Maximum
92%
Go to Step 13Go to Step 21
131. Disconnect the MAF sensor electrical connector.
2. Operate the vehicle in ªclosed loopº while
monitoring the ªBANK 2 L.T. FUEL TRIMº and
ªBANK 2 S.T. FUEL TRIMº display on the Tech 2.
Did both values change to near the specified value?
0%Go to Step 22Go to Step 14
141. Perform the ªFuel System Pressure Testº.
2. If Fuel System Pressure Test isolates a problem,
repair as necessary (refer to
Engine Fuel or Fuel
Metering System
).
Did the Fuel System Pressure Test isolate a condition
requiring repair?
ÐVerify repairGo to Step 15
151. Ignition ªONº, engine ªOFFº.
2. Connect a test light between the harness connector
terminals of canister purge solenoid.
Is the test light on?
ÐGo to Step 16Go to Step 19
16Check for short to ground in the wire (YEL/RED)
between the canister purge solenoid and PCM terminal
S-48.
Was there a short to ground?
ÐGo to Step 17Go to Step 18

6E±237
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

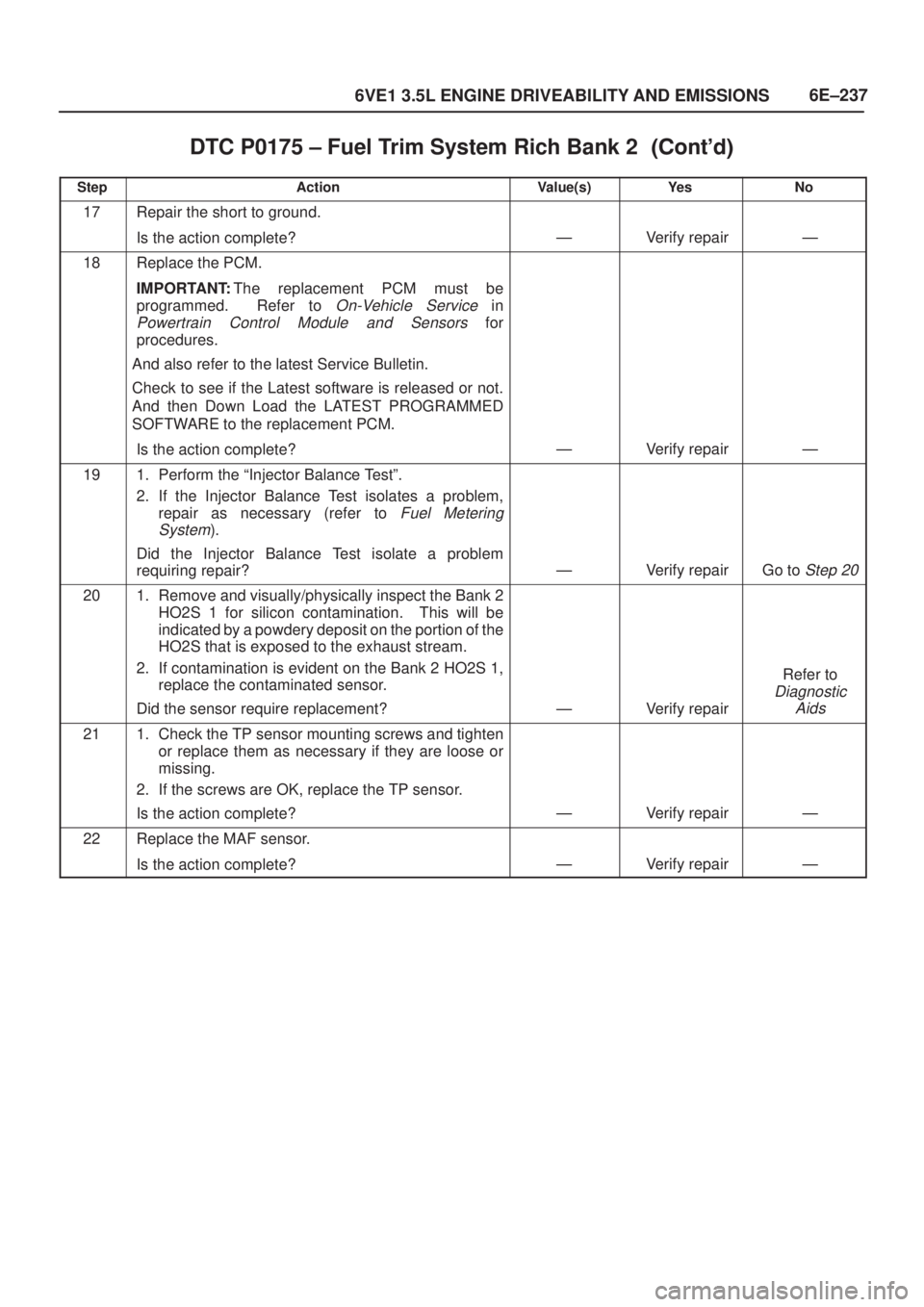

DTC P0175 ± Fuel Trim System Rich Bank 2


StepNo Ye s Value(s) Action
17Repair the short to ground.
Is the action complete?
ÐVerify repairÐ
18Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
191. Perform the ªInjector Balance Testº.
2. If the Injector Balance Test isolates a problem,
repair as necessary (refer to
Fuel Metering
System
).
Did the Injector Balance Test isolate a problem
requiring repair?
ÐVerify repairGo to Step 20
201. Remove and visually/physically inspect the Bank 2
HO2S 1 for silicon contamination. This will be
indicated by a powdery deposit on the portion of the
HO2S that is exposed to the exhaust stream.
2. If contamination is evident on the Bank 2 HO2S 1,
replace the contaminated sensor.
Did the sensor require replacement?
ÐVerify repair
Refer to
Diagnostic
Aids
211. Check the TP sensor mounting screws and tighten
or replace them as necessary if they are loose or
missing.
2. If the screws are OK, replace the TP sensor.
Is the action complete?
ÐVerify repairÐ
22Replace the MAF sensor.
Is the action complete?
ÐVerify repairÐ

6E±240
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

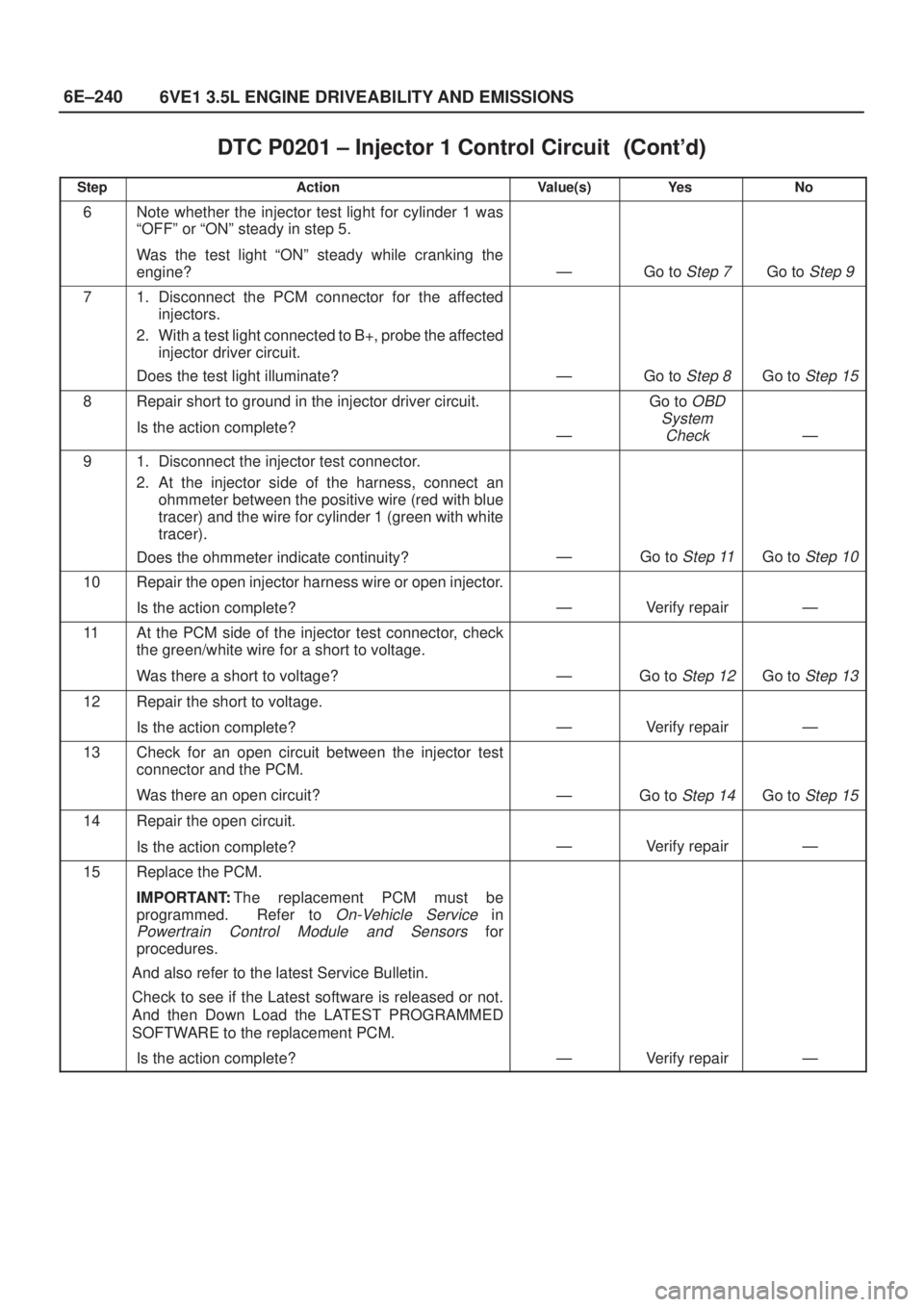

DTC P0201 ± Injector 1 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 1 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 1 (green with white
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/white wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±243
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

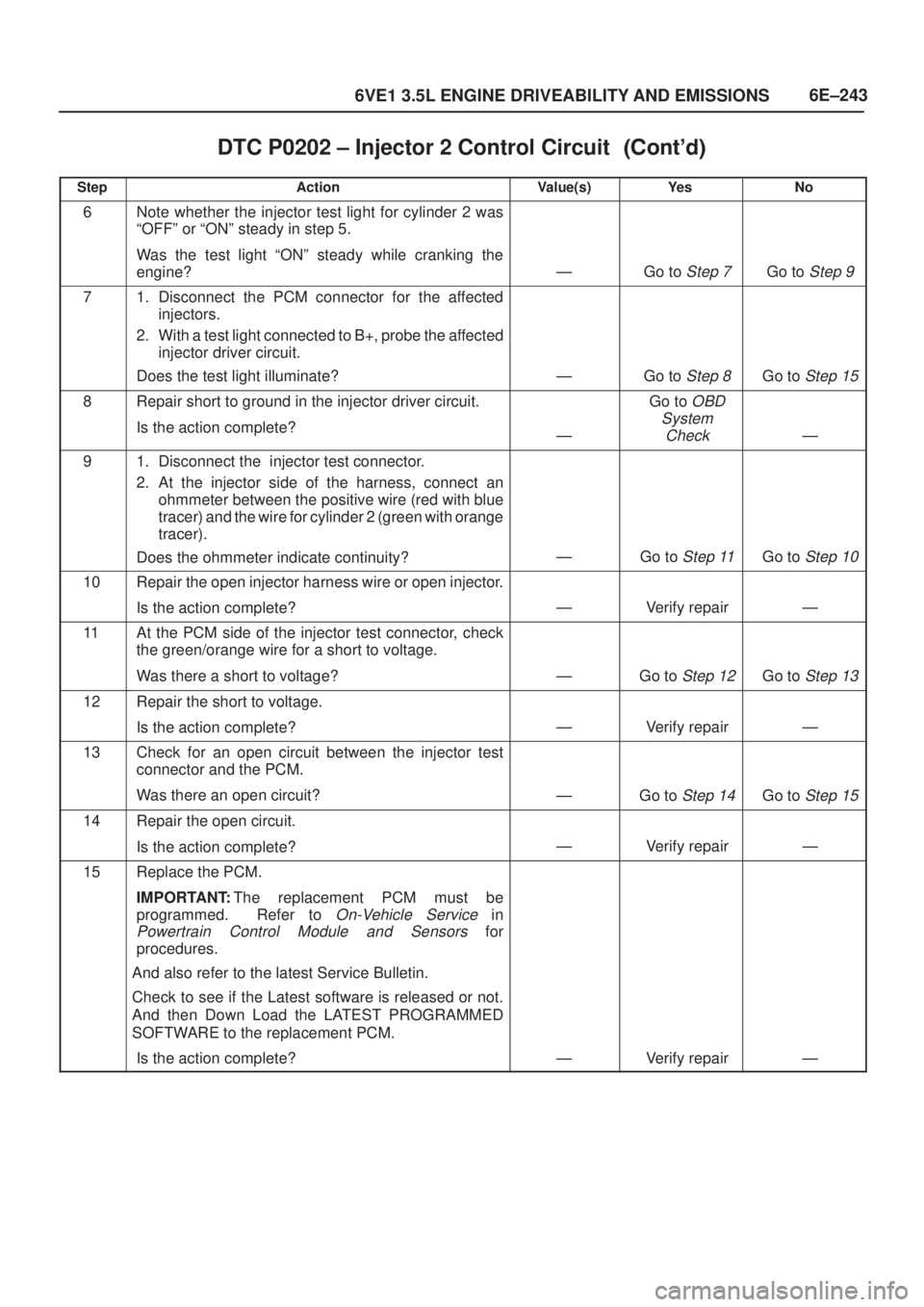

DTC P0202 ± Injector 2 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 2 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 2 (green with orange
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/orange wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±246
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

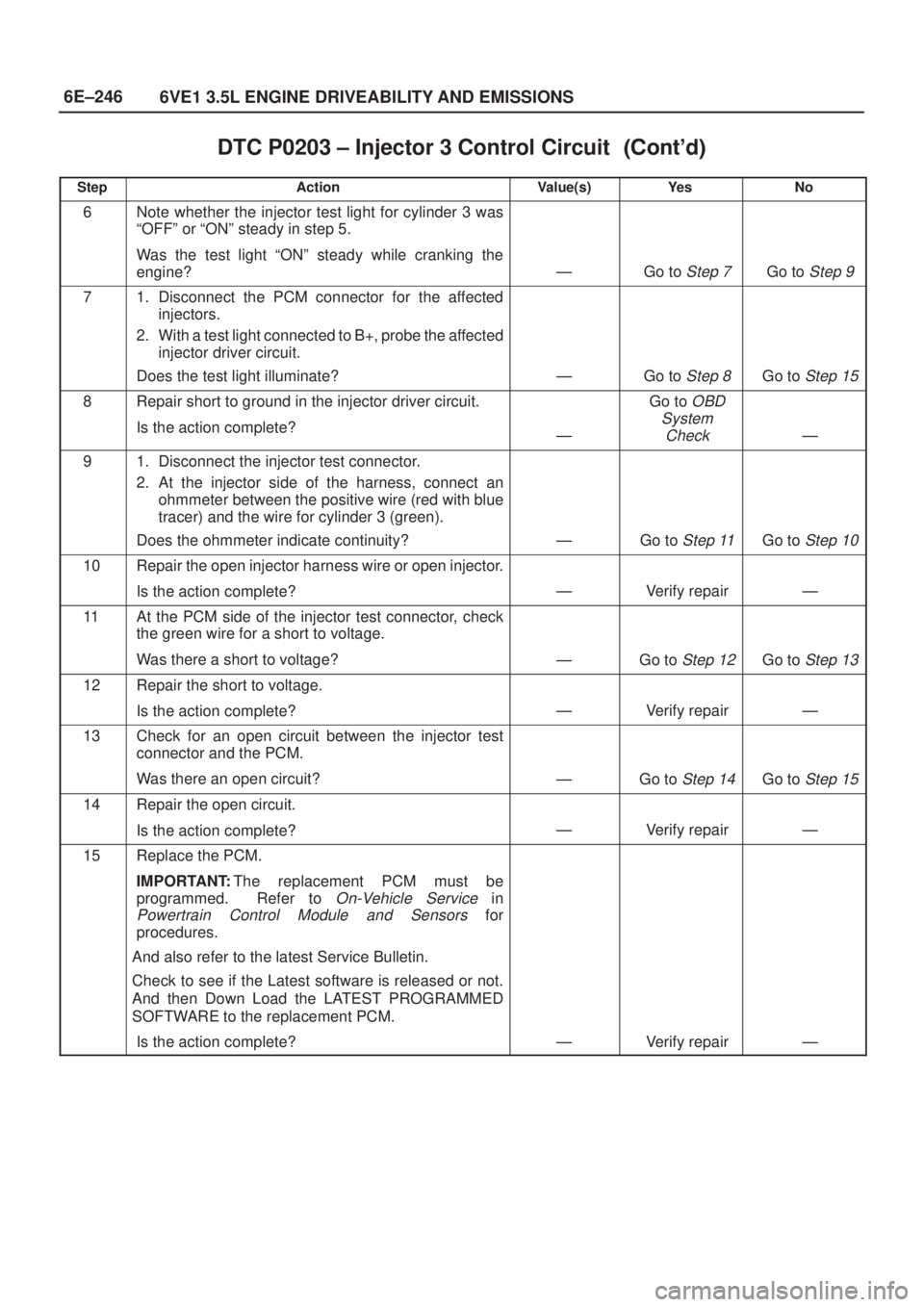

DTC P0203 ± Injector 3 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 3 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 3 (green).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±249
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

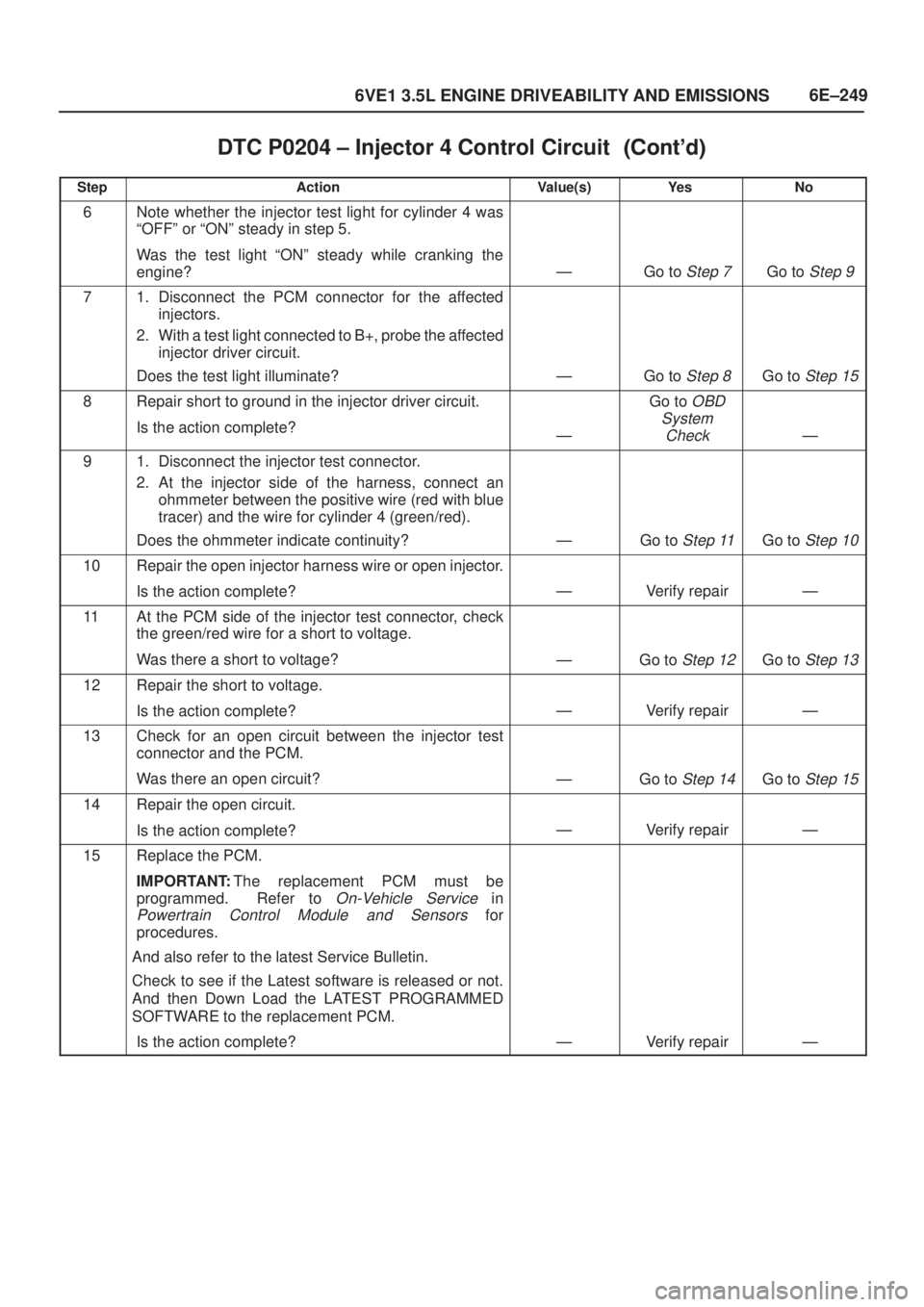

DTC P0204 ± Injector 4 Control Circuit


StepNo Ye s Value(s) Action
6Note whether the injector test light for cylinder 4 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 4 (green/red).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/red wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ

6E±252
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P0205 ± Injector 5 Control Circuit


StepNo Ye s Value(s) Action
6 Note whether the injector test light for cylinder 5 was
ªOFFº or ªONº steady in step 5.
Was the test light ªONº steady while cranking the
engine?
ÐGo to Step 7Go to Step 9
71. Disconnect the PCM connector for the affected
injectors.
2. With a test light connected to B+, probe the affected
injector driver circuit.
Does the test light illuminate?
ÐGo to Step 8Go to Step 15
8Repair short to ground in the injector driver circuit.
Is the action complete?
Ð
Go to OBD
System
Check
Ð
91. Disconnect the injector test connector.
2. At the injector side of the harness, connect an
ohmmeter between the positive wire (red with blue
tracer) and the wire for cylinder 5 (green with black
tracer).
Does the ohmmeter indicate continuity?
ÐGo to Step 11Go to Step 10
10Repair the open injector harness wire or open injector.
Is the action complete?
ÐVerify repairÐ
11At the PCM side of the injector test connector, check
the green/black wire for a short to voltage.
Was there a short to voltage?
ÐGo to Step 12Go to Step 13
12Repair the short to voltage.
Is the action complete?
ÐVerify repairÐ
13Check for an open circuit between the injector test
connector and the PCM.
Was there an open circuit?
ÐGo to Step 14Go to Step 15
14Repair the open circuit.
Is the action complete?
ÐVerify repairÐ
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
On-Vehicle Service in
Powertrain Control Module and Sensors for
procedures.
And also refer to the latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.
Is the action complete?
ÐVerify repairÐ
