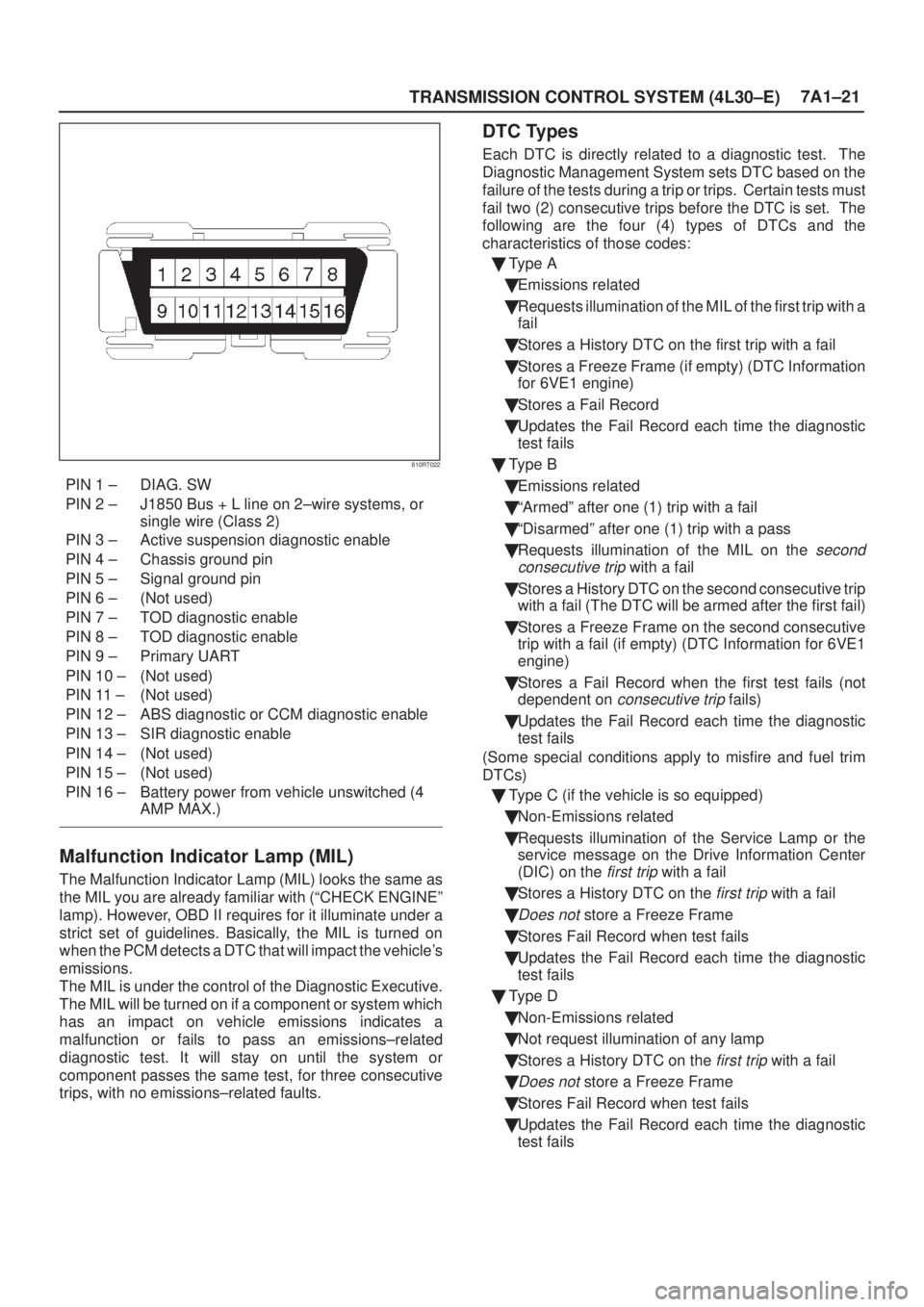

TRANSMISSION CONTROL SYSTEM (4L30±E)7A1±21
810RT022
PIN 1 ± DIAG. SW
PIN 2 ± J1850 Bus + L line on 2±wire systems, or
single wire (Class 2)
PIN 3 ± Active suspension diagnostic enable
PIN 4 ± Chassis ground pin
PIN 5 ± Signal ground pin
PIN 6 ± (Not used)
PIN 7 ± TOD diagnostic enable
PIN 8 ± TOD diagnostic enable
PIN 9 ± Primary UART
PIN 10 ± (Not used)
PIN 11 ± (Not used)
PIN 12 ± ABS diagnostic or CCM diagnostic enable
PIN 13 ± SIR diagnostic enable
PIN 14 ± (Not used)
PIN 15 ± (Not used)
PIN 16 ± Battery power from vehicle unswitched (4
AMP MAX.)
Malfunction Indicator Lamp (MIL)
The Malfunction Indicator Lamp (MIL) looks the same as
the MIL you are already familiar with (ªCHECK ENGINEº
lamp). However, OBD II requires for it illuminate under a
strict set of guidelines. Basically, the MIL is turned on
when the PCM detects a DTC that will impact the vehicle's
emissions.
The MIL is under the control of the Diagnostic Executive.
The MIL will be turned on if a component or system which
has an impact on vehicle emissions indicates a
malfunction or fails to pass an emissions±related
diagnostic test. It will stay on until the system or
component passes the same test, for three consecutive
trips, with no emissions±related faults.
DTC Types
Each DTC is directly related to a diagnostic test. The
Diagnostic Management System sets DTC based on the
failure of the tests during a trip or trips. Certain tests must
fail two (2) consecutive trips before the DTC is set. The
following are the four (4) types of DTCs and the
characteristics of those codes:

Type A

Emissions related

Requests illumination of the MIL of the first trip with a
fail

Stores a History DTC on the first trip with a fail

Stores a Freeze Frame (if empty) (DTC Information
for 6VE1 engine)

Stores a Fail Record

Updates the Fail Record each time the diagnostic
test fails

Type B

Emissions related

ªArmedº after one (1) trip with a fail

ªDisarmedº after one (1) trip with a pass

Requests illumination of the MIL on the
second
consecutive trip
with a fail

Stores a History DTC on the second consecutive trip
with a fail (The DTC will be armed after the first fail)

Stores a Freeze Frame on the second consecutive
trip with a fail (if empty) (DTC Information for 6VE1
engine)

Stores a Fail Record when the first test fails (not
dependent on
consecutive trip fails)

Updates the Fail Record each time the diagnostic
test fails
(Some special conditions apply to misfire and fuel trim
DTCs)

Type C (if the vehicle is so equipped)

Non-Emissions related

Requests illumination of the Service Lamp or the
service message on the Drive Information Center
(DIC) on the
first trip with a fail

Stores a History DTC on the
first trip with a fail


Does not store a Freeze Frame

Stores Fail Record when test fails

Updates the Fail Record each time the diagnostic
test fails

Type D

Non-Emissions related

Not request illumination of any lamp

Stores a History DTC on the
first trip with a fail


Does not store a Freeze Frame

Stores Fail Record when test fails

Updates the Fail Record each time the diagnostic
test fails

METER AND GAUGE8E±1
AXIOM
BODY AND ACCESSORIES
METER AND GAUGE
CONTENTS
Service Precaution 8E±1. . . . . . . . . . . . . . . . . . . . . .
General Description 8E±1. . . . . . . . . . . . . . . . . . . . .
Meter Assembly 8E±2. . . . . . . . . . . . . . . . . . . . . . . . .
General Description 8E±2. . . . . . . . . . . . . . . . . . . . .
Layout for Meters/Gauges, Warning Lights,
Indicator Lights and Illumination Lights 8E±2. . .
Table for Meter/Gauge Connector Terminal
Connections 8E±4. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning Light Bulb and Indicator Light Bulb 8E±6. Removal 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
A/T Shift Indicator Light Bulb 8E±7. . . . . . . . . . . . . .
Removal 8E±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle Speed Sensor 8E±9. . . . . . . . . . . . . . . . . . .
Removal 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Tank Unit 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8E±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8E±10. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The circuit consists of the starter switch, meter assembly,
vehicle speed sensor, transmission switch, lighting
switch, turn signal switch, thermo unit, oil pressure unit,
Powertrain Control Module (PCM), fuel tank unit, 4WD
switch, oil pressure switch, parking brake switch, brake
fluid switch, seat belt switch, illumination controller, meter
and ambient sensor.

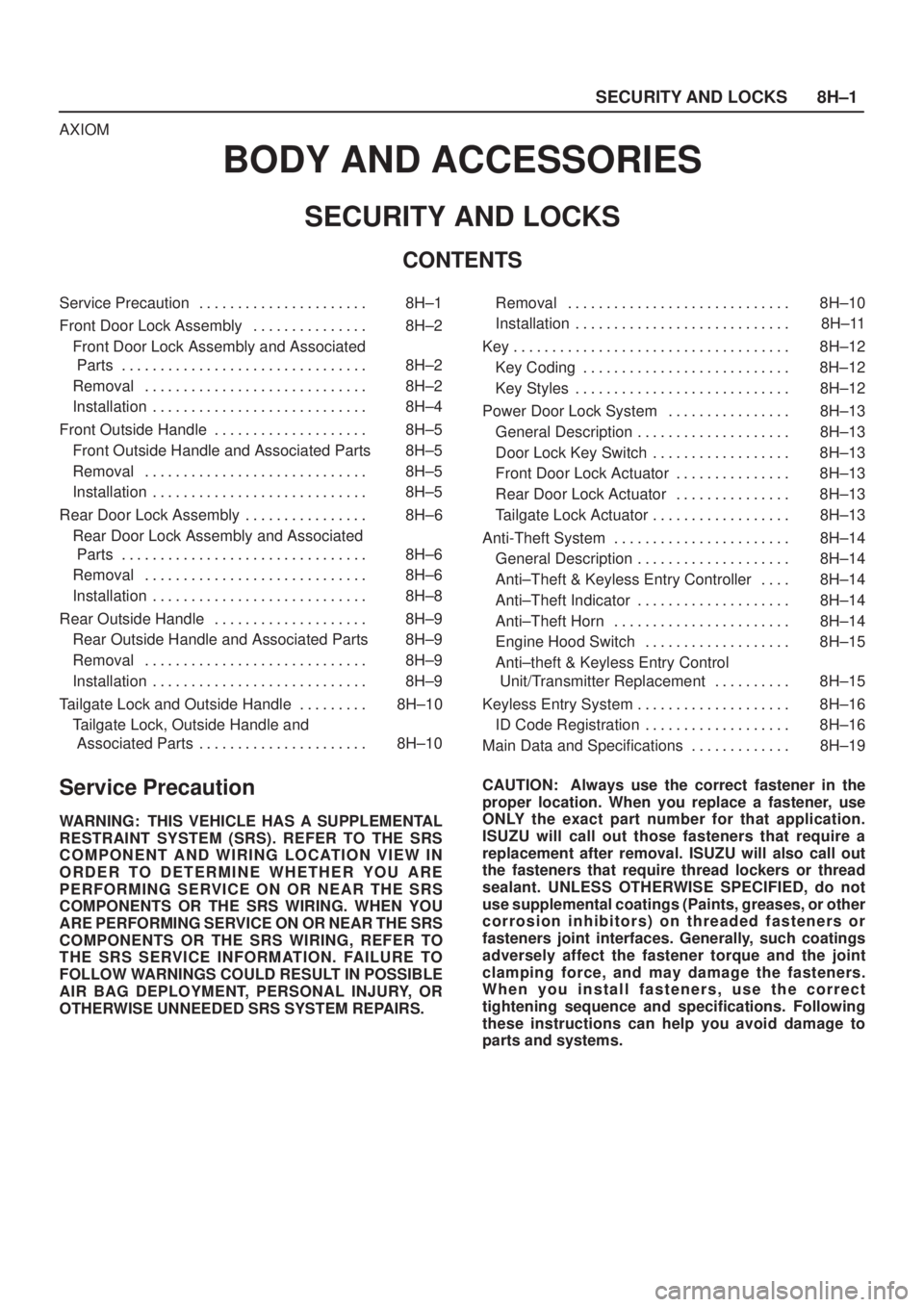

SECURITY AND LOCKS8H±1
AXIOM
BODY AND ACCESSORIES
SECURITY AND LOCKS
CONTENTS
Service Precaution 8H±1. . . . . . . . . . . . . . . . . . . . . .
Front Door Lock Assembly 8H±2. . . . . . . . . . . . . . .
Front Door Lock Assembly and Associated
Parts 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Outside Handle 8H±5. . . . . . . . . . . . . . . . . . . .
Front Outside Handle and Associated Parts 8H±5
Removal 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Lock Assembly 8H±6. . . . . . . . . . . . . . . .
Rear Door Lock Assembly and Associated
Parts 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Outside Handle 8H±9. . . . . . . . . . . . . . . . . . . .
Rear Outside Handle and Associated Parts 8H±9
Removal 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Lock and Outside Handle 8H±10. . . . . . . . .
Tailgate Lock, Outside Handle and
Associated Parts 8H±10. . . . . . . . . . . . . . . . . . . . . . Removal 8H±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Coding 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Styles 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Lock System 8H±13. . . . . . . . . . . . . . . .
General Description 8H±13. . . . . . . . . . . . . . . . . . . .
Door Lock Key Switch 8H±13. . . . . . . . . . . . . . . . . .
Front Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Rear Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Tailgate Lock Actuator 8H±13. . . . . . . . . . . . . . . . . .
Anti-Theft System 8H±14. . . . . . . . . . . . . . . . . . . . . . .
General Description 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft & Keyless Entry Controller 8H±14. . . .
Anti±Theft Indicator 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft Horn 8H±14. . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Switch 8H±15. . . . . . . . . . . . . . . . . . .
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement 8H±15. . . . . . . . . .
Keyless Entry System 8H±16. . . . . . . . . . . . . . . . . . . .
ID Code Registration 8H±16. . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8H±19. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

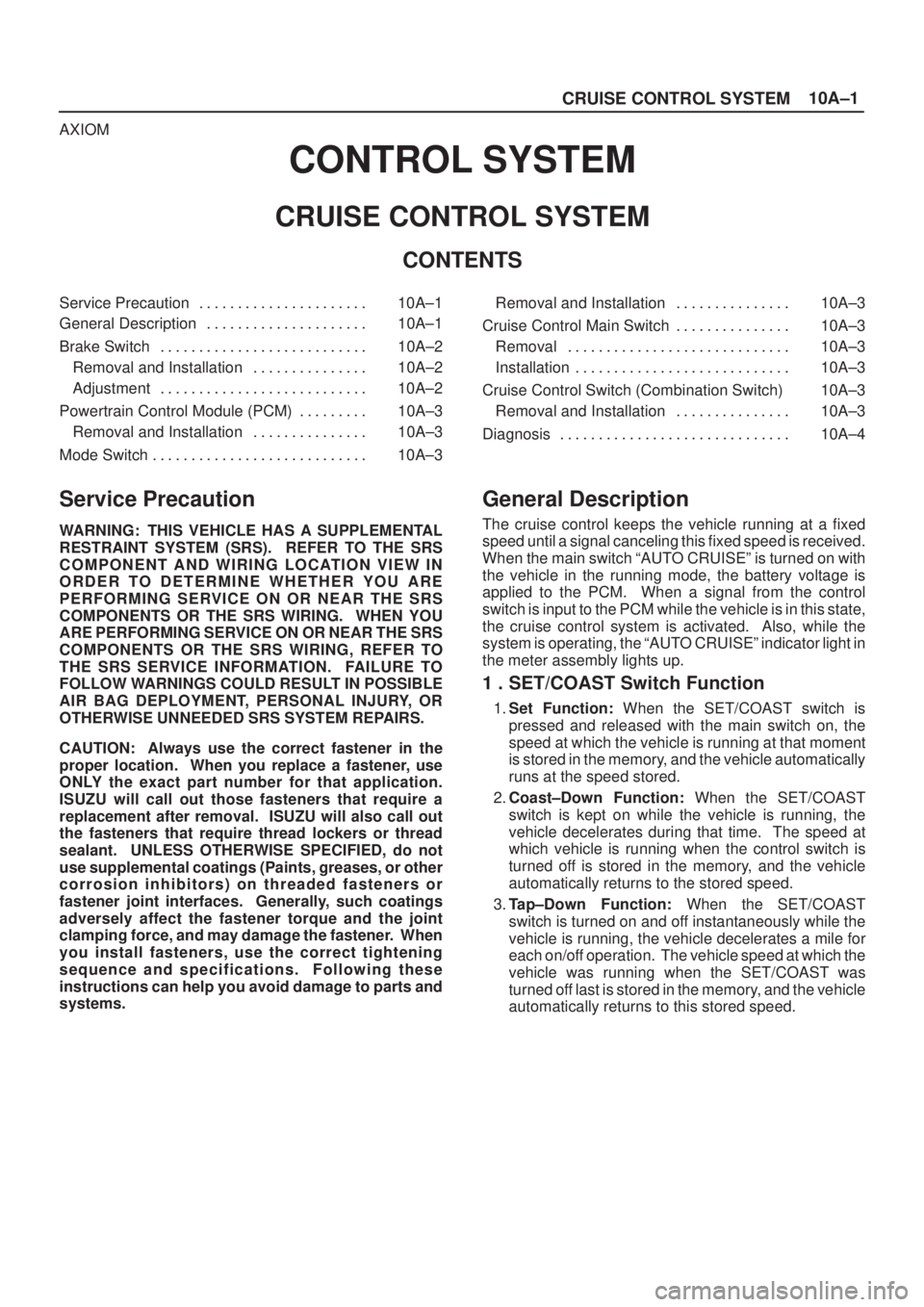

10A±1
CRUISE CONTROL SYSTEM
AXIOM
CONTROL SYSTEM
CRUISE CONTROL SYSTEM
CONTENTS
Service Precaution 10A±1. . . . . . . . . . . . . . . . . . . . . .
General Description 10A±1. . . . . . . . . . . . . . . . . . . . .
Brake Switch 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal and Installation 10A±2. . . . . . . . . . . . . . .
Adjustment 10A±2. . . . . . . . . . . . . . . . . . . . . . . . . . .
Powertrain Control Module (PCM) 10A±3. . . . . . . . .
Removal and Installation 10A±3. . . . . . . . . . . . . . .
Mode Switch 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . Removal and Installation 10A±3. . . . . . . . . . . . . . .
Cruise Control Main Switch 10A±3. . . . . . . . . . . . . . .
Removal 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 10A±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise Control Switch (Combination Switch) 10A±3
Removal and Installation 10A±3. . . . . . . . . . . . . . .
Diagnosis 10A±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
General Description
The cruise control keeps the vehicle running at a fixed
speed until a signal canceling this fixed speed is received.
When the main switch ªAUTO CRUISEº is turned on with
the vehicle in the running mode, the battery voltage is
applied to the PCM. When a signal from the control
switch is input to the PCM while the vehicle is in this state,
the cruise control system is activated. Also, while the
system is operating, the ªAUTO CRUISEº indicator light in
the meter assembly lights up.
1 . SET/COAST Switch Function
1.Set Function: When the SET/COAST switch is
pressed and released with the main switch on, the
speed at which the vehicle is running at that moment
is stored in the memory, and the vehicle automatically
runs at the speed stored.
2.Coast±Down Function: When the SET/COAST
switch is kept on while the vehicle is running, the
vehicle decelerates during that time. The speed at
which vehicle is running when the control switch is
turned off is stored in the memory, and the vehicle
automatically returns to the stored speed.
3.Tap±Down Function: When the SET/COAST
switch is turned on and off instantaneously while the
vehicle is running, the vehicle decelerates a mile for
each on/off operation. The vehicle speed at which the
vehicle was running when the SET/COAST was
turned off last is stored in the memory, and the vehicle
automatically returns to this stored speed.
