6E±144
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

Damaged harness ± Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
MAP display on the Tech 2 while moving connectors
and wiring harnesses related to the sensor. A change
in the display will indicate the location of the fault.If DTC P0107 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P0107 Diagnostic Chart may isolate
the cause of the fault.
DTC P0107 ± MAP Sensor Circuit Low Voltage

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Ignition ªONº, engine ªOFFº.
2. With the throttle closed, observe the MAP value
displayed on the Tech 2.
Is the MAP value near the specified value?
0 V 11 kPa
at sea level
Go to Step 4Go to Step 3
31. Ignition ªONº, engine ªOFFº.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records
conditions as noted.
4. Using a Tech 2, monitor ªDTCº info for DTC P0107.
Does the Tech 2 indicate DTC P0107 failed?
ÐGo to Step 4
Refer to
Diagnostic
Aids
41. Ignition ªOFFº.
2. Disconnect the MAP sensor electrical connector.
3. Jumper the 5 volt reference circuit and the MAP
signal together at the MAP sensor harness
connector.
4. Ignition ªONº.
5. Observe the MAP value displayed on the Tech 2.
Is the MAP value near the specified value? (If no, start
with diagnosis chart for other sensors in the circuit and
see if 5V returns.)
5 V 104 kPaGo to Step 10Go to Step 5
51. Disconnect the jumper.
2. Connect a test light between B+ and the MAP
sensor signal circuit at the MAP sensor harness
connector.
3. Observe the MAP value displayed on the Tech 2.
Is the MAP value near the specified value.
5 V 104 kPaGo to Step 6Go to Step 8
61. Ignition ªOFFº.
2. Disconnect the PCM and check the 5 volt reference
circuit for an open or short to ground.
3. If the 5 volt reference circuit is open or shorted to
ground, repair it as necessary.
Was the 5 volt reference circuit open or shorted to
ground?
ÐVerify repairGo to Step 7
7Check the 5 volt reference circuit for a poor connection
at the PCM and replace the terminal if necessary.
Did the terminal require replacement?
ÐVerify repairGo to Step 11

6E±421
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1167 Fuel System Rich During Decel Fuel Cut Off (Bank1)

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any component related DTCs set?Go to
component
DTC charts
Go to Step 3
31. Place the transmission in Park.
2. Using a Tech 2, HO2S 1 voltage while running warm
engine 75
C ± 95
C (167
F ± 203
F) at 1200
RPM.
3. HO2S 1 voltages should vary within the specified
range. (100 ± 900mV)
4. Quickly open the wide open the throttle for a few
seconds.
Did the voltage suddenly rise toward the low end of the
specified range?
100 ± 600 mV
Go to OBD
System
Check
Go to Step 4
41. Disconnect the fuel pump relay and crank the
engine to relieve the fuel pressure.
2. Install the fuel pressure gauge.
3. Start the engine and idle at normal operating
temperature.
4. Disconnect the vacuum line going to the fuel
pressure regulator.
With the engine running, is the fuel pressure within the
specified range?
280 ± 325Kpa
(41 ± 46psi)
Go to OBD
System
Check
Go to Step 5
51. Ignition ªOFFº.
2. Remove the fuel pump relay and replace it with a
fused jumper which will connect the relay's battery
terminal to the terminal leading to the fuel pump
fuse.
3. While the fuel pump is operating, use pliers to slowly
close the return line (do not exceed the first
specified value).
Using the pliers to restrict the return line, can the
fuel pressure be manipulated to exceed the second
value?
Is the fuel pressure gauge reading near the specified
value?
325KPa
(46psi)
414KPa
(60psi)
Refer to
Diagnostic
Aids
Go to Step 6
6Check the following items;

Faulty fuel pump

Incorrect fuel pump

Incorrect fuel being used

Cold fuel
If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairÐ

6E±423
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1169 Fuel System Rich During Decel Fuel Cut Off (Bank2)

StepActionValue(s)Ye sNo
1Was the ªOn-Board (OBD) System Checkº performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any component related DTCs set?Go to
component
DTC charts
Go to Step 3
31. Place the transmission in Park.
2. Using a Tech 2, HO2S 2 voltage while running warm
engine75 C ± 95 C (167 F ± 203 F) at 1200 RPM.
3. HO2S 1 voltages should vary within the specified
range. (100 ± 900mV)
4. Quickly open the wide open the throttle for a few
seconds.
Did the voltage suddenly rise toward the low end of the
specified range?
100 ± 600 mV
Go to OBD
System
Check
Go to Step 4
41. Disconnect the fuel pump relay and crank the
engine to relieve the fuel pressure.
2. Install the fuel pressure gauge.
3. Start the engine and idle at normal operating
temperature.
4. Disconnect the vacuum line going to the fuel
pressure regulator.
With the engine running, is the fuel pressure within the
specified range?
280 ± 325Kpa
(41 ± 46psi)
Go to OBD
System
Check
Go to Step 5
51. Ignition ªOFFº.
2. Remove the fuel pump relay and replace it with a
fused jumper which will connect the relay's battery
terminal to the terminal leading to the fuel pump
fuse.
3. While the fuel pump is operating, use pliers to slowly
close the return line (do not exceed the first
specified value).
Using the pliers to restrict the return line, can the fuel
pressure be manipulated to exceed the second value?
Is the fuel pressure gauge reading near the specified
value?
325KPa
(46psi)
414KPa
(60psi)
Refer to
Diagnostic
Aids
Go to Step 6
6Check the following items;

Faulty fuel pump

Incorrect fuel pump

Incorrect fuel being used

Cold fuel.
If a problem is found, repair one as necessary.
Was a problem found?
ÐVerify repairÐ

6E±426
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
DTC P1171 ± Fuel System Lean During Acceleration

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any component-related DTCs set?
Ð
Go to
component
DTC charts
Go to Step 3
31. Check the vehicle's fuel tank for an adequate
amount of fuel.
2. Add fuel to the vehicle's fuel tank if the tank is almost
empty.
Was fuel added to the vehicle's fuel tank?
ÐGo to Step 4Go to Step 5
41. Place the transmission in park.
2. Using a Tech 2, observe HO2S 1 voltage while
running warm engine 75
C-95
C (167
F-203
F) at
1200 RPM.
3. HO2S 1 voltage should vary within the specified
range.
4. Quickly open the throttle too halfway for a few
seconds.
Did the voltage suddenly rise toward the high end of the
specified range?
100-900 mV
Go to Fuel
System
Electrical Test
Go to Step 5
51. Disconnect the fuel pump relay and crank the
engine to relieve the fuel pressure.
2. Install the fuel pressure gauge.
3. Start the engine and idle at normal operating
temperature.
4. Disconnect the vacuum line going to the fuel
pressure regulator.
With the engine running, is the fuel pressure within the
specified range?
280-325 kPa
(41-46 psi)
Go to OBD
System
Check
Go to Step 6
6Check for restricted fuel lines or restricted in-line filter.
Was a problem found?
ÐVerify repairGo to Step 7
71. Ignition ªOFFº.
2. Remove the fuel pump relay and replace it with a
fused jumper which will connect the relay's battery
terminal to the terminal leading to the fuel pump
fuse.
3. While the fuel pump is operating, use pliers to slowly
close the return line (do not exceed the first
specified value).
Using the pliers to restrict the return line, can the fuel
pressure be manipulated to exceed the second
specified value?
325 kPa
(46 psi)
414 kPa
(60 psi)
Go to
Diagnostic
Aids
Go to Step 8
8Check for:

Faulty fuel pump

Restricted fuel pump strainer (sock)

Incorrect fuel pump

Incorrect fuel being used

Hot fuel
Is the action complete?
ÐVerify repairÐ

6E±545
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Malfunction Indicator Lamp
(MIL)
Removal and Installation Procedure
Refer to Warning light bulb, indicator light valve,
illumination light bulb, A/T indicator light bulb in Meter and
Gauge.
Reduced Power Lamp
The reduced power lamp (RPL) turns on when the ignition
key is moved to the ON position. It should turn off in
approximately 3 seconds or immediately after the engine
starts.
If the RPL turns on during vehicle operation, a vehicle
system failure resulting in reduced engine output is
indicated.
If both the reduced RPL and the check engine light turn
on, a serious problem affecting vehicle performance is
indicated.
Refer to the
OBD system check NO and RPL ªONº steady
in this manual.
Powertrain Control Module
(PCM)
Service Precaution
NOTE: To p r e ve n t p ossible electrostatic discharge
damage to the PCM, do not touch the connector pins or
soldered components on the circuit board.
Electrostatic Discharge (ESD)
Damage
Electronic components used in the control systems are
often designed to carry very low voltage. Electronic
components are susceptible to damage caused by
electrostatic discharge. Less than 100 volts of static
electricity can cause damage to some electronic
components. By comparison, it takes as much as 4,000
volts for a person to even feel the zap of a static
discharge.
There are several ways for a person to become statically
charged. The most common methods of charging are by
friction and by induction. An example of charging by
friction is a person sliding across a car seat.
Charging by induction occurs when a person with well
insulated shoes stands near a highly charged object and
momentarily touches ground. Charges of the same
polarity are drained off leaving the person highly charged
with the opposite polarity. Static charges can cause
damage, therefore, it is important to use care when
handling and testing electronic components.
NOTE: To prevent possible Electrostatic Discharge
damage, follow these guidelines:

Do not touch the control module connector pins or
soldered components on the control module circuit
board.
Do not open the replacement part package until the
part is ready to be installed.

Before removing the part from the package, ground
the package to a known good ground on the vehicle.

If the part has been handled while sliding across the
seat, or while sitting down from a standing position, or
while walking a distance, touch a known good ground
before installing the part.
NOTE: To prevent internal PCM damage, the ignition
must be in the ªOFFº position in order to disconnect or
reconnect power to the PCM (for example: battery cable,
PCM pigtail, PCM fuse, jumper cables, etc.).
IMPORTANT:When replacing the production PCM
with a service PCM, it is important to transfer the
broadcast code and production PCM number to the
service PCM label. This will allow positive identification of
PCM parts throughout the service life of the vehicle. Do
not record this information on the metal PCM cover.
IMPORTANT:The ignition should always be in the
ªOFFº position in order to install or remove the PCM
connectors.
Service of the PCM should normally consist of either re-
placement of the PCM or EEPROM programming. If the
diagnostic procedures call for the PCM to be replaced,
the PCM should be checked first to ensure it is the correct
part. If it is, remove the faulty PCM and install the new
service PCM.
The service PCM EEPROM will not be programmed.
DTC P0601 indicates the check sum error.
Removal Procedure
1. Disconnect the negative battery cable.
2. Block the wheels.
3. Remove the two screws from the PCM electrical
connectors.
4. Disconnect the PCM electrical connectors.
060RY00065

6E±582
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

Crankshaft position (CKP) sensor.
Spark Plug
Although worn or dirty spark plugs may give satisfactory
operation at idling speed, they frequency fail at higher
engine speeds. Faulty spark plugs may cause poor fuel
economy, power loss, loss of speed, hard starting and
generally poor engine performance. Follow the
scheduled maintenance service recommendations to
ensure satisfactory spark plug performance. Refer to
Maintenance and Lubrication section.
Normal spark plug operation will result in brown to
grayish-tan deposits appearing on the insulator portion of
the spark plug. A small amount of red-brown, yellow, and
white powdery material may also be present on the
insulator tip around the center electrode. These deposits
are normal combustion by-products of fuels and
lubricating oils with additives. Some electrode wear will
also occur. Engines which are not running properly are
often referred to as ªmisfiring.º This means the ignition
spark is not igniting the air/fuel mixture at the proper time.
While other ignition and fuel system causes must also be
considered, possible causes include ignition system
conditions which allow the spark voltage to reach ground
in some other manner than by jumping across the air gap
at the tip of the spark plug, leaving the air/fuel mixture
unburned. Refer to
DTC P0300. Misfiring may also occur
when the tip of the spark plug becomes overheated and
ignites the mixture before the spark jumps. This is
referred to as ªpre-ignition.º
Spark plugs may also misfire due to fouling, excessive
gap, or a cracked or broken insulator. If misfiring occurs
before the recommended replacement interval, locate
and correct the cause.
Carbon fouling of the spark plug is indicated by dry, black
carbon (soot) deposits on the portion of the spark plug in
the cylinder. Excessive idling and slow speeds under
light engine loads can keep the spark plug temperatures
so low that these deposits are not burned off. Very rich
fuel mixtures or poor ignition system output may also be
the cause. Refer to DTC P0172.
Oil fouling of the spark plug is indicated by wet oily
deposits on the portion of the spark plug in the cylinder,
usually with little electrode wear. This may be caused by
oil during break-in of new or newly overhauled engines.
Deposit fouling of the spark plug occurs when the normal
red-brown, yellow or white deposits of combustion by
products become sufficient to cause misfiring. In some
cases, these deposits may melt and form a shiny glaze on
the insulator around the center electrode. If the fouling is
found in only one or two cylinders, valve stem clearances
or intake valve seals may be allowing excess lubricating
oil to enter the cylinder, particularly if the deposits are
heavier on the side of the spark plug facing the intake
valve.
TS23995Excessive gap means that the air space between the
center and the side electrodes at the bottom of the spark
plug is too wide for consistent firing. This may be due to
improper gap adjustment or to excessive wear of the
electrode during use. A spark plug gap that is too small
may cause an unstable idle condition. Excessive gap
wear can be an indication of continuous operation at high
speeds or with engine loads, causing the spark to run too
hot. Another possible cause is an excessively lean fuel
mixture.
TS23992Low or high spark plug installation torque or improper
seating can result in the spark plug running too hot and
can cause excessive center electrode wear. The plug
and the cylinder head seats must be in good contact for
proper heat transfer and spark plug cooling. Dirty or
damaged threads in the head or on the spark plug can
keep it from seating even though the proper torque is
applied. Once spark plugs are properly seated, tighten
them to the torque shown in the Specifications Table. Low
torque may result in poor contact of the seats due to a
loose spark plug. Overtightening may cause the spark
plug shell to be stretched and will result in poor contact

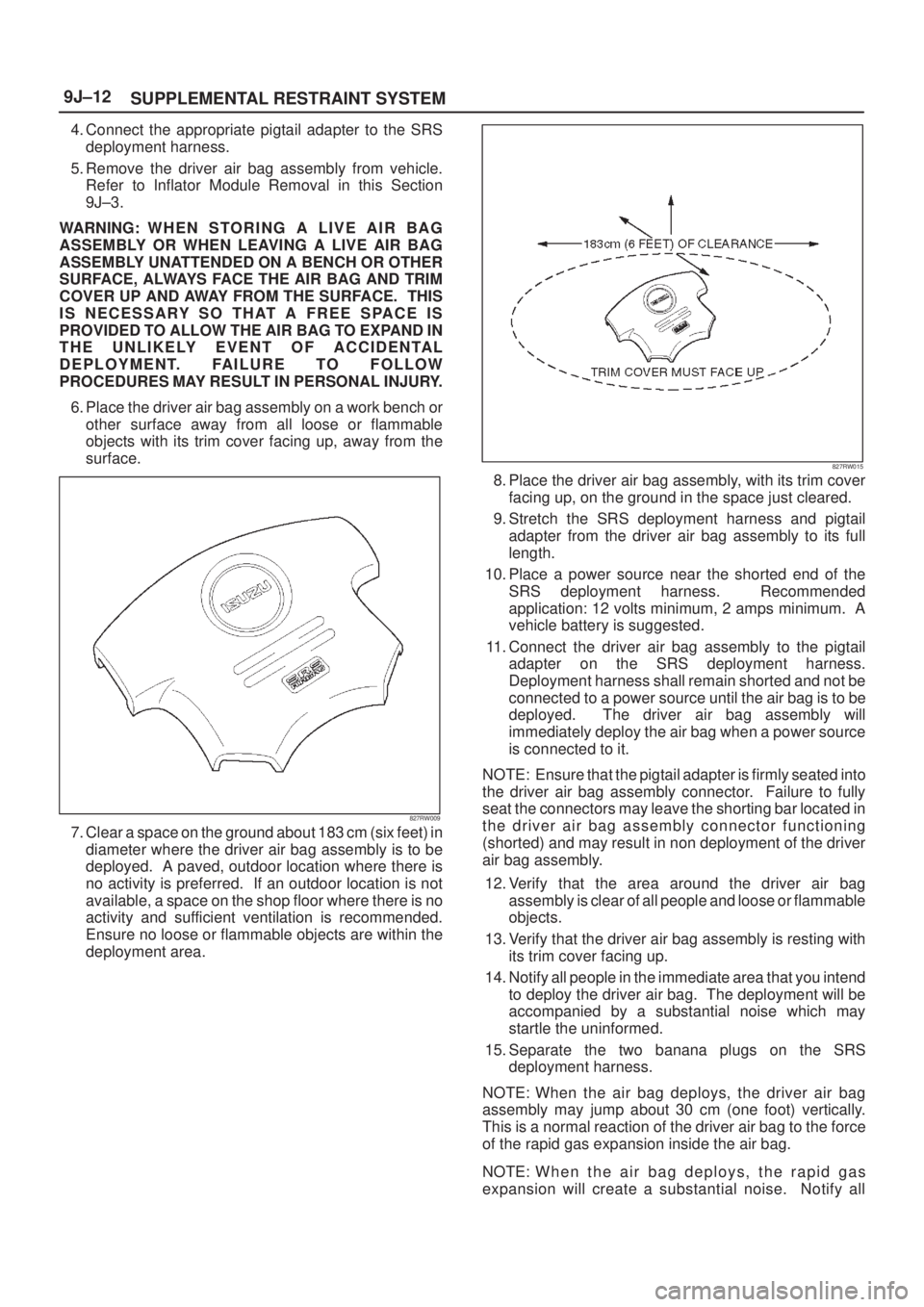

SUPPLEMENTAL RESTRAINT SYSTEM 9J±12
4. Connect the appropriate pigtail adapter to the SRS
deployment harness.
5. Remove the driver air bag assembly from vehicle.
Refer to Inflator Module Removal in this Section
9J±3.
WARNING: W H E N S T O R I N G A L I V E A I R B A G
ASSEMBLY OR WHEN LEAVING A LIVE AIR BAG
ASSEMBLY UNATTENDED ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE AIR BAG AND TRIM
COVER UP AND AWAY FROM THE SURFACE. THIS
IS NECESSARY SO THAT A FREE SPACE IS
PROVIDED TO ALLOW THE AIR BAG TO EXPAND IN
THE UNLIKELY EVENT OF ACCIDENTAL
DEPLOYMENT. FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN PERSONAL INJURY.
6. Place the driver air bag assembly on a work bench or
other surface away from all loose or flammable
objects with its trim cover facing up, away from the
surface.
827RW009
7. Clear a space on the ground about 183 cm (six feet) in
diameter where the driver air bag assembly is to be
deployed. A paved, outdoor location where there is
no activity is preferred. If an outdoor location is not
available, a space on the shop floor where there is no
activity and sufficient ventilation is recommended.
Ensure no loose or flammable objects are within the
deployment area.
827RW015
8. Place the driver air bag assembly, with its trim cover
facing up, on the ground in the space just cleared.
9. Stretch the SRS deployment harness and pigtail
adapter from the driver air bag assembly to its full
length.
10. Place a power source near the shorted end of the
SRS deployment harness. Recommended
application: 12 volts minimum, 2 amps minimum. A
vehicle battery is suggested.
11. Connect the driver air bag assembly to the pigtail
adapter on the SRS deployment harness.
Deployment harness shall remain shorted and not be
connected to a power source until the air bag is to be
deployed. The driver air bag assembly will
immediately deploy the air bag when a power source
is connected to it.
NOTE: Ensure that the pigtail adapter is firmly seated into
the driver air bag assembly connector. Failure to fully
seat the connectors may leave the shorting bar located in
the driver air bag assembly connector functioning
(shorted) and may result in non deployment of the driver
air bag assembly.
12. Verify that the area around the driver air bag
assembly is clear of all people and loose or flammable
objects.
13. Verify that the driver air bag assembly is resting with
its trim cover facing up.
14. Notify all people in the immediate area that you intend
to deploy the driver air bag. The deployment will be
accompanied by a substantial noise which may
startle the uninformed.
15. Separate the two banana plugs on the SRS
deployment harness.
NOTE: When the air bag deploys, the driver air bag
assembly may jump about 30 cm (one foot) vertically.
This is a normal reaction of the driver air bag to the force
of the rapid gas expansion inside the air bag.
NOTE: W h e n t h e a i r b a g deploys, the rapid gas
expansion will create a substantial noise. Notify all
