6E±52
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

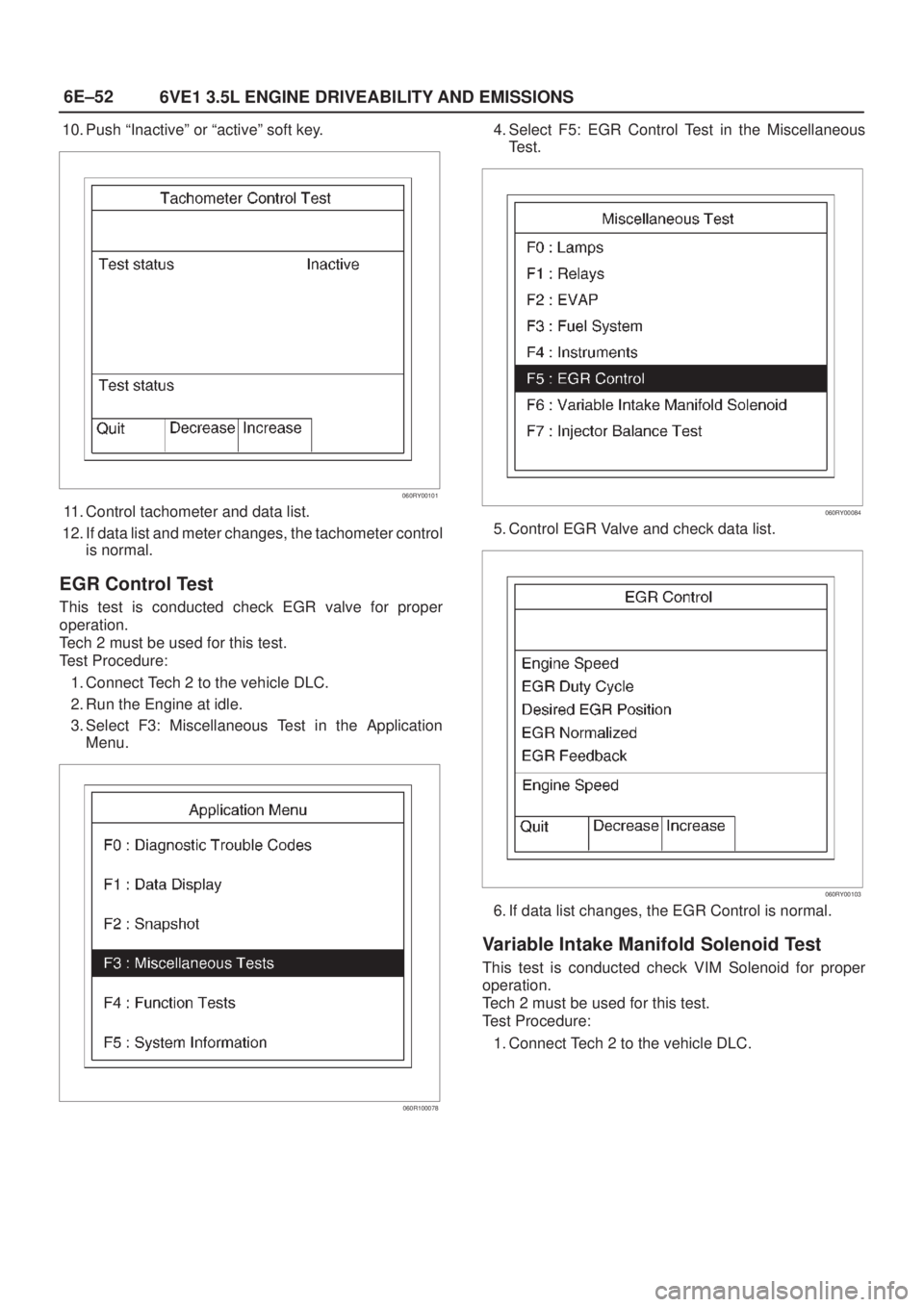

10. Push ªInactiveº or ªactiveº soft key.
060RY00101
11. Control tachometer and data list.
12. If data list and meter changes, the tachometer control
is normal.
EGR Control Test
This test is conducted check EGR valve for proper
operation.
Tech 2 must be used for this test.
Test Procedure:
1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application
Menu.
060R100078
4. Select F5: EGR Control Test in the Miscellaneous
Test.
060RY00084
5. Control EGR Valve and check data list.
060RY00103
6. If data list changes, the EGR Control is normal.
Variable Intake Manifold Solenoid Test
This test is conducted check VIM Solenoid for proper
operation.
Tech 2 must be used for this test.
Test Procedure:
1. Connect Tech 2 to the vehicle DLC.

6E±53
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS

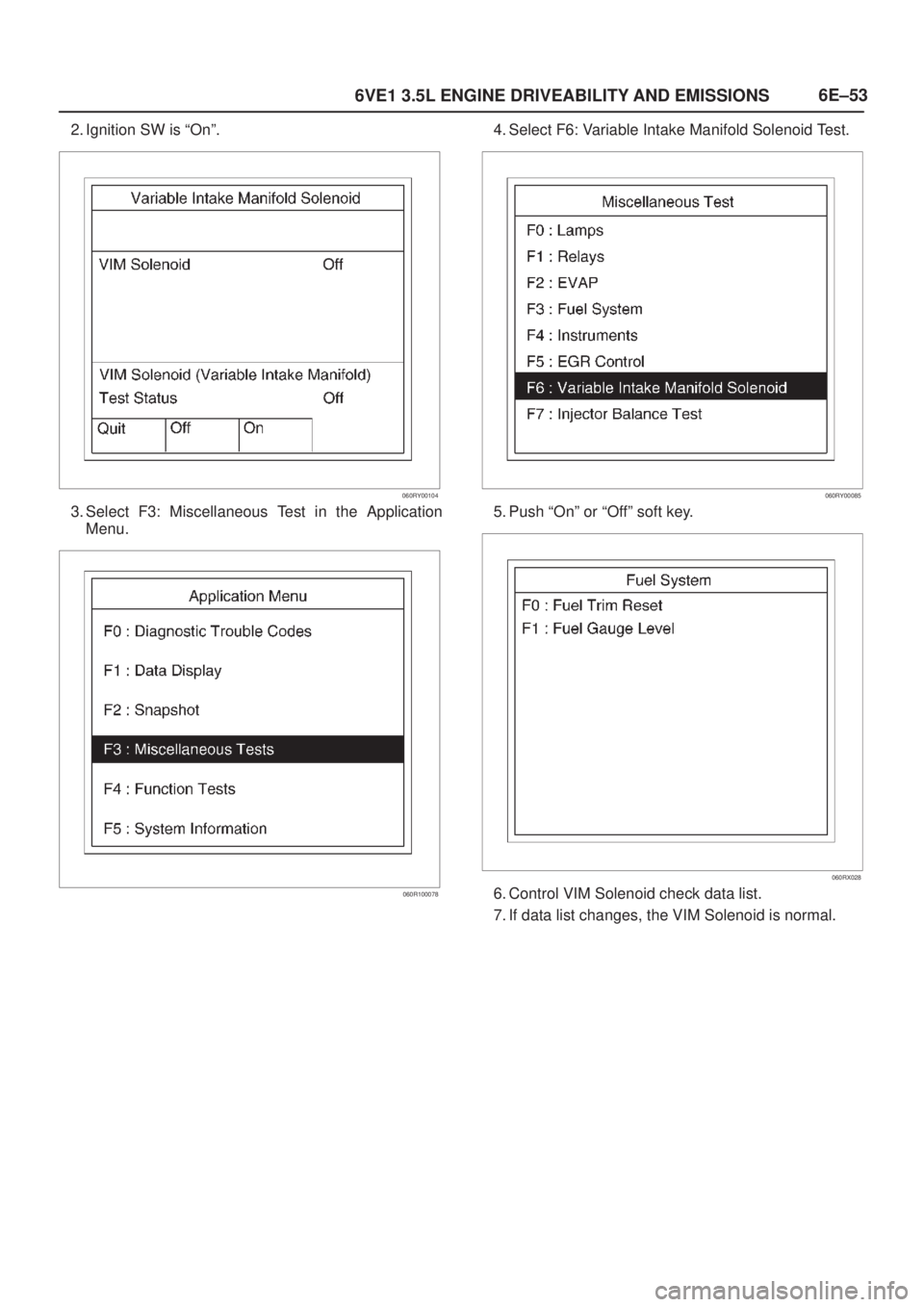

2. Ignition SW is ªOnº.
060RY00104
3. Select F3: Miscellaneous Test in the Application
Menu.
060R100078
4. Select F6: Variable Intake Manifold Solenoid Test.
060RY00085
5. Push ªOnº or ªOffº soft key.
060RX028
6. Control VIM Solenoid check data list.
7. If data list changes, the VIM Solenoid is normal.

6E±60
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
On-Board Diagnostic (OBD II) System Check

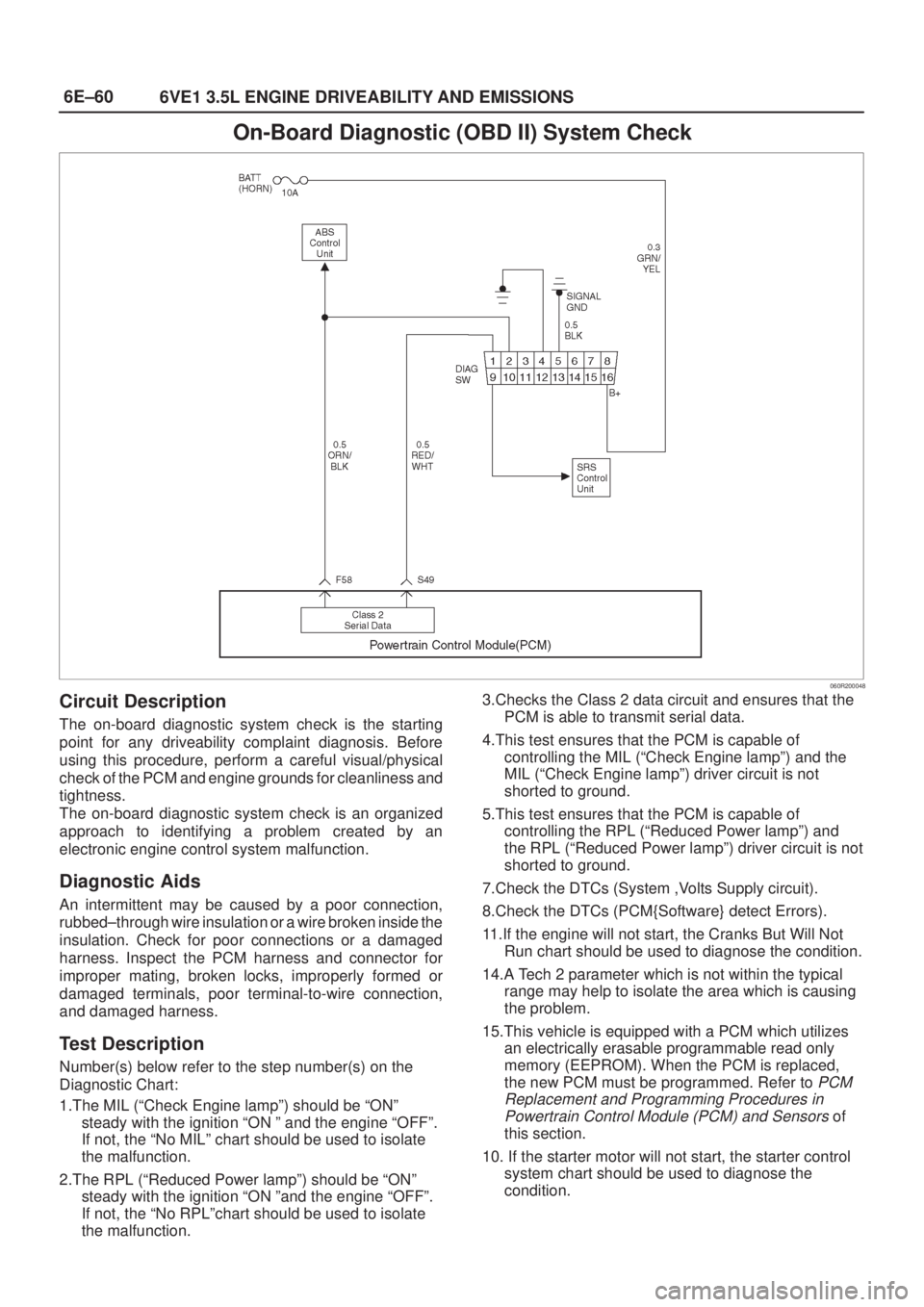

060R200048
Circuit Description
The on-board diagnostic system check is the starting
point for any driveability complaint diagnosis. Before
using this procedure, perform a careful visual/physical
check of the PCM and engine grounds for cleanliness and
tightness.
The on-board diagnostic system check is an organized
approach to identifying a problem created by an
electronic engine control system malfunction.
Diagnostic Aids
An intermittent may be caused by a poor connection,
rubbed±through wire insulation or a wire broken inside the
insulation. Check for poor connections or a damaged
harness. Inspect the PCM harness and connector for
improper mating, broken locks, improperly formed or
damaged terminals, poor terminal-to-wire connection,
and damaged harness.
Test Description
Number(s) below refer to the step number(s) on the
Diagnostic Chart:
1.The MIL (ªCheck Engine lampº) should be ªONº
steady with the ignition ªON º and the engine ªOFFº.
If not, the ªNo MILº chart should be used to isolate
the malfunction.
2.The RPL (ªReduced Power lampº) should be ªONº
steady with the ignition ªON ºand the engine ªOFFº.
If not, the ªNo RPLºchart should be used to isolate
the malfunction.3.Checks the Class 2 data circuit and ensures that the
PCM is able to transmit serial data.
4.This test ensures that the PCM is capable of
controlling the MIL (ªCheck Engine lampº) and the
MIL (ªCheck Engine lampº) driver circuit is not
shorted to ground.
5.This test ensures that the PCM is capable of
controlling the RPL (ªReduced Power lampº) and
the RPL (ªReduced Power lampº) driver circuit is not
shorted to ground.
7.Check the DTCs (System ,Volts Supply circuit).
8.Check the DTCs (PCM{Software} detect Errors).
11.If the engine will not start, the Cranks But Will Not
Run chart should be used to diagnose the condition.
14.A Tech 2 parameter which is not within the typical
range may help to isolate the area which is causing
the problem.
15.This vehicle is equipped with a PCM which utilizes
an electrically erasable programmable read only
memory (EEPROM). When the PCM is replaced,
the new PCM must be programmed. Refer to PCM
Replacement and Programming Procedures in
Powertrain Control Module (PCM) and Sensors
of
this section.
10. If the starter motor will not start, the starter control
system chart should be used to diagnose the
condition.

6E±61
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
On-Board Diagnostic (OBD II) System Check

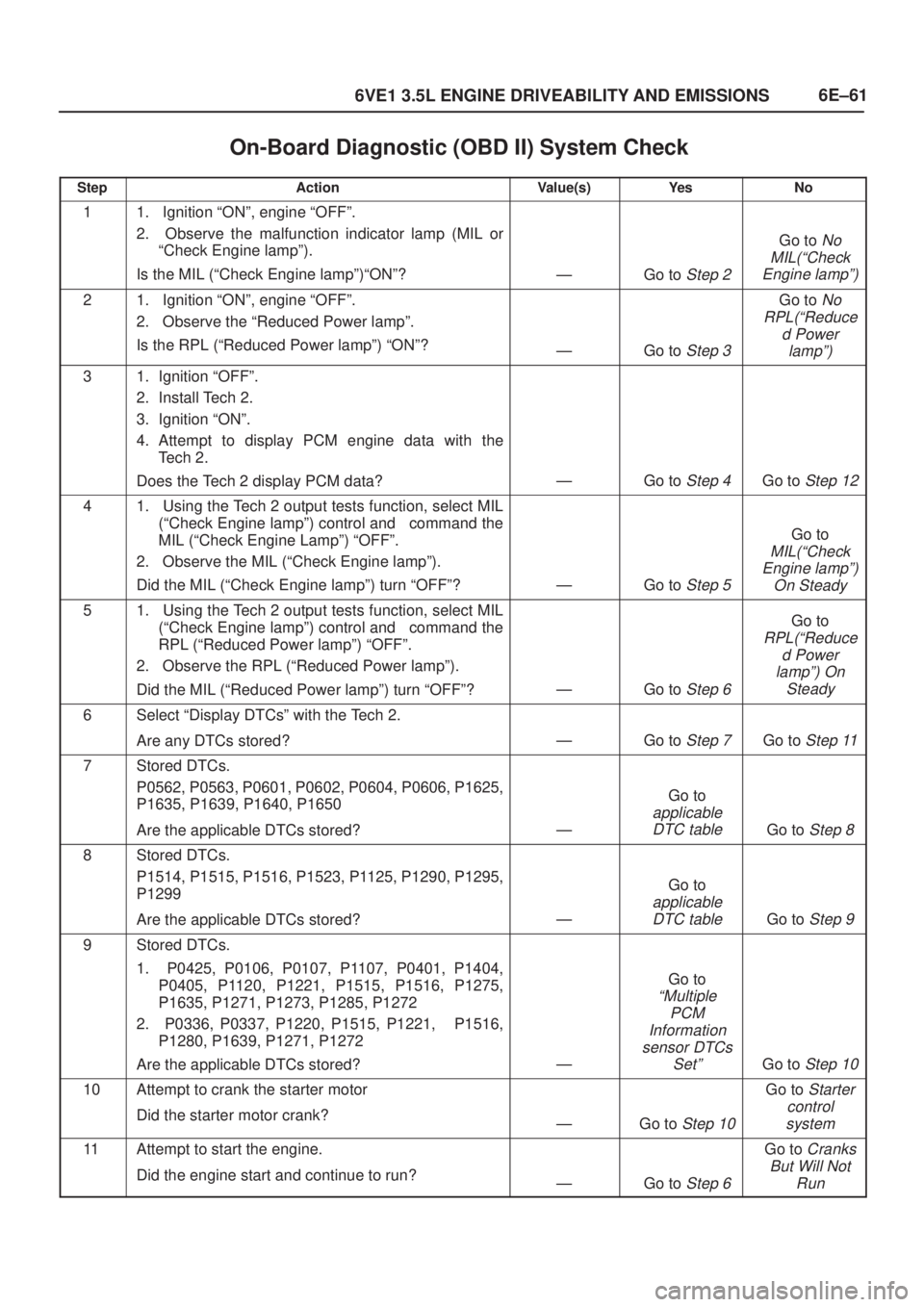

StepActionValue(s)Ye sNo
11. Ignition ªONº, engine ªOFFº.
2. Observe the malfunction indicator lamp (MIL or
ªCheck Engine lampº).
Is the MIL (ªCheck Engine lampº)ªONº?
ÐGo to Step 2
Go to No
MIL(ªCheck
Engine lampº)
21. Ignition ªONº, engine ªOFFº.
2. Observe the ªReduced Power lampº.
Is the RPL (ªReduced Power lampº) ªONº?
ÐGo to Step 3
Go to No
RPL(ªReduce
d Power
lampº)
31. Ignition ªOFFº.
2. Install Tech 2.
3. Ignition ªONº.
4. Attempt to display PCM engine data with the
Tech 2.
Does the Tech 2 display PCM data?
ÐGo to Step 4Go to Step 12
41. Using the Tech 2 output tests function, select MIL
(ªCheck Engine lampº) control and command the
MIL (ªCheck Engine Lampº) ªOFFº.
2. Observe the MIL (ªCheck Engine lampº).
Did the MIL (ªCheck Engine lampº) turn ªOFFº?
ÐGo to Step 5
Go to
MIL(ªCheck
Engine lampº)
On Steady
51. Using the Tech 2 output tests function, select MIL
(ªCheck Engine lampº) control and command the
RPL (ªReduced Power lampº) ªOFFº.
2. Observe the RPL (ªReduced Power lampº).
Did the MIL (ªReduced Power lampº) turn ªOFFº?
ÐGo to Step 6
Go to
RPL(ªReduce
d Power
lampº) On
Steady
6Select ªDisplay DTCsº with the Tech 2.
Are any DTCs stored?
ÐGo to Step 7Go to Step 11
7Stored DTCs.
P0562, P0563, P0601, P0602, P0604, P0606, P1625,
P1635, P1639, P1640, P1650
Are the applicable DTCs stored?
Ð
Go to
applicable
DTC table
Go to Step 8
8Stored DTCs.
P1514, P1515, P1516, P1523, P1125, P1290, P1295,
P1299
Are the applicable DTCs stored?
Ð
Go to
applicable
DTC table
Go to Step 9
9Stored DTCs.
1. P0425, P0106, P0107, P1107, P0401, P1404,
P0405, P1120, P1221, P1515, P1516, P1275,
P1635, P1271, P1273, P1285, P1272
2. P0336, P0337, P1220, P1515, P1221, P1516,
P1280, P1639, P1271, P1272
Are the applicable DTCs stored?
Ð
Go to
ªMultiple
PCM
Information
sensor DTCs
Setº
Go to Step 10
10Attempt to crank the starter motor
Did the starter motor crank?
ÐGo to Step 10
Go to Starter
control
system
11Attempt to start the engine.
Did the engine start and continue to run?
ÐGo to Step 6
Go to Cranks
But Will Not
Run

6E±62
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
On-Board Diagnostic (OBD II) System Check


StepNo Ye s Value(s) Action
12Compare PCM data values displayed on the Tech 2 to
the typical engine scan data values.
Are the displayed values normal or close to the typical
values?
Ð
Go to
Symptom
Refer to
indicated
Component
System
Checks
131. Ignition ªOFFº, disconnect the PCM.
2. Ignition ªONº, engine ªOFFº.
3. Check the Class 2 data circuit for an open, short to
ground, or short to voltage. Also, check the DLC
ignition feed circuit for an open or short to ground
and the DLC ground circuit for an open.
4. If a problem is found, repair as necessary.
Was a problem found?
ÐGo to Step 2Go to Step 14
141. Attempt to reprogram the PCM. Refer to Powertrain
Control Module (PCM) in On-Vehicle Service.
2. Attempt to display PCM data with the Tech 2.
Does the Tech 2 display PCM engine data?
ÐGo to Step 2Go to Step 15
15Replace the PCM.
IMPORTANT:The replacement PCM must be
programmed. Refer to
ON-Vehicle Service in Power
Control Module and Sensors for procedures.
And also refer to latest Service Bulletin. Check to see
if the latest software is released or not. And then Down
Load the LATEST PROGRAMMED SOFTWARE to the
replacement PCM.
Is the action complete?
ÐGo to Step 2Ð

6E±63
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
A/C Clutch Control Circuit Diagnosis
060R100063
Circuit Description
When air conditioning and blower fan are selected, and if
the system has a sufficient refrigerant charge, a 12-volt
signal is supplied to the A/C request input of the
powertrain control module (PCM). The A/C request
signal may be temporarily canceled during system
operation by the electronic thermostat in the evaporator
case. When the A/C request signal is received by the
PCM, the PCM supplies a ground from the compressor
clutch relay if the engine operating conditions are within
acceptable ranges. With the A/C compressor relay
energized, voltage is supplied to the compressor clutch
coil.
The PCM will enable the compressor clutch to engage
whenever A/C has been selected with the engine running,
unless any of the following conditions are present:

The throttle is greater than 90%.

The ignition voltage is below 10.5 volts.

The engine speed is greater than 4500 RPM for 5
seconds or 5400 RPM.
The engine coolant temperature (ECT) is greater
than 125
C (257
F).

The intake air temperature (IAT) is less than 5
C
(41
F).

The power steering pressure switch signals a high
pressure condition.
Diagnostic Aids
To diagnose an the intermittent fault, check for following
conditions:

Poor connection at the PCM±Inspect connections for
backed-out terminals, improper mating, broken locks,
improperly formed or damaged terminals, and poor
terminal-to-wire connection.

Damaged harness±Inspect the wiring harness for
damage. If the harness appears to OK, observe the
A/C clutch while moving connectors and wiring
harnesses related to the A/C. A sudden clutch
malfunction will indicate the source of the intermittent
fault.

6E±64
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
A/C Clutch Diagnosis
This chart should be used for diagnosing the electrical
portion of the A/C compressor clutch circuit. A Tech 2 will
be used in diagnosing the system. The Tech 2 has the
ability to read the A/C request input to the PCM. The
Tech 2 can display when the PCM has commanded the
A/C clutch ªONº. The Tech 2 should have the ability to
override the A/C request signal and energize the A/C
compressor relay.
Test Description
IMPORTANT:Do not engage the A/C compressor
clutch with the engine running if an A/C mode is not
selected at the A/C control switch.
The numbers below refer to the step numbers on the
Diagnostic Chart:3. This a test determine is the problem is with the
refrigerant system. If the switch is open, A/C
pressure gauges will be used to determine if the
pressure switch is faulty or if the system is partially
discharged or empty.
4. Although the normal complaint will be the A/C clutch
failing to engage, it is possible for a short circuit to
cause the clutch to run when A/C has not been
selected. This step is a test for that condition.
7. There is an extremely low probability that both relays
will fail at the same time, so the substitution process
is one way to check the A/C Thermostat relay. Use
a known good relay to do a substitution check.
A/C Clutch Control Circuit Diagnosis

StepActionValue(s)Ye sNo
1Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
2Are any other DTCs stored?
Ð
Go to the
other DTC
chart(s) first
Go to Step 3
31. Disconnect the electrical connector at the pressure
switch located on the receiver/drier.
2. Use an ohmmeter to check continuity across the
pressure switch.
Is the pressure switch open?
Ð
Go to Air
Conditioning
to diagnose
the cause of
the open
pressure
switch
Go to Step 4
4IMPORTANT:Before continuing with the diagnosis, the
following conditions must be met:

The intake air temperature must be greater than
15
C. (60
F).

The engine coolant temperature must be less
than 119
C (246
F).
1. A/C ªOFFº.
2. Start the engine and idle for 1 minute.
3. Observe the A/C compressor.
Is the A/C compressor clutch engaged even though
A/C has not been requested?
ÐGo to Step 37Go to Step 5
51. Idle the engine.
2. A/C ªONº.
3. Blower ªONº.
4. Observe the A/C compressor.
Is the A/C compressor magnetic clutch engaged?
Ð
Refer to
Diagnostic
Aids
Go to Step 6
61. Engine idling.
2. A/C ªONº.
3. Blower ªONº.
4. Observe the ªA/C Requestº display on the Tech 2.
(Refer to the Miscellaneous test)
Does the tool ªA/C Requestº display indicate ªYesº?
ÐGo to Step 26Go to Step 7

6E±65
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
A/C Clutch Control Circuit Diagnosis


StepNo Ye s Value(s) Action
7Temporarily substitute the A/C compressor relay in
place of the A/C thermostat relay, then repeat Step 5.
Did the ªA/C Requestº display indicate ªYesº?
ÐGo to Step 8Go to Step 9
8Replace the original A/C thermostat relay.
Is the action complete?
ÐVerify repairÐ
9Does the blower operate?ÐGo to Step 10Go to Step 11
10Repair the blower.
Is the action complete?
ÐVerify repairÐ
11Check for a faulty 10A A/C fuse in the underdash fuse
panel.
Was the 10A fuse OK?
ÐGo to Step 13Go to Step 12
12Check for short circuit and make repairs if necessary.
Replace the 10A A/C fuse.
Is the action complete?
ÐVerify repairÐ
131. Remove the glove box to gain access to the A/C
thermostat.
2. Disconnect the thermostat connector.
3. Attach a fused jumper between ground and the
thermostat wire.
4. A/C ªONº.
5. Blower ªONº.
Dose A/C request indicate ªYESº on the Tech 2?
ÐGo to Step 14Go to Step 17
141. Ignition ªONº.
2. Use a DVM to check voltage at the electronic A/C
thermostat.
Was voltage equal to the specified value?
B+Go to Step 17Go to Step 15
15Check for open wire between the thermostat and the
A/C switch.
Was the wire open?
ÐGo to Step 16Go to Step 17
16Repair the open wire between the thermostat and the
A/C switch.
Is the action complete?
ÐVerify repairÐ
17Check for an open circuit between A/C thermostat relay
and PCM A/C request terminal (F45).
Was there an open circuit?
ÐGo to Step 18Go to Step 19
18Repair the open circuit between the PCM and A/C
thermostat relay.
Is the action complete?
ÐVerify repairÐ
191. Ignition ªONº.
2. Use a DVM to check voltage at the A/C pressure
switch.
Was voltage equal to the specified value?
B+Go to Step 21Go to Step 20
20Repair the open circuit between the 10A A/C fuse and
the pressure switch.
Is the action complete?
ÐVerify repairÐ
