8F±10BODY STRUCTURE
General Description (Sheet Metal)
This section includes items of front end sheet metal that
are attached by bolts, screws or clips and related
accessory components.
Anticorrosion materials have been applied to the interior
surfaces of some metal panels to provide rust resistance.
When servicing these panels, areas on which this
material has been disturbed, should be properly recoated
with service±type anticorrosion material.
Engine Hood
Parts Location
610R200006
Legend
(1) Engine Hood Assembly(2) Windowshield Washer Nozzle Tube
(3) Hood Hinge Bolt

8F±11 BODY STRUCTURE
Removal
1. Open the hood.
2. Support the hood.
3. Remove the windshield washer nozzle tube.
860R200005
4. Remove the hood hinge bolts.

Before removing the hinges from the engine hood,
scribe a mark showing location of the hinges to
facilitate installation in the original position.
610R200002
5. Remove the engine hood.
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the engine hood hinge fixing bolts to the
specified torque.
Torque : 10 N´m (87 lb in)2. Check the engine hood and fender(1).
Clearance: 4.5 mm (0.18 in)
Height (step): 0.5 mm (0.02 in)

Adjust clearance with the hinges on the engine
hood.

Adjust height (step) with the hood rests(2).
610R200003
610RX001

8F±13 BODY STRUCTURE
Engine Hood Lock
Parts Location
610R200012
Legend
(1) Engine Hood Lock Assembly
(2) Control Cable(3) Hood Lock Control Lever
(4) Inner Liner
Removal
1. Remove the hood lock control lever.
2. Remove the inner liner.
3. Remove the engine hood lock assembly.

Apply setting marks(1) to the hood lock assembly
and the body prior to removal.
610R200013
4. Remove the control cable.

Remove the cable fixing clips from the engine hood
lock.

8F±16BODY STRUCTURE
Removal
1. Disconnect the battery ground cable.
2. Remove the front bumper fascia assembly.

Refer to
Front Bumper in this section.
3. Remove the front turn signal light assembly.

Remove the fixing screw and disconnect the
connector.
610R200008
4. Remove the rocker cover assembly.

Refer to
Rocker Cover Assembly in Exterior/Interior
Trim section.
5. Remove the inner liner.
647RY00003
6. Remove the antenna assembly.

Refer to
Rod Type Antenna in Entertainment
section.
7. Remove the front fender panel (1).

Remove the eight fixing bolts.
8. Remove the engine compartment upper extension
(2).
614R200002
Installation
To install, follow the removal steps in the reverse order,
noting the following points:
1. Tighten the front fender panel fixing bolts to the
specified torque.
Torque : 7 N´m (61 lb in)
2. Check the fender and front door (1).
Clearance: 5.0 mm (0.196 in)
Height (step): Flush
610R200009

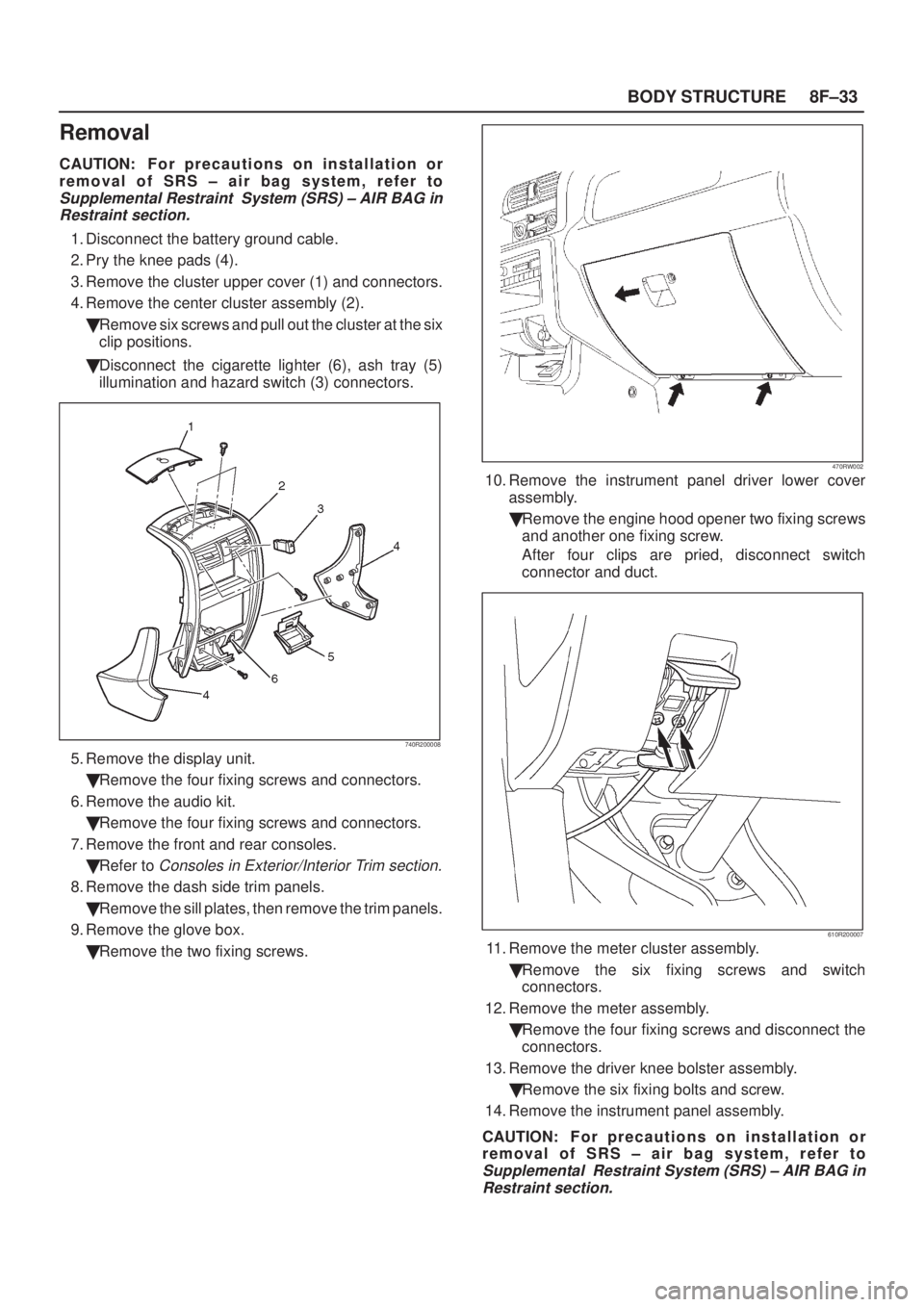

8F±33 BODY STRUCTURE
Removal
CAUTION: F o r p recautions on installation or
removal of SRS ± air bag system, refer to
Supplemental Restraint System (SRS) ± AIR BAG in
Restraint section.
1. Disconnect the battery ground cable.
2. Pry the knee pads (4).
3. Remove the cluster upper cover (1) and connectors.
4. Remove the center cluster assembly (2).

Remove six screws and pull out the cluster at the six
clip positions.

Disconnect the cigarette lighter (6), ash tray (5)
illumination and hazard switch (3) connectors.
740R200008
5. Remove the display unit.

Remove the four fixing screws and connectors.
6. Remove the audio kit.

Remove the four fixing screws and connectors.
7. Remove the front and rear consoles.

Refer to
Consoles in Exterior/Interior Trim section.
8. Remove the dash side trim panels.

Remove the sill plates, then remove the trim panels.
9. Remove the glove box.

Remove the two fixing screws.
470RW002
10. Remove the instrument panel driver lower cover
assembly.

Remove the engine hood opener two fixing screws
and another one fixing screw.
After four clips are pried, disconnect switch
connector and duct.
610R200007
11. Remove the meter cluster assembly.

Remove the six fixing screws and switch
connectors.
12. Remove the meter assembly.

Remove the four fixing screws and disconnect the
connectors.
13. Remove the driver knee bolster assembly.

Remove the six fixing bolts and screw.
14. Remove the instrument panel assembly.
CAUTION: F o r p recautions on installation or
removal of SRS ± air bag system, refer to
Supplemental Restraint System (SRS) ± AIR BAG in
Restraint section.

SECURITY AND LOCKS8H±1
AXIOM
BODY AND ACCESSORIES
SECURITY AND LOCKS
CONTENTS
Service Precaution 8H±1. . . . . . . . . . . . . . . . . . . . . .
Front Door Lock Assembly 8H±2. . . . . . . . . . . . . . .
Front Door Lock Assembly and Associated
Parts 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Outside Handle 8H±5. . . . . . . . . . . . . . . . . . . .
Front Outside Handle and Associated Parts 8H±5
Removal 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Lock Assembly 8H±6. . . . . . . . . . . . . . . .
Rear Door Lock Assembly and Associated
Parts 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8H±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Outside Handle 8H±9. . . . . . . . . . . . . . . . . . . .
Rear Outside Handle and Associated Parts 8H±9
Removal 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tailgate Lock and Outside Handle 8H±10. . . . . . . . .
Tailgate Lock, Outside Handle and
Associated Parts 8H±10. . . . . . . . . . . . . . . . . . . . . . Removal 8H±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8H±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Coding 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . .
Key Styles 8H±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Door Lock System 8H±13. . . . . . . . . . . . . . . .
General Description 8H±13. . . . . . . . . . . . . . . . . . . .
Door Lock Key Switch 8H±13. . . . . . . . . . . . . . . . . .
Front Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Rear Door Lock Actuator 8H±13. . . . . . . . . . . . . . .
Tailgate Lock Actuator 8H±13. . . . . . . . . . . . . . . . . .
Anti-Theft System 8H±14. . . . . . . . . . . . . . . . . . . . . . .
General Description 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft & Keyless Entry Controller 8H±14. . . .
Anti±Theft Indicator 8H±14. . . . . . . . . . . . . . . . . . . .
Anti±Theft Horn 8H±14. . . . . . . . . . . . . . . . . . . . . . .
Engine Hood Switch 8H±15. . . . . . . . . . . . . . . . . . .
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement 8H±15. . . . . . . . . .
Keyless Entry System 8H±16. . . . . . . . . . . . . . . . . . . .
ID Code Registration 8H±16. . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8H±19. . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

8H±14SECURITY AND LOCKS
Anti-Theft System
General Description
The circuit consists of the starter switch, anti±theft &
keyless entry controller, anti±theft horn, front door and
tailgate key switch (detect and tamper) switch, door lock
actuator for each door, engine hood switch, clutch start
switch (M/T), ANTI±THEFT indicator light and mode
switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights will start flashing, the horn
sounds, and the starter circuit is disabled. (However, the
engine hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from ªOFFº to ªACCº by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.
Anti±Theft & Keyless Entry Control-
ler
Removal
1. Disconnect the battery ground cable.
2. Remove the glove box from the instrument panel
assembly (1).

Refer to
the Instrument Panel Assembly in Body
Structure section.
3. Remove the anti±theft & keyless entry controller (2).

Disconnect the connector.

Remove two fixing screws.
826RW007
Installation
To install, follow the removal steps in the reverse order.
Anti±Theft Indicator
Removal and Installation
Refer to GPS in Entertainment section.
Anti±Theft Horn
Removal
1. Disconnect the battery ground cable.
2. Remove the anti±theft horn (1).

Disconnect the connector.

Remove a fixing bolt.
828RW001
Installation
To install, follow the removal steps in the reverse order.
