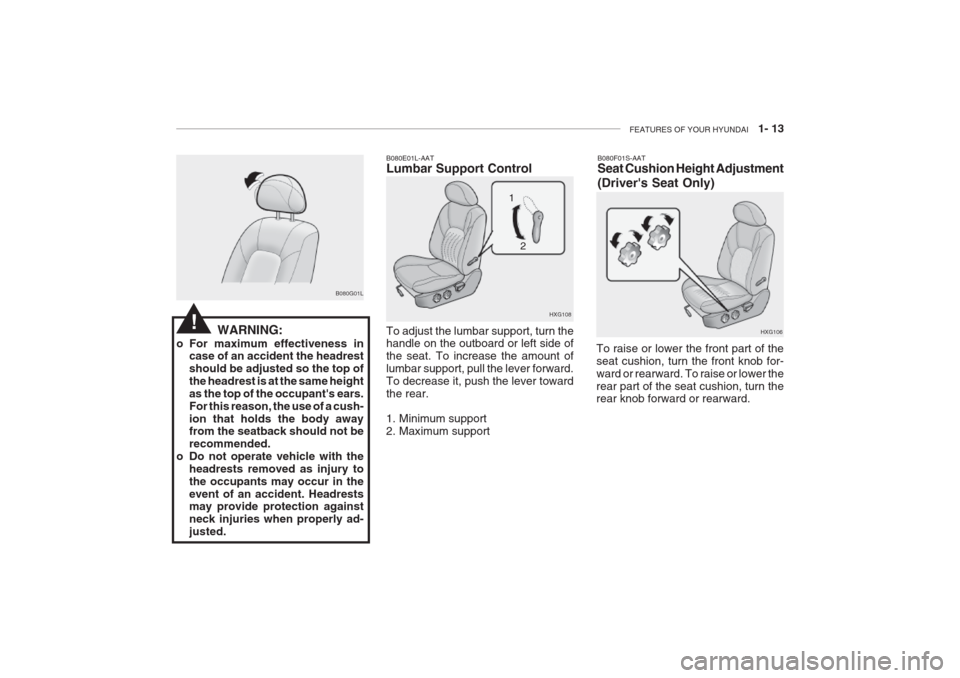

FEATURES OF YOUR HYUNDAI 1- 13
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only)
To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward. HXG106B080E01L-AAT Lumbar Support Control To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount oflumbar support, pull the lever forward.To decrease it, push the lever towardthe rear.
1. Minimum support
2. Maximum supportHXG108
2
1
B080G01L
WARNING:
o For maximum effectiveness in case of an accident the headrestshould be adjusted so the top ofthe headrest is at the same heightas the top of the occupant's ears.For this reason, the use of a cush-ion that holds the body away from the seatback should not be recommended.
o Do not operate vehicle with the headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad-justed.
!

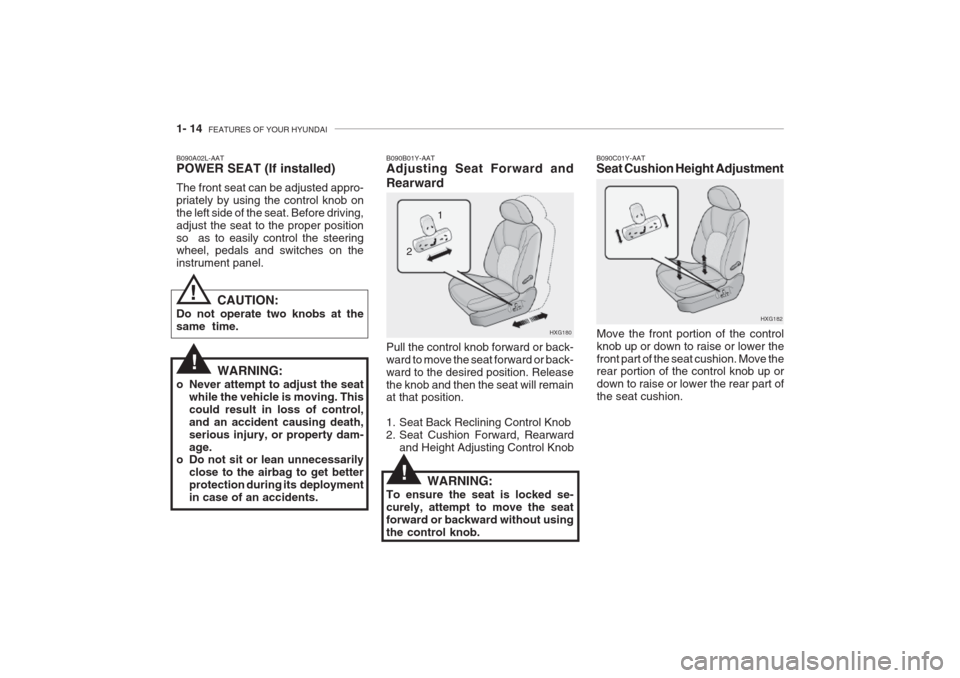

1- 14 FEATURES OF YOUR HYUNDAI
B090A02L-AAT POWER SEAT (If installed) The front seat can be adjusted appro- priately by using the control knob onthe left side of the seat. Before driving,adjust the seat to the proper positionso as to easily control the steering wheel, pedals and switches on the instrument panel.
HXG180
1
2
B090B01Y-AAT Adjusting Seat Forward and Rearward Pull the control knob forward or back- ward to move the seat forward or back-ward to the desired position. Releasethe knob and then the seat will remain at that position.
1. Seat Back Reclining Control Knob
2. Seat Cushion Forward, Rearward
and Height Adjusting Control Knob
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control,and an accident causing death,serious injury, or property dam-age.
o Do not sit or lean unnecessarily
close to the airbag to get betterprotection during its deploymentin case of an accidents.
CAUTION:
Do not operate two knobs at the same time.
WARNING:
To ensure the seat is locked se- curely, attempt to move the seatforward or backward without usingthe control knob.
B090C01Y-AAT Seat Cushion Height Adjustment
Move the front portion of the control knob up or down to raise or lower thefront part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part ofthe seat cushion. HXG182
!
!
!

FEATURES OF YOUR HYUNDAI 1- 21
B180A01L-GAT SEAT BELTS-Driver's 3-Point System with Emergency Lock- ing Retractor To Fasten Your Belt
To fasten your seat belt, pull it out of the retractor and insert the metal tabinto the buckle. There will be an au-dible "click" when the tab locks into thebuckle. The seat belt automatically adjusts to the proper length only after the lap beltis adjusted manually so that it fitssnugly around your hips. If you leanforward in a slow, easy motion, the beltwill extend and let you move around. If there is a sudden stop or impact, how-
ever, the belt will lock into position. It
Release the button to lock the anchorinto position. Try sliding the heightadjuster to make sure that it has lockedinto the position.
B180A01L
B200A01A-GAT Adjusting Your Seat Belt You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it incase of accident or a sudden stop.This could result of death, seriousinjury or property damage. Both arms should not be under or over the belt. Rather, one should be over and theother under, as shown in the illustra-tion. B200A01L
will also lock if you try to lean forwardtoo quickly. Check to make sure thatthe belt is properly locked and that thebelt is not twisted.
!WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reducethe effectiveness of the seat beltin a crash.

INDEX 10- 3
D Defrosting / Defogging .............................................. 1-81
Door Door locks ................................................................ 1-6
Door courtesy light ................................................. 1-70
Locking and unlocking front doors with a key ......... 1-6
Drink Holder .............................................................. 1-56
Drive Belts ...................................................... 6-18, 6-21
Driving
Economical driving ..................................... 2-14 ~ 2-15
Smooth cornering ................................................... 2-15
Winter driving ......................................................... 2-15
E Emission Control System ................................. 7-1 ~ 7-3
Engine Before starting the engine ....................................... 2-3
Compartment ................................................... 6-1~6-3 Coolant ......................................................... 6-8 ~ 6-10
Coolant temperature gauge ................................... 1-45
If the engine overheats ............................................ 3-4
Number .................................................................... 8-2
Oil ............................................................................. 6-6
Starting ..................................................................... 2-4
Engine Exhaust Can Be Dangerous ........................... 2-2F Fan Speed Control
.................................................... 1-77
Fog Light Front ....................................................................... 1-47
Rear ........................................................... 1-47 ~ 1-48
Front Seats Adjustable front seats ............................................ 1-11
Adjustable headrests .................................. 1-12 ~ 1-13
Adjusting seat forward and rearward ......... 1-11 ~ 1-12 Adjusting seatback angle ....................................... 1-12
Lumbar support control .......................................... 1-13 Seat cushion height adjustment............................ 1-13
Seat warmer ........................................................... 1-17
Fuel Capacity ................................................................... 9-2
Gauge .................................................................... 1-45
recommendations ..................................................... 1-2
Fuel Filler Lid Remote release ...................................................... 1-67
Manual ................................................................... 1-67
Fuses ............................................................ 6-21 ~ 6-23 G General Checks .......................................................... 6-5
Glove Box ................................................................. 1-61

INDEX 10- 5
Adjusting seat forward and rear ward..................... 1-14
Adjusting seatbag angle ......................................... 1-15 Seat cushion height adjustment............................ 1-14
Power Steering Fluid Level ....................................... 6-24 R
Rear Seat Fold Down ................................... 1-17 ~ 1-18Rear Window Defroster Switch .................... 1-52 ~ 1-53
Replacement of light bulbs ....................................... 6-26 S Seat Front ........................................................... 1-11 ~ 1-15
Seat Warmer ............................................................. 1-17
Seat Belts
3-Point system ........................................... 1-21 ~ 1-23
Adjustable height ........................................ 1-20 ~ 1-21
Adjusting your seat belt ......................................... 1-21Care of seat belts .................................................. 1-20
Precautions ............................................................ 1-18
Spark Plugs ................................................... 6-10 ~ 6-11
Spectacle Case ......................................................... 1-61
Speedometer ............................................................. 1-45
Starting Procedure ...................................................... 2-4
Steering Wheel Freeplay .......................................... 6-20
Steering Wheel Electric T ilt and Telescopic ............. 1-71
Steering Wheel Tilt Lever ......................................... 1-71 Stereo Radio Operation (H940B, H940A)
......................................... 1-93 ~ 1-95, 1-101 ~ 1-103
Stereo Sound System ................................... 1-91 ~ 1-92 Sun Visor
.................................................................. 1-70
Sunroof .......................................................... 1-57 ~ 1-59 T
Tachometer ............................................................... 1-46 Theft-Alarm system ........................................... 1-8 ~ 1-9
Tires Balancing .................................................................. 8-4
Chains ...................................................................... 8-4
If you have a flat tire ................................... 3-5 ~ 3-10
Information ............................................................... 8-2
Pressure ......................................................... 8-2 ~ 8-3Replacement ............................................................ 8-5
Rotation .................................................................... 8-4
Snow tires ................................................................ 8-3
Spare tire ................................................................. 3-5
Traction .................................................................... 8-4
Towing A trailer (or vehicle) ................................... 2-18 ~ 2-21
Emergency ............................................................. 3-12
If your car must be towed ......................... 3-10 ~ 3-12
Traction Control System ............................... 2-12 ~ 2-13
Transaxle
Automatic ..................................................... 2-7 ~ 2-11Automatic transaxle fluid checking ............ 6-14 ~ 6-15
Manual ..................................................................... 2-5
Manual transaxle Oil checkin g ................... 6-13 ~ 6-14
Trip Computer ............................................... 1-53 ~ 1-55
Trip Odometer ............................................... 1-46 ~ 1-47
Trunk Lid ....................................................... 1-64 ~ 1-66
