2002 FORD EXPLORER SPORT TRAC wiper blades

MULTI-FUNCTION LEVER
Windshield wiper:rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:when
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Changing the wiper blades
1. Pull the wiper arm away from the
vehicle. Turn the blade at an angle
from the wiper arm. Push the lock
pin manually to release the blade
and pull the wiper blade down
toward the windshield to remove it
from the arm.
2. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
3. Replace wiper blades every 6 months for optimum performance.
Driver Controls
41

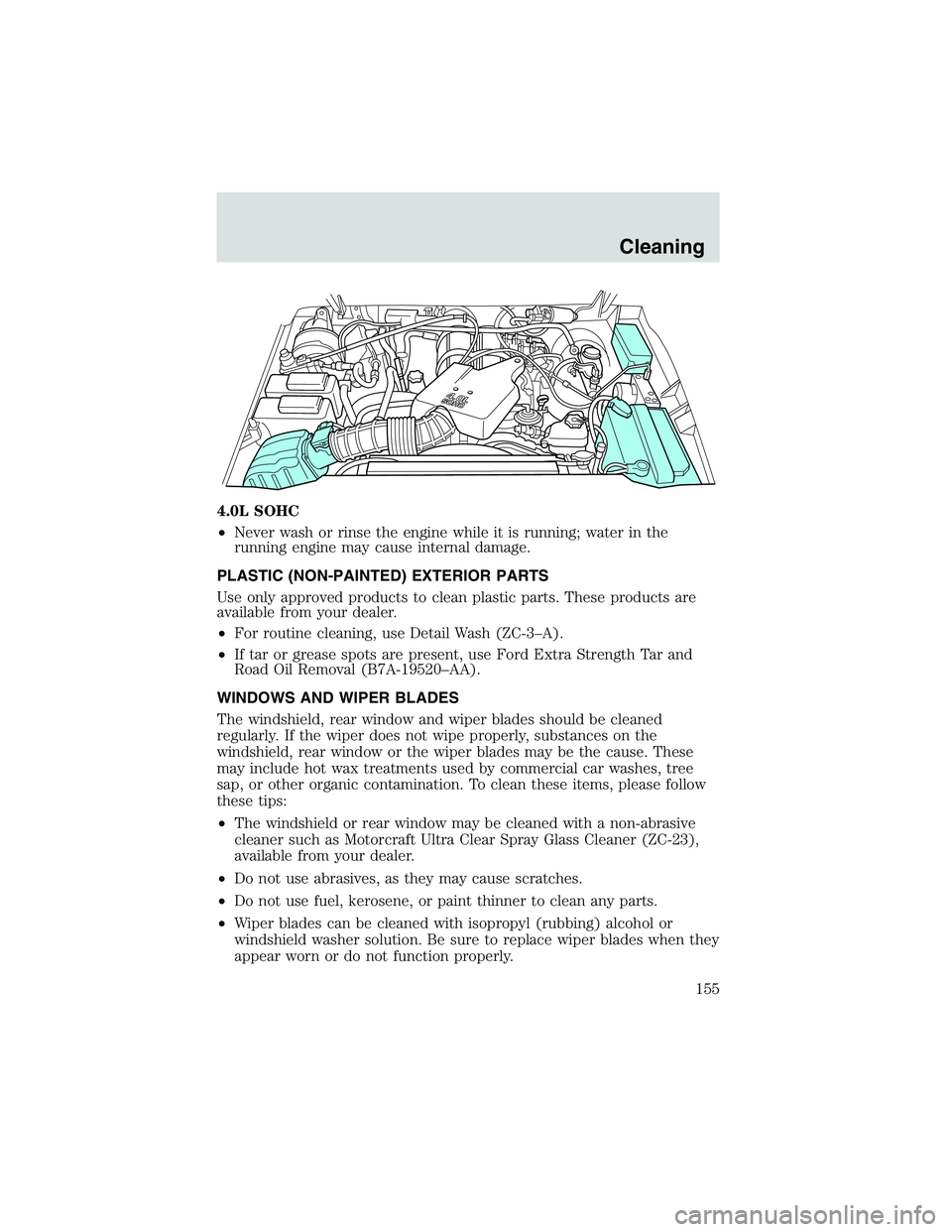

4.0L SOHC
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your dealer.
•For routine cleaning, use Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Ford Extra Strength Tar and
Road Oil Removal (B7A-19520–AA).
WINDOWS AND WIPER BLADES
The windshield, rear window and wiper blades should be cleaned
regularly. If the wiper does not wipe properly, substances on the
windshield, rear window or the wiper blades may be the cause. These
may include hot wax treatments used by commercial car washes, tree
sap, or other organic contamination. To clean these items, please follow
these tips:
•The windshield or rear window may be cleaned with a non-abrasive
cleaner such as Motorcraft Ultra Clear Spray Glass Cleaner (ZC-23),
available from your dealer.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
•Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly.
Cleaning
155

A
Air bag supplemental restraint
system ....................................83–84
and child safety seats ..............85
description ................................84
disposal ......................................87
driver air bag ............................86
indicator light ...........................87
operation ...................................86
passenger air bag .....................86
Air cleaner filter .......................183
Anti-lock brake system
(see Brakes) ......................103–104
Audio system (see Radio) ...14, 27
Automatic transmission
driving an automatic
overdrive .................................107
fluid, refill capacities ..............183
fluid, specification ..................188
Auxiliary power point .................44
Axle
lubricant specifications ..186, 188
refill capacities ........................183
traction lok ..............................105
B
Battery
replacement, specifications ...183
BeltMinder ...................................79
Brakes ........................................103
anti-lock ...........................103–104
anti-lock brake system (ABS)
warning light ...........................103
fluid, refill capacities ..............183
fluid, specifications .........186, 188
lubricant specifications ..186, 188
parking ....................................104
shift interlock ..........................106C
Capacities for refilling fluids ....183
Cargo cage ...................................55
Cassette tape player ...................27
CD-single premium .....................14
Certification Label ....................190
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................91
attaching with tether straps ....96
in front seat ..............................92
in rear seat ..........................92, 95
Cleaning your vehicle
engine compartment ..............154
instrument panel ....................156
interior .....................................156
plastic parts ............................155
washing ....................................153
waxing .....................................153
wheels ......................................154
wiper blades ............................155
woodtone trim ........................156
Clock ............................................27
Clutch
operation while driving ..........109
recommended shift speeds ....109
Compass/temperature display ...52
Console ........................................42
floor ...........................................42
overhead ....................................42
Controls
power seat .................................69
Coolant
refill capacities ........................183
specifications ..................186, 188
Customer Assistance ................125
Index
194

S
Safety belts (see Safety
restraints) ..............................73–77
Safety defects, reporting ..........152
Safety restraints ....................73–77
belt minder ...............................79
cleaning the safety belts ..........82
extension assembly ..................82
for adults .............................74–76
for children .........................87–88
lap belt ......................................78
warning light and chime ..........78
Safety seats for children ............91
Seat belts (see Safety
restraints) ....................................73
Seats ............................................68
child safety seats ......................91
Spare tire (see Changing the
Tire) ...........................................135
Spark plugs,
specifications .....................183, 188
Specification chart,
lubricants ...........................186, 188
Speed control ..............................49
Starting your vehicle ..99–100, 102
Steering wheel
tilting .........................................42
T
Tailgate ..................................54–55
Tires ...................................178–179
changing ..................................135tire grades ...............................179
treadwear ................................179
Tonneau cover .............................57
Towing .......................................118
recreational towing .................123
trailer towing ..........................118
Traction-lok rear axle ...............105
Transmission .............................106
fluid, checking and adding
(manual) .................................177
fluid, refill capacities ..............183
lubricant specifications ..186, 188
manual operation ....................109
Trunk ...........................................59
Turn signal ..................................36
V
Vehicle dimensions ...................188
Vehicle Identification Number
(VIN) ..........................................190
Vehicle loading ..........................116
camper bodies ........................123
Ventilating your vehicle ...........103
W
Warning lights (see Lights) .........8
Water, Driving through .............116
Windows
power .........................................45
power down back window .......46
Windshield washer fluid and
wipers ..........................................41
replacing wiper blades .............41
Index
197
