2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
3Fill to bottom of filler plug hole.
4Add the coolant type originally equipped in your vehicle.
5Fill to 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of filler
plug hole.
6For vehicles equipped with a conventional rear axle, refer to your
scheduled maintenance guide for axle fluid change intervals.
7Vehicles equipped with Traction-Lok axle require synthetic rear axle
lubricant. Rear axles containing synthetic lubricant are lubricated for life.
These lubricants are not to be checked or changed unless a leak is
suspected or service is required. The axle lubricant should be changed
any time the axle has been submerged in water.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok axles.
8Service refill capacity for the manual transmission is determined by
filling the transmission to the bottom of the filler hole with the vehicle
on a level surface.
Maintenance and Specifications
185

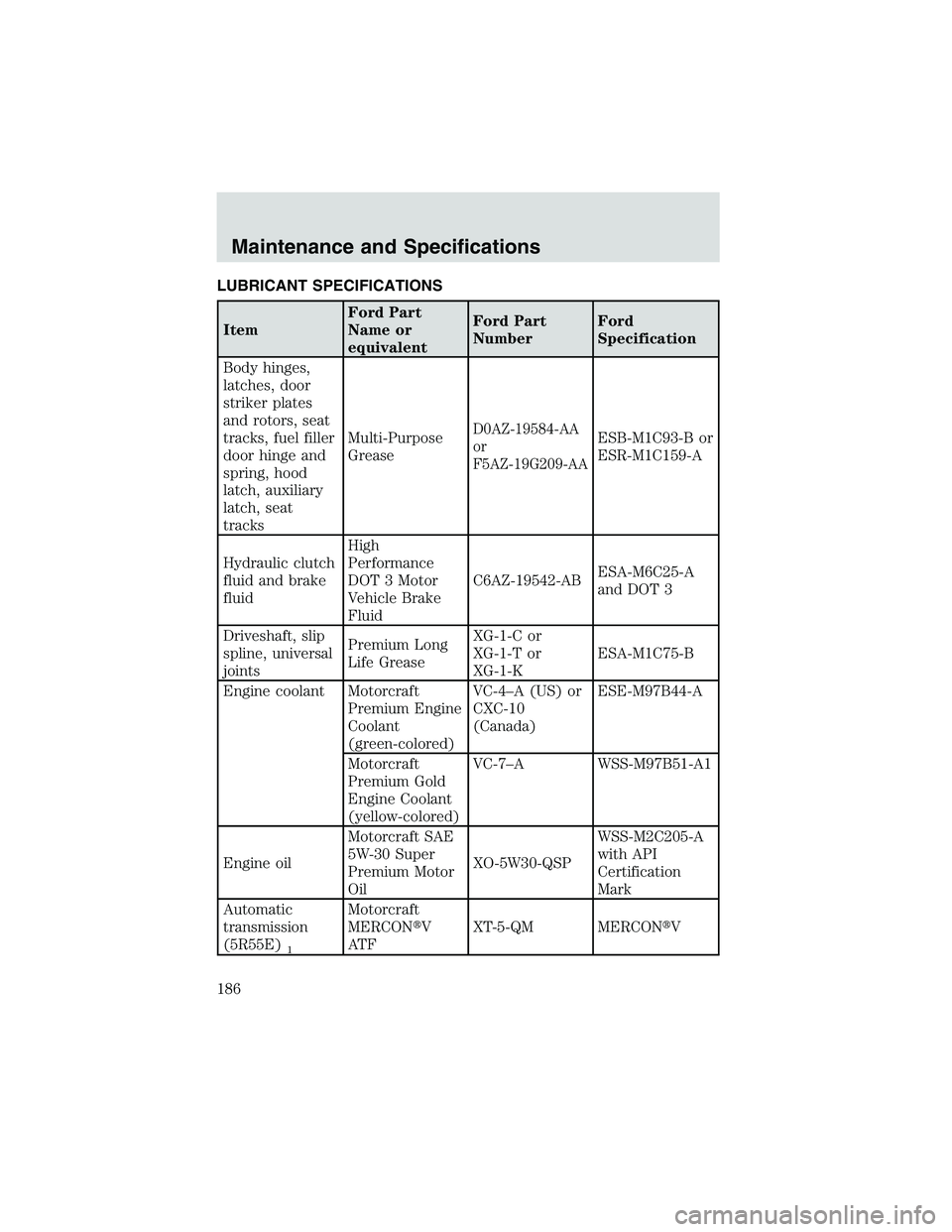

LUBRICANT SPECIFICATIONS
ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
Body hinges,
latches, door
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
spring, hood
latch, auxiliary
latch, seat
tracksMulti-Purpose
Grease
D0AZ-19584-AA
or
F5AZ-19G209-AAESB-M1C93-B or
ESR-M1C159-A
Hydraulic clutch
fluid and brake
fluidHigh
Performance
DOT 3 Motor
Vehicle Brake
FluidC6AZ-19542-ABESA-M6C25-A
and DOT 3
Driveshaft, slip
spline, universal
jointsPremium Long
Life GreaseXG-1-C or
XG-1-T or
XG-1-KESA-M1C75-B
Engine coolant Motorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (US) or
CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine oilMotorcraft SAE
5W-30 Super
Premium Motor
OilXO-5W30-QSPWSS-M2C205-A
with API
Certification
Mark
Automatic
transmission
(5R55E)
1
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Maintenance and Specifications
186

ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
4–speed manual
transmissionMotorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
Power steering
fluidMotorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
Ford
conventional and
Traction-Lok
rear axles
2, 3, 4 2, 3, 4 2, 3, 4
Front axle
(4X4)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Transfer case
(4X4)Motorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
Transfer case
Front Output
Slip ShaftPremium
Long-Life GreaseXG-1-C or
XG-1-T or
XG-1-KESA-M1C75-B
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your scheduled maintenance
guide to determine the correct service interval.
2Conventional rear axles are filled with Motorcraft SAE 80W-90 Premium
Rear Axle Lubricant, part number XY-80W90-QL, Ford specification
WSP-M2C197-A.
Maintenance and Specifications
187

3Traction-Lok rear axles are filled with Motorcraft SAE 75W-140 High
Performance Synthetic Rear Axle Lubricant, part number F1TZ-19780-B,
Ford specification WSL-M2C192-A.
4Add 118 ml (4 oz) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118–A to Traction-Lok
rear axles whenever the axle has been serviced.
ENGINE DATA
Engine 4.0L SOHC V6 engine
Cubic inches 245
Required fuel 87 octane
Firing order 1-4-2-5-3-6
Spark plug gap 1.3-1.4 mm (0.052-0.056 inch)
Ignition system EDIS
Compression ratio 9.7:1

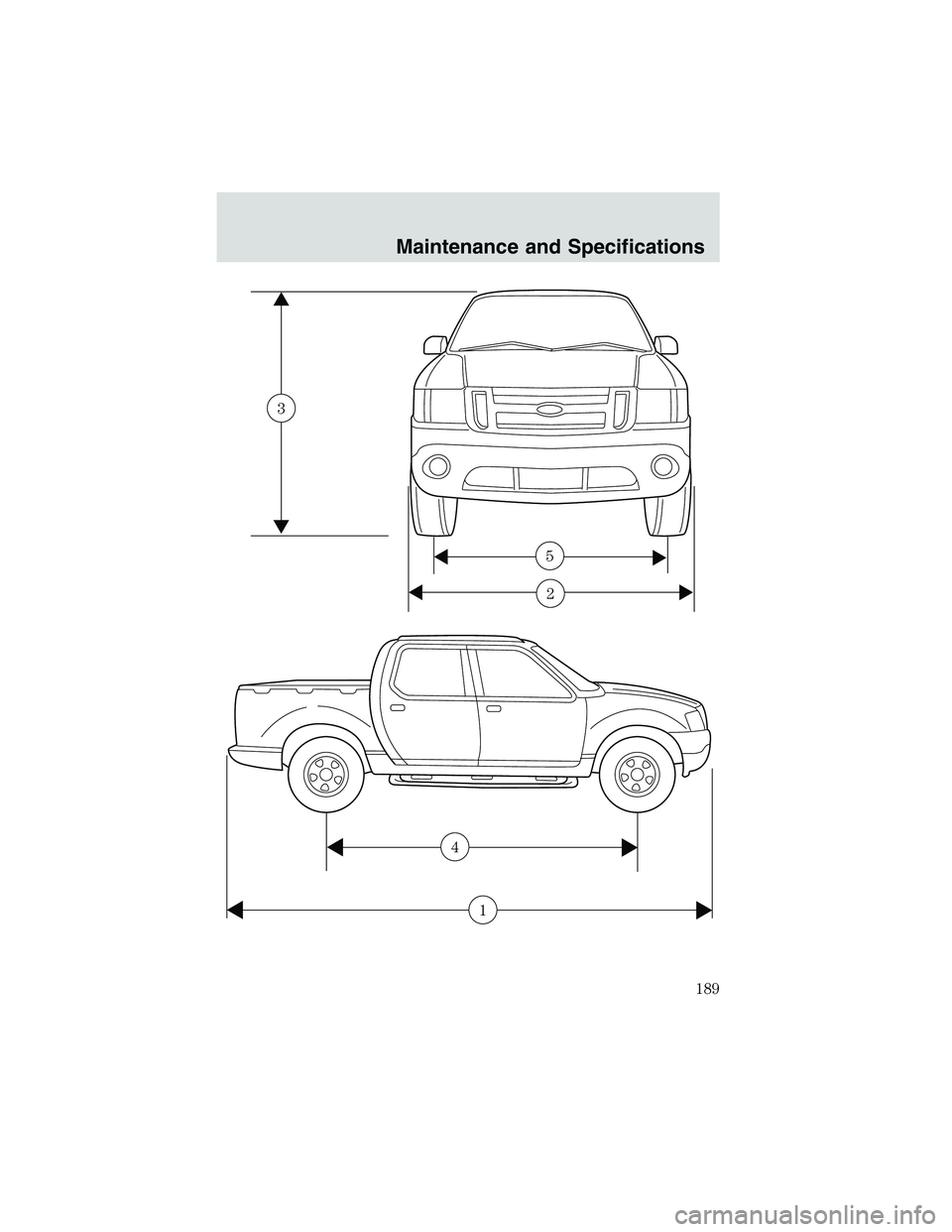

VEHICLE DIMENSIONS
Dimensions 4-Door mm (in.)
(1) Overall length 5 230 (205.9)
(2) Overall width 1 823 (71.8)
(3) Vehicle height/ Maximum
height*1 776 (69.9)/1 794 (70.6)*
(4) Wheelbase 3 198 (125.9)
(5) Front track /Rear track 1 486 (58.5)/1 480 (58.3)
*Denotes a 4x4 vehicle with 16”tires
Maintenance and Specifications
188

3
5
2
4
1
Maintenance and Specifications
189

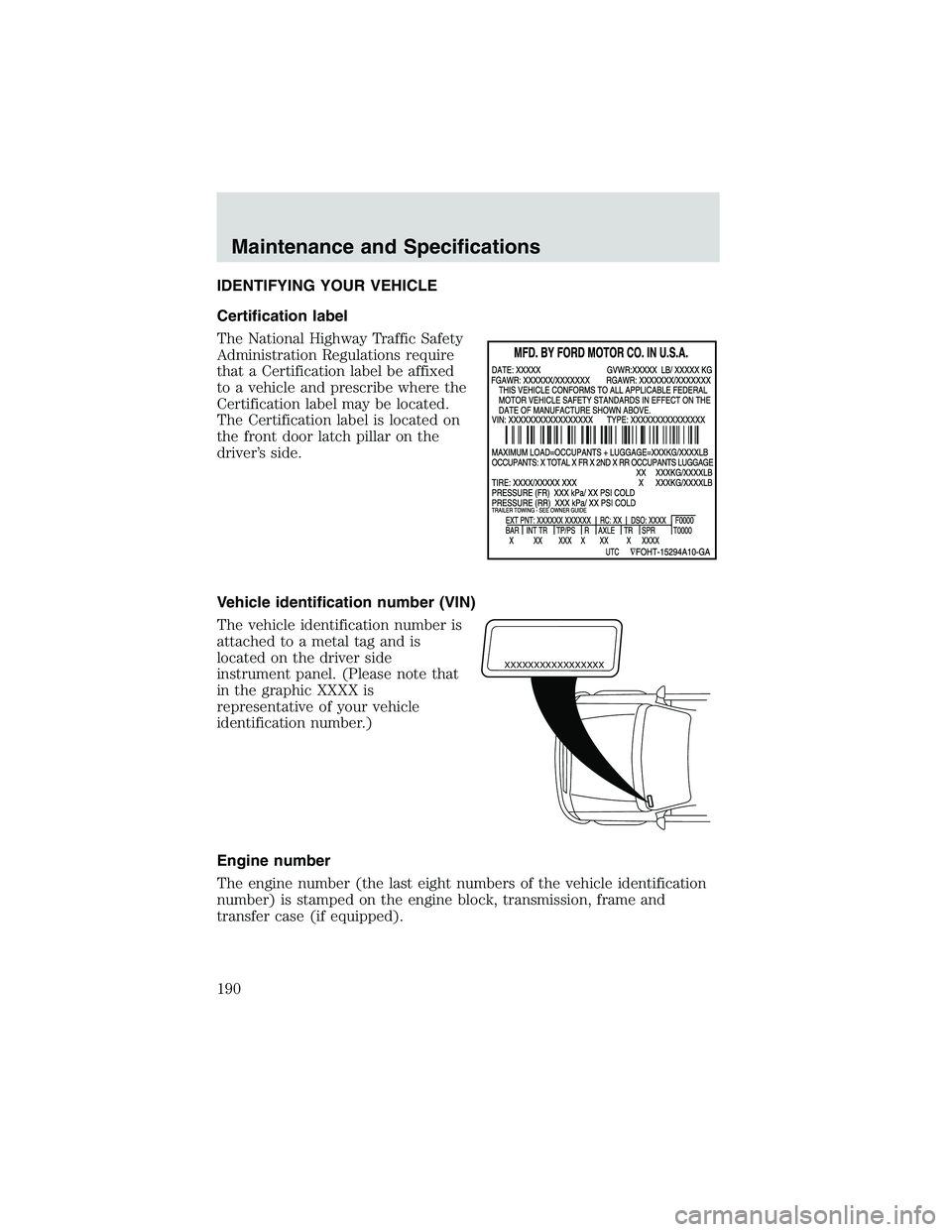

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
190

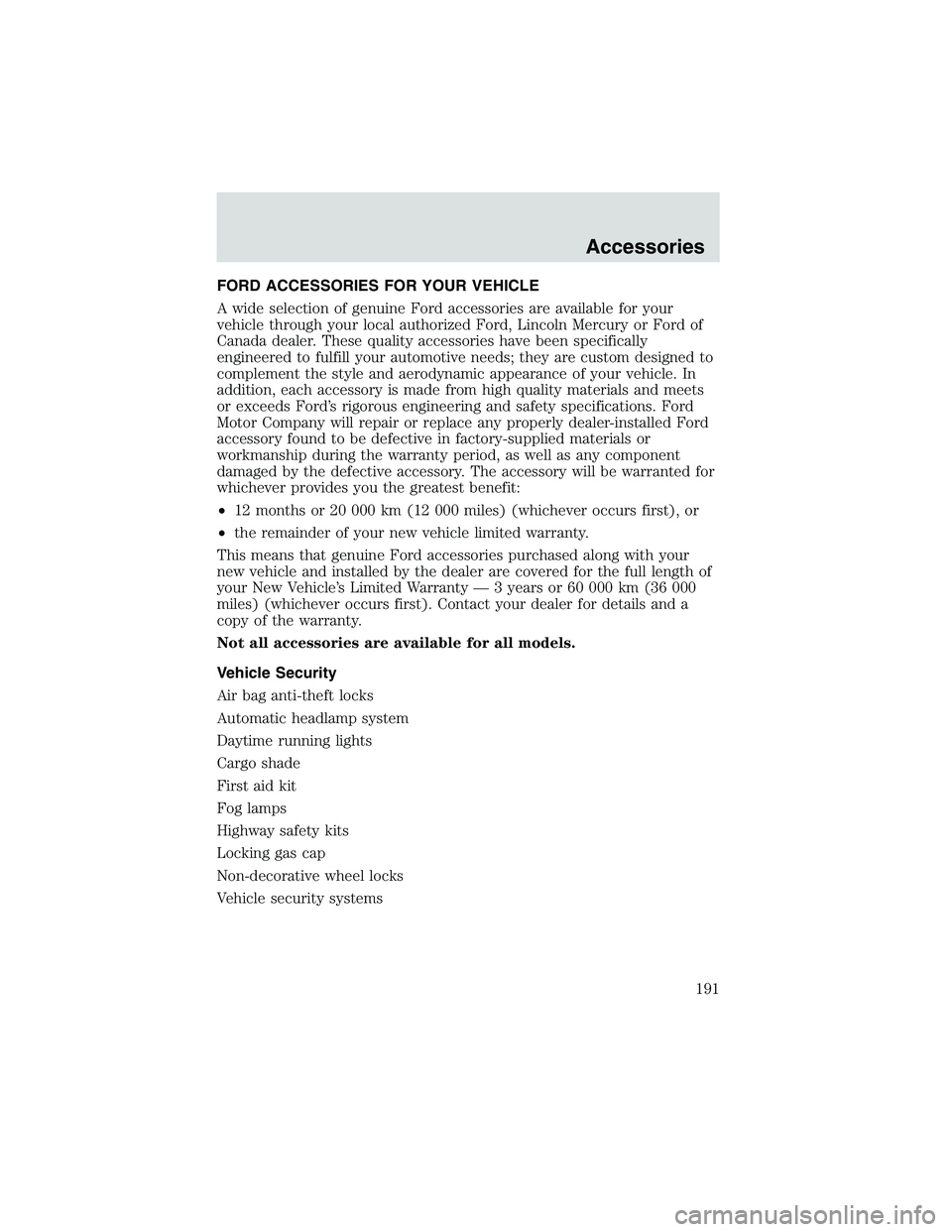

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20 000 km (12 000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60 000 km (36 000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
Air bag anti-theft locks
Automatic headlamp system
Daytime running lights
Cargo shade
First aid kit
Fog lamps
Highway safety kits
Locking gas cap
Non-decorative wheel locks
Vehicle security systems
Accessories
191

Comfort and convenience
Engine block heater
Electrochromic compass mirror
Electrochromic compass mirror with temperature display
Side window deflectors
Speed control
Tire step
Travel equipment
Bike carriers
Luggage/cargo carrier
Raised cross bars
Roof rack (removable)
Ski/snowboard carrier
Seatback organizer (with removable headrest)
Soft luggage cover
Trailer hitch assembly
Trailer hitch balls (all capacities)
Trailer hitch bar
Wiring harness
Protection and appearance equipment
Cargo liners—soft, interior
Cargo organizer
Carpeted cargo mat
Cargo tray—hard, interior
Cover—front end (full, sport)
Door edge guards
Exterior cover
Floor mats—(all weather, carpeted, catch all)
Hood deflectors
Luggage hold down net
Molded splash guards
Accessories
