2002 CHEVROLET BLAZER Owners Manual

2-71

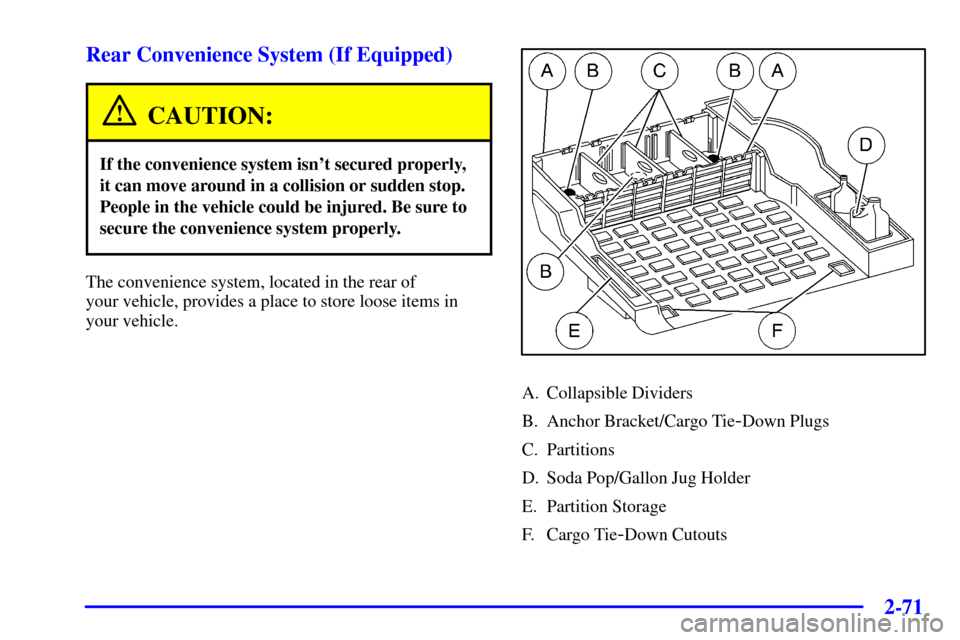

Rear Convenience System (If Equipped)
CAUTION:
If the convenience system isn't secured properly,
it can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure to
secure the convenience system properly.
The convenience system, located in the rear of
your vehicle, provides a place to store loose items in
your vehicle.
A. Collapsible Dividers
B. Anchor Bracket/Cargo Tie
-Down Plugs
C. Partitions
D. Soda Pop/Gallon Jug Holder
E. Partition Storage
F. Cargo Tie
-Down Cutouts

2-72
To increase the space in the convenience system, do the
following:
1. Remove the individual partitions (C) by pulling
upward on the partitions. Storage for the partitions is
located in area (F).
2. Fold the collapsible dividers (A) by pulling upward
and folding the dividers toward each other.
To reinstall or rearrange the partitions, push down gently
on the partitions making sure both sides fit into the
appropriate slots of the collapsible dividers (A).
Located on the top of each collapsible divider (A) are
T
-pins designed to hold grocery bags, etc., in an
upright position.
The anchor bracket/cargo tie down plugs (B), located in
the center and on each side of the convenience system
nearest the passenger compartment, are used to help seal
the convenience system. However, the plugs also cover
the anchor bracket /cargo tie
-downs. To remove the
plugs, grasp the edges of the plugs and pull straight out.
See ªChild Restraintsº and ªTop Strapº in the Index
for more information on using anchor brackets.There are two cutouts (E) for the rear cargo tie
-downs
located near the endgate sill. In order to access the rear
cargo tie
-downs, the cutouts must be removed.
You will also find a soda pop/gallon jug holder (D) on
the passenger side of the convenience system. Some
vehicles do not have this feature, but instead include a
smaller storage area.
To remove the entire convenience system, do the
following:
1. Remove the convenience net if it is in place. See
ªConvenience Netº in the Index for more
information. You may also want to remove the
partitions (C) and fold the collapsible dividers (A) to
make the convenience system easier to handle.
2. Grasp the sides of the convenience system and push
the sides together while sliding the unit out until it
clears the sides of the endgate opening.
To reinstall the convenience system, reverse the removal
procedure.

2-73
Luggage Carrier (Option)
CAUTION:
If you try to carry something on top of your
vehicle that is longer or wider than the luggage
carrier
-- like paneling, plywood, a mattress, and
so forth
-- the wind can catch it as you drive
along. This can cause you to lose control. What
you are carrying could be violently torn off, and
this could cause you or other drivers to have a
collision, and of course damage your vehicle. You
may be able to carry something like this inside.
But, never carry something longer or wider than
the luggage carrier on top of your vehicle.
The luggage carrier has slats, side rails and crossrails
attached to the roof to secure cargo. The adjustable tie
downs, at both ends of the crossrails, should be used to
secure loads to the luggage carrier.Use GM accessory racks that are compatible with your
luggage carrier for transporting sports equipment. These
are available through your dealer.
You can adjust the crossrails to handle loads of various
sizes. Just loosen the slider knobs at each end of the
crossrail and move them to where you want them. Make
sure both sides of the crossrails are even, then tighten
the slider knobs.
Be sure the cargo is properly loaded. Follow these
guidelines:

Carrying small, heavy loads on the roof is not
recommended.

Secure the load using the tie downs at both ends
of the crossrails. When loading cargo directly on
the roof panel, use the crossrails to keep the load
from shifting.

If you need to carry long items, move the crossrails
as far apart as possible. Tie the load to the tie downs
provided. Also tie the load to the bumpers. Do not tie
the load so tightly that the crossrails or side rails are
damaged.

2-74
NOTICE:
Loading cargo that weighs more than 200 lbs.
(91 kg) on the luggage carrier may damage your
vehicle. When you carry large things, never let
them hang over the rear or the sides of your
vehicle. When loading cargo on the roof panel, be
sure it rests on the slats and does not scratch or
damage the vehicle.
Put the cargo against the side rails and fasten it
securely to the luggage carrier. Put the main
weight as far forward as you can and move the
rear crossrail forward as far as possible to keep
the load from shifting.
Don't exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see ªLoading Your Vehicleº in
the Index.
To prevent damage or loss of cargo as you're driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
Ashtrays and Cigarette Lighter
Pull the front ashtray door down to open it.
NOTICE:
Don't put papers and other things that burn into
your ashtray. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To remove the front ashtray, pull the bin upward.
To use the lighter, press it in all the way, and let go.
When it's ready, it will pop back out by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overload, damaging the
lighter and the heating element.

2-75
Sun Visors
To block out glare, you can pull the visor down. You can
also swing the visor from side
-to-side.
Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Power Outlets
With accessory power outlets you can plug in auxiliary
electrical equipment such as a cellular telephone or
CB radio.
There are two accessory power outlets located near the
center of the vehicle on the lower part of the instrument
panel. There may also be additional accessory power
outlets located behind the front storage area for rear seat
passengers. A small cap must be pulled down to access
an accessory power outlet. When not using an outlet be
sure to cover it with the protective cap.
NOTICE:
When using accessory power outlets:

Maximum load of any electrical equipment
should not exceed 20 amps.

Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
drain the battery.

2-76
Certain electrical accessories may not be compatible
with the accessory power outlet and could result in
blown vehicle or adapter fuses. If you experience a
problem, see your dealer for additional information on
accessory power outlets.
NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment, and never use anything that
exceeds the amperage rating.
When adding electrical equipment, be sure to follow the
proper installation instructions included with the
equipment.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of
the power outlet can cause damage not covered
by your warranty.

2-77
Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition
needs to be in RUN or ACCESSORY or Retained
Accessory Power (RAP) needs to be active. See
ªRetained Accessory Powerº in the Index.
Press and release the rear side of the switch in the mini
console to open the sunroof. You can press the forward
side of the switch to close the sunroof. Once the sunroof
is closed, press the forward side of the switch to open
the sunroof to the vent position.
The sunroof is also equipped with a sunshade which you
can pull forward to block sun rays.

2-78
HomeLink
Transmitter
(If Equipped)
Mini Overhead Console
Full-Size Overhead Console
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of
the device.
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
