2002 CHEVROLET AVALANCHE Owners Manual

2-77
Use the art and following instructions for the proper
storage sequence and location for each panel:
Panels 3, 2, 1 Loaded
2. Starting with cargo panel 1 (the panel with four
latches) load the cargo panel with latches facing
outboard (side of panel with no latches should be
facing you as you load the panel).

2-78
3. Store cargo panel 2 by loading the cargo panel with
latches down and facing inboard (side of panel with
latches would be facing you as you load the panel).4. Store cargo panel 3 by loading the cargo panel with
latches at the top of the bag and facing outboard
(side of panel with no latches should be facing you
as you load the panel).
5. Zip the bag shut.

2-79

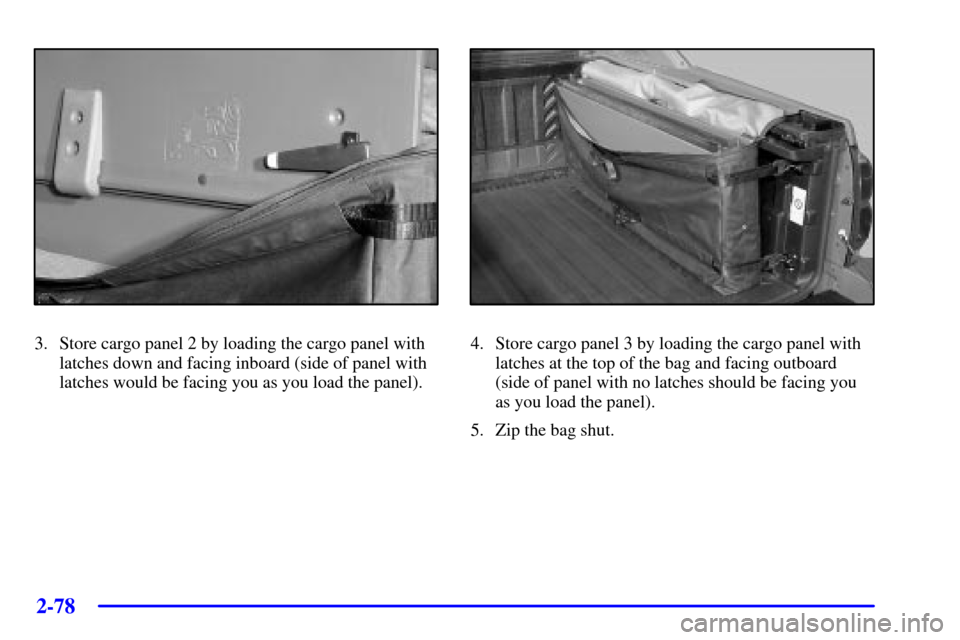

6. Snug both straps on the bag by pulling on the free
end of the straps.7. Close both top and bottom mechanisms at the center
of the bag (bag should now be tightly secured).

2-80
Reinstalling the Cargo Cover Panels
You only need to reinstall as many cargo panels as you wish.
1. Remove the cargo panel(s) from the storage bag.
You can either leave the bag attached to the side of
the cargo area while it is not in use, or you can store
it outside of the vehicle.
2. Starting with cargo panel 1, place the latches in the
open (unlocked) position. Place cargo panel 1 on the
cargo area rails while holding the back of the cargo
panel up.
Left Side Shown, Right Side Similar
Push the panel forward until it is snug against the
Midgate and then let the back of the panel down
being sure that the alignment pegs align with the
receivers (see arrow).

2-81
3. Push both left latches away from you to lock the
latches (remember that there are two latches on each
side for panel 1). You should hear a click when each
latch locks correctly. Lock the remaining two right
latches on panel 1.
For any cargo cover panel you must lock the left latch in
place before you can lock the right latch. If you do not
follow this exactly, the cargo cover panels may not lock
in place correctly.4. Install cargo cover 2 next. Place the latches in the
open (unlocked) position. Place the cargo cover
panel on the cargo area rails while holding the back
of the cargo panel up.
Left Side Shown, Right Side Similar
Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the alignment pegs align with the
receivers (see arrow).

2-82
5. Push the latches away from you (start with the left
latch) to lock the panel in place. You should hear a
click when each latch locks correctly.
6. Install cargo cover 3 next. Place the latches in the
open (unlocked) position. Place the cargo cover
panel on the cargo area rails while holding the back
of the cargo panel up.Left Side Shown, Right Side Similar
Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the alignment pegs align with the
receivers (see arrow).

2-83
7. Push the latches away from you (start with the left
latch) to lock the panel in place. You should hear a
click when each latch locks correctly.
All-Weather Cargo Area
Your vehicle is designed to operate in many different
configurations (cargo panels on or off, Midgate up or
down) and is equipped with features that will help the
vehicle resist the elements. Some of the features that
help with this include the top drain grates, side rail
channels, Midgate drain and cargo area floor drains.
Depending on the conditions in which the vehicle is
used, you may need to perform some maintenance to
the top drain grates, side rail channels, Midgate drain
and cargo area floor drains. This will help ensure that
they operate properly.

2-84
Top Drain Grates -- Removal and Cleaning
The top drain grates are located near the rear glass on
both sides of the vehicle. You may need to clean the
grates and drains if there seems to be blockage. But first
you will have to remove the drain grates by pulling them
off of the vehicle.To remove each drain grate, do the following:
1. Start with the cargo panels or tonneau cover off.
See ªCargo Panel Coversº or ªTonneau Coverº
in the Index for more information.
2. Grasp the edges of the grate and pull it out from the
vehicle. Flush the drain with clean water.
