Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and fold them up and down. It also tells you about
reclining front seatbacks and head restraints.
Power Seats
Horizontal Control: Raise or lower the front of the seat
cushion by raising or lowering the forward edge of the
control. Move the seat forward or rearward by moving
the whole control toward the front or rear of the vehicle.
Raise or lower the rear of the seat cushion by raising or
lowering the rear edge of the control.Moving the whole control up or down raises or lowers
the entire seat cushion.
To learn how to adjust the vertical control for the
seatback angle, see ªReclining Front Seatbacksº
later in this section
Power Lumbar Control
Your vehicle's power
lumbar controls are
located near the power
seat controls.
You can increase or decrease lumbar support in an area
of the lower seatback with the lumber controls.
You can also reshape the side wing area of the lower
seatback for more lateral support.
To increase support, press and hold the top of the
control. To decrease support, press and hold the
bottom of the control. Let go of the control when
the lower seatback reaches the desired level of support.

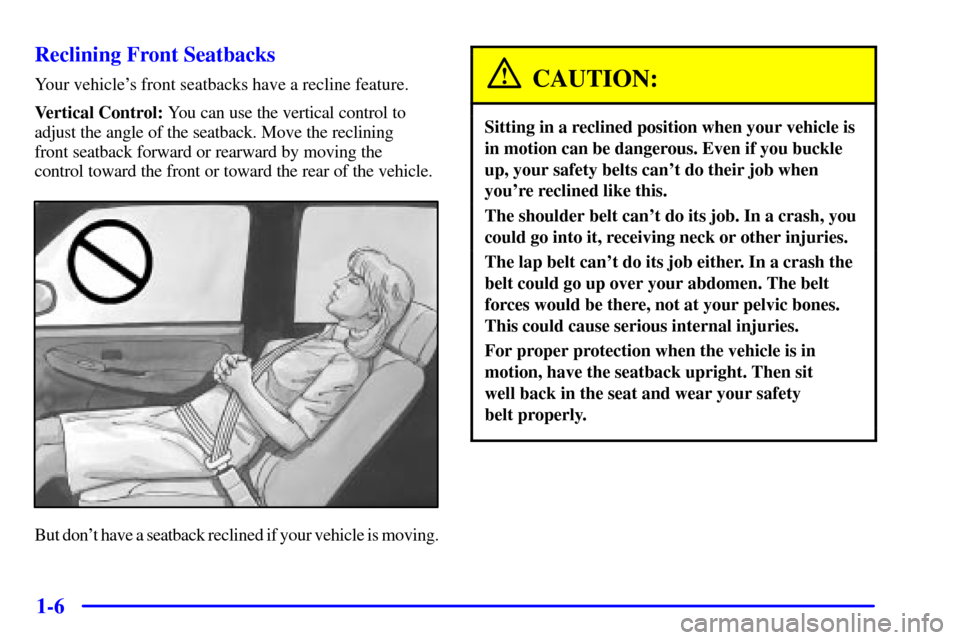

1-6 Reclining Front Seatbacks
Your vehicle's front seatbacks have a recline feature.
Vertical Control: You can use the vertical control to
adjust the angle of the seatback. Move the reclining
front seatback forward or rearward by moving the
control toward the front or toward the rear of the vehicle.
But don't have a seatback reclined if your vehicle is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash, you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.

1-7 Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.Pull straight up on the head restraint to raise it and push
it down to lower it.
The front head restraints can also be tilted forward in
addition to being slid up or down. To tilt either of the
front head restraints do the following:
Pull the head restraint toward you until you hear a click.
Then let go. The head restraint will stay in this position
unless you pull it forward more until another click is
heard. There are four positions available: initial position,
first click, second click, and third click. After the third
position (three clicks) is reached, pulling the head
restraint farther will release it back to the normal
upright position.
The rear head restraints can be slid up or down just as
the front head restraints, but they do not tilt.

1-8 Rear Seats
The rear seat is a 60/40 split rear seat that can be folded
to give you more cargo space and access to the folding
midgate. See ªMidgateº in the Index for more
information on operation of the folding midgate.
To fold either side of the seat do the following:
1. Push the rear head restraints all the way down.
Driver's Side
2. Place the seat belt
buckles through the
loops/pockets on the
seatbacks. This way,
the seat belts will be
easy to access when
the seats are returned
to the upright position.
Passenger's Side
3. Pull the seat loop
located where the
seatback and seat
cushion meet. The seat
will release and allow
you to tilt it toward the
front of the vehicle.

1-9
4. Grasp the seatback and pull it toward the front of the
vehicle. Push it down until it is flat. You may have to
move the front seats forward slightly to do this.
5. Repeat the procedure for the other side.
To return the seats to the normal position, pull the
seatback up and fold the seat cushion down.
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After raising
the rear seatback, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.

1-30
How does an air bag restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel
or the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The air bag supplements the protection
provided by safety belts. Air bags distribute the force
of the impact more evenly over the occupant's upper
body, stopping the occupant more gradually. But the
frontal air bags would not help you in many types of
collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant's motion is
not toward the air bag. Side impact air bags would not
help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant's motion is not toward
those air bags. Air bags should never be regarded as
anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near
-frontal
collisions for the driver's and right front passenger's
frontal air bags, and only in moderate to severe side
collisions for the driver's and right front passenger's
side impact air bags.What will you see after an air bag inflates?
After an air bag inflates, it quickly deflates, so quickly
that some people may not even realize the air bag
inflated. Some components of the air bag module
-- the
steering wheel hub for the driver's air bag, the
instrument panel for the right front passenger's bag, the
side of the seatback closest to the door for the driver and
right front passenger's side impact air bags
-- will be
hot for a short time. The parts of the bag that come into
contact with you may be warm, but not too hot to touch.
There will be some smoke and dust coming from the
vents in the deflated air bags. Air bag inflation doesn't
prevent the driver from seeing or being able to steer the
vehicle, nor does it stop people from leaving the vehicle.
CAUTION:
When an air bag inflates, there is dust in the air.
This dust could cause breathing problems for
people with a history of asthma or other breathing
trouble. To avoid this, everyone in the vehicle
should get out as soon as it is safe to do so. If you
have breathing problems but can't get out of the
vehicle after an air bag inflates, then get fresh air
by opening a window or a door.

1-43
Restraint Systems for Children
An infant car bed (A), a special bed made for use in a
motor vehicle, is an infant restraint system designed to
restrain or position a child on a continuous flat surface.
Make sure that the infant's head rests toward the center
of the vehicle.
A rear-facing infant seat (B) provides restraint with
the seating surface against the back of the infant.
The harness system holds the infant in place and, in a
crash, acts to keep the infant positioned in the restraint.

1-57
CAUTION:
Never do this.
Here two children are wearing the same belt.
The belt can't properly spread the impact forces.
In a crash, the two children can be crushed
together and seriously injured. A belt must be
used by only one person at a time.
Q:What if a child is wearing a lap-shoulder belt,
but the child is so small that the shoulder belt is
very close to the child's face or neck?
A:Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child's
shoulder, so that in a crash the child's upper body
would have the restraint that belts provide. If the
child is sitting in a rear seat outside position, see
ªRear Safety Belt Comfort Guidesº in the Index.
If the child is so small that the shoulder belt is still
very close to the child's face or neck, you might
want to place the child in a seat that has a lap belt,
if your vehicle has one.
