11
4
General information and controls
146
149
23857
10131211
1Reservoir for clutch fluid
(
b 37)
2 Front suspension strut,
shock absorber adjustment (
b 40)
3 Fuel filler cap (
b 24)
4 Engine oil level sight glass
(
b 23)
5 Engine oil filler (
b 23)
6 Helmet holder
7 Dualseat cover
OE
(
b 13, 14)
8 Dualseat lock (
b 15) 9
Lifting handle (
b 54-55)
10 Rear suspension strut,shock absorber
adjustment (
b 41)
11 Main (centre) standOE
12Primary spark plug, left
13 Secondary spark plug, left
14 Fuse box, left
(
b Maintenance Instruc-
tions, Chapter 2)
( ) Figures in brackets bpage number for
description
OEOptional extra
General view, left side
10sbkg6.bk.fm Seite 4 Montag, 23. Januar 2006 4:27 16

11
8
General information and controls
Vehicle keysYou will receive two master
keys and one spare key.
The key number is on the
accompanying plastic tag.
OAOptional accessories
OEOptional extra
L Note:
The ignition switch and steering lock,
fuel filler cap and the helmet/seat lock
are all operated with the same key.
System cases
OA with locks for the
same key can be ordered on request.
d Warning:
If the motorcycle is fitted with
BMW Integral ABS
OE, only RE-
SIDUAL BRAKING FUNCTION-
ALITY is available when the
ignition is switched off (b 71)
Ignition switch and steering lock
10sbkg6.bk.fm Seite 8 Montag, 23. Januar 2006 4:27 16

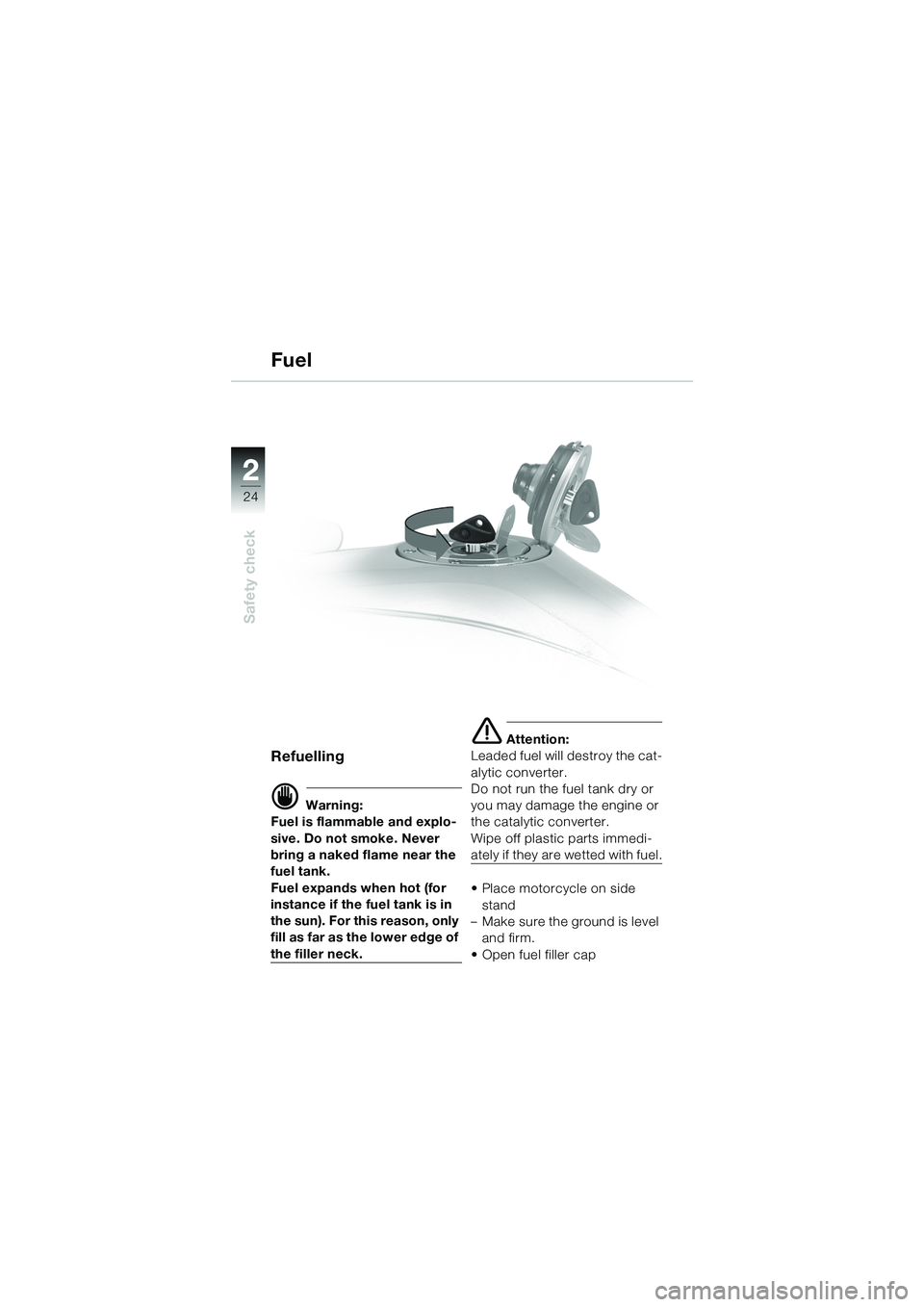

2
24
Safety check
2
Refuelling
d Warning:
Fuel is flammable and explo-
sive. Do not smoke. Never
bring a naked flame near the
fuel tank.
Fuel expands when hot (for
instance if the fuel tank is in
the sun). For this reason, only
fill as far as the lower edge of
the filler neck.
e Attention:
Leaded fuel will destroy the cat-
alytic converter.
Do not run the fuel tank dry or
you may damage the engine or
the catalytic converter.
Wipe off plastic parts immedi-
ately if they are wetted with fuel.
• Place motorcycle on side stand
– Make sure the ground is level and firm.
• Open fuel filler cap
Fuel
10sbkg6.bk.fm Seite 24 Montag, 23. Januar 2006 4:27 16

2
25
Safety check
1
•Refuel
– Refuel only with super (premium) grade fuel to
DIN 51607 standard or equiv-
alent, minimum octane
number 95 (RON) or
85 (MON)
• Close the fuel filler cap
Quantity
L Note:
The fuel gauge does not oper-
ate unless the ignition is
switched on.
–Maximum refuelling quantity 18 litres (3.9 Imp. gal)
– When the reserve fuel quantity is reached
(approx. 5 litres/1. 1 Imp. gal),
the yellow warning light 1
comes on
Fuel
10sbkg6.bk.fm Seite 25 Montag, 23. Januar 2006 4:27 16

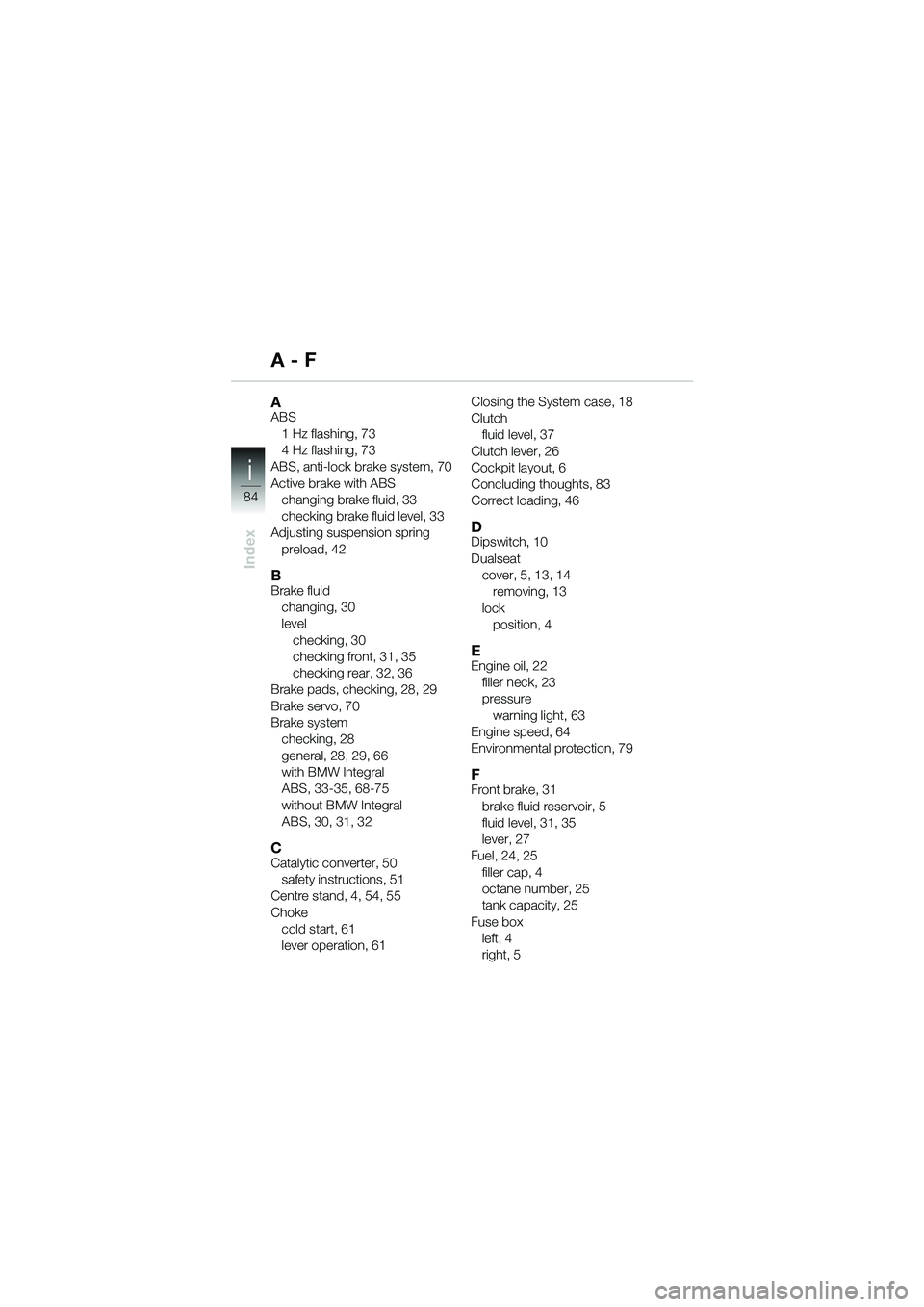

84
Index
i
A - F
AABS1 Hz flashing, 73
4 Hz flashing, 73
ABS, anti-lock brake system, 70
Active brake with ABS changing brake fluid, 33
checking brake fluid level, 33
Adjusting suspension spring preload, 42
BBrake fluidchanging, 30
level checking, 30
checking front, 31, 35
checking rear, 32, 36
Brake pads, checking, 28, 29
Brake servo, 70
Brake system checking, 28
general, 28, 29, 66
with BMW Integral
ABS, 33-35, 68-75
without BMW Integral
ABS, 30, 31, 32
CCatalytic converter, 50safety instructions, 51
Centre stand, 4, 54, 55
Choke cold start, 61
lever operation, 61 Closing the System case, 18
Clutch
fluid level, 37
Clutch lever, 26
Cockpit layout, 6
Concluding thoughts, 83
Correct loading, 46
DDipswitch, 10
Dualseat
cover, 5, 13, 14removing, 13
lock position, 4
EEngine oil, 22filler neck, 23
pressure
warning light, 63
Engine speed, 64
Environmental protection, 79
FFront brake, 31 brake fluid reservoir, 5
fluid level, 31, 35
lever, 27
Fuel, 24, 25
filler cap, 4
octane number, 25
tank capacity, 25
Fuse box left, 4
right, 5
10sbkg6.bk.fm Seite 84 Montag, 23. Januar 2006 4:27 16

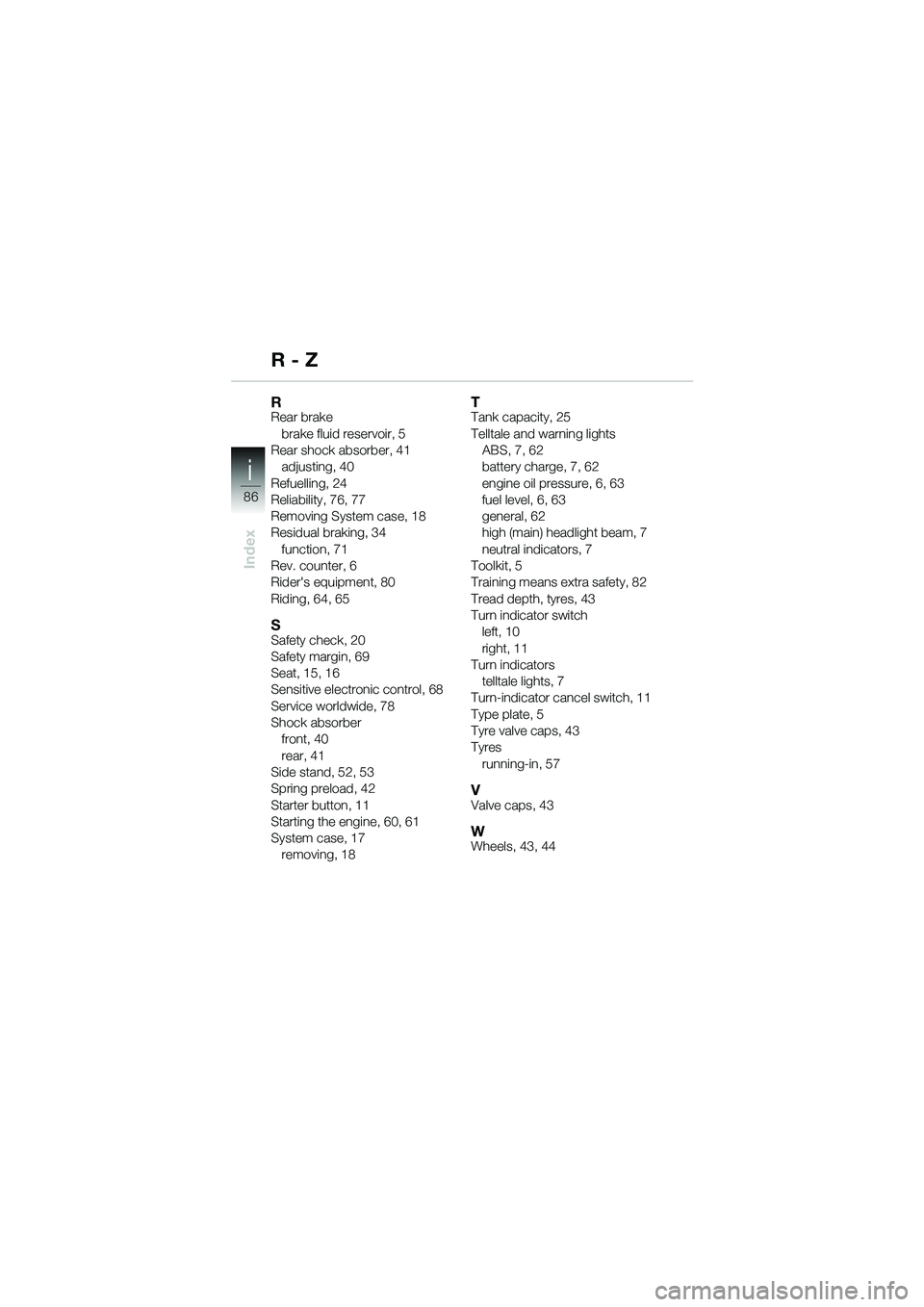

86
Index
i
R - Z
RRear brakebrake fluid reservoir, 5
Rear shock absorber, 41
adjusting, 40
Refuelling, 24
Reliability, 76, 77
Removing System case, 18
Residual braking, 34 function, 71
Rev. counter, 6
Rider's equipment, 80
Riding, 64, 65
SSafety check, 20
Safety margin, 69
Seat, 15, 16
Sensitive electronic control, 68
Service worldwide, 78
Shock absorber front, 40
rear, 41
Side stand, 52, 53
Spring preload, 42
Starter button, 11
Starting the engine, 60, 61
System case, 17 removing, 18
TTank capacity, 25
Telltale and warning lightsABS, 7, 62
battery charge, 7, 62
engine oil pressure, 6, 63
fuel level, 6, 63
general, 62
high (main) headlight beam, 7
neutral indicators, 7
Toolkit, 5
Training means extra safety, 82
Tread depth, tyres, 43
Turn indicator switch left, 10
right, 11
Turn indicators telltale lights, 7
Turn-indicator cancel switch, 11
Type plate, 5
Tyre valve caps, 43
Tyres running-in, 57
VValve caps, 43
WWheels, 43, 44
