Introduction
12
2
12
i
General information and
controls
General view, left side ........... 4
General view, right side ......... 5
Cockpit ................................. 6
Telltale and warning lights ..... 7
Ignition switch and
steering lock ...................... 8-9
Handlebar fittings ........... 10-11
Hazard warning flashers ...... 12
Dualseat cover ............... 13-14
Dualseat ......................... 15-16
System case .................. 17-19 Safety check
Checklist ........................ 20-21
Engine oil ...................... 22-23
Fuel ................................ 24-25
Handlebar levers ............ 26-27
Brake system - general.... 28-29
Brake system - without
BMW Integral ABS ......... 30-32
Brake system - with
BMW Integral ABS ......... 33-36
Clutch ................................ 37
Lights ............................ 38-39
Shock absorbers ........... 40-41
Suspension spring
preload ............................... 42
Wheels ........................... 43-44
Accessories and
loads ............................. 45-46
Contents
10sbkg6.bk.fm Seite 2 Montag, 23. Januar 2006 4:27 16

11
4
General information and controls
146
149
23857
10131211

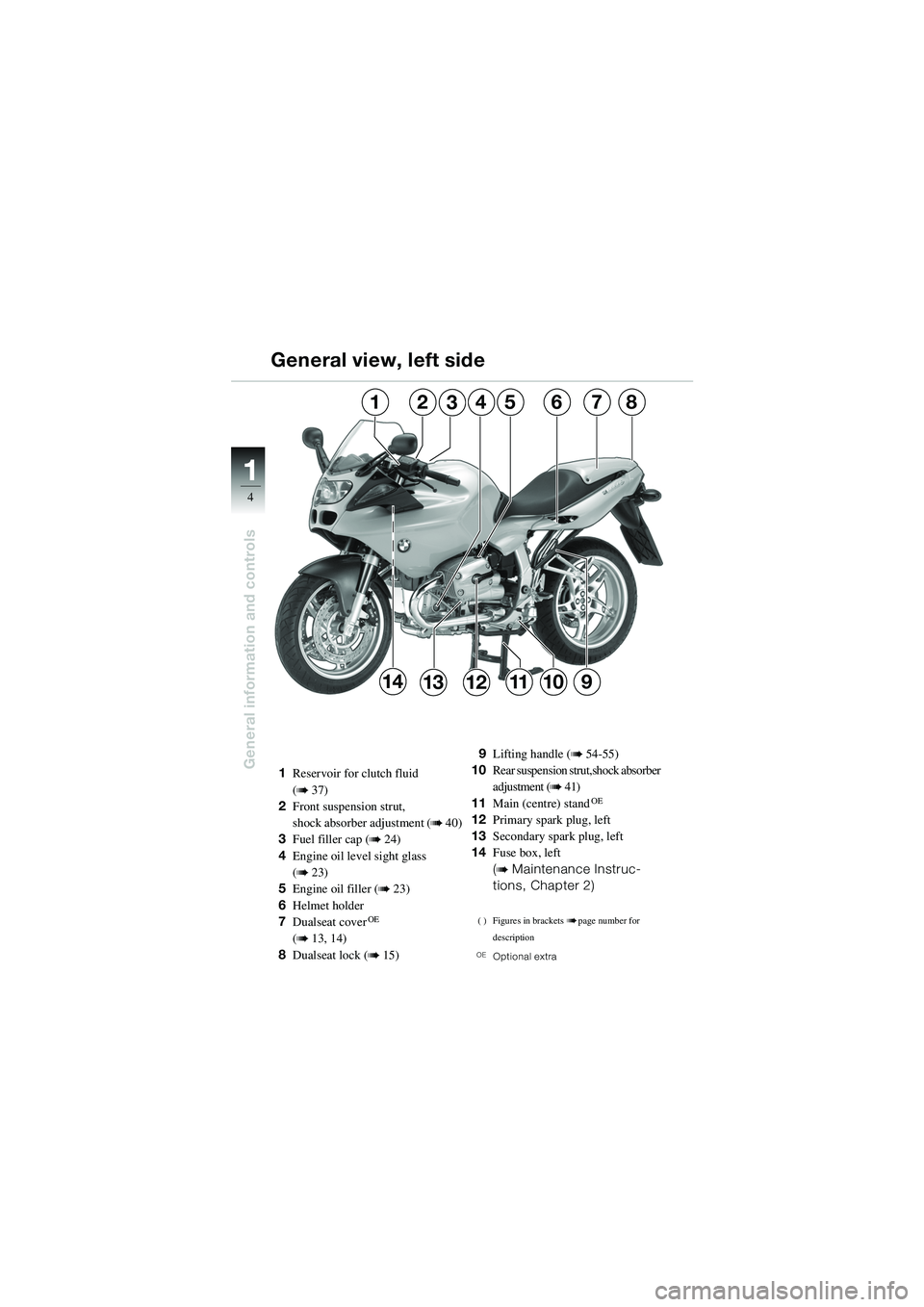

1Reservoir for clutch fluid
(
b 37)
2 Front suspension strut,
shock absorber adjustment (
b 40)
3 Fuel filler cap (
b 24)
4 Engine oil level sight glass
(
b 23)
5 Engine oil filler (
b 23)
6 Helmet holder
7 Dualseat cover
OE
(
b 13, 14)
8 Dualseat lock (
b 15) 9
Lifting handle (
b 54-55)
10 Rear suspension strut,shock absorber
adjustment (
b 41)
11 Main (centre) standOE
12Primary spark plug, left
13 Secondary spark plug, left
14 Fuse box, left
(
b Maintenance Instruc-
tions, Chapter 2)
( ) Figures in brackets bpage number for
description
OEOptional extra
General view, left side
10sbkg6.bk.fm Seite 4 Montag, 23. Januar 2006 4:27 16

11
10
General information and controls

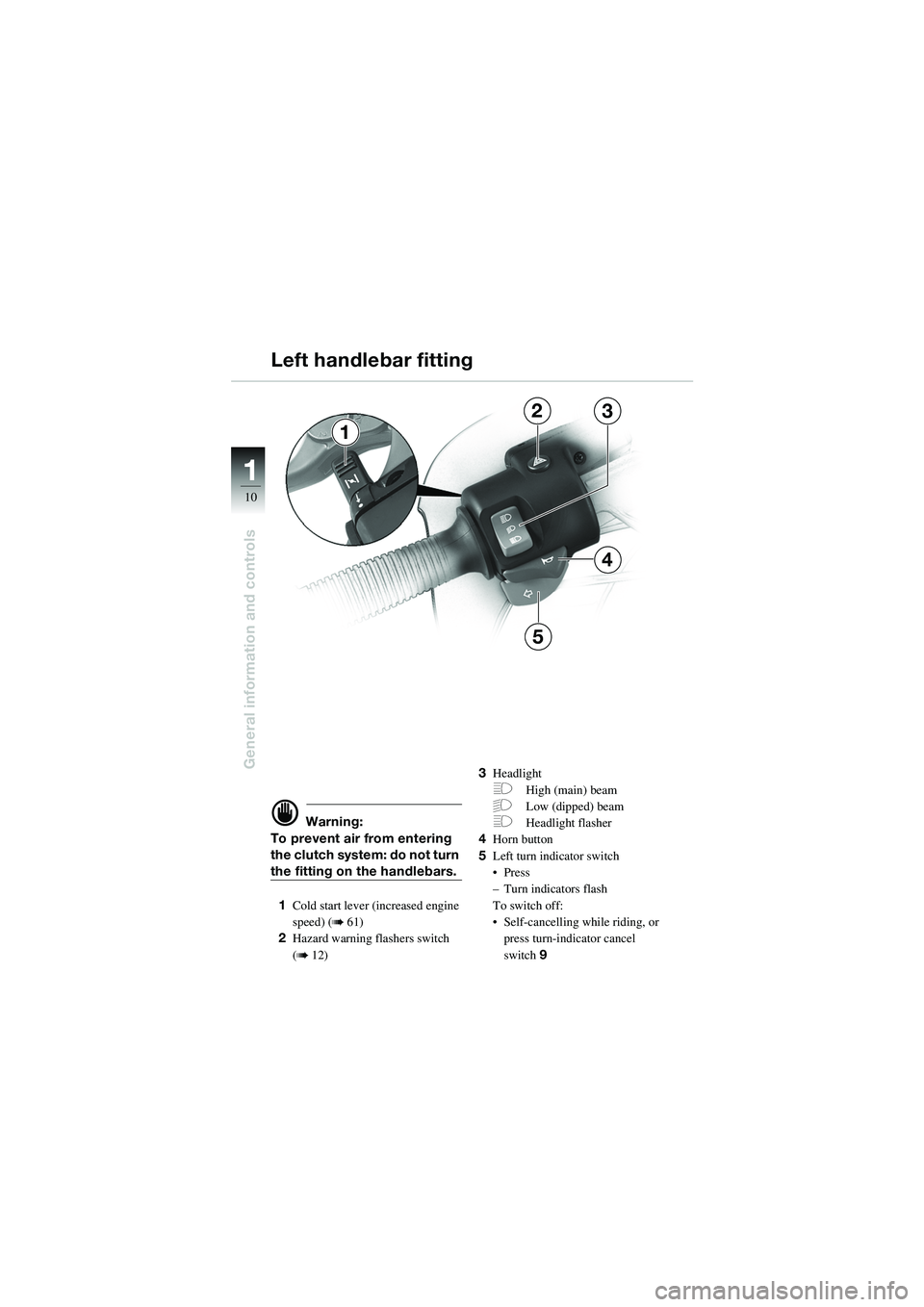

d Warning:
To prevent air from entering
the clutch system: do not turn
the fitting on the handlebars.
1 Cold start lever (increased engine
speed) (
b 61)
2 Hazard warning flashers switch
(
b 12) 3
Headlight
FHigh (main) beam
GLow (dipped) beam
FHeadlight flasher
4 Horn button
5 Left turn indicator switch
•Press
– Turn indicators flash
To switch off:
• Self-cancelling while riding, or
press turn-indicator cancel
switch 9
Left handlebar fitting
23
4
5
1
10sbkg6.bk.fm Seite 10 Montag, 23. Januar 2006 4:27 16

2
21
Safety check
Checklist

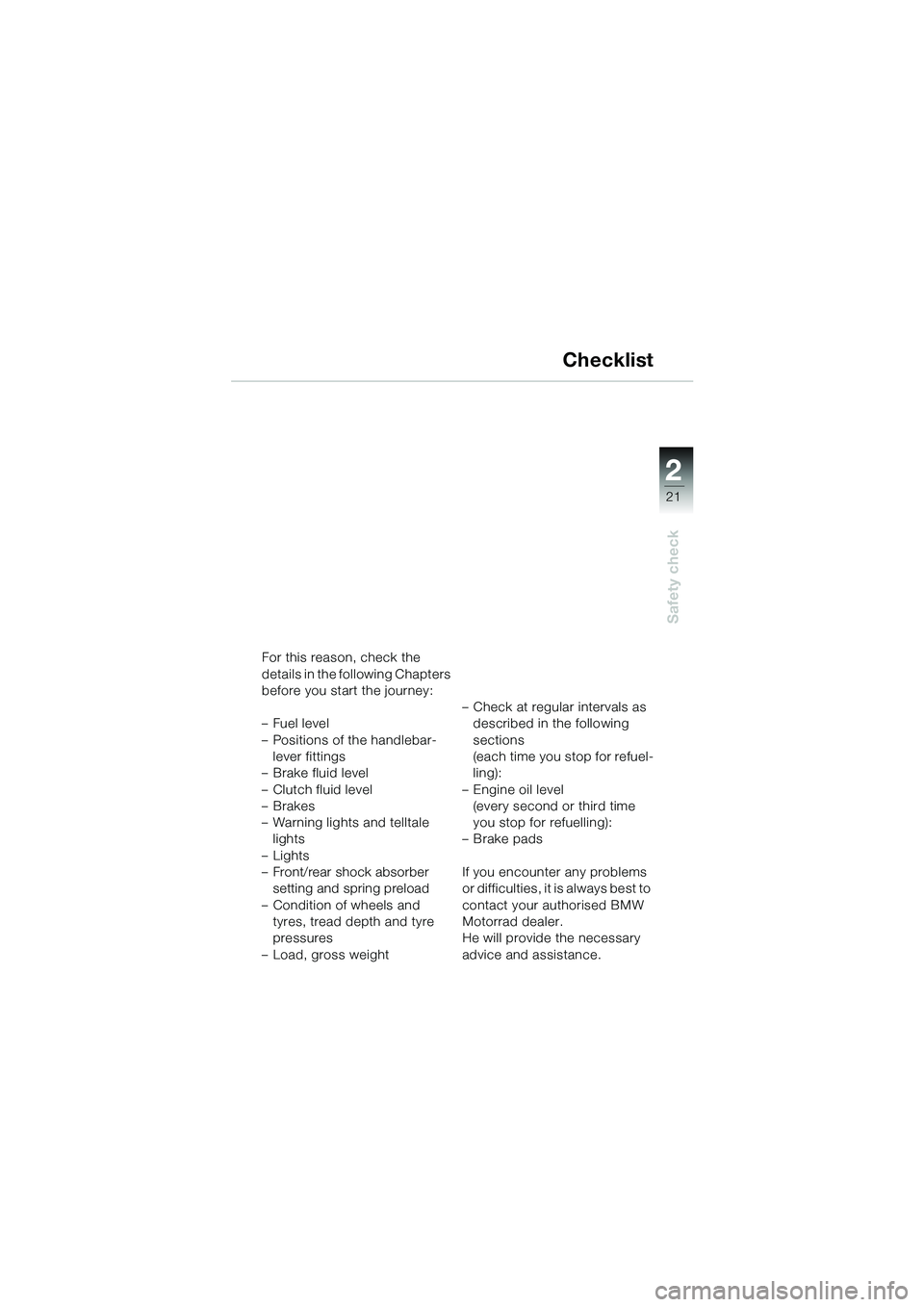

For this reason, check the
details in the following Chapters
before you start the journey:
–Fuel level
– Positions of the handlebar-lever fittings
– Brake fluid level
– Clutch fluid level
–Brakes
– Warning lights and telltale lights
–Lights
– Front/rear shock absorber setting and spring preload
– Condition of wheels and tyres, tread depth and tyre
pressures
– Load, gross weight – Check at regular intervals as
described in the following
sections
(each time you stop for refuel-
ling):
– Engine oil level (every second or third time
you stop for refuelling):
– Brake pads
If you encounter any problems
or difficulties, it is always best to
contact your authorised BMW
Motorrad dealer.
He will provide the necessary
advice and assistance.
10sbkg6.bk.fm Seite 21 Montag, 23. Januar 2006 4:27 16

2
26
Safety check
2
Handlebar levers

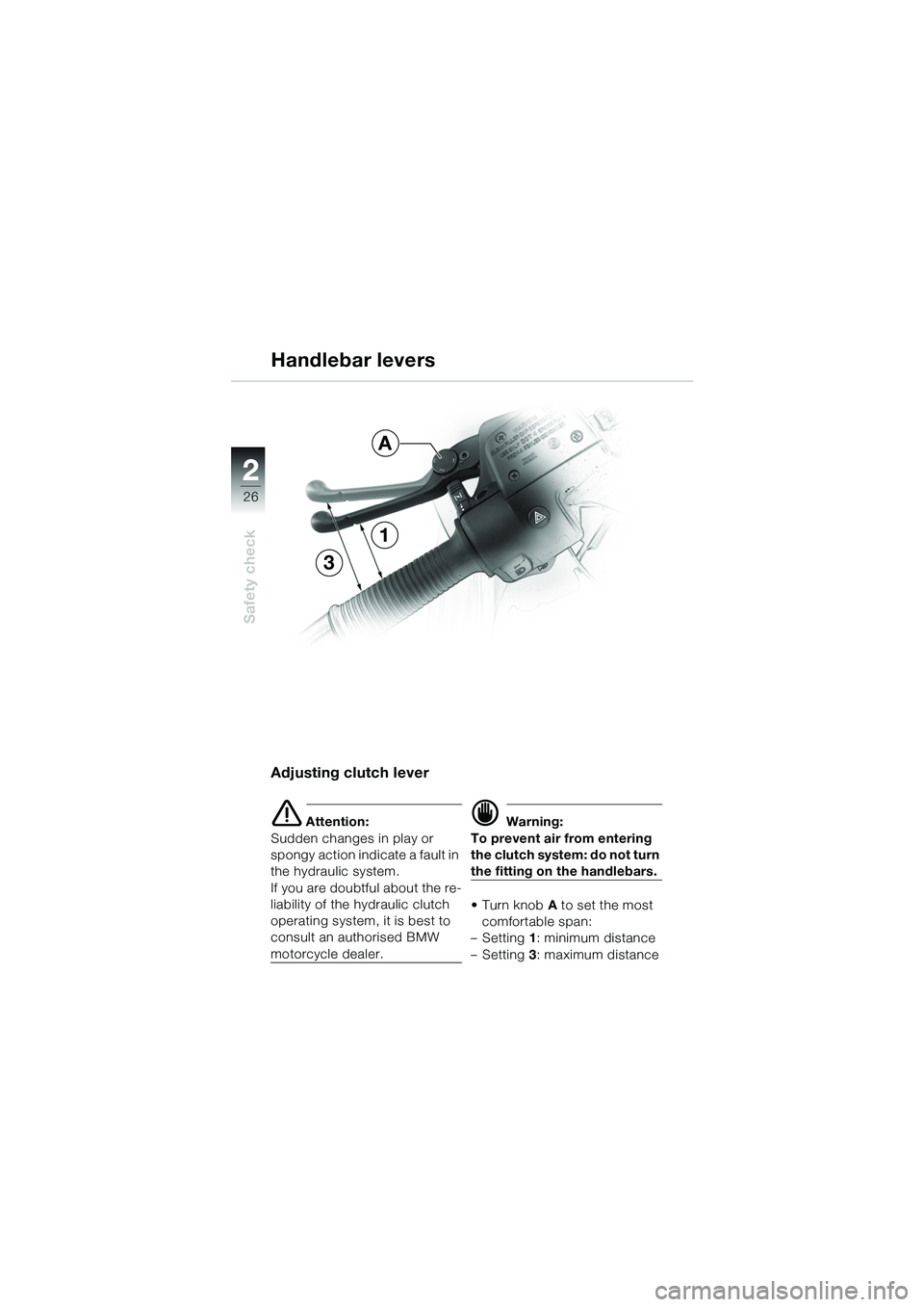

Adjusting clutch lever
e Attention:
Sudden changes in play or
spongy action indi cate a fault in
the hydraulic system.
If you are doubtful about the re-
liability of the hydraulic clutch
operating system, it is best to
consult an authorised BMW
motorcycle dealer.
d Warning:
To prevent air from entering
the clutch system: do not turn
the fitting on the handlebars.
• Turn knob A to set the most
comfortable span:
–Setting 1: minimum distance
–Setting 3: maximum distance
1
3
A
10sbkg6.bk.fm Seite 26 Montag, 23. Januar 2006 4:27 16

2
37
Safety check
MIN

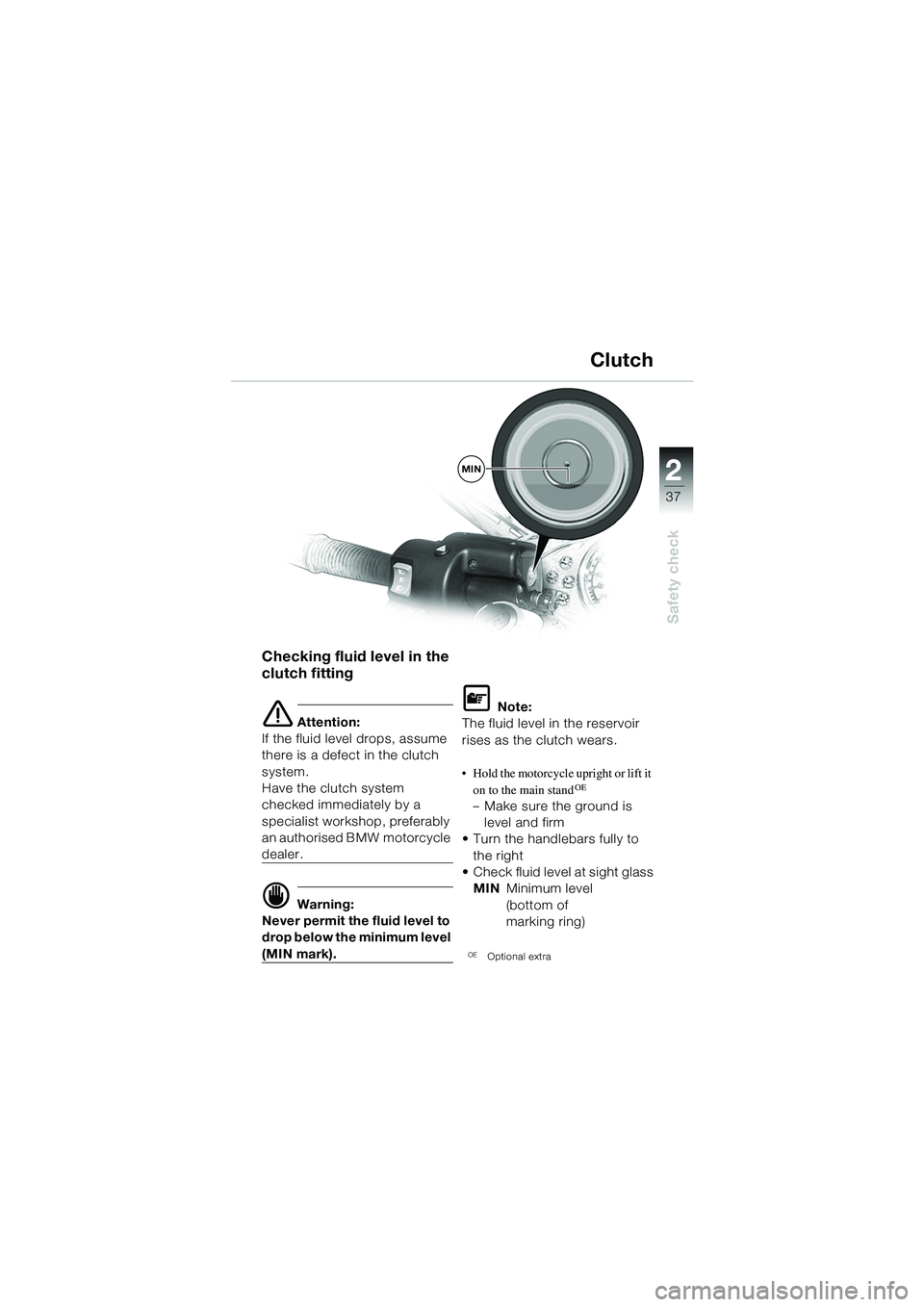

Checking fluid level in the
clutch fitting
e Attention:
If the fluid level drops, assume
there is a defect in the clutch
system.
Have the clutch system
checked immediately by a
specialist workshop, preferably
an authorised BMW motorcycle
dealer.
d Warning:
Never permit the fluid level to
drop below the minimum level
(MIN mark).
L Note:
The fluid level in the reservoir
rises as the clutch wears.
• Hold the motorcycle upright or lift it on to the main stand
OE
– Make sure the ground is level and firm
• Turn the handlebars fully to
the right
• Check fluid level at sight glass MIN Minimum level
(bottom of
marking ring)
OE Optional extra
Clutch
10sbkg6.bk.fm Seite 37 Montag, 23. Januar 2006 4:27 16

3
59
Starting – Riding – Parking

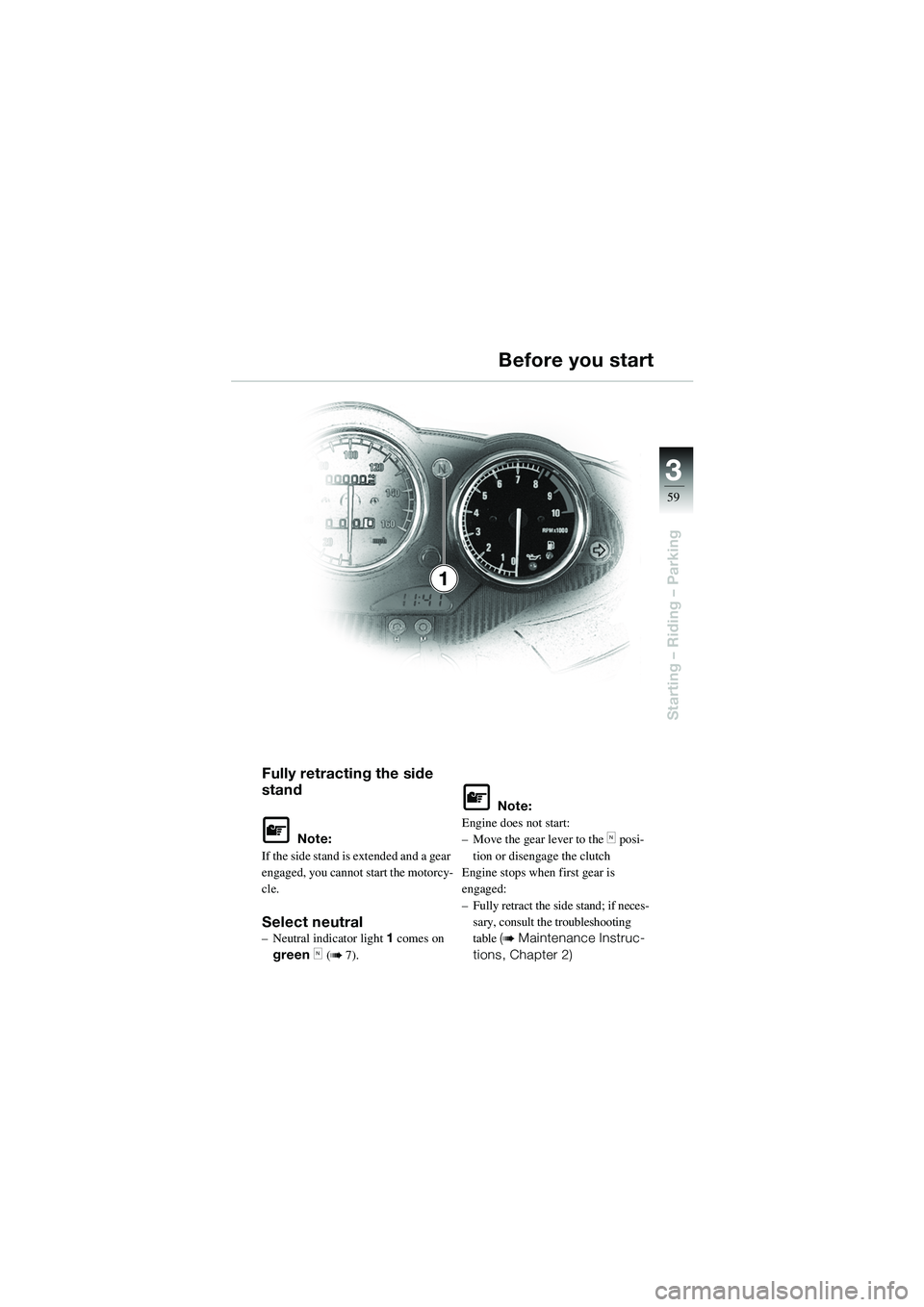

Fully retracting the side
stand
L Note:
If the side stand is extended and a gear
engaged, you cannot start the motorcy-
cle.
Select neutral– Neutral indicator light 1 comes on
green
k (b 7).
L Note:
Engine does not start:
– Move the gear lever to the
k posi-
tion or disengage the clutch
Engine stops when first gear is
engaged:
– Fully retract the side stand; if neces- sary, consult the troubleshooting
table (
b Maintenance Instruc-
tions, Chapter 2)
Before you start
1
10sbkg6.bk.fm Seite 59 Montag, 23. Januar 2006 4:27 16

3
63
Starting – Riding – Parking

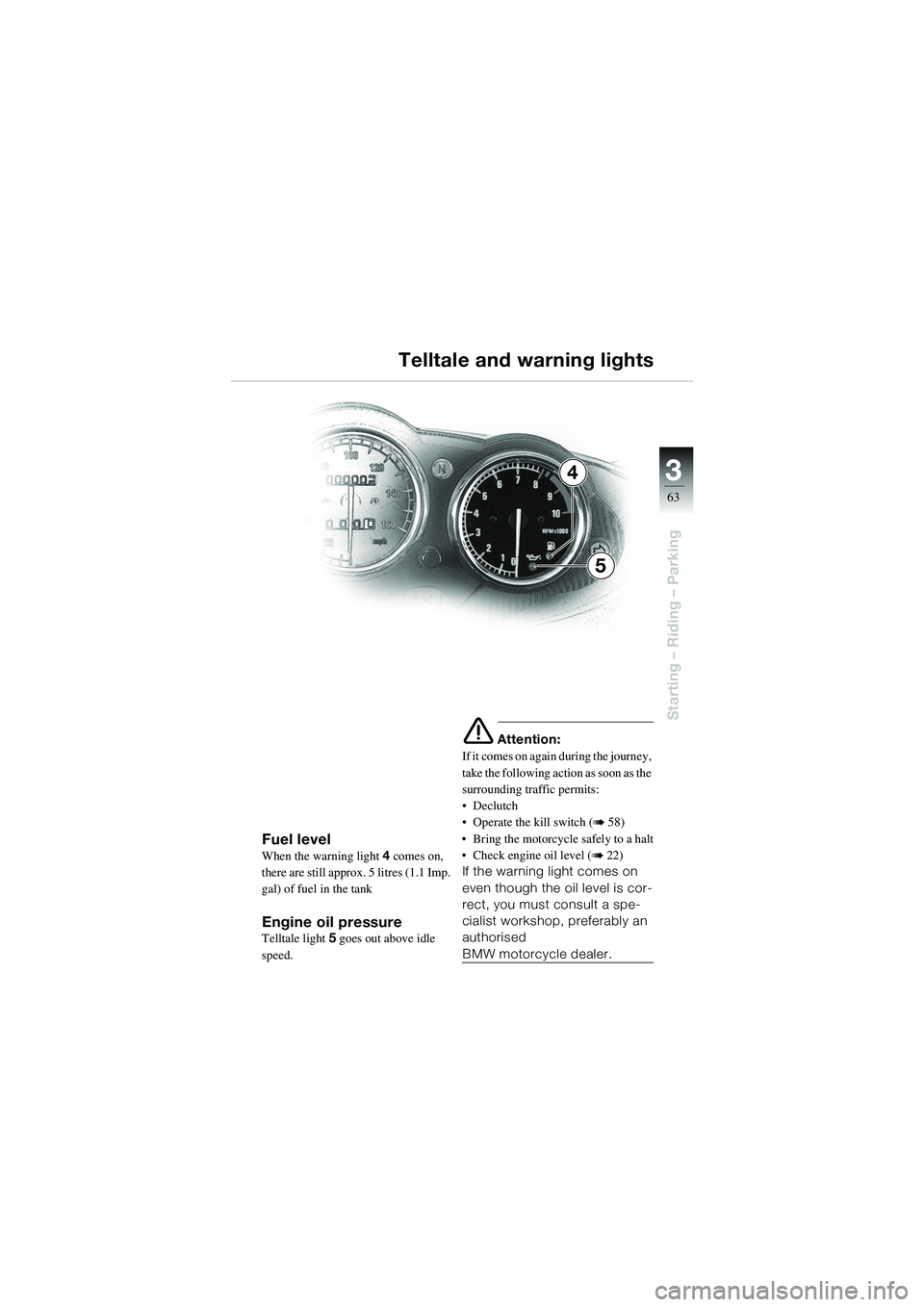

Fuel level
When the warning light4 comes on,
there are still approx. 5 litres (1.1 Imp.
gal) of fuel in the tank
Engine oil pressureTelltale light 5 goes out above idle
speed.
e Attention:
If it comes on again during the journey,
take the following action as soon as the
surrounding traffic permits:
• Declutch
• Operate the kill switch (
b 58)
• Bring the motorcycle safely to a halt
• Check engine oil level (
b 22)
If the warning light comes on
even though the oil level is cor-
rect, you must consult a spe-
cialist workshop, preferably an
authorised
BMW motorcycle dealer.
Telltale and warning lights
4
5
