2002 BMW M3 CONVERTIBLE bulb

Contents

Owner service procedures
Technical data
Index

Replacement procedures:

Onboard tool kit126
Windshield wiper blades126
Lamps and bulbs126
Repairing a flat tire132
Battery136
Fuses136

Giving and receiving
assistance:

Jump-starting137
Towing the vehicle139Engine data144
Dimensions145
Weights146
Capacities147Everything from A to Z150

126n
The onboard tool kit is located in the
luggage compartment lid.
Loosen the wingnut to open.
Location the tow fitting, refer to page,
138.
1. Rotate the wiper arm completely out
from the windshield
2. Position the wiper blade at an angle
and pull the release spring (arrow)
3. Fold the wiper blade down and
unhook it toward the windshield
4. Pull the wiper blade past the wiper
arm toward the top
5. Insert a new wiper blade and apply
pressure until you hear it engage.
Use only wiper blades which have
been approved by BMW.<
The lamps and bulbs make essential
contributions to the safety of your
vehicle. Therefore, comply fully with the
following instructions during bulb
replacement. If you are not familiar with
any of the procedures, consult your
BMW center.
Do not touch the glass portion of
a new bulb with your bare hands
since even small amounts of impurities
burn into the surface and reduce the
service life of the bulb. Use a clean
cloth, paper napkin, or a similar mate-
rial, or hold the bulb by its metallic
base.<
A replacement bulb set is available from
your BMW center.
Whenever working on the elec-
trical system, switch off the elec-
trical accessory you are working on or
disconnect the cable from the negative
terminal of the battery. Failure to do this
could result in short circuits.
To prevent injuries and damage when
changing a bulb, be sure to comply with
any instructions provided by the bulb
manufacturer.<
Onboard tool kit Wiper blades Lamps and bulbs

127n
OverviewControlsMaintenanceRepairsDataIndex
Lamps and bulbsLow and high beams >Low beams: H7 bulb, 55 watts
>High beams: H7 bulb, 55 watts
The H7 bulb is pressurized. There-
fore, wear safety glasses and
protective gloves. Failure to comply
with this precaution could lead to injury
if the bulb is damaged during replace-
ment.<
Please contact a BMW center in case of
a malfunction.Parking lamps5 watt bulb
Please contact a BMW center in case of
a malfunction.
When caring for your headlamps please
observe the notes and instructions
contained in the "Care for your vehicle"
Manual.
Xenon lamps
*
The service life of these bulbs is very
long and the probability of a failure is
very low, provided that they are not
switched on and off an unusual number
of times. If one of these bulbs should
nevertheless fail, it is possible to
continue driving with great caution
using the fog lamps, provided traffic
laws in your area do not prohibit this.
Because of the extremely high
voltages involved, any work on the
lighting system should be carried out by
technically-qualified personnel only.
Otherwise, there is a risk of fatal
injury.<

128n
Lamps and bulbsTurn signal indicator, front 21 watt bulb
1. Using a screwdriver, release the
inner hook through the upper
opening
2. Remove lamp by pulling it out toward
the front
3. Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
4. Insert the 2 pins on the lamp into the
guides on the vehicle
5. Push the lamp in. Carefully apply
pressure until you hear it snap into
place.
Side turn signal indicators5 watt bulb
1. Use finger pressure against the rear
end of the lamp (arrow) to press it
forward for removal
2. Apply gentle pressure to the bulb
while turning it to the left to remove.

129n
OverviewControlsMaintenanceRepairsDataIndex
Lamps and bulbsFront fog lamps HB4 bulb, 51 watt
The bulb is pressurized. There-
fore, wear safety glasses and
protective gloves. Failure to comply
with this precaution could lead to injury
if the bulb is damaged during replace-
ment.<
1. Pull out the cover around the head-
lamp toward the front
2. Loosen the screw (arrow) and swing
the lamp assembly out
3. Release the spring on the back of the
lamp and turn the cover to the left
4. Release the clamp, remove the
contact base and replace the bulb.
Tail lamp assembly Tail lamp 4: bulbs 21/4 watt
Remaining bulbs: 21 watt
1 Turn signal indicator yellow
2 Backup lamp yellow
3 Tail lamp red
4 Tail lamp/brake lamp red
The illustration shows the right-hand
luggage compartment opening.Bulbs in the fenderAll of the bulbs are integrated in a
central bulb holder.
1. Release the bulb holder (arrow)

130n
Lamps and bulbs2. Take out the bulb holder
3. Unplug the power supply receptacle.
Set the bulb holder aside (on the
luggage compartment floor, for
example)
4. Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
5. Plug in the power supply receptacle
6. Reattach the bulb holder until you
hear it snap into place (Illustration).
Bulbs in the luggage
compartment lid1. Using a screwdriver, loosen the clip
2. Fold the trim panel down (arrow 1).
Disengage the bulb holder (arrow 2)
and remove it
3. Applying light pressure, turn the bulb
to the left. Remove and exchange the
bulb
4. Press the bulb holder into position
until you hear it engage
5. Reinstall the trim with the clip.

131n
OverviewControlsMaintenanceRepairsDataIndex

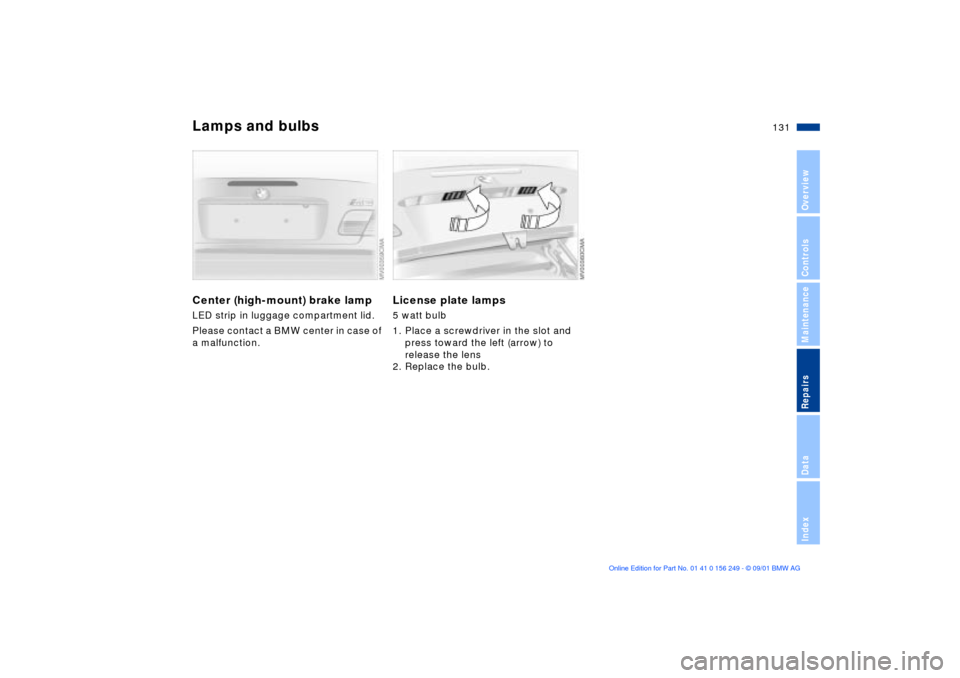

Lamps and bulbsCenter (high-mount) brake lamp

LED strip in luggage compartment lid.
Please contact a BMW center in case of
a malfunction.
License plate lamps 5 watt bulb
1. Place a screwdriver in the slot and
press toward the left (arrow) to
release the lens
2. Replace the bulb.

Everything from A to Z
