2002 Acura RSX Owner's Manual

Openthehood.Makesurethe
engine and radiator are cool to the
touch.
Remove the radiator cap.
Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Honda All Season Antif reeze/
Coolant Type 2.
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic.
Remove the cover under the
radiator.
Turn the ignition ON (II). Turn
the temperature control dial to
maximum heat. Turn the ignition
off.
1.
2.
3. 4.
Cooling Syst em
Maint enance
Replacing Engine Coolant
214
C CO
OV VE
ER
R

CONT INUED
Pour Honda All Season
Antif reeze/Coolant Type 2 into
the radiator up to the base of the
f iller neck. This coolant is a
mixture of 50 percent antif reeze
and 50 percent water. Pre-mixing
is not required.
Loosen the drain plug on the
bottom of the radiator. Drain the
coolant into an appropriate
container.
When the coolant stops draining,
tightenthedrainplugatthe
bottom of the radiator. Remove the clip, then remove the
reserve tank drain cap. Drain the
coolant into an appropriate
container.
Install the reserve tank drain cap
and clip.
5.
6.
7.8.
Cooling Syst em
Maint enance215
F FI
ILLL LEE R
R N
NEEC
CK K
C
CL LIIPP
D
D R
RAA I
INN
C
CA A P
P
D
D R
RAA I
INN P
PL
LUUG G
F
Fiillll u
u p
p t
too h
he
erree

Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
f or f uel. This reservoir supplies the
windshield and rear window washers.
The cooling system capacity is:
Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine.
Fill the radiator with coolant up to
the base of the f iller neck.
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Install the radiator cap, and
tighten it to the first stop.
Start the engine and let it run until
the radiator cooling f an comes on
at least twice. Then stop the
engine. Remove the radiator cap. Fill the
radiator with coolant up to the
base of the f iller neck.
Start the engine and hold it at
1,500 rpm until the radiator f an
comes on. Turn of f the engine.
Check the coolant level in the
radiator and add coolant if needed.
Install the radiator cap, and
tighten it fully.
If necessary, f ill the reserve tank
to the MAX mark. Install the
reserve tank cap.
9.
11. 10.
12.
13. 14.
15.
16. 17.
With automatic transmission:
Manual Transmission:
Maint enance
Cooling System, Windshield Washers
Windshield Washers
216
1.35 US gal (5.1, 1.12 Imp gal)
1.32 US gal (5.0
, 1.10 Imp gal)

The windshield washer reservoir is
located behind the driver’s side
headlight. Check the reservoir’s f luid
level by removing the cap and
looking at the level gauge attached
to the cap.
Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
Remove the dipstick (yellow loop)
f rom the transmission and wipe it
with a clean cloth. Park the car on level ground. Shut
of f the engine.
Check the f luid level with the engine
at normal operating temperature.
1.
2.
CONT INUED
Maint enance
Windshield Washers, T ransmission Fluid
Automatic Transmission
217
W WI
INND DS
SHH I
IEE L
LDD W
WA AS
SHH E
ER
R R
REES
SE ER
RV V O
OI IRR
L
LE E V
V E
EL
L G
GAAU
UG GEE D
D
I
IPP S
ST TI
ICCK K
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.

Insert the dipstick all the way back
into the transmission securely as
shown in the illustration.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
If the level is below the lower
mark, add f luid into the f iller hole
to bring it to the upper mark.
Always use Honda ATF-Z1
(Automatic Transmission Fluid). If it
is not available, you may use a
DEXRON
III automatic
transmission f luid as a temporary
replacement. However, continued
use can affect shift quality. Have the
transmission f lushed and ref illed
with Honda ATF-Z1 as soon as it is
convenient.
To thoroughly f lush the transmission,
the technician should drain and ref ill
it with Honda ATF-Z1, then drive the
vehicle a short distance. Do this
three times. Then drain and ref ill the
transmission a f inal time.
Insert the dipstick all the way into
the transmission securely as
shown in the illustration.
Remove the dipstick and check
the f luid level. It should be
between the upper and lower
marks. 5.
6.
4. 3.
T ransmission Fluid
Maint enance218
U UP PP
PE
ER
R
M
M A
AR
RKK
L
LO OW WE ER
R
M
M A
AR
RKK

If Honda MTF is not available, you
may use an API service SG, SH or SJ
grade motor oil with a viscosity of
SAE 10W-30 or 10W-40 as a
temporary replacement. An SG
grade is pref erred, but an SH or SJ
grade may be used if SG is not
available. However, motor oil does
not contain the proper additives and
continued use can cause stif f er
shif ting. Replace as soon as it is
convenient.
The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.Check the f luid level in the reser-
voirs monthly. There are up to two
reservoirs, depending on the model.
They are:
Brake f luid reservoir (all models)
Clutch f luid reservoir
(manual transmission only)
The brake f luid should be replaced
according to the time recommenda-
tion in the maintenance schedule.
Check the f luid level with the
transmission at normal operating
temperature and the car sitting on
level ground. Remove the
transmission f iller bolt and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual Transmis-
sion Fluid (MTF) until it starts to
run out of the hole. Reinstall the
f iller bolt and tighten it securely.
CONT INUED
Brake and Clutch Fluid
Manual Transmission
Transmission Fluid, Brake and Clutch Fluid
Maint enance219
F FI ILLL LEE R
R B
BOOL LTT
C
Co
or
rrreec ctt l
leev veell

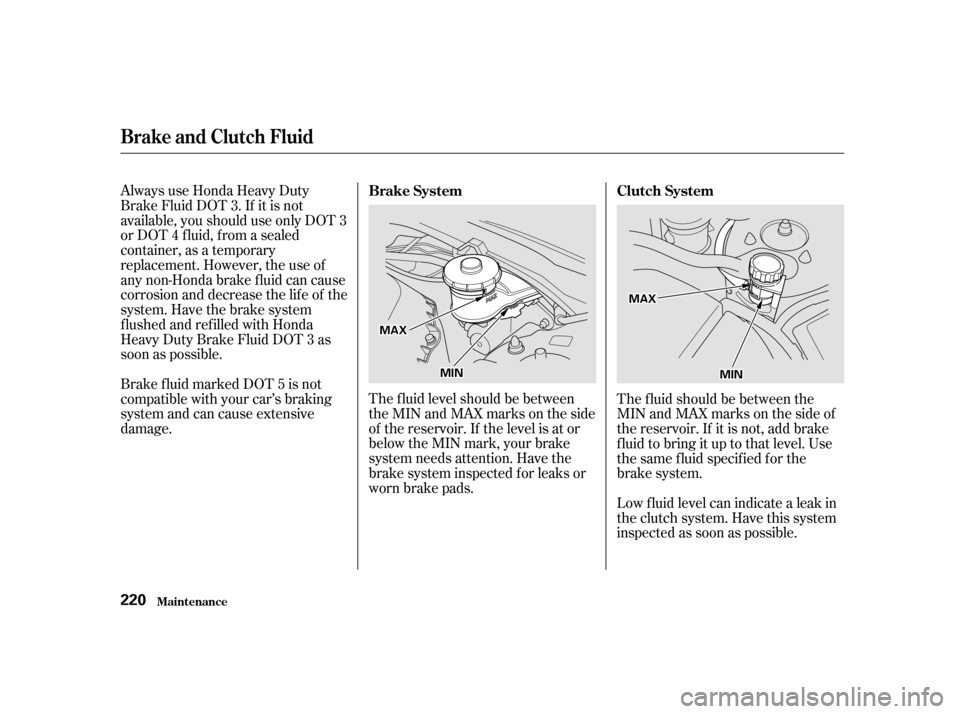

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement. However, the use of
any non-Honda brake fluid can cause
corrosion and decrease the lif e of the
system. Have the brake system
f lushed and ref illed with Honda
Heavy Duty Brake Fluid DOT 3 as
soon as possible.
The f luid should be between the
MIN and MAX marks on the side of
the reservoir. If it is not, add brake
f luid to bring it up to that level. Use
the same f luid specif ied f or the
brake system.
Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
Brake f luid marked DOT 5 is not
compatible with your car’s braking
system and can cause extensive
damage. Brake System
Clutch System
Brake and Clutch Fluid
Maint enance220
M MA
AX
X
M
MI
INN M
M
A
AX
X
M
MI
INN

A low power steering f luid level can
indicate a leak in the system. Check
the f luid level f requently and have
the system inspected as soon as
possible.
Always use Honda Power Steering
Fluid. If it is not available, you may
use another power steering f luid as
an emergency replacement.
However, continued use can cause
increased wear and poor steering in
cold weather. Have the power
steering system f lushed and ref illed
with Honda PSF as soon as possible.
Check the level when the engine is
cold. Look at the side of the
reservoir. The f luid should be
between the UPPER LEVEL and
LOWER LEVEL. If it is below the
LOWER LEVEL, add power steering
f luid to the UPPER LEVEL.
Power Steering
Maint enance221
L LO OW WE ER
R L
LEE V
V E
EL
L
U
UP
PP
PE
ER
R L
LEE V
V E
EL
L
T urning the steering wheel to f ull lef t
or right lock and holding it there can
damage the power steering pump.
Do not spill the power steering f luid
over the body, auto-tensioner, drive
belt and pulleys.
If spilled accidentally, wipe of f any
f luid completely.
