2002 Acura RSX Owner's Manual

µµ µ
µ
If the f ront wheels are turned, the
anti-thef t lock may sometimes make
it difficult to turn the key from
LOCK to ACCESSORY. Firmly turn
the steering wheel to the lef t or to
the right as you turn the key. You can insert or
remove the key only in this position.
To switch f rom ACCESSORY to
LOCK, you must push the key in
slightly as you turn it. If your car has
an automatic transmission, the shif t
lever must also be in Park. The anti-
thef t lock will lock the steering
column when you remove the key.
This is the normal key
position when driving. All f eatures
and accessories on the car are usable.
Several of the lights on the instru-
ment panel come on as a test when
you turn the ignition switch f rom
ACCESSORY to ON. Use this position
only to start the engine. The switch
returns to ON (II) when you let go of
the key.
The engine will not start if the
Immobilizer System does not
recognize the key’s coding (see page ).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
In this position,
you can operate the audio system
and the accessory power socket. 76
Keys and Locks
Inst rument s and Cont rols
LOCK (0)
ON (II)ST A RT (III)
A CCESSORY (I)
78
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.

Each door has a lock tab at the top of
the door. When you push down the
lock tab on the driver’s door, both
doors and the hatch lock. Pulling up
the lock tab on the driver’s door only
unlocks that door. The lock tab on
the passenger’s door only locks and
unlocks that door.To lock the passenger’s door when
getting out of the car, push the lock
tab down and close the door. To lock
the driver’s door, pull the inside or
outside door handle and push the
lock tab down. Release the handle,
then close the door.
Both doors and the hatch can be
locked f rom the outside by using the
key in either door.
To unlock only the driver’s door
f rom the outside, insert the key in
the driver’s door lock, turn the key
and release it. If you turn the key
and hold it, both doors and the hatch
will unlock. Both doors and the
hatch will unlock when you unlock
the passenger’s door with the key.
Door L ocks
Keys and Locks
Inst rument s and Cont rols79
L LO
OC CKK T
TA
A B
B
K
KEEY
Y

Each door has a master door and
hatch lock switch. Either switch
locks and unlocks both doors and the
hatch. Push the switch down to lock
both doors and the hatch. Push up to
unlock them.To close the hatch, press down on
the back edge.See page f or cargo loading and
weight limit inf ormation. Keep the
hatch closed at all times while
driving to avoid damaging the hatch
and to prevent exhaust gas from
getting into the interior. See
on page .
To open the hatch, pull the handle,
then lif t up the hatch.
The hatch will not lock or unlock
when the battery is disconnected. 164
54
Keys and Locks
Inst rument s and Cont rols
Power Door/Hatch L ocks Hatch
Carbon
Monoxide Hazard
80
M M A
AS
STTE
ER
R D
DO
OO ORR A
AN
ND D H
HA
AT
TC
CH H
L
LO OC CKK S
SWWI ITT C
CH H
P
Pu
ul
lll

You can lock and unlock your car
with the remote transmitter. When
you push the LOCK button, both
doors and the hatch lock.When you push the UNLOCK button
once, only the driver’s door unlocks.
The passenger’s door and the hatch
unlock when you push the button a
second time. The parking lights, side
marker lights, taillights and license
plate light flash twice.
If you unlock the doors and the
hatch with the remote transmitter,
but do not open either door or the
hatch within 30 seconds, the doors
and the hatch automatically relock
and the security system sets.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door or the hatch, the light
will go out in about 30 seconds and
the doors and the hatch will
automatically relock. If you relock
the doors and the hatch with the
remote transmitter before 30
seconds have elapsed, the light will
go of f immediately.
You cannot lock the doors and the
hatch with the remote transmitter if
any door or the hatch is not f ully
closed. You cannot lock or unlock
the doors and the hatch with the key
in the ignition switch.
CONT INUED
Remote Transmitter
Keys and Locks
Inst rument s and Cont rols81

Panic mode allows you to remotely
activate your vehicle’s horn and
lights to attract attention. When
activated, the horn will sound, and
the headlights, parking lights, side
marker lights, taillights and
instrument panel lights will f lash f or
about 30 seconds. To activate panic
mode,pressandholdthePANIC
button f or about one second.
To cancel Panic mode bef ore 30
seconds, press any button on the
remote transmitter. You can also
turn the ignition switch to ON (II).
Panic mode will not activate if the
key is in the ON (II) position.When the remote transmitter’s
battery begins to get weak, it may
take several pushes on the button to
lock or unlock the doors and the
tailgate, and the LED will get dim.
Replace the battery as soon as
possible.
Battery type: CR2025To replace the battery, place a cloth
on the edge of the transmitter and
remove the upper half by carefully
prying on the edge with a small f lat-
tip screwdriver.
Panic Mode
Replacing t he Bat t ery
Keys and Locks
Inst rument s and Cont rols82

´
Remove the old battery and note the
polarity. Make sure the polarity of
the new battery is the same ( side
f acing up), then insert it in the
transmitter.
Snapthetwohalvesof the
transmitter case back together. Avoid severe shock to the trans-
mitter, such as dropping or throwing
it. Also, protect it f rom extreme hot
or cold temperatures.
Clean the transmitter case with a
sof t cloth. Do not use strong
cleaners or solvents that could harm
the case. Immersing the transmitter
in any liquid will harm the trans-
mitter and cause it to not f unction
properly.
If you lose a transmitter, you will
need to have the replacement
programmed to your vehicle’s
system by your Acura dealer. Any
other transmitters you have will also
need to be reprogrammed.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
CONT INUED
Keys and Locks
Inst rument s and Cont rols
Transmitter Care
83

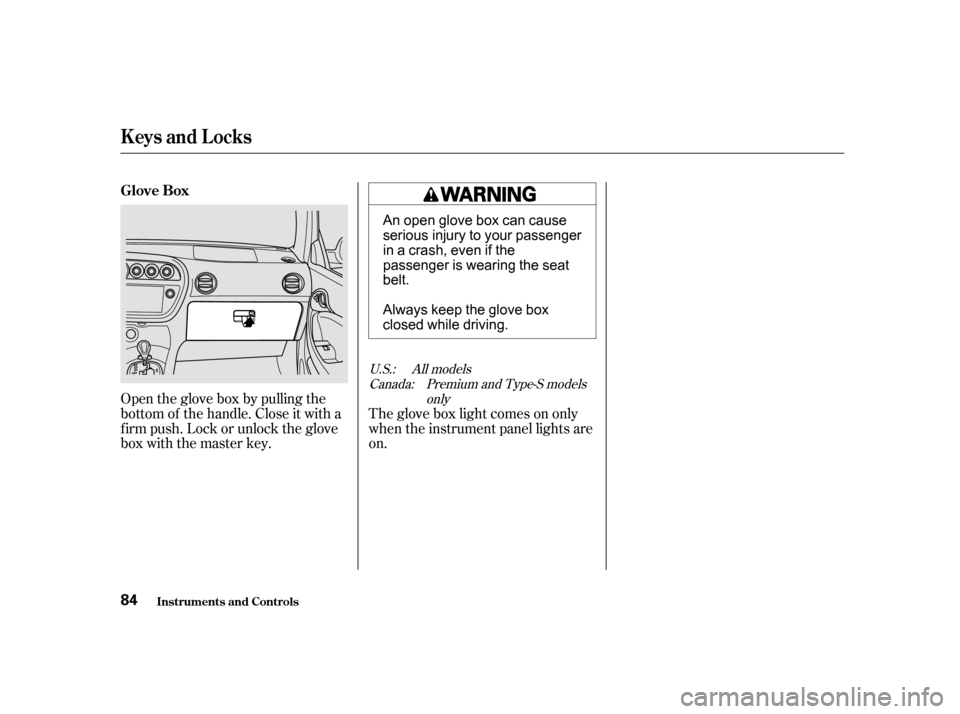

Open the glove box by pulling the
bottom of the handle. Close it with a
f irm push. Lock or unlock the glove
box with the master key.The glove box light comes on only
when the instrument panel lights are
on.
U.S.:
Canada: All models
Premium and Type-S modelsonly
Glove Box
Keys and Locks
Inst rument s and Cont rols84
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.

µ
To change the angle of the seat-back,
pull up on the lever on the outside of
the seat bottom. Move the seat-back
to the desired position and release
the lever. Let the seat-back latch in
the new position.
Make all seat adjustments bef ore
you start driving.
To adjust the seat forward and
backward, pull up on the bar under
the seat cushion’s f ront edge. Move
the seat to the desired position and
releasethebar.Trytomovetheseat
to make sure it is locked in position.
See pages f or important saf etyinf ormation and warnings about how toproperly position seats and seat-backs. 13 14
CONT INUED
FrontSeatAdjustments
Seat A djustments
Inst rument s and Cont rols85
