PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6 15. Pour the specified amount of rec-
ommended coolant into the radia-
tor and reservoir.
ECA00041
CAUTION:_ Hard water or salt water is harmful
to the engine. You may use soft wa-
ter if you can’t get distilled water. _16. Install the radiator cap, start the
engine, let it idle for several min-
utes, and then turn it off.
17. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap.
18. Check the coolant level in the res-
ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
19. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
20. Install the right air intake duct, then
tighten the screw clamps.21. Install the fuel tank and fuel tank
bolts.
22. Install the coolant reservoir and
bolts.
23. Fill the coolant reservoir with the
recommended coolant to the
specified level.
24. Install the cowlings.
25. Install the seat. Tightening torques:
Water pump drain bolt:
10 Nm (1.0 m·kg)
Cylinder drain bolt
7.0 Nm (0.7 m·kg)
Antifreeze/water mixture ratio:
1:1
Recommended anti-freeze:
High-quality ethylene glycol
antifreeze containing corrosion
inhibitors for aluminum engines
Coolant quantity:
Total amount:
1.95 L
Coolant reservoir capacity:
0.55 L
E_4tv.book Page 16 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU03645
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seat. (See page 3-11
for seat removal and installation
procedures.)

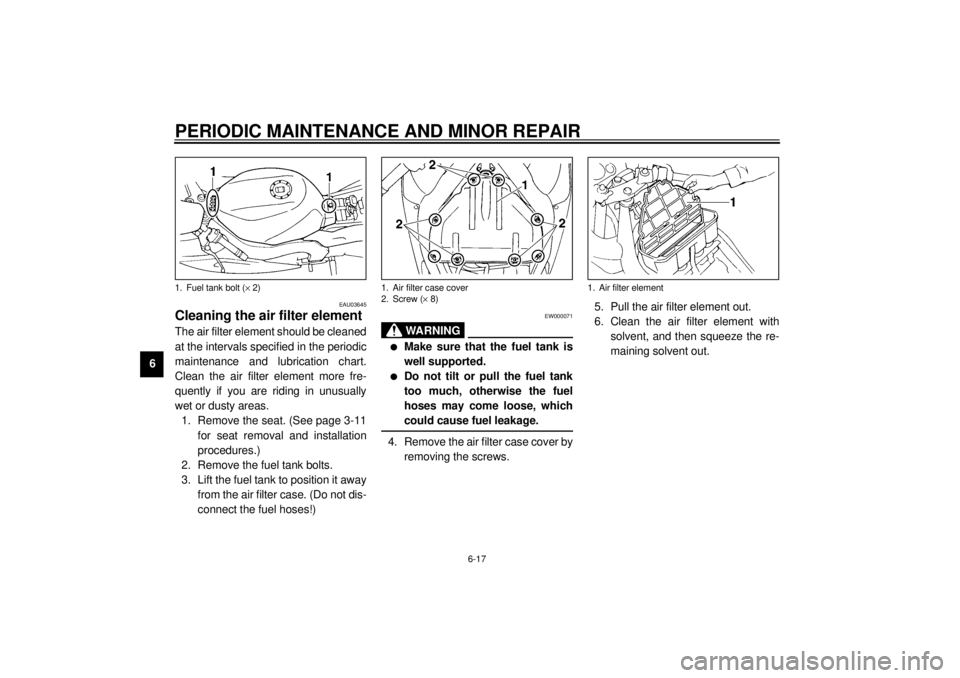

2. Remove the fuel tank bolts.
3. Lift the fuel tank to position it away
from the air filter case. (Do not dis-
connect the fuel hoses!)
EW000071
WARNING
_ l
Make sure that the fuel tank is
well supported.
l
Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, which
could cause fuel leakage.
_4. Remove the air filter case cover by
removing the screws.5. Pull the air filter element out.
6. Clean the air filter element with
solvent, and then squeeze the re-
maining solvent out.
1. Fuel tank bolt (´ 2)
1. Air filter case cover
2. Screw (´ 8)
1. Air filter element
E_4tv.book Page 17 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6 7. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:_ The air filter element should be wet but
not dripping. _8. Insert the air filter element into the
air filter case.
EC000082
CAUTION:_ l
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
l
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
_9. Install the air filter case cover by
installing the screws.
10. Place the fuel tank in the original
position, and then install the bolts.
EW000131
WARNING
_ Make sure that the fuel hoses and
vacuum hose are properly connect-
ed and routed, and not pinched. Re-
place any damaged hoses. _11. Install the seat.
EAU00626
Checking the air vent hose Periodically check the air vent hose for
dust or water that may be deposited in
the hose. If dust or water is found, re-
move the air vent hose, thoroughly
clean it, and then install it.
EC000093
CAUTION:_ Do not operate the motorcycle with
the air vent hose removed. _
Recommended oil:
Engine oil
1. Air vent hose
E_4tv.book Page 18 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU01335

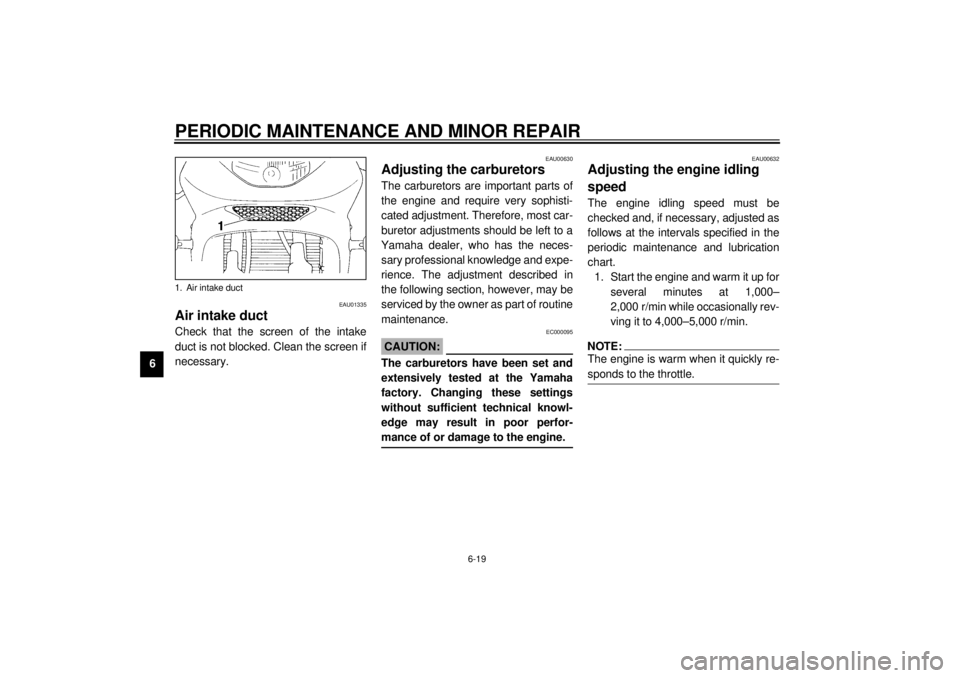

Air intake duct Check that the screen of the intake
duct is not blocked. Clean the screen if
necessary.
EAU00630
Adjusting the carburetors The carburetors are important parts of
the engine and require very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in
the following section, however, may be
serviced by the owner as part of routine
maintenance.
EC000095
CAUTION:_ The carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine. _
EAU00632
Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine and warm it up for
several minutes at 1,000–
2,000 r/min while occasionally rev-
ving it to 4,000–5,000 r/min.NOTE:_ The engine is warm when it quickly re-
sponds to the throttle. _
1. Air intake ductE_4tv.book Page 19 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6 2. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection
a. To decrease the engine
idling speed, turn the screw in di-
rection
b.
NOTE:_ If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment. _
EAU00635
Adjusting the throttle cable
free play The throttle cable free play should
measure 3–7 mm at the throttle grip.
Periodically check the throttle cable
free play and, if necessary, have a
Yamaha dealer adjust it.
EAU00637
Adjusting the valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Throttle stop screw
Engine idling speed:
1,200–1,300 r/min
a. Throttle cable free play
E_4tv.book Page 20 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU00658
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
EW000082
WARNING
_ l
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
l
The tire air pressure must be
adjusted in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approved
for this model.
_
CE-01E
CE-07EEWA00012
WARNING
_ Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind. l
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
l
Do not carry along loosely
packed items, which can shift
during a ride.
Tire air pressure
(measured on cold tires)
Load* Front Rear
Up to 90 kg225 kPa
(2.25 kg/cm
2,
2.25 bar)250 kPa
(2.50 kg/cm
2,
2.50 bar)
90 kg–maximum250 kPa
(2.50 kg/cm
2,
2.50 bar)290 kPa
(2.90 kg/cm
2,
2.90 bar)
High-speed riding250 kPa
(2.50 kg/cm
2,
2.50 bar)290 kPa
(2.90 kg/cm
2,
2.90 bar)
Maximum load*180 kg (except for A, CH, S)
178 kg (for A, CH, S)
* Total weight of rider, passenger, cargo and
accessories
E_4tv.book Page 21 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
l
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
l
Adjust the suspension and tire
air pressure with regard to the
load.
l
Check the tire condition and air
pressure before each ride.
_

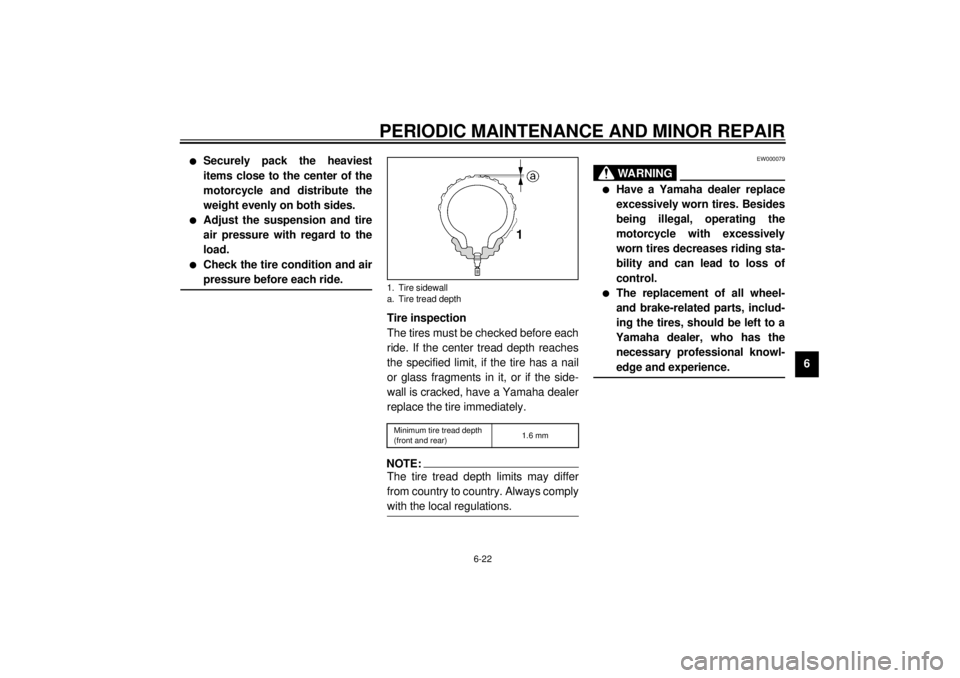

Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.CE-08ENOTE:_ The tire tread depth limits may differ
from country to country. Always comply
with the local regulations. _
EW000079
WARNING
_ l
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
motorcycle with excessively
worn tires decreases riding sta-
bility and can lead to loss of
control.
l
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
_
1. Tire sidewall
a. Tire tread depthMinimum tire tread depth
(front and rear)1.6 mm
E_4tv.book Page 22 Wednesday, October 4, 2000 2:15 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6Tire information
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
EW000080
WARNING
_ l
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
l
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
l
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
l
Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
high-speed ride.
_
CE-10E
CE-14E
1. Tire air valve
2. Valve core
3. Valve cap with seal
FRONT
Manufacturer Size Model
Dunlop 120/60 ZR17 (55W) D204F
Metzeler 120/60 ZR17 (55W) MEZ1
Bridgestone 120/60 ZR17 (55W) BT57F
Michelin 120/60 ZR17 (55W) MACADAM 90X
REAR
Manufacturer Size Model
Dunlop 160/60 ZR17 (69W) D204
Metzeler 160/60 ZR17 (69W) MEZ1
Bridgestone 160/60 ZR17 (69W) BT57
Michelin 160/60 ZR17 (69W) MACADAM 90X
FRONT & REAR
Tire air valve TR412
Valve core #9000A (original)
