Starter (choke) lever “ ” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction
a to turn on
the starter (choke).
Move the lever in direction
b to turn off
the starter (choke).
ECA00038
CAUTION:_ Do not use the starter (choke) for
more than 3 minutes as the exhaust
pipe may discolor from excessive
heat. In addition, extended use of
the starter (choke) will cause after-
burning. If this occurs, turn off the
starter (choke). _
1. Fuel tank breather hose
1. Starter (choke) lever “ ”
E_4tv.book Page 10 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU01591
Seat To remove the seat
1. Insert the key into the helmet hold-
er lock, and then turn it as shown.
2. Pull the seat off.To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
NOTE:_ Make sure that the seat is properly se-
cured before riding. _
EAU00261
Helmet holder To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, turn the key
to the original position, and then re-
move it.
EW000030
WARNING
_ Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident. _
1. Unlock.
1. Seat holder
2. Projection (´ 2)
1. Helmet holder
2. Unlock.
E_4tv.book Page 11 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU01688
Storage compartment This storage compartment is designed
to hold a genuine Yamaha U-LOCK.
(Other locks may not fit.) When placing
a U-LOCK in the storage compartment,
securely fasten it with the straps. When
the U-LOCK is not in the storage com-
partment, be sure to secure the straps
to prevent losing them.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the motorcycle, be
careful not to let any water enter the
storage compartment.
EAU01862
Adjusting the front fork This front fork is equipped with spring
preload adjusting bolts, rebound damp-
ing force adjusting screws and com-
pression damping force adjusting
screws.
EW000035
WARNING
_ Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result. _
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection
a. To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
each fork leg in direction
b.

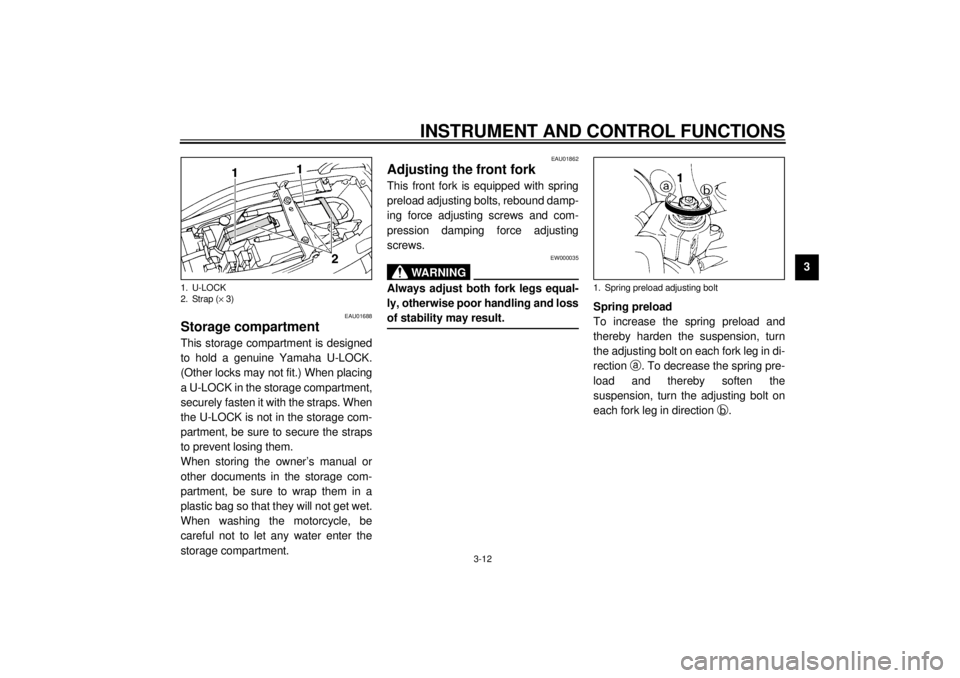

1. U-LOCK
2. Strap (´ 3)
1. Spring preload adjusting bolt
E_4tv.book Page 12 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
NOTE:_ Align the appropriate groove on the ad-
justing mechanism with the top of the
front fork cap bolt. _CI-10E
Rebound damping force
To increase the rebound damping
force and thereby harden the rebound
damping, turn the adjusting screw on
each fork leg in direction
a. To de-
crease the rebound damping force and
thereby soften the rebound damping,
turn the adjusting screw on each fork
leg in direction
b.CI-02E
Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
on each fork leg in direction
a. To de-
crease the compression damping force
and thereby soften the compression
damping, turn the adjusting screw on
each fork leg in direction
b.CI-02E

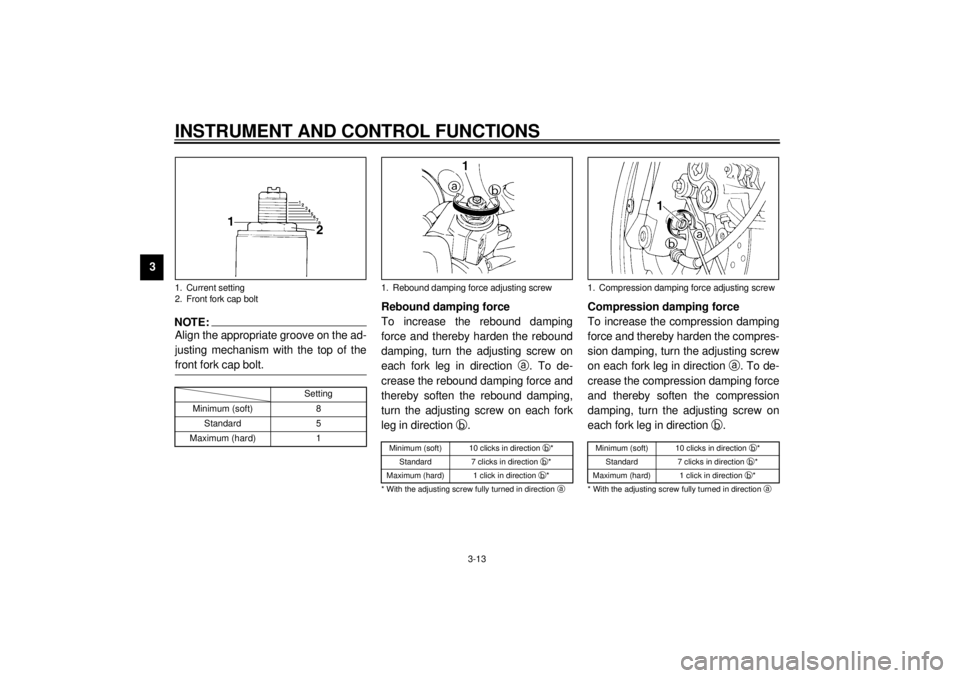

1. Current setting
2. Front fork cap bolt
Setting
Minimum (soft) 8
Standard 5
Maximum (hard) 1
1. Rebound damping force adjusting screwMinimum (soft) 10 clicks in direction
b*
Standard 7 clicks in direction
b*
Maximum (hard) 1 click in direction
b*
* With the adjusting screw fully turned in direction
a
1. Compression damping force adjusting screwMinimum (soft) 10 clicks in direction
b*
Standard 7 clicks in direction
b*
Maximum (hard) 1 click in direction
b*
* With the adjusting screw fully turned in direction
a
E_4tv.book Page 13 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EC000015
CAUTION:_ Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings. _NOTE:_ Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary. _
EAU03643
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing ring, a rebound damping force ad-
justing knob and a compression
damping force adjusting screw.
ECA00071
CAUTION:_ Never attempt to turn the spring pre-
load and rebound damping force ad-
justing mechanisms beyond the
maximum or minimum settings. _
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction
a. To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction

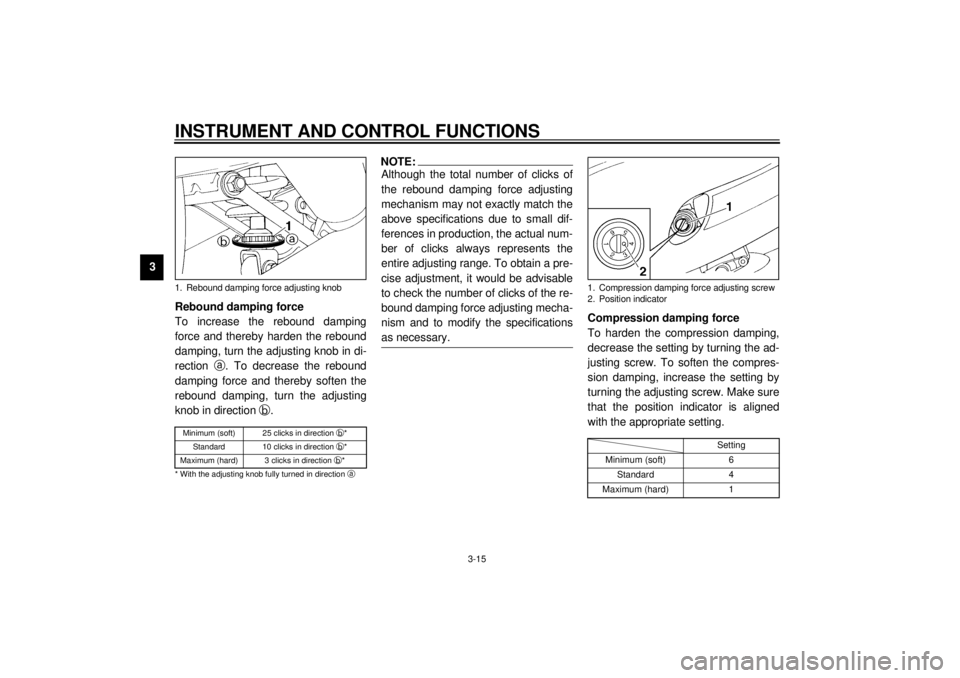

b.CI-10E1. Spring preload adjusting ring
2. Position indicator
Setting
Minimum (soft) 1
Standard 3
Maximum (hard) 7
E_4tv.book Page 14 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
Rebound damping force
To increase the rebound damping
force and thereby harden the rebound
damping, turn the adjusting knob in di-
rection
a. To decrease the rebound
damping force and thereby soften the
rebound damping, turn the adjusting
knob in direction
b.
CI-03E
NOTE:_ Although the total number of clicks of
the rebound damping force adjusting
mechanism may not exactly match the
above specifications due to small dif-
ferences in production, the actual num-
ber of clicks always represents the
entire adjusting range. To obtain a pre-
cise adjustment, it would be advisable
to check the number of clicks of the re-
bound damping force adjusting mecha-
nism and to modify the specifications
as necessary. _
Compression damping force
To harden the compression damping,
decrease the setting by turning the ad-
justing screw. To soften the compres-
sion damping, increase the setting by
turning the adjusting screw. Make sure
that the position indicator is aligned
with the appropriate setting.CI-10E
1. Rebound damping force adjusting knobMinimum (soft) 25 clicks in direction
b*
Standard 10 clicks in direction
b*
Maximum (hard) 3 clicks in direction
b*
* With the adjusting knob fully turned in direction
a
1. Compression damping force adjusting screw
2. Position indicator
Setting
Minimum (soft) 6
Standard 4
Maximum (hard) 1
E_4tv.book Page 15 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU00315
WARNING
_ This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.l
Do not tamper with or attempt to
open the gas cylinder.
l
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
l
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
l
Always have a Yamaha dealer
service the shock absorber.
_
E_4tv.book Page 16 Wednesday, October 4, 2000 2:15 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
EAU01580
Matching the front and rear suspension settings Use this table as a guide to match the suspension and damping adjustments of the front fork and shock absorber assembly
according to various load conditions.CI-05E
EC000015CAUTION:_ Never attempt to turn an adjusting mechanism beyond the maximum or minimum settings. _Load condition Front fork adjustment Shock absorber assembly adjustment
Spring preloadCompression
damping forceRebound
damping forceSpring preloadCompression
damping forceRebound
damping force
Rider only 1–8 1–10 1–10 1–5 1–5 3–25
With passenger 1–8 1–10 1–10 3–7 4–6 3–10
