2001 TOYOTA HIGHLANDER warning

'05 HIGHLANDER_U (L/O 0409)
88
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
The SRS warning light and AIRBAG
OFFº indicator light will come on if
there is a malfunction in the front pas-
senger occupant classification system.

'05 HIGHLANDER_U (L/O 0409)
89
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)
Condition and operation in the front passenger occupant classification system
Indicator/warning lightDevices
Condition detected
by the front
passenger occupant
classification system
AIRBAG ONº and
AIRBAG OFFº
indicator lightsSRS warning
light
Front
passenger 's
seat belt
reminder lightFront
passenger
airbagSide airbag
on the front
passenger
seatCurtain shield
airbag in the
front
passenger
sideFront
passenger 's
seat belt
pretensioner
1. Adult*
1AIRBAG ONºOffFlashing*
4Activated
2. Child*
2 or child
restraint system*
3AIRBAG OFFºOffFlashing*
4DeactivatedActivated
3. UnoccupiedNot illuminatedOffOffDeactivatedActivatedDeactivated
4. There is a
malfunction in the
system
AIRBAG OFFºOnOffDeactivated
Activated
Activated
*
1: The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may
recognize him/her as a child depending on his/her physique and posture.
*
2: When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her
as an adult depending on his/her physique or posture.
*
3: Never install a rear- facing child restraint system on the front passenger seat. A forward- facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. (See Child restraintº on page 91 in this Section as for installing the
child restraint system.)
*
4: In the event that the front passenger does not wear a seat belt.

'05 HIGHLANDER_U (L/O 0409)
91
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

Do not let a rear passenger lift the
front passenger seat with their feet
or press on the seatback with their
legs.

Do not put objects under the front
passenger seat.

Child restraint systems installed on
the second seat should not contact
the front seatbacks.

When it is unavoidable to install the
forward- facing child restraint sys-
tem on the front passenger seat,
install the child restraint system on
the front passenger seat in the
proper order. (As for the installation
order, see ÐInstallation with seat
beltº on page 94 in this Section.)

Do not remove the front seats.

Do not kick the front passenger
seat or subject it to severe impact.
Otherwise, the SRS warning light
may come on to indicate a malfunc-
tion of the detection system. In this
case, contact your Toyota dealer im-
mediately.
The AIRBAG ONº indicator light may be
illuminated (the front passenger airbag and
side airbag on the front passenger seat
may deploy) even if observing the above
cautions, when a child sits in, or a for-
ward- facing child restraint system is
installed on the front passenger seat. Re-
fer to all the cautions in SRS airbagsº on
page 70 and Child restraintº on page 91
in this Section.Toyota strongly urges the use of ap-
propriate child restraint systems for
children.
The laws of all 50 states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAEJ1819.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. See Seat beltsº on
page 58 in this Section for details.
CAUTION

For effective protection in automo-
bile accidents and sudden stops, a
child must be properly restrained,
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle's interior.
Child restraintÐ
ÐChild restraint precautions

2005 HIGHLANDER (EWD592U)
82
Engine Control for 3MZ-FE
The engine control system utilizes a microcomputer and maintains overall control of the engine, transmission etc. An outline
of the engine control is given here.
1. Input Signals
(1) Engine coolant temp. signal circuit
The engine coolant temp. sensor detects the engine coolant temp. and has a built-in thermistor with a resistance, which
varies according to the engine coolant temp. The engine coolant temp. which is input into TERMINAL THW of the
engine control module as a control signal.
(2) Intake air temp. signal circuit
The intake air temp. sensor is installed in the mass air flow meter and detects the intake air temp. which is input as a
control signal to TERMINAL THA of the engine control module.
(3) Vehicle speed signal circuit
The vehicle speed signal is input from the ABS speed sensor to skid control ECU with actuator, and are sent to the
engine control module through communication control.
(4) RPM signal circuit
Camshaft position is detected by the VVT sensors and its signal is input to TERMINALS VV1+ and VV2+ of the engine
control module as a control signal. Also, engine RPM is detected by the crankshaft position sensor and is input as a
control signal to TERMINAL NE+.
(5) Throttle position signal circuit
The throttle control motor and sensor detects the throttle valve opening angle as a control signal, which is input into
TERMINALS VTA1 and VTA2 of the engine control module.
(6) Battery signal circuit
Voltage is constantly applied to TERMINAL BATT of the engine control module. With the ignition SW turned on, the
voltage for engine control module start-up power supply is applied to TERMINALS +B and +B2 of the engine control
module via the EFI relay.
The current flowing through the IGN fuse flows to TERMINAL IGSW of the engine control module.
(7) Intake air volume signal circuit
Intake air volume is detected by the mass air flow meter and the signal is input to TERMINAL VG of the engine control
module as a control signal.
(8) Stop light SW signal circuit
The stop light SW is used to detect whether the vehicle is braking or not and the signal is input into TERMINAL STP of
the engine control module as a control signal.
(9) Starter signal circuit
To confirm whether the engine is cranking, the voltage is applied to the starter motor during cranking is detected and the
signal is input into TERMINAL STA of the engine control module as a control signal.
(10) Engine knock signal circuit
Engine knocking is detected by knock sensors and the signal is input into TERMINALS KNK1 and KNK2 as a control
signal.
(11) Air fuel ration signal circuit
The air fuel ration is detected and input as a control signal into TERMINALS A1A+ and A2A+ of the engine control
module.
(12) Oxygen sensor signal circuit
The oxygen density in the exhaust gases is detected and input as a control signal into TERMINALS OX1B and OX2B of
the engine control module.
To maintain stable detection performance by the heated oxygen sensor, a heater is used for warning the sensor. The
heater is also controlled by the engine control module (HT1B and HT2B).
(13) Fuel cut in a collision
The system receives the collision signal from airbag sensor assembly in the vehicle has a collision and stops the fuel
pump operation on the side of the engine control module.
System Outline

2005 HIGHLANDER (EWD592U)
95
The engine control system utilizes a microcomputer and maintains overall control of the engine, transmission etc. An outline
of the engine control is given here.
1. Input Signals
(1) Engine coolant temp. signal circuit
The engine coolant temp. sensor detects the engine coolant temp. and has a built-in thermistor with a resistance, which
varies according to the engine coolant temp.. The engine coolant temp. which is input into TERMINAL THW of the
engine control module as a control signal.
(2) Intake air temp. signal circuit
The intake air temp. sensor is installed in the mass air flow meter and detects the intake air temp. which is input as a
control signal to TERMINAL THA of the engine control module.
(3) Vehicle speed signal circuit
The vehicle speed signal is input from the ABS speed sensor to skid control ECU with actuator, and are sent to the
engine control module through communication control.
(4) RPM signal circuit
Camshaft position and crankshaft position are detected by the camshaft position sensor and crankshaft position sensor.
Camshaft position is input as a control signal to TERMINAL G2+ of the engine control module, and engine RPM is input
into TERMINAL NE+.
(5) Throttle position signal circuit
The throttle position sensor detects the throttle valve opening angle as a control signal, which is input into TERMINALS
VTA1 and VTA2 of the engine control module.
(6) Battery signal circuit
Voltage is constantly applied to TERMINAL BATT of the engine control module. With the ignition SW turned on, the
voltage for engine control module start-up power supply is applied to TERMINALS +B and +B2 of the engine control
module via the EFI relay.
The current flowing through the IGN fuse flows to TERMINAL IGSW of the engine control module.
(7) Intake air volume signal circuit
Intake air volume is detected by the mass air flow meter and the signal is input to TERMINAL VG of the engine control
module as a control signal.
(8) Stop light SW signal circuit
The stop light SW is used to detect whether the vehicle is braking or not and the signal is input into TERMINAL STP of
the engine control module as a control signal.
(9) Starter signal circuit
To confirm whether the engine is cranking, the voltage is applied to the starter motor during cranking is detected and the
signal is input into TERMINAL STA of the engine control module as a control signal.
(10) Engine knock signal circuit
Engine knocking is detected by knock sensor and the signal is input into TERMINAL KNK1 as a control signal.
(11) Air fuel ratio signal system
The air fuel ratio is detected and input as a control signal into TERMINAL A1A+ of the engine control module.
(12) Oxygen sensor signal circuit
The oxygen density in the exhaust gases is detected and input as a control signal into TERMINAL OX1B of the engine
control module. To maintain stable detection performance by the heated oxygen sensor, a heater is used for warning the
sensor. The heater is also controlled by engine control module (O1B-).
(13) Fuel cut in a collision
The system receives the collision signal from center airbag sensor assembly in the vehicle has a collision and stops the
fuel pump operation on the side of the engine control module.
System Outline

'05 HIGHLANDER_U (L/O 0409)
131
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

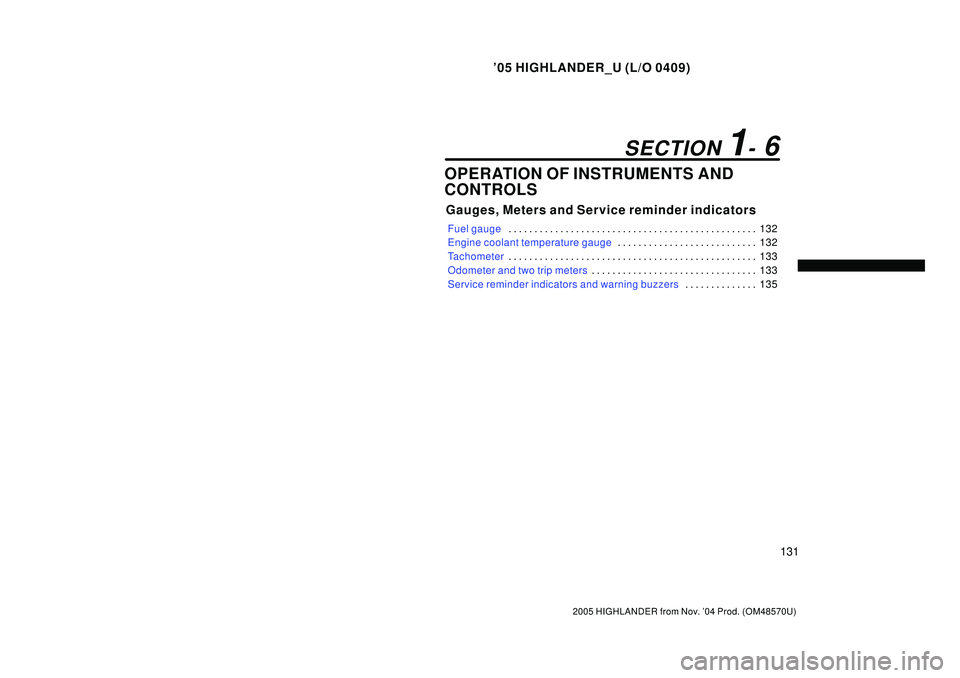

OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge132 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature gauge132 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters133 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers135 . . . . . . . . . . . . . .
SECTION 1- 6

'05 HIGHLANDER_U (L/O 0409)
132
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

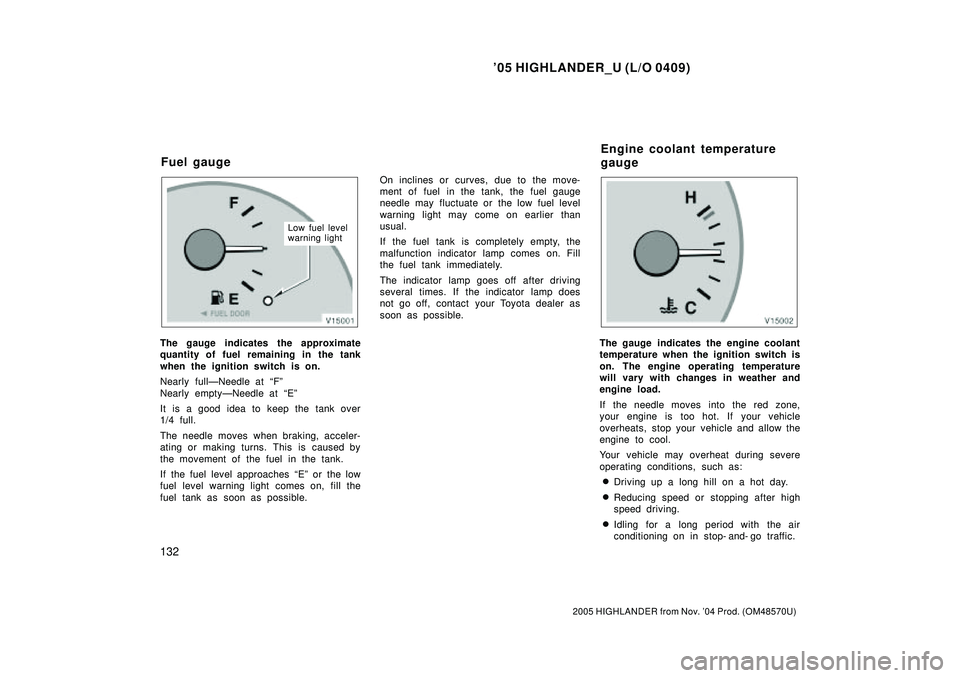

Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly fullÐNeedle at Fº
Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches Eº or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:

Driving up a long hill on a hot day.

Reducing speed or stopping after high
speed driving.

Idling for a long period with the air
conditioning on in stop- and- go traffic.
Fuel gaugeEngine coolant temperature
gauge

'05 HIGHLANDER_U (L/O 0409)
135
2005 HIGHLANDER from Nov. '04 Prod. (OM48570U)

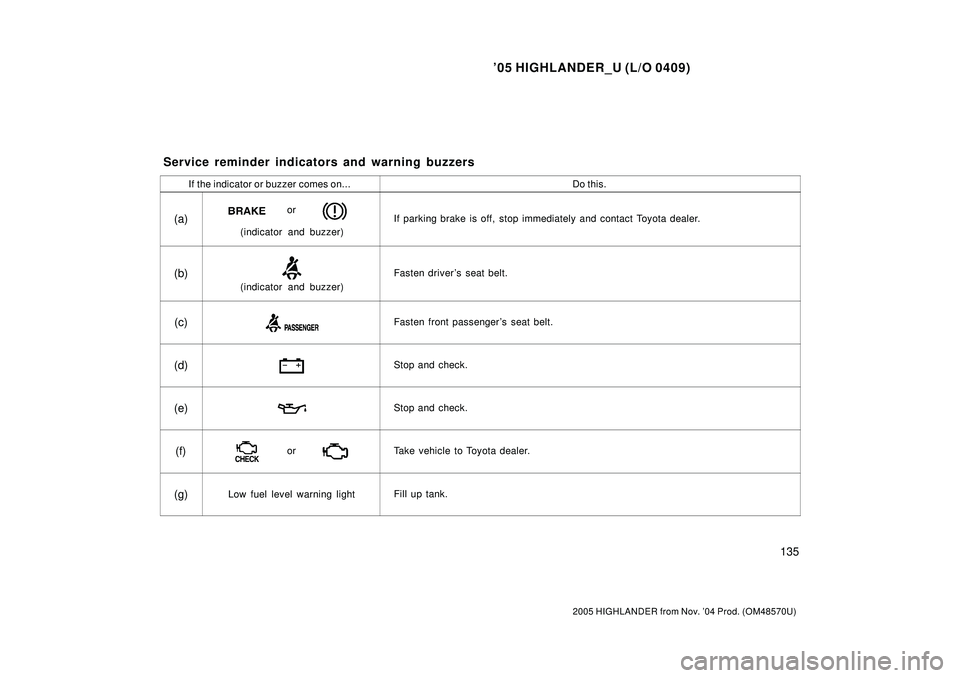

If the indicator or buzzer comes on...Do this.
(a)or
(indicator and buzzer)If parking brake is off, stop immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver 's seat belt.
(c)Fasten front passenger 's seat belt.
(d)Stop and check.
(e)Stop and check.
(f)orTake vehicle to Toyota dealer.
(g)Low fuel level warning lightFill up tank.
Service reminder indicators and warning buzzers
