2001 Peugeot 306 C Dag mirror

1- Adjustable side vent.
2 - Side window demisting vents.
3 - Lights stalk, fog lamps* and
horn.
4 - Steering wheel with airbag.
5 - Windscreen demisting vents.
6 - Steering lock and ignition.
7 - Windscreen wash-wipe
control.
8 - Adjustable central vents.
9 - Audio equipment*. 10
- Heating/Ventilation,
Air conditioning controls*.
11 - Controls:
Lighter Hazard warning lightsRear screen and mirrors demisting.
12 - Passenger airbag.
13 - Glove box.
14 - Storage compartment.
15 - Ashtray.
16 - Gear lever.
17 - Handbrake. 18
- Audio remote control*.
19 - Fuse box.
20 - Bonnet opening control.
21 - Passenger airbag
disarming switch*.
22 - Control for rear window lock.
23 - Headlamp height
adjustment.
- Instrument dials lighting rheostat.
24 - Controls for:
- Electric mirrors.
- Electric windows.
* According to specification.
YOUR 306 CABRIOLET AT A GLANCE 3

96
12
34
A
94

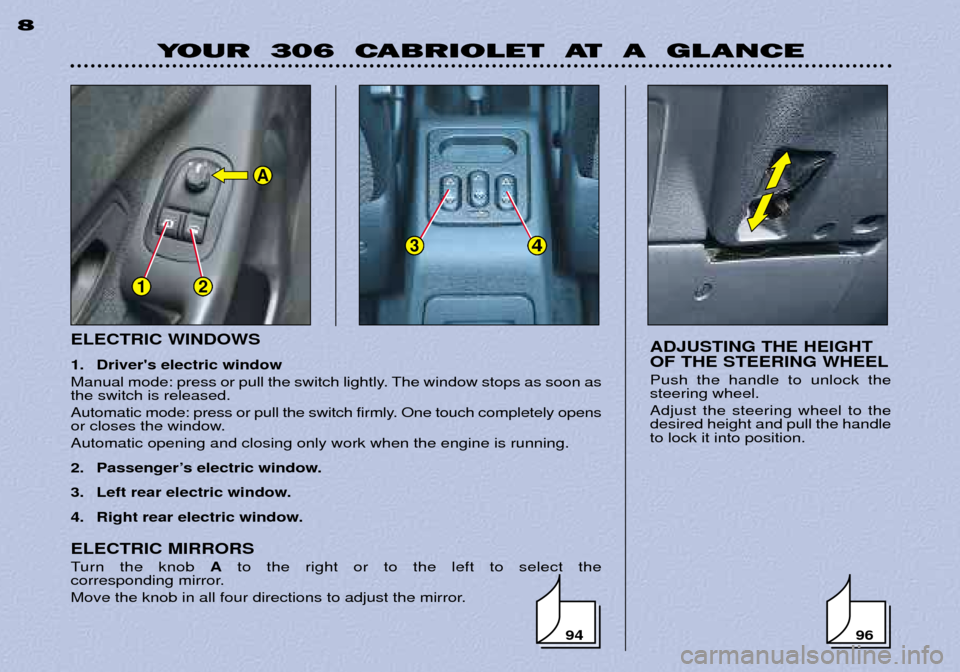

ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 CABRIOLET AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the
corresponding mirror.
Move the knob in all four directions to adjust the mirror.

MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
: All driving conditions : Specific conditions Level
Operations Description of operations for 1st service
ServicesACIntermediate visitDRAIN AND REFILL- Engine drain and refill.- Oil filter.- Fuel filter (Petrol).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if plug is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Clearances, hubs, rods, ball joints, flxible mountings.- Sealing of dampers.- Wear of rear linings.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
SERVICE- Courtesy vehicle
ROAD TEST
REPLACEMENT

Electric mirrors
Turn the control 2to the right or to the
left to select the corresponding mirror. Move the control 2in all four direc-
tions to adjust.
Interior mirror The interior mirror has two positions: day (normal) and night (anti-dazzle).
To change from one to the other, push or pull the lever on the loweredge.
2
YOUR 306 CABRIOLET IN DETAIL
95
The glass of the driverÕs mirror is convex* in order to eliminate the
blind spot. As a result, objects observed in the mirror are closer than
they appear. This must be taken into account to correctly judge the
distance of vehicles approaching from the rear.
* According to country.When parked, the mirrors can be folded back manually.

Digital clock* Setting: 1- Adjusting of hours.
2 - Adjusting of minutes.
Outside temperature display* This indicates the outside temperature. When the temperature is betweenminus 3 ¡C and + 5 ¡C, the ¡C symbolflashes indicating a risk of ice.
1
2
YOUR 306 CABRIOLET IN DETAIL 97
Rear screen demisting Rear screen (and mirrors)* electric demisting control. Goes out automatically after
approximately 12 minutes to avoid excessive power consumption. Pressing the button again will operate the demisting for another 12 minutes.
* According to specification.
Hazard warning lights The switch and the direction indicators flash. This controls the indicator
lights simultaneously and continu-
ously.
Only use in case of danger, in an emergency stop or for driving inunusual conditions.
They can operate with the ignition off.

Lower glove compartment
To open the glove compartment, pull the handle or turn the knob. Lock it using the ignition key*.
Sun visor
To avoid direct dazzle, fold the sun visor downwards. In the event of dazzle from the front windows, release the sun visor fromits interior fastener and pivot it side-ways. The sun visors are fitted with a cour-
tesy mirror, with a concealing flap onthe driver's side. 99
YOUR 306 CABRIOLET IN DETAIL
Off.
Front courtesy light Gradual illumination on
opening or closing a door. Light permanently on with the key in the accessoriesposition or with the ignitionon.
* According to specification.

Lower glove compartment
To open the glove compartment, pull the handle or turn the knob. Lock it using the ignition key*.
Sun visor
To avoid direct dazzle, fold the sun visor downwards. In the event of dazzle from the front windows, release the sun visor fromits interior fastener and pivot it side-ways. The sun visors are fitted with a cour-
tesy mirror, with a concealing flap onthe driver's side. 99
YOUR 306 CABRIOLET IN DETAIL
Off.
Front courtesy light Gradual illumination on
opening or closing a door. Light permanently on with the key in the accessoriesposition or with the ignitionon.
* According to specification.

96
12
34
A
94
ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 CABRIOLET AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the
corresponding mirror.
Move the knob in all four directions to adjust the mirror.
