3-3

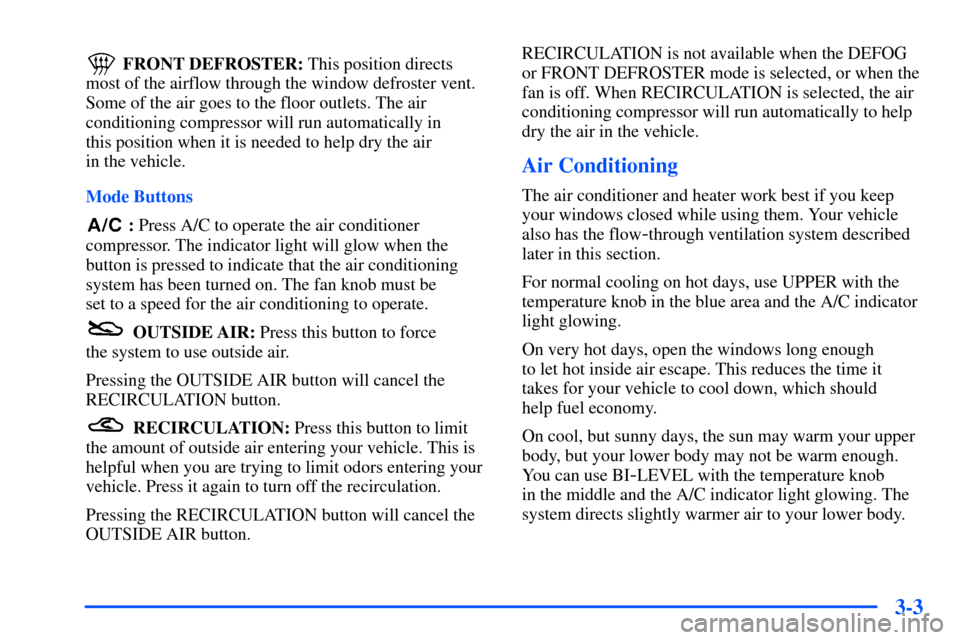

FRONT DEFROSTER: This position directs
most of the airflow through the window defroster vent.
Some of the air goes to the floor outlets. The air
conditioning compressor will run automatically in
this position when it is needed to help dry the air
in the vehicle.
Mode Buttons
: Press A/C to operate the air conditioner
compressor. The indicator light will glow when the
button is pressed to indicate that the air conditioning
system has been turned on. The fan knob must be
set to a speed for the air conditioning to operate.
OUTSIDE AIR: Press this button to force
the system to use outside air.
Pressing the OUTSIDE AIR button will cancel the
RECIRCULATION button.
RECIRCULATION: Press this button to limit
the amount of outside air entering your vehicle. This is
helpful when you are trying to limit odors entering your
vehicle. Press it again to turn off the recirculation.
Pressing the RECIRCULATION button will cancel the
OUTSIDE AIR button.RECIRCULATION is not available when the DEFOG
or FRONT DEFROSTER mode is selected, or when the
fan is off. When RECIRCULATION is selected, the air
conditioning compressor will run automatically to help
dry the air in the vehicle.
Air Conditioning
The air conditioner and heater work best if you keep
your windows closed while using them. Your vehicle
also has the flow
-through ventilation system described
later in this section.
For normal cooling on hot days, use UPPER with the
temperature knob in the blue area and the A/C indicator
light glowing.
On very hot days, open the windows long enough
to let hot inside air escape. This reduces the time it
takes for your vehicle to cool down, which should
help fuel economy.
On cool, but sunny days, the sun may warm your upper
body, but your lower body may not be warm enough.
You can use BI
-LEVEL with the temperature knob
in the middle and the A/C indicator light glowing. The
system directs slightly warmer air to your lower body.

3-4 Heating
On cold days, use FLOOR and the outside air button
with the temperature knob all the way in the red area.
The system will bring in outside air, heat it and send
it to the floor outlets.
Your vehicle has heat ducts that are directed toward the
rear seat. Keep the area under the front seats clear of
obstructions so that the heated air can reach the rear
seat passengers.
If your vehicle has an engine coolant heater, you can use
it to help your system provide warm air faster when it's
cold outside (0
F (
-18
C) or lower). An engine
coolant heater warms the coolant your engine and
heating system use to provide heat. See ªEngine
Coolant Heaterº in the Index.
Defogging and Defrosting Windows
Your system has two settings for clearing the front and
side windows. For each setting, adjust the temperature
knob as desired.
To defrost the front window quickly, turn the temperature
knob all the way in the red area. Use FRONT DEFROSTER
and adjust the fan to the highest speed. To warm passengers
while keeping the front window clean, use DEFOG.
Your vehicle is equipped with side window defogger
vents. The side window defogger vents are located
above the side instrument panel vents. To defrost the
side windows, turn the temperature knob all the way
in the red area. Use FLOOR and adjust the fan to
the highest speed.
To control fogging of the windows, turn the temperature
knob all the way in the red area. Use DEFOG and adjust
the fan to the highest speed.
To defog the side windows while using air conditioning,
use BI
-LEVEL and adjust the fan to the highest speed
and press the A/C button so that the indicator light is
glowing. For added airflow to the side windows aim
the side vents toward the windows and close the
center vents.

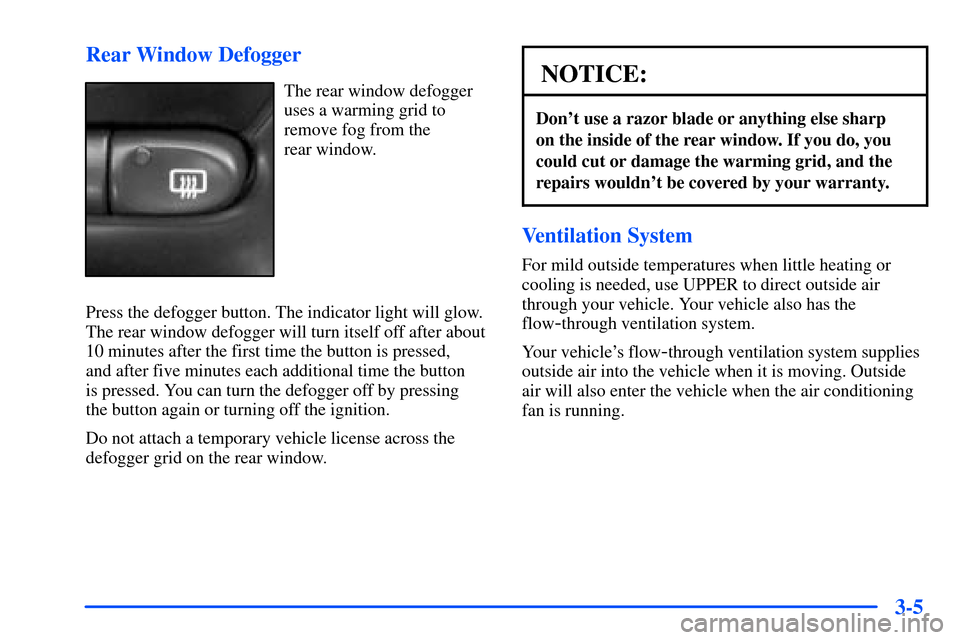

3-5 Rear Window Defogger
The rear window defogger
uses a warming grid to
remove fog from the
rear window.
Press the defogger button. The indicator light will glow.
The rear window defogger will turn itself off after about
10 minutes after the first time the button is pressed,
and after five minutes each additional time the button
is pressed. You can turn the defogger off by pressing
the button again or turning off the ignition.
Do not attach a temporary vehicle license across the
defogger grid on the rear window.NOTICE:
Don't use a razor blade or anything else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use UPPER to direct outside air
through your vehicle. Your vehicle also has the
flow
-through ventilation system.
Your vehicle's flow
-through ventilation system supplies
outside air into the vehicle when it is moving. Outside
air will also enter the vehicle when the air conditioning
fan is running.

3-6

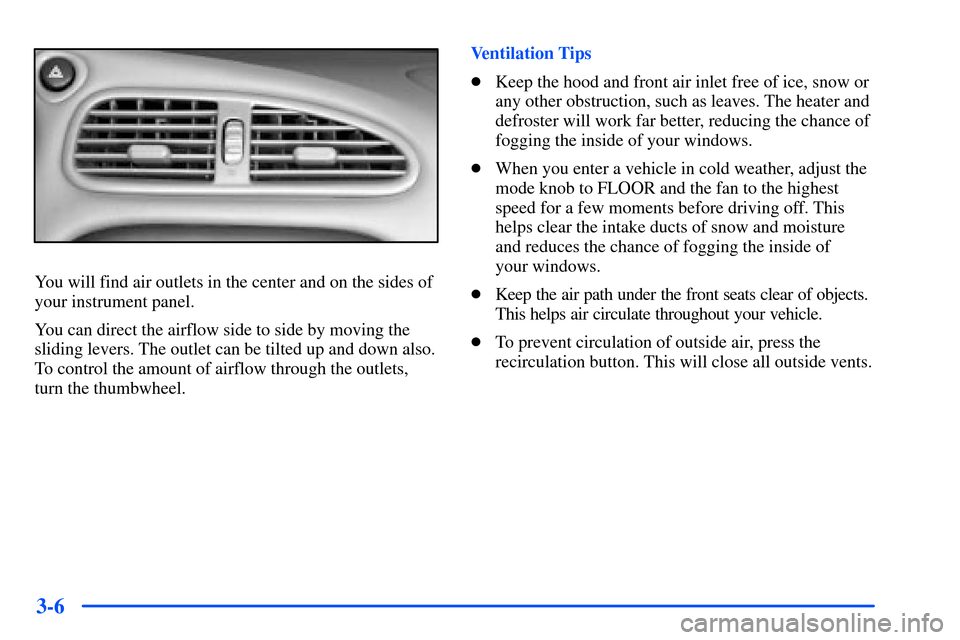

You will find air outlets in the center and on the sides of
your instrument panel.
You can direct the airflow side to side by moving the
sliding levers. The outlet can be tilted up and down also.
To control the amount of airflow through the outlets,
turn the thumbwheel.Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction, such as leaves. The heater and
defroster will work far better, reducing the chance of
fogging the inside of your windows.

When you enter a vehicle in cold weather, adjust the
mode knob to FLOOR and the fan to the highest
speed for a few moments before driving off. This
helps clear the intake ducts of snow and moisture
and reduces the chance of fogging the inside of
your windows.

Keep the air path under the front seats clear of objects.
This helps air circulate throughout your vehicle.

To prevent circulation of outside air, press the
recirculation button. This will close all outside vents.

3-7
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, you can play your audio
system even after the ignition is off. See ªRetained
Accessory Powerº in the Index.
Setting the Clock
Press and hold HR until the correct hour appears. The
letters AM or PM may appear on the display for AM or
PM. Then, press and hold MN until the correct minute
appears. The clock may be set with the ignition on or
off. In addition, the clock can also be automatically set,
when tuned to an RDS station that is broadcasting time,
by pressing and holding the HR and the MN button at
the same time. The display will show TIME UPDATED.
If there is no time available, NO UPDATE will
be displayed.
AM-FM Stereo with Compact Disc Player
with Programmable Equalization and
Radio Data System (RDS)
Playing the Radio
VOLUME
-PWR: Press this knob to turn the system
on and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume.

3-8

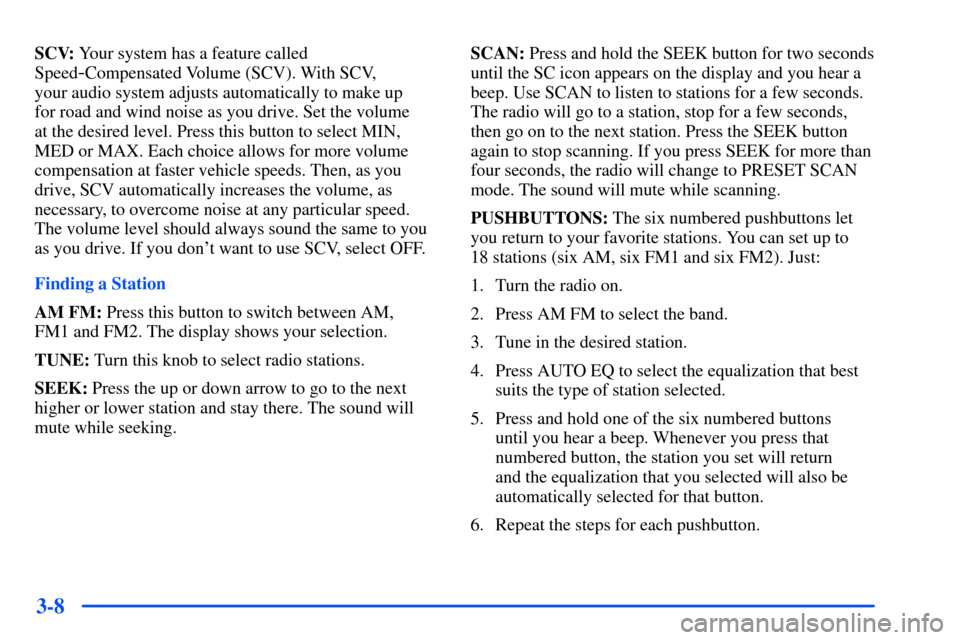

SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV,
your audio system adjusts automatically to make up
for road and wind noise as you drive. Set the volume
at the desired level. Press this button to select MIN,
MED or MAX. Each choice allows for more volume
compensation at faster vehicle speeds. Then, as you
drive, SCV automatically increases the volume, as
necessary, to overcome noise at any particular speed.
The volume level should always sound the same to you
as you drive. If you don't want to use SCV, select OFF.
Finding a Station
AM FM: Press this button to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn this knob to select radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.SCAN: Press and hold the SEEK button for two seconds
until the SC icon appears on the display and you hear a
beep. Use SCAN to listen to stations for a few seconds.
The radio will go to a station, stop for a few seconds,
then go on to the next station. Press the SEEK button
again to stop scanning. If you press SEEK for more than
four seconds, the radio will change to PRESET SCAN
mode. The sound will mute while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press AUTO EQ to select the equalization that best
suits the type of station selected.
5. Press and hold one of the six numbered buttons
until you hear a beep. Whenever you press that
numbered button, the station you set will return
and the equalization that you selected will also be
automatically selected for that button.
6. Repeat the steps for each pushbutton.

3-9

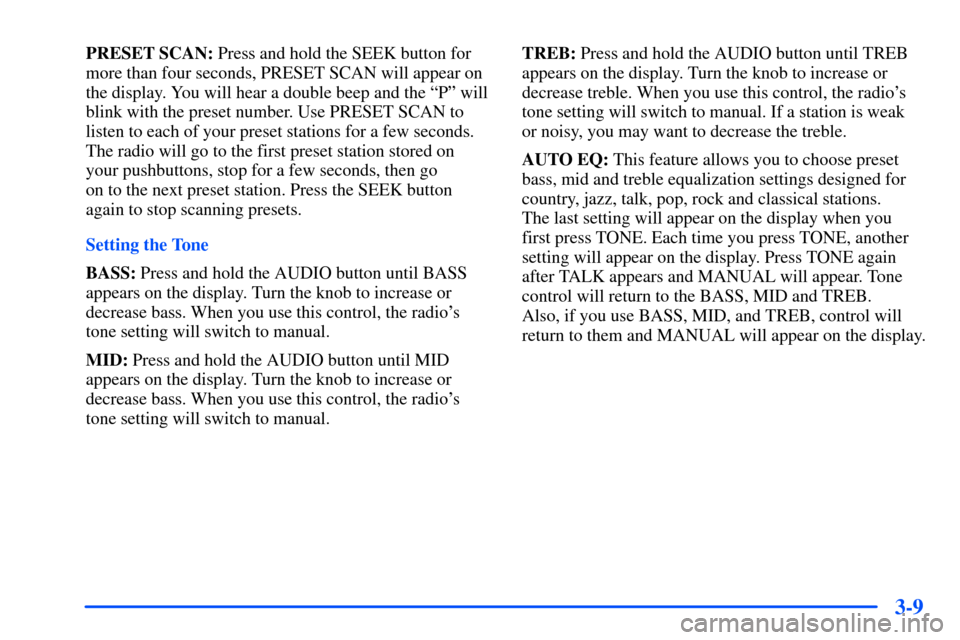

PRESET SCAN: Press and hold the SEEK button for
more than four seconds, PRESET SCAN will appear on
the display. You will hear a double beep and the ªPº will
blink with the preset number. Use PRESET SCAN to
listen to each of your preset stations for a few seconds.
The radio will go to the first preset station stored on
your pushbuttons, stop for a few seconds, then go
on to the next preset station. Press the SEEK button
again to stop scanning presets.
Setting the Tone
BASS: Press and hold the AUDIO button until BASS
appears on the display. Turn the knob to increase or
decrease bass. When you use this control, the radio's
tone setting will switch to manual.
MID: Press and hold the AUDIO button until MID
appears on the display. Turn the knob to increase or
decrease bass. When you use this control, the radio's
tone setting will switch to manual.TREB: Press and hold the AUDIO button until TREB
appears on the display. Turn the knob to increase or
decrease treble. When you use this control, the radio's
tone setting will switch to manual. If a station is weak
or noisy, you may want to decrease the treble.
AUTO EQ: This feature allows you to choose preset
bass, mid and treble equalization settings designed for
country, jazz, talk, pop, rock and classical stations.
The last setting will appear on the display when you
first press TONE. Each time you press TONE, another
setting will appear on the display. Press TONE again
after TALK appears and MANUAL will appear. Tone
control will return to the BASS, MID and TREB.
Also, if you use BASS, MID, and TREB, control will
return to them and MANUAL will appear on the display.

3-10
Using RDS Mode
Your audio system is equipped with a Radio Data
System (RDS). RDS mode gives you many useful
new features. With RDS, the radio can:

seek only to stations with the types of programs
you want to listen to,

seek to stations with traffic announcements,

receive announcements concerning local and
national emergencies and

receive and display messages from radio stations.
RDS features are only available for use on FM stations
which broadcast RDS information. The RDS features of
your radio rely upon receiving specific RDS information
from these stations. These features will only work when
the RDS information is available. In rare cases, a radio
station may broadcast incorrect information that will
cause the radio features to work improperly. If this
happens, please contact the radio station.
When you are tuned to an RDS station, the station name
will appear on the display, instead of the frequency.
Most RDS stations provide their station name, the
time of day and a Program Type (PTY) for their
current programming.TRAF: Press this button to receive traffic
announcements. The traffic announcement brackets will
appear on the display. TRAF will appear on the display
if the tuned station broadcasts traffic announcements.
If the current tuned station does not broadcast traffic
announcements, the radio will seek to a station that
does. When the radio finds a station that broadcasts
traffic announcements, it will stop. If no station is
found, NONE FOUND will appear on the display.
When a traffic announcement comes on the tuned
radio station or a related network station, you will hear
it, even if the volume is muted or a compact disc is
playing. If the compact disc player was being used,
the compact disc will stay in the player and resume
play at the point where it stopped.
INFO: If the current station has a message, INFO
will appear on the display. Press this button to see
the message. If the whole message does not appear
on the display, parts of the message will appear every
three seconds until the message is completed. To see
the parts of the message faster than every three seconds,
press this button again. A new group of words will
appear on the display. Once the complete message has
been displayed, INFO will disappear from the display
until another new message is received.
