2001 NISSAN X-TRAIL sensor

EC-878
[QR20(WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR

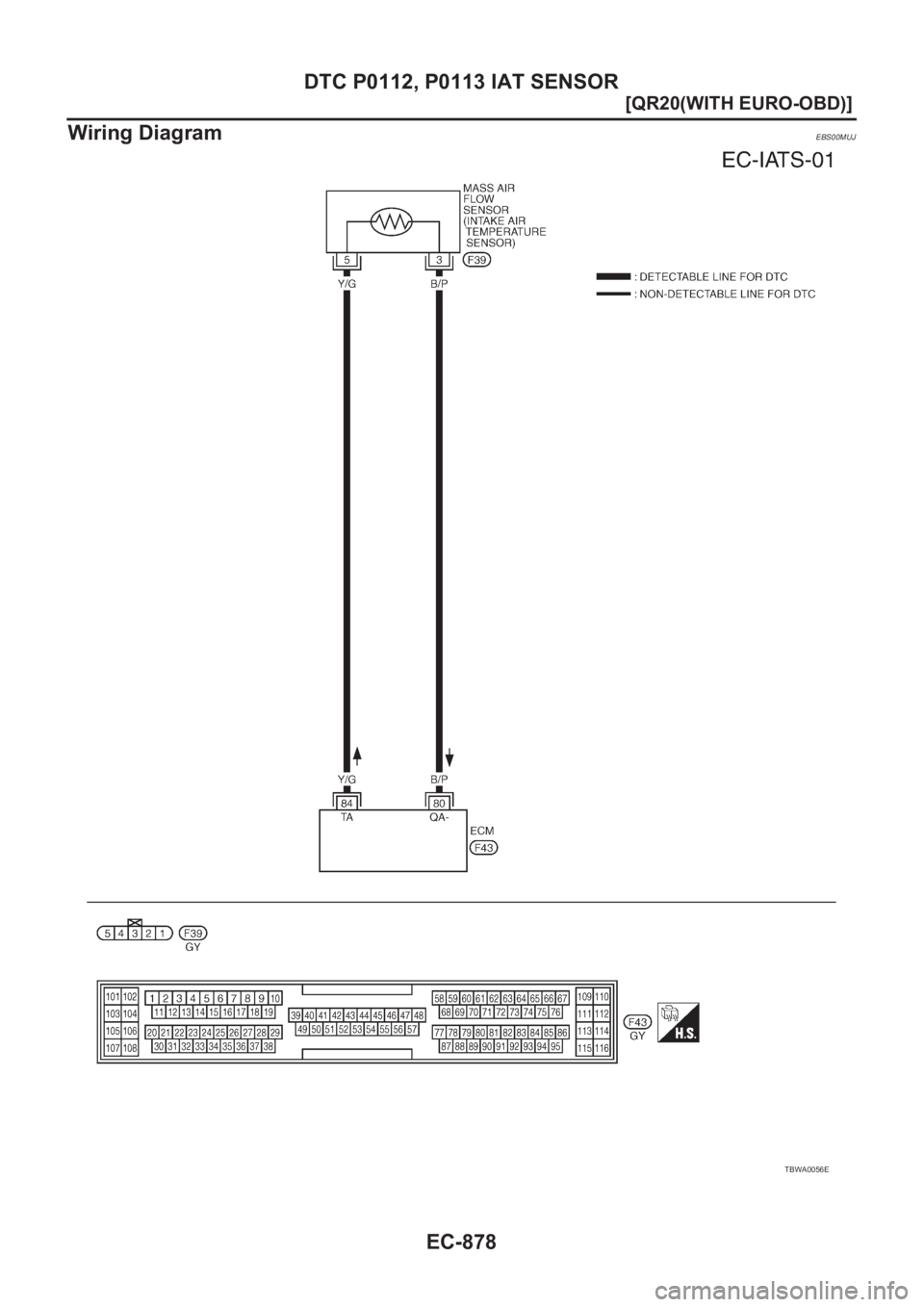

Wiring Diagram
EBS00MUJ
TBWA0056E

DTC P0112, P0113 IAT SENSOR
EC-879
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

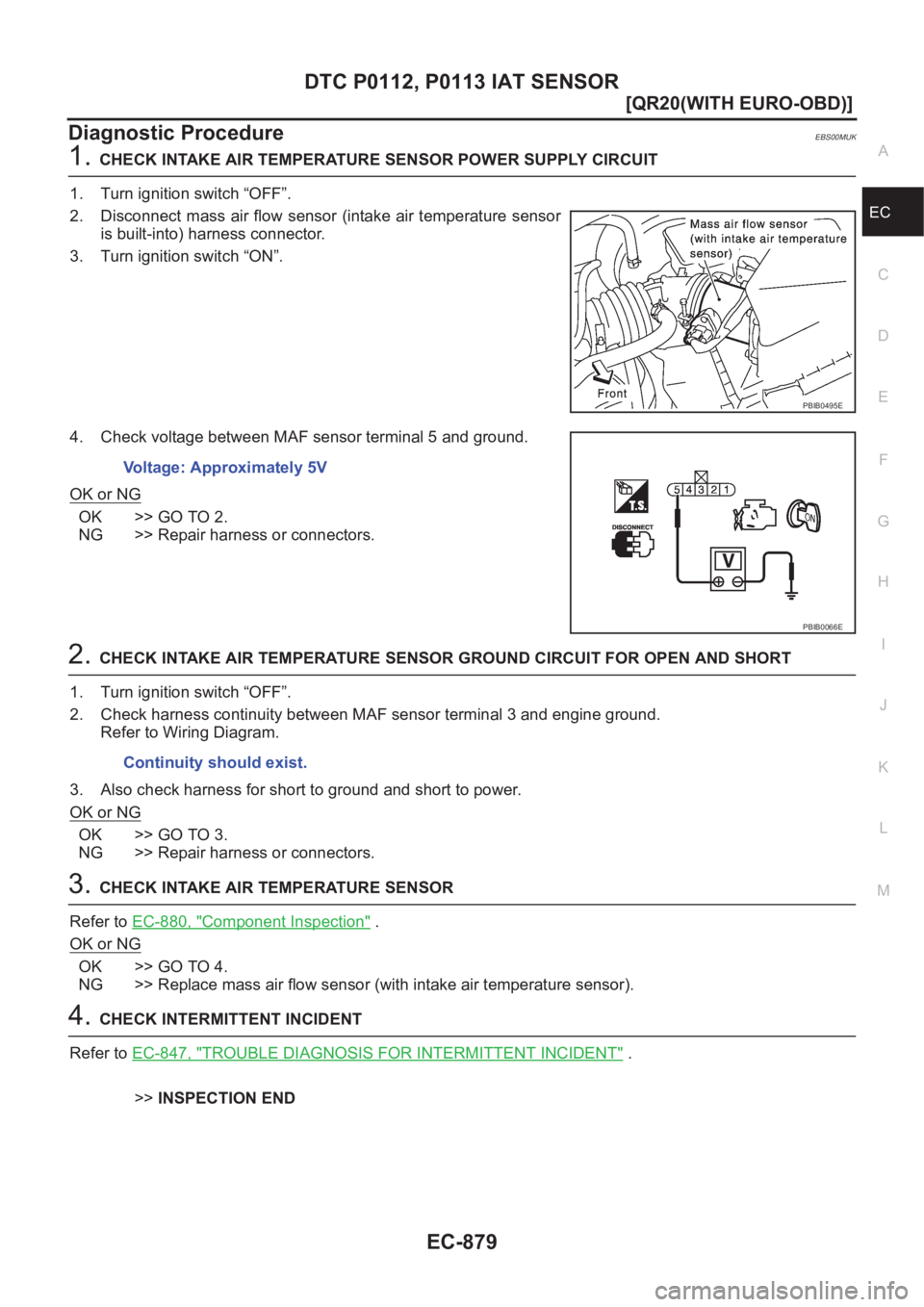

Diagnostic ProcedureEBS00MUK
1.CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.
3. Turn ignition switch “ON”.
4. Check voltage between MAF sensor terminal 5 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connectors.
2.CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between MAF sensor terminal 3 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connectors.
3.CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-880, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
4.CHECK INTERMITTENT INCIDENT
Refer to EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB0495E
Voltage: Approximately 5V
PBIB0066E
Continuity should exist.

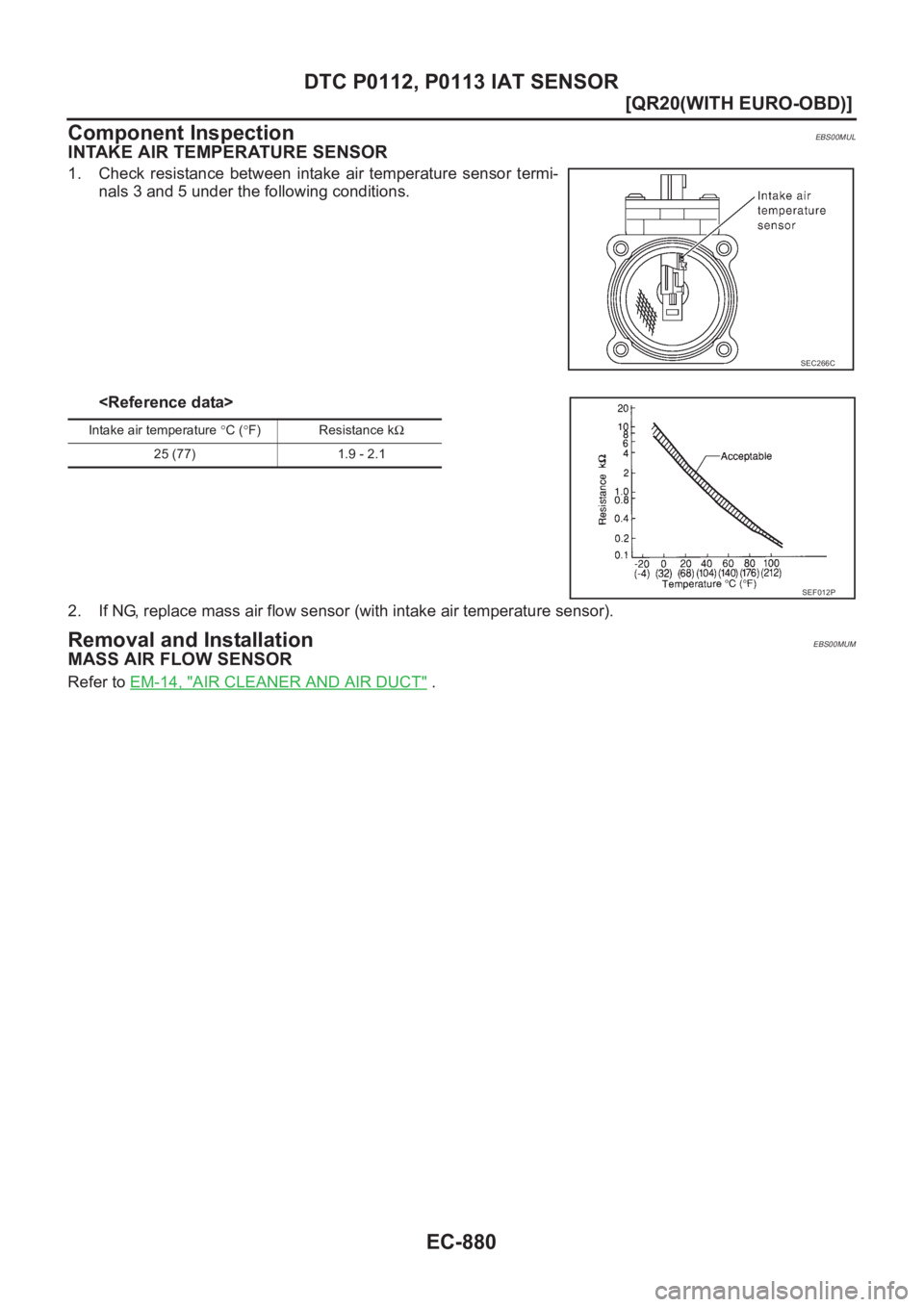

EC-880
[QR20(WITH EURO-OBD)]
DTC P0112, P0113 IAT SENSOR
Component Inspection
EBS00MUL
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between intake air temperature sensor termi-
nals 3 and 5 under the following conditions.

2. If NG, replace mass air flow sensor (with intake air temperature sensor).
Removal and InstallationEBS00MUM
MASS AIR FLOW SENSOR
Refer to EM-14, "AIR CLEANER AND AIR DUCT" .
SEC266C
Intake air temperature °C (°F) Resistance kΩ
25 (77) 1.9 - 2.1
SEF012P

DTC P0117, P0118 ECT SENSOR
EC-881
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

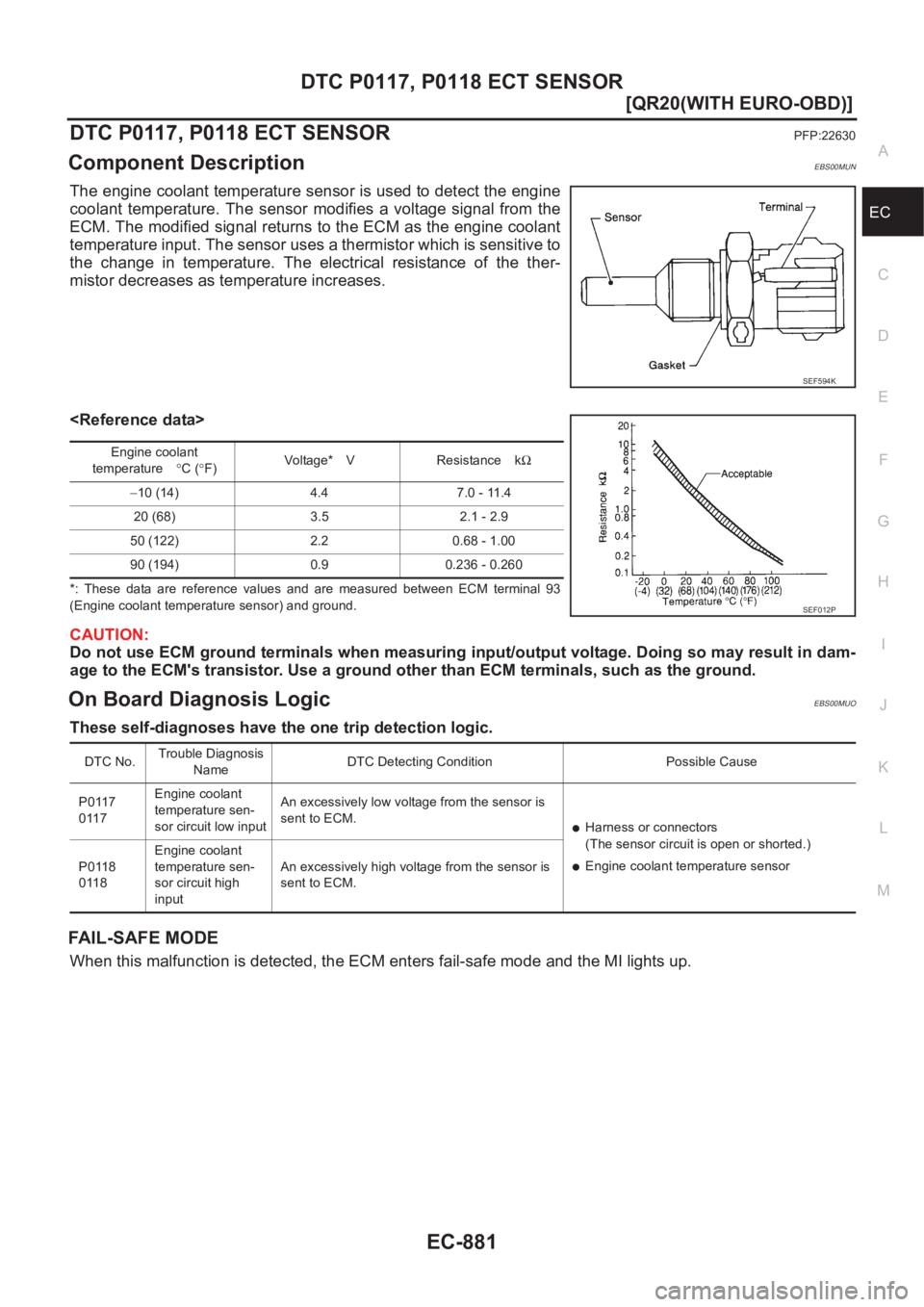

DTC P0117, P0118 ECT SENSORPFP:22630
Component DescriptionEBS00MUN
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

*: These data are reference values and are measured between ECM terminal 93
(Engine coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicEBS00MUO
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When this malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
SEF594K
Engine coolant
temperature°C (°F)Voltage* V Resistance kΩ
−10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P0117
0117Engine coolant
temperature sen-
sor circuit low inputAn excessively low voltage from the sensor is
sent to ECM.
●Harness or connectors
(The sensor circuit is open or shorted.)
●Engine coolant temperature sensor
P0118
0118Engine coolant
temperature sen-
sor circuit high
inputAn excessively high voltage from the sensor is
sent to ECM.

EC-882
[QR20(WITH EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
EBS00MUP
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If DTC is detected, go to EC-884, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Detected items Engine operating condition in fail-safe mode
Engine coolant temper-
ature sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning ignition switch “ON”
or “START”.
CONSULT-II displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-II display)
Just as ignition switch is turned ON or Start 40°C (104°F)
More than approx. 4 minutes after ignition ON or
Start80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates
while engine is running.
SEF058Y

DTC P0117, P0118 ECT SENSOR
EC-883
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00MUQ
TBWA0057E

EC-884
[QR20(WITH EURO-OBD)]
DTC P0117, P0118 ECT SENSOR
Diagnostic Procedure
EBS00MUR
1. CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect engine coolant temperature (ECT) sensor harness
connector.
3. Turn ignition switch “ON”.
4. Check voltage between ECT sensor terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
2. CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between ECT sensor terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-885, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> Replace engine coolant temperature sensor.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-847, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB0496E
Voltage: Approximately 5V
PBIB0080E
Continuity should exist.

DTC P0117, P0118 ECT SENSOR
EC-885
[QR20(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionEBS00MUS
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperature sensor
terminals 1 and 2 as shown in the figure.

*: These data are reference values and are measured between ECM terminal
93 (Engine coolant temperature sensor) and ground.
2. If NG, replace engine coolant temperature sensor.
Removal and InstallationEBS00MUT
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-20, "THERMOSTAT AND WATER CONTROL VALVE" .
PBIB0081E
Engine coolant
temperature°C (°F)Voltage* V Resistance kΩ
−10 (14) 4.4 7.0 - 11.4
20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
