2001 NISSAN X-TRAIL engine control

VIAS
EC-397
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2.CHECK VACUUM EXISTENCE
With CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Start engine and let it idle.
3. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
4. Turn VIAS control solenoid valve “ON” and “OFF”, and check
vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
3.CHECK VACUUM EXISTENCE
Without CONSULT-II
1. Stop engine and disconnect vacuum hose connected to power valve actuator.
2. Disconnect VIAS control solenoid valve harness connector.
3. Start engine and let it idle.
4. Apply 12V of direct current between VIAS control solenoid valve
terminals 1 and 2.
5. Check vacuum existence under the following conditions.
OK or NG
OK >> Repair or replace power valve actuator.
NG >> GO TO 4.
4.CHECK VACUUM HOSE
1. Stop engine.
2. Check hoses and tubes between intake manifold and power
valve actuator for crack, clogging, improper connection or dis-
connection. Refer to EC-32, "
Vacuum Hose Drawing" .
OK or NG
OK >> GO TO 5.
NG >> Repair hoses or tubes.
VIAS SOL VALVE Vacuum
ON Should exist.
OFF Should not exist.
PBIB0844E
Condition Vacuum
12V direct current supply Should exist.
No supply Should not exist.
PBIB0845E
SEF109L

FUEL PUMP CIRCUIT
EC-405
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
FUEL PUMP CIRCUITPFP:17042
DescriptionEBS00MBF
SYSTEM DESCRIPTION
The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine
startability. If the ECM receives a 180° signal from the camshaft position sensor (PHASE), it knows that the
engine is rotating, and causes the pump to operate. If the 180° signal is not received when the ignition switch
is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging, thereby improving
safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump relay, which in turn
controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
CONSULT-II Reference Value in Data Monitor ModeEBS00MBG
Specification data are reference values.
ECM Terminals and Reference ValueEBS00MBH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Sensor Input Signal to ECMECM
FunctionActuator
Crankshaft position sensor (POS) Engine speed
Fuel pump
controlFuel pump relay Camshaft position sensor (PHASE) Engine speed and cylinder number
Ignition switch Start signal
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB0513E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY
●For 1 seconds after turning ignition switch ON
●Engine running or crankingON
●Except above conditions OFF

EC-412
[QR25(WITH EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR
PFP:92136
Component DescriptionEBS00MBM
The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
ECM Terminals and Reference ValueEBS00MBN
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0503E
SEF099X
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
65 RSensor's power sup-
ply[Ignition switch “ON”]Approximately 5V
83 R/LRefrigerant pressure
sensor[Engine is running]
●Warm-up condition
●Both A/C switch and blower switch are “ON”.
(Compressor operates.)1.0 - 4.0V

EC-416
[QR25(WITH EURO-OBD)]

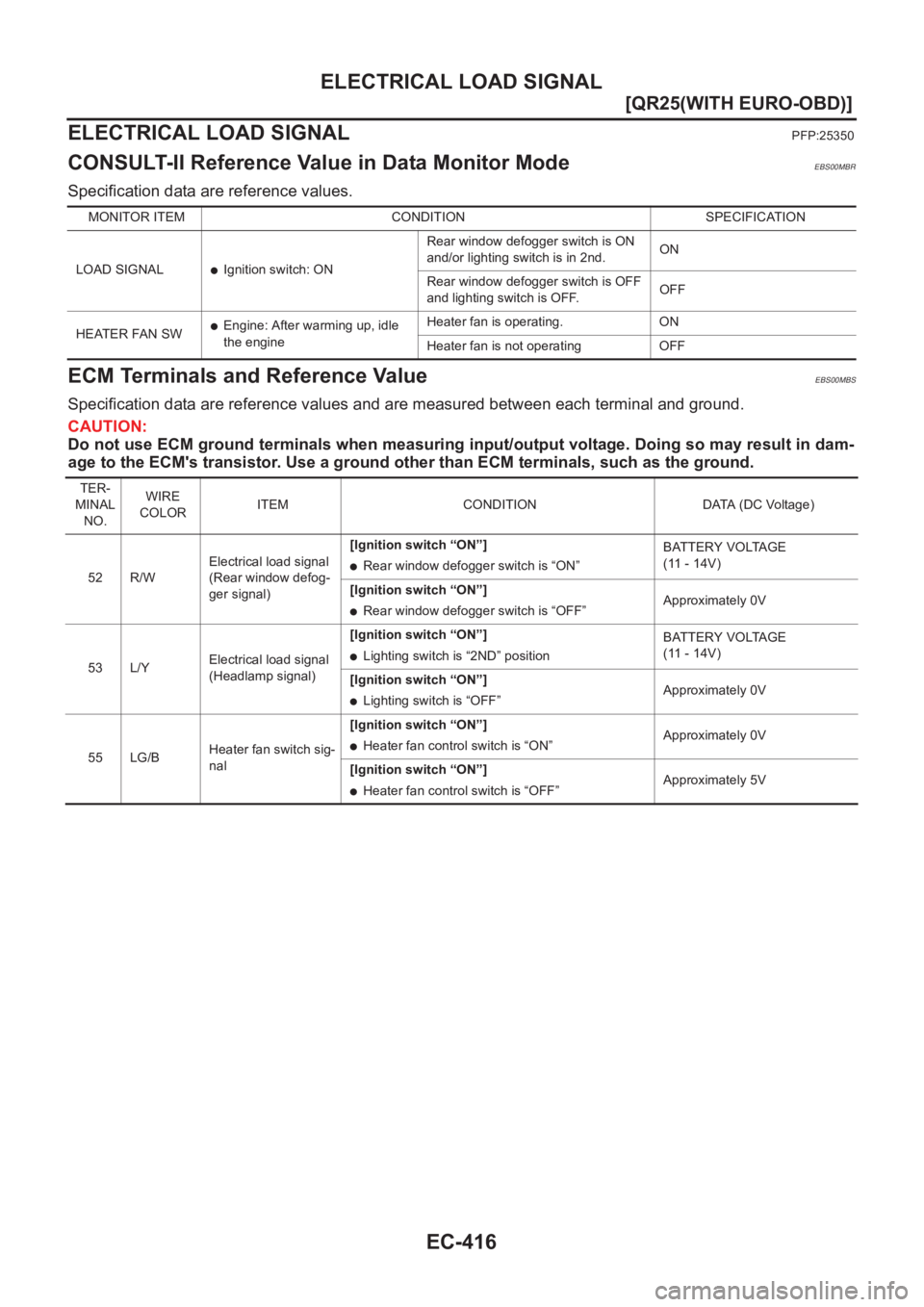

ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
PFP:25350
CONSULT-II Reference Value in Data Monitor ModeEBS00MBR
Specification data are reference values.
ECM Terminals and Reference ValueEBS00MBS
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL
●Ignition switch: ONRear window defogger switch is ON
and/or lighting switch is in 2nd.ON
Rear window defogger switch is OFF
and lighting switch is OFF.OFF
HEATER FAN SW
●Engine: After warming up, idle
the engineHeater fan is operating. ON
Heater fan is not operating OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
52 R/WElectrical load signal
(Rear window defog-
ger signal)[Ignition switch “ON”]
●Rear window defogger switch is “ON”BATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Rear window defogger switch is “OFF”Approximately 0V
53 L/YElectrical load signal
(Headlamp signal)[Ignition switch “ON”]
●Lighting switch is “2ND” positionBATTERY VOLTAGE
(11 - 14V)
[Ignition switch “ON”]
●Lighting switch is “OFF”Approximately 0V
55 LG/BHeater fan switch sig-
nal[Ignition switch “ON”]
●Heater fan control switch is “ON”Approximately 0V
[Ignition switch “ON”]
●Heater fan control switch is “OFF”Approximately 5V

EC-420
[QR25(WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

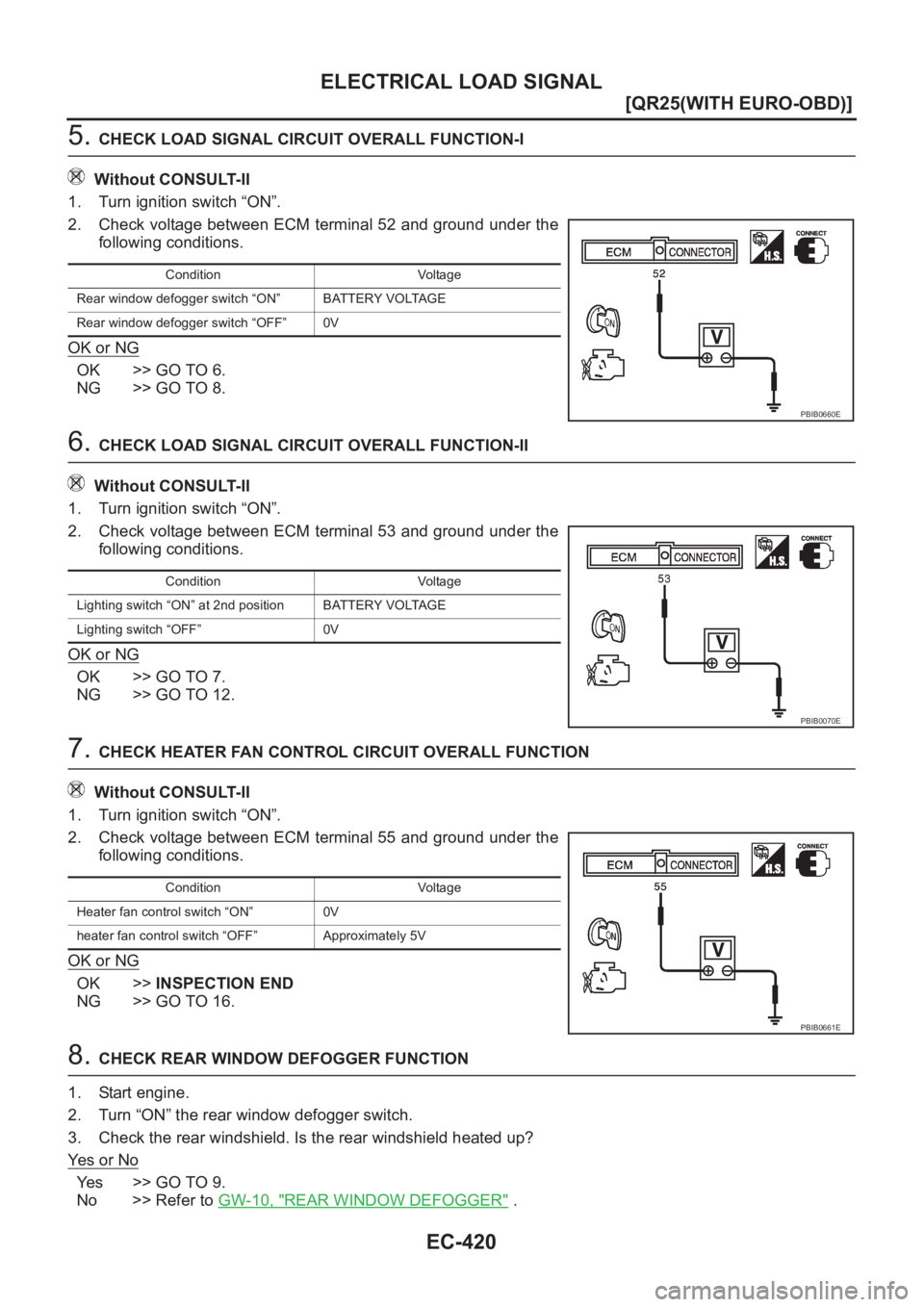

5. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 52 and ground under the
following conditions.
OK or NG
OK >> GO TO 6.
NG >> GO TO 8.
6. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 53 and ground under the
following conditions.
OK or NG
OK >> GO TO 7.
NG >> GO TO 12.
7. CHECK HEATER FAN CONTROL CIRCUIT OVERALL FUNCTION
Without CONSULT-II
1. Turn ignition switch “ON”.
2. Check voltage between ECM terminal 55 and ground under the
following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 16.
8. CHECK REAR WINDOW DEFOGGER FUNCTION
1. Start engine.
2. Turn “ON” the rear window defogger switch.
3. Check the rear windshield. Is the rear windshield heated up?
Ye s o r N o
Yes >> GO TO 9.
No >> Refer to GW-10, "
REAR WINDOW DEFOGGER" .
Condition Voltage
Rear window defogger switch “ON” BATTERY VOLTAGE
Rear window defogger switch “OFF” 0V
PBIB0660E
Condition Voltage
Lighting switch “ON” at 2nd position BATTERY VOLTAGE
Lighting switch “OFF” 0V
PBIB0070E
Condition Voltage
Heater fan control switch “ON” 0V
heater fan control switch “OFF” Approximately 5V
PBIB0661E

EC-422
[QR25(WITH EURO-OBD)]
ELECTRICAL LOAD SIGNAL

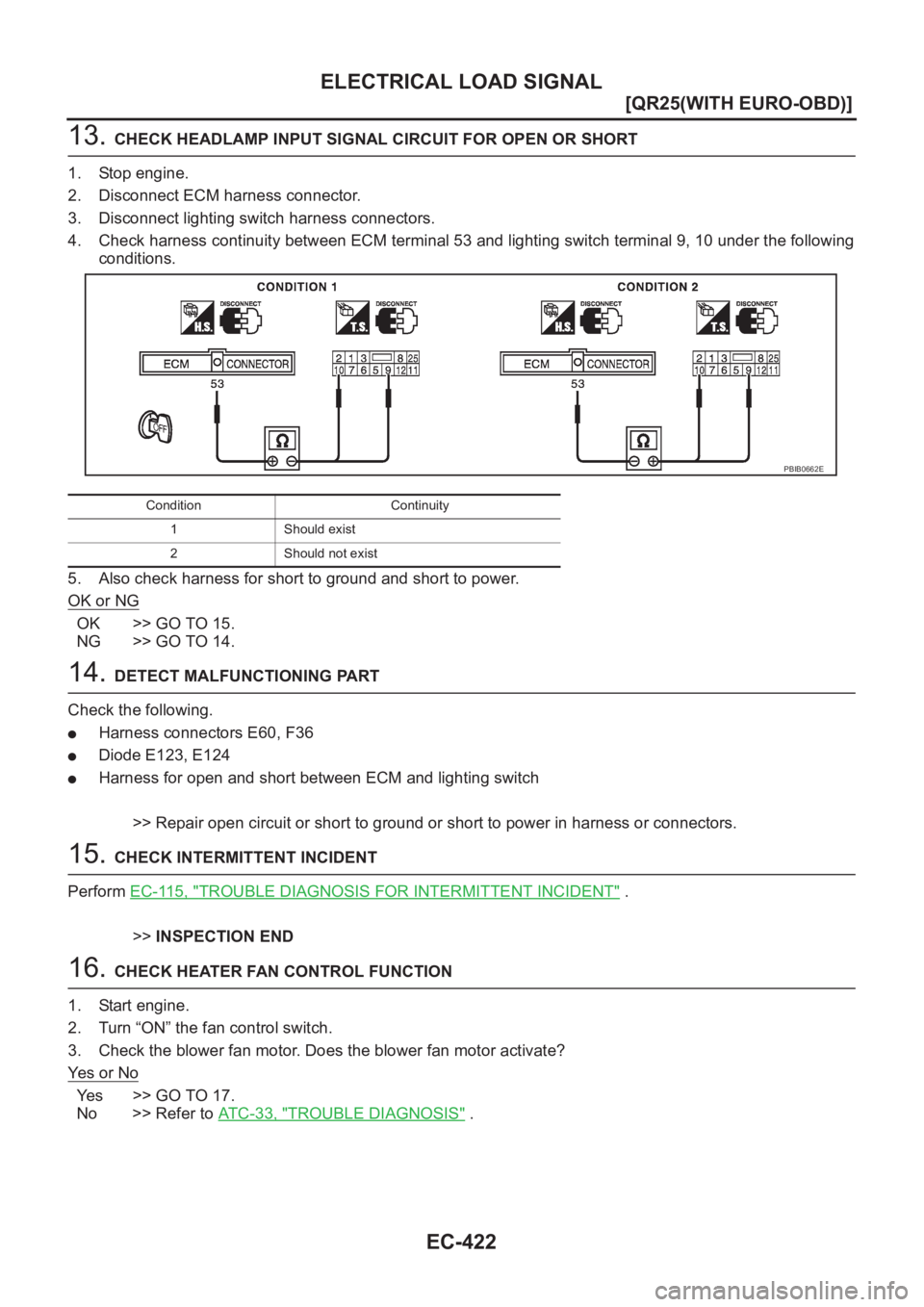

13. CHECK HEADLAMP INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Stop engine.
2. Disconnect ECM harness connector.
3. Disconnect lighting switch harness connectors.
4. Check harness continuity between ECM terminal 53 and lighting switch terminal 9, 10 under the following
conditions.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E60, F36
●Diode E123, E124
●Harness for open and short between ECM and lighting switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
15. CHECK INTERMITTENT INCIDENT
Perform EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
16. CHECK HEATER FAN CONTROL FUNCTION
1. Start engine.
2. Turn “ON” the fan control switch.
3. Check the blower fan motor. Does the blower fan motor activate?
Ye s o r N o
Yes >> GO TO 17.
No >> Refer to AT C - 3 3 , "
TROUBLE DIAGNOSIS" .
Condition Continuity
1 Should exist
2 Should not exist
PBIB0662E

EVAPORATIVE EMISSION SYSTEM
EC-425
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionEBS00MBW
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB0491E

INDEX FOR DTC
EC-433
[QR25(WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*1: 1st trip DTC No. is the same as DTC No.
*2: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*3: When engine is running.
*4: The trouble shooting for this DTC needs CONSULT-II.
*5: For A/T models.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MI illuminates.
DTC No. IndexEBS00NC4
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-43, "
IDENTIFICATION PLATE" .
NOTE:
If DTC U1000 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000. Refer to
EC-513
.
×: Applicable –: Not applicable TP SEN 2/CIRC P0123 0123 1×EC-528
TP SENSOR P2135 2135 1×EC-644
TP SEN 1/CIRC P0222 0222 1×EC-540
TP SEN 1/CIRC P0223 0223 1×EC-540
VEH SPEED SEN/CIRC*6P0500 0500 2×EC-563
Items
(CONSULT-II screen terms)DTC*1
TripMI lighting
upReference page
CONSULT-II
ECM*2
DTC*1Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
ECM*
2
No DTC
Flashing*3NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.–
Flashing*3EC-59
U1000
1000*4CAN COMM CIRCUIT*51×EC-513
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.––—
P0102 0102 MAF SEN/CIRCUIT 1×EC-516
P0103 0103 MAF SEN/CIRCUIT 1×EC-516
P0117 0117 ECT SEN/CIRCUIT 1×EC-523
P0118 0118 ECT SEN/CIRCUIT 1×EC-523
P0122 0122 TP SEN 2/CIRC 1×EC-528
P0123 0123 TP SEN 2/CIRC 1×EC-528
P0134 0134 HO2S1 (B1) 2×EC-534
P0222 0222 TP SEN 1/CIRC 1×EC-540
P0223 0223 TP SEN 1/CIRC 1×EC-540
P0327 0327 KNOCK SEN/CIRC-B1 2 –EC-546
P0328 0328 KNOCK SEN/CIRC-B1 2 –EC-546
P0335 0335 CKP SEN/CIRCUIT 2×EC-551
P0340 0340 CMP SEN/CIRCUIT 2×EC-557
P0500 0500
VEH SPEED SEN/CIRC*62×EC-563
P0550 0550 PW ST P SEN/CIRC 2 –EC-568
P0605 0605 ECM 1 or 2× or –EC-573
P0650 0650 MIL/CIRC 2 –EC-576
P1065 1065 ECM BACK UP/CIRC 2×EC-580
P1121 1121 ETC ACTR 1 or 2×EC-584
