2001 NISSAN X-TRAIL engine control

EC-372
[QR25(WITH EURO-OBD)]
DTC P2135 TP SENSOR
Component Inspection
EBS00MR6
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-39, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch “ON”.
4. Set selector lever to “D” position (A/T models) or “1st” position (M/T models).
5. Check voltage between ECM terminals 73 (TP sensor 1), 74 (TP
sensor 2) and engine ground under the following conditions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-39, "
Throttle Valve Closed Position Learning" .
8. Perform EC-39, "
Idle Air Volume Learning" .
Remove and InstallationEBS00MR7
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-16, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
73
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
74
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB0559E

DTC P2138 APP SENSOR
EC-373
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2138 APP SENSORPFP:18002
Component DescriptionEBS00MR8
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00MR9
Specification data are reference values.
*:Accelerator pedal position sensor 2 signal is converted by ECM. Thus, it differs from ECM terminal voltage.
ECM Terminals and Reference ValueEBS00MRA
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.41 - 0.72V
Accelerator pedal: Fully depressed 3.2 - 4.9V
ACCEL SEN2*
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.15 - 0.98V
Accelerator pedal: Fully depressed 2.98 - 4.9V
CLSD THL POS
●Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
58 B Sensors' ground[Engine is running]
●Warm-up condition
●Idle speedApproximately 0V
64 OR/LAccelerator pedal position
sensor 2 power supply[Ignition switch “ON”]Approximately 2.5V
65 R Sensor's power supply[Ignition switch “ON”]Approximately 5V
75 R/LAccelerator pedal position
sensor 1[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.41 - 0.72V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 3.2V

EC-374
[QR25(WITH EURO-OBD)]
DTC P2138 APP SENSOR
On Board Diagnosis Logic
EBS00MRB
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00MRC
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-376, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
76 W/BAccelerator pedal position
sensor 2[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully released0.15 - 0.48V
[Ignition switch “ON”]
●Engine stopped
●Accelerator pedal fully depressedMore than 1.49V
86 LAccelerator pedal position
sensor 2 ground[Ignition switch “ON”]Approximately 0V TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal position
sensor circuit range/perfor-
mance problemRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.
●Harness or connector
(The APP sensor 1 and 2 circuit is open
or shorted.)
●Accelerator pedal position sensor 1 and
2
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
SEF058Y

EC-378
[QR25(WITH EURO-OBD)]
DTC P2138 APP SENSOR
10. CHECK INTERMITTENT INCIDENT
Refer to EC-115, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00MRF
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
3. Turn ignition switch “ON”.
4. Check voltage between ECM terminals 75 (APP sensor 1 sig-
nal), 76 (APP sensor 2 signal) and engine ground under the fol-
lowing conditions.
5. If NG, replace accelerator pedal assembly and go to next step.
6. Perform EC-39, "
Accelerator Pedal Released Position Learning" .
7. Perform EC-39, "
Throttle Valve Closed Position Learning" .
8. Perform EC-39, "
Idle Air Volume Learning" .
Remove and InstallationEBS00MRG
ACCELERATOR PEDAL
Refer to ACC-2, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
75
(Accelerator pedal position
sensor 1)Fully released 0.41 - 0.72V
Fully depressed More than 3200mV
76
(Accelerator pedal position
sensor 2)Fully released 0.15 - 0.48V
Fully depressed More than 1490mV
PBIB0561E

EC-388
[QR25(WITH EURO-OBD)]

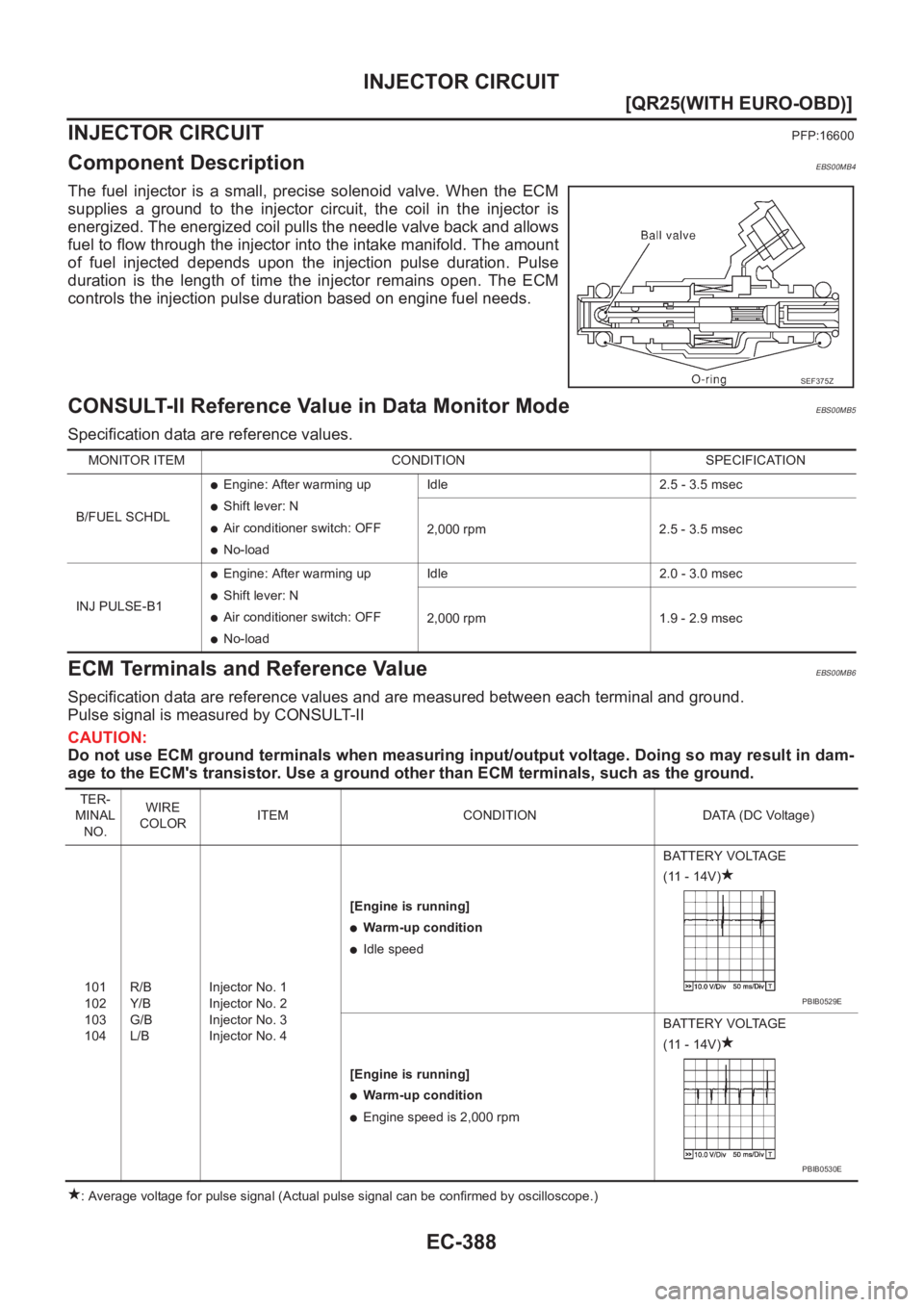

INJECTOR CIRCUIT
INJECTOR CIRCUIT
PFP:16600
Component DescriptionEBS00MB4
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS00MB5
Specification data are reference values.
ECM Terminals and Reference ValueEBS00MB6
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 2.5 - 3.5 msec
2,000 rpm 2.5 - 3.5 msec
INJ PULSE-B1
●Engine: After warming up
●Shift lever: N
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101
102
103
104R/B
Y/B
G/B
L/BInjector No. 1
Injector No. 2
Injector No. 3
Injector No. 4[Engine is running]
●Warm-up condition
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Warm-up condition
●Engine speed is 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
PBIB0529E
PBIB0530E

VIAS
EC-393
[QR25(WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
VIASPFP:14956
DescriptionEBS00NBJ
SYSTEM DESCRIPTION
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
COMPONENT DESCRIPTION
Power Valve
The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator operated by the vacuum stored in the surge tank. The
vacuum in the surge tank is controlled by the VIAS control solenoid
valve.
Sensor Input Signal to ECM ECM function Actuator
Mass air flow sensor Amount of intake air
VIAS control VIAS control solenoid valve Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Ignition switch Start signal
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
Engine coolant temperature sensor Engine coolant temperature
PBIB0843E
PBIB0946E

EC-394
[QR25(WITH EURO-OBD)]
VIAS
VIAS Control Solenoid Valve
The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
CONSULT-II Reference Value in Data Monitor ModeEBS00NBK
ECM Terminals and Reference ValueEBS00NBL
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB0947E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V
●Engine: After warming upIdle OFF
More than 5,000 rpm ON
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
25 GY/LVIAS control solenoid
valve[Engine is running]
●Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
●Engine speed is above 5,000 rpm0 - 1.0V

EC-396
[QR25(WITH EURO-OBD)]
VIAS
Diagnostic Procedure
EBS00NBN

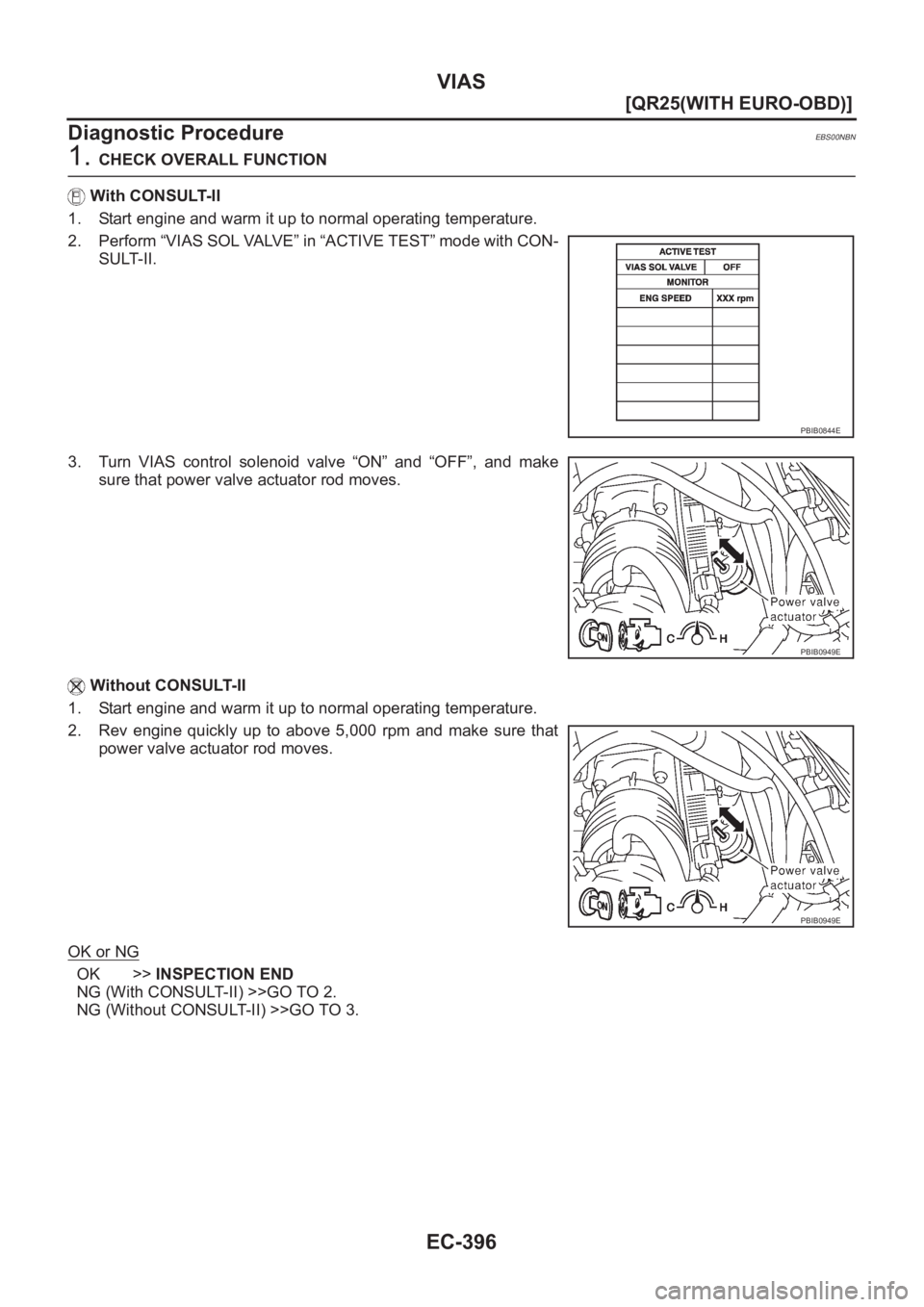

1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Perform “VIAS SOL VALVE” in “ACTIVE TEST” mode with CON-
SULT-II.
3. Turn VIAS control solenoid valve “ON” and “OFF”, and make
sure that power valve actuator rod moves.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Rev engine quickly up to above 5,000 rpm and make sure that
power valve actuator rod moves.
OK or NG
OK >>INSPECTION END
NG (With CONSULT-II) >>GO TO 2.
NG (Without CONSULT-II) >>GO TO 3.
PBIB0844E
PBIB0949E
PBIB0949E
