2001 MERCEDES-BENZ C240 Owner's Manual

200 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Rear seatsTo o p e n a s h t r ay :
Pull at top of cover.
To r e m ove i n s e r t :
Press latch (2) and remove insert.
To replace insert:
Install insert and close the ashtray.

201 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Lighter
1Center console lighter
The lighter is located in the center console compartment
in front of the armrest, see page 195.Turn the electronic key in starter switch to position 1
or 2.
Push in lighter in (1); it will pop out automatically when
hot.
Note:
The lighter can be operated with electronic key in
starter switch position 1 or 2.
The lighter socket can be used to accommodate
electrical accessories up to a maximum 85 W.
Wa r n i n g !
Never touch the heating element or sides of the
lighter, they are extremely hot, hold at knob only.When leaving the vehicle always remove the
electronic key from the starter switch. Do not leave
children unattended in the vehicle, or with access
to an unl ocked vehic l e. Uns upervi s ed us e of vehi cl e
equipment may cause serious personal injury.

202 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

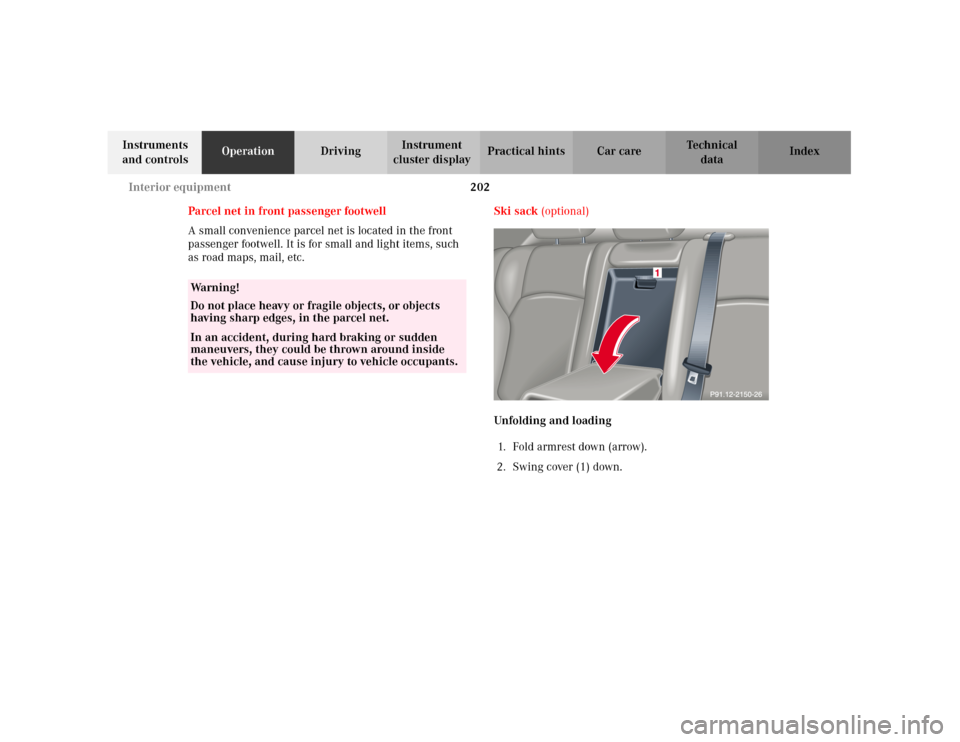

Parcel net in front passenger footwell
A small convenience parcel net is located in the front
passenger footwell. It is for small and light items, such
as road maps, mail, etc.Ski sack (optional)
Unfolding and loading
1. Fold armrest down (arrow).
2. Swing cover (1) down.
Wa r n i n g !
Do not place heavy or fragile objects, or objects
having sharp edges, in the parcel net.In an accident, during hard braking or sudden
maneuvers, they could be thrown around inside
the vehicle, and cause injury to vehicle occupants.

203 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

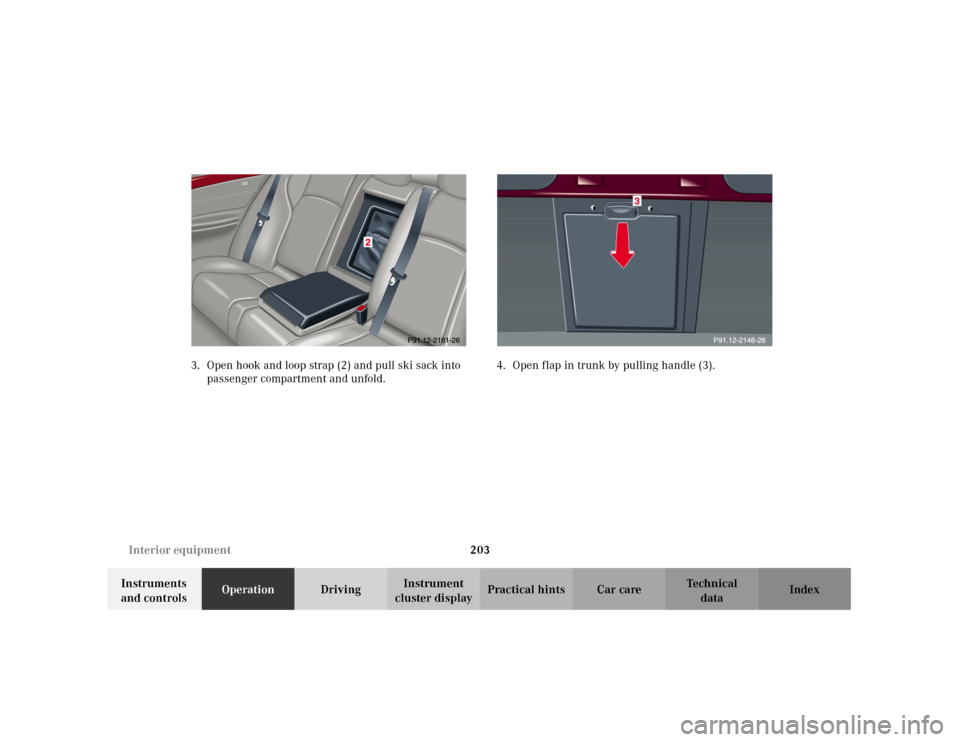

cluster displayPractical hints Car care Index 3. Open hook and loop strap (2) and pull ski sack into
passenger compartment and unfold.4. Open flap in trunk by pulling handle (3).

204 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

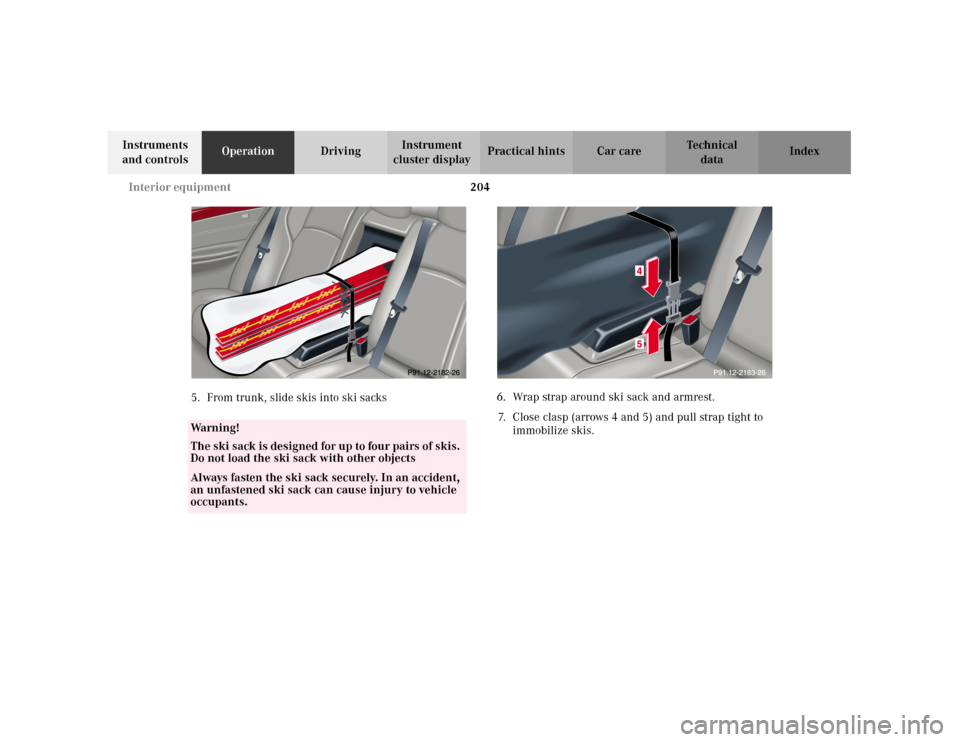

5. From trunk, slide skis into ski sacks6. Wrap strap around ski sack and armrest.
7. Close clasp (arrows 4 and 5) and pull strap tight to
immobilize skis.
Wa r n i n g !
The ski sack is designed for up to four pairs of skis.
Do not load the ski sack with other objectsAlways fasten the ski sack securely. In an accident,
an unfastened ski sack can cause injury to vehicle
occupants.

205 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

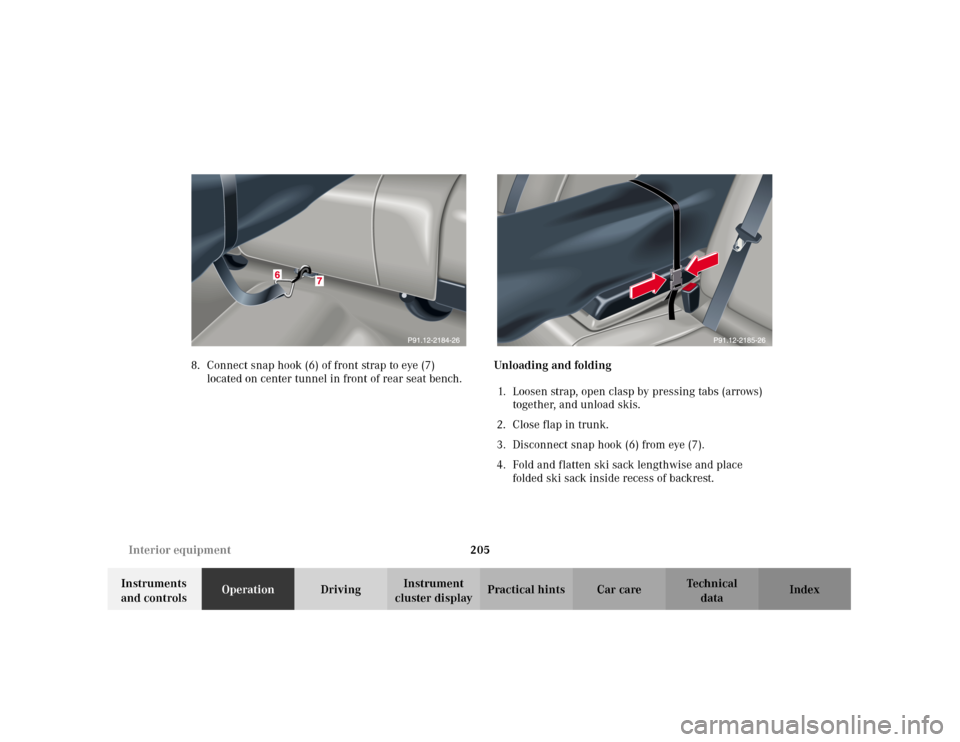

cluster displayPractical hints Car care Index 8. Connect snap hook (6) of front strap to eye (7)
located on center tunnel in front of rear seat bench.Unloading and folding
1. Loosen strap, open clasp by pressing tabs (arrows)
together, and unload skis.
2. Close flap in trunk.
3. Disconnect snap hook (6) from eye (7).
4. Fold and flatten ski sack lengthwise and place
folded ski sack inside recess of backrest.

206 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

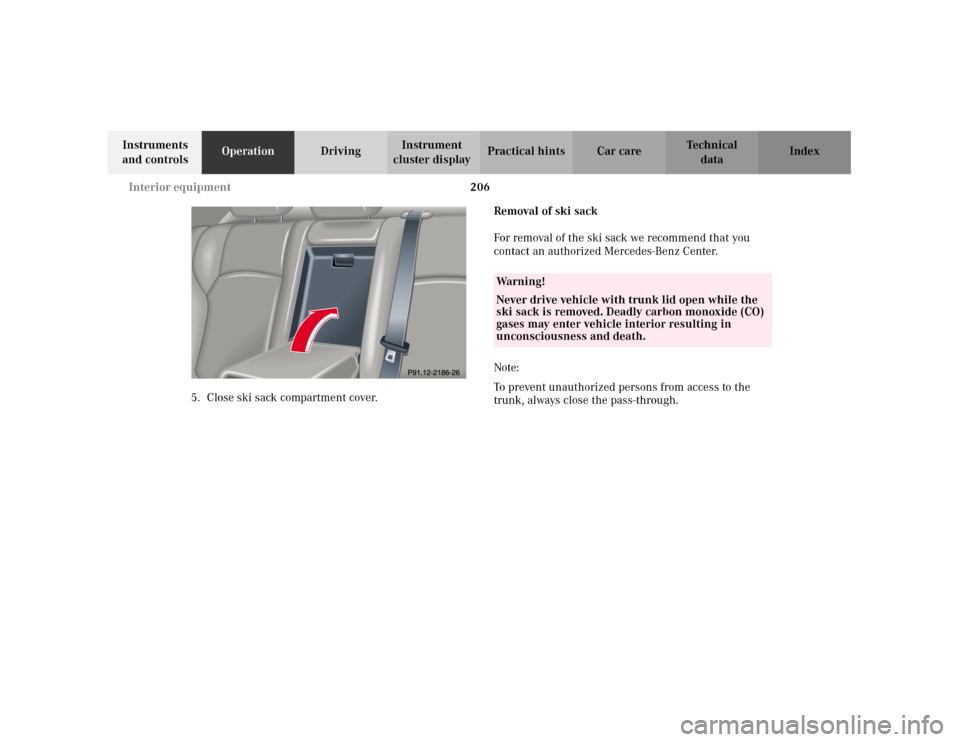

5. Close ski sack compartment cover.Removal of ski sack
For removal of the ski sack we recommend that you
contact an authorized Mercedes-Benz Center.
Note:
To prevent unauthorized persons from access to the
trunk, always close the pass-through.
Wa r n i n g !
Never drive vehicle with trunk lid open while the
ski sack is removed. Deadly carbon monoxide (CO)
gases may enter vehicle interior resulting in
unconsciousness and death.

207 Interior equipment
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument

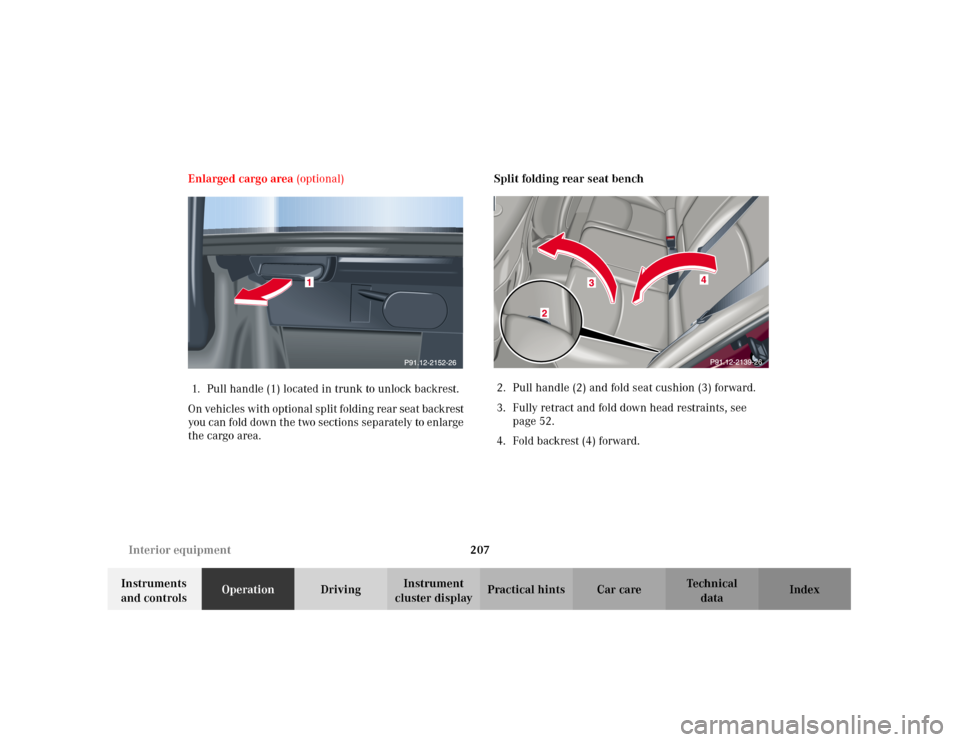

cluster displayPractical hints Car care Index Enlarged cargo area (optional)
1. Pull handle (1) located in trunk to unlock backrest.
O n vehicles wi t h op ti onal sp li t fold in g rear seat back rest
you can fold down the two sections separately to enlarge
the cargo area.Split folding rear seat bench
2. Pull handle (2) and fold seat cushion (3) forward.
3. Fully retract and fold down head restraints, see
page 52.
4. Fold backrest (4) forward.
