2001 Lexus IS300 buttons

INTERIOR EQUIPMENT
54
GLOVE BOX
SS14012

1Unlock 2Open 3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
GARAGE DOOR OPENER
The garage door opener is manufactured under license
from HomeLink and can be programmed to operate
garage doors, estate gates, security lighting, etc.
(a) Programming HomeLink
SV14007

1Buttons 2Indicator light
The HomeLink has 3 buttons and can be programmed
to operate 3 separate devices.
Prepare the HomeLink
 for programming by erasing all
codes or the memorized data programmed by the former
owner. Follow the procedure in º(c) Erasing the garage
door opener memoryº.
1. Decide which one of the 3 buttons you want to program.
Push and hold down the button for about 20 seconds until the
indicator light begins to flash. While holding this button, follow
steps º2º and º3º.

INTERIOR EQUIPMENT
55
2. Bring
the hand held garage door opener within about 25 mm
(1 in.) of the button being programmed and push the button on
the hand held garage door opener. The signal from the hand
held garage door opener is sent to the vehicle's opener.
3. When the frequency and code is registered, the indicator
light flashes rapidly. At this point, you can release both buttons.
4. To program the remaining buttons, repeat steps º1º through
º3º.
If you want to replace an existing program with a new program,
select the button you want to program. Follow the procedure
from step 1.
If the transmitter has a ºrolling code featureº, it is
necessary to program the in±garage receiver after
programming HomeLink
.
1. Locate the ºtrainingº or ºlearningº button on the
in±garage receiver and push and release this button.
Location of the button may vary by the garage door
opener manufacturer.
2. Firmly push and release the trained HomeLink

button 2 times (some garage door manufacturer may
require you to push the HomeLink button up to 3 times)
to complete the process.
The garage door should now operate when the
HomeLink
 button is pushed. Do not use the
HomeLink
 universal transmitter with any
garage door opener that lacks the safety stop and reverse
feature as required by Federal Safety Standards. This
includes any garage door opener model manufactured before
April 1, 1982.
CAUTION
When programming or operating the garage door
opener, make sure there is no one around the moving
door. It is dangerous if someone is caught.
(b) Operating the garage door opener
Push the appropriate button to activate the garage door
opener. The indicator light comes on. The garage door opener
continues to send the signal for up to 20 seconds as long as
the button is pushed.
(c) Erasing the garage door opener memory
Push and hold down the 2 outside buttons for about 20
seconds until the indicator light flashes. All memorized data
will be erased.

COMFORT ADJUSTMENT
85
Seat belt extender
If your seat belt cannot be fastened securely because it is not
long enough, a personalized seat belt extender is available
from your Lexus dealer free of charge.
Please contact your local Lexus dealer to order the proper
required length for the extender. Bring the heaviest coat you
expect to wear for proper measurement and selection of
length. Additional ordering information is available at your
Lexus dealer.

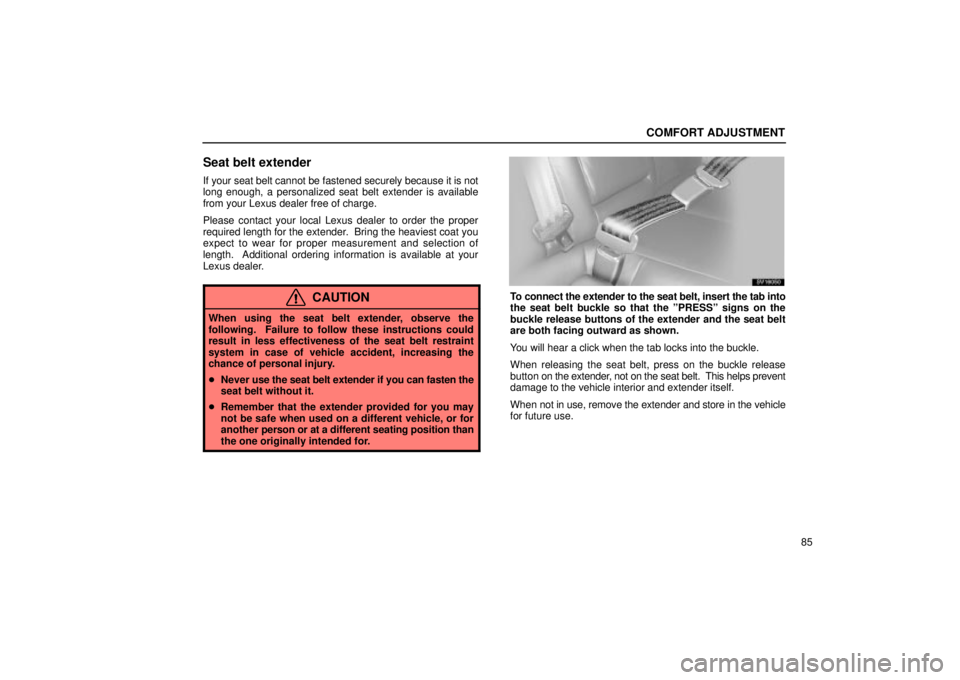

CAUTION
When using the seat belt extender, observe the
following. Failure to follow these instructions could
result in less effectiveness of the seat belt restraint
system in case of vehicle accident, increasing the
chance of personal injury.
Never use the seat belt extender if you can fasten the
seat belt without it.
 Remember that the extender provided for you may
not be safe when used on a different vehicle, or for
another person or at a different seating position than
the one originally intended for.
SV16050
To connect the extender to the seat belt, insert the tab into
the seat belt buckle so that the ºPRESSº signs on the
buckle release buttons of the extender and the seat belt
are both facing outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the buckle release
button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extender itself.
When not in use, remove the extender and store in the vehicle
for future use.

AUDIO
136
1Turning the system on and adjusting volume
(See page 137 for details.)
2Compact disc slot
(See page 150 for details.)
3Ejecting a compact disc
(See page 150 for details.)
4Radio data system/Traffic announcement/
Program type
(See page 143 for details.)
5Compact disc pre±load button
(See page 150 for details.)
6Audio control knob/Frequency tuning
(See page 138 for details.)
7Mode selectors
(See page 137 for details.)
8Message
(See page 146 for details.)
9Function buttons
1 ± 6: Station selector buttons
(See page 141 for details.)
:Disc selection
(See page 152 for details.)
RPT: Automatic repeat
(See page 149 or 154 for details.) RAND:
Random access
(See page 154 for details.)
SKIP: Automatic skip of blank portions of tape
(See page 149 for details.)
 :Rewinding or reversing
(See page 148 or 153 for details.)


:Fast forwarding
(See page 148 or 153 for details.)
:


: Side change
(See page 148 for details.)
DOLBY NR button
(See page 148 for details.)
10Cassette tape slot
(See page 147 for details.)
11Ejecting a cassette tape
(See page 147 for details.)
12Radio mode: Frequency tuning
(See page 140 for details.)
TAPE mode: Direct access to a desired program
(See page 149 for details.)
CD mode: Direct access to a desired program
(See page 153 for details.)
13Scan tuning button
(See page 142 for details.)

AUDIO
137
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system works when the ignition key is in the ºACCº
or ºONº position.
NOTICE
To prevent the battery from being discharged, do not leave the car audio on longer than necessary when theengine is not running.
(a) Turning the system on and off
SV22002
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.
SV22003
Push ºAMº, ºFMº, ºT APEº or ºDISCº to turn on that mode.
The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off the cassette player by ejecting the cassette
tape. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape. If another function was previously playing, it will come on
again.

AUDIO
140
Radio operation
(a) Listening to the radio
SV22003
Push these buttons to choose either an AM or FM station.
ºAMº, ºFM1º or ºFM2º appears on the display.
SV22037
Turn the knob clockwise to step up the frequency. Turn
the knob counterclockwise to step down the frequency.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. ºSTº appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, ºSTº
disappears from the display.

AUDIO
141
(b) Presetting a station
SV22029
1. Tune in the desired station.
2. Push
one of the station selector buttons ( 1±6 ) and hold
it until a beep is heard. This sets the station to the button
and the button number ( 1±6 ) appears on the display.
Each button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse. (c) Selecting a station
Your Lexus has an electronic tuning radio (ETR). Tune in the
desired station using one of the following methods.
SV22009
Preset
tuning: Push the button ( 1±6 ) for the station you want.
The button number ( 1±6 ) and station frequency appear on the
display.
Manual tuning: Turn the ºAUDIO CONTROLº knob clockwise
to step up the frequency. Turn the knob counterclockwise to
step down the frequency. (See page 140.)
Seek tuning: Push the ºSEEKº button. The radio will begin
seeking up or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched out one after another.

AUDIO
147
If no messages have been stored, or if there are no more
messages to be recalled, ºNO MSG STOREDº will appear on
the display, and the message display will be canceled. The
display then returns to show the program service name. The
message display will be canceled if you activate any function
that affects the display.
Message display can be canceled by pressing any of the
following buttons:
ºAMº, ºFMº, ºCDº, ºTAPEº, ºLOADº, ºSEEKº, ºTUNEº, any
preset, º
SCANº, any audio control, ºRDSº, or ºº. If the
current station is not a traffic program and traffic
announcements is off, pushing ºTRAFº will cancel the display.
The message will be canceled after the entire message has
been displayed.
(g) ºALERT!º display
The alert program type sends emergency alert messages. The
radio will receive alert messages if it is on and tuned to an RDS
station, or if the previous station was an RDS station. If the
radio receives an alert announcement, it will interrupt the
previous mode, display ºALERTº .
Cassette tape player operation
(a) Playing a cassette tape
SV22027
When you insert a cassette tape, the exposed tape should
be to the right.
The player will automatically start when you insert a cassette
tape. At this time, ºPLAYº appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically adapt to it and
ºMTLº appears on the display.
To stop or eject the cassette tape, push the ºEJECTº button.
Auto±reverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.
