2001 Lancia Ypsilon Owner handbook (in English)

134
G
If, after purchasing the vehicle you
want to install electrical accessories
that require a permanent power sup-
ply (alarm, free-hand phone, radio
navigator with satellite anti theft sys-
tem, etc.) go to a LANCIA Dealer-
ship. The qualified staff are able to
suggest the most suitable Lineacces-
sori devices and will assess the over-
all electric absorption, checking
whether the car can sustain the re-
quired load or if an oversized battery
is required.
Remember that these accessories
continue to absorb electrical power
even when the ignition key is removed
(car parked, engine off) and could
discharge the battery.The overall absorption of these ac-
cessories (standard and after-sale in-
stallations) must be less than 0.6 mA
x Ah (of the battery) as shown in the
table below:ELECTRONIC
CONTROL UNITS
When the car is being used nor-
mally, special measures are not nec-
essary.
The following instructions must be
followed very carefully, however, if
you work on the electrical system or
in cases where emergency starting is
necessary:
– Never disconnect the battery from
the electrical system while the engine
is running.
– Disconnect the battery from the
electrical system if you are recharging
it. Modern battery chargers can sup-
ply up to 20 volts.
– Never perform emergency starts
with a battery charger. Always use an
auxiliary battery.
– Be particularly careful when con-
necting the battery to the electrical sys-
tem. Ensure the battery posts are con-
nected up to the right leads (the polar-
ity is correct) and check that the con-
nection has been made properly. When Remember also that high current in-
take devices such as bottle heater,
vacuum cleaner, cellular phone, re-
frigerator etc., if powered while the
engine is off will accelerate the bat-
tery discharge.
IMPORTANTIf you need to install
additional systems on the car, im-
proper wiring connections, in partic-
ular if they affect safety devices, are
dangerous.
Battery Maximum
capacity idle
intake
40 Ah 24 mA
4C120-143 ING 11-03-2008 12:01 Pagina 134

135
G
SPARK PLUGS
The cleanness and soundness of the
spark plugs are very important for
keeping the engine efficient and pol-
luting emissions down.
The appearance of the spark plug
(fig. 6), if examined by an expert eye,
is a good way of pinpointing a mal-
function even if it has nothing to do
with the ignition system. Therefore if
the engine has problems, it is impor-
tant to have the spark plugs checked
at a LANCIA Dealership.The spark plugs must be
changed at the times spec-
ified in the Service Sched-
ule. Only use the type of plugs in-
dicated: if the heat ratio is less
than required or the life specified
is not guaranteed, problems can
arise.
the battery is reconnected, the injec-
tion/ignition system control unit must
readapt its internal parameters; conse-
quently performance may not be opti-
mal during the first few kilometres af-
ter reconnecting the battery.
– Do not connect or disconnect the
terminals of the electronic units while
the ignition key is at MAR.
– Do not check polarity through
sparking.
– Disconnect the electronic units if
you are electrically welding the car
body. Remove the units if tempera-
tures exceed 80°C (special operations
on the bodywork etc.).
IMPORTANTIf the radio or car
alarm systems are not installed cor-
rectly, they can interfere with the
working of the electronic control units.
Modifications or repairs
to the electrical system
that are performed incor-
rectly and do not take into account
the system’s technical features can
result in malfunctions with the
risk of fire.
Versions Type of spark plug
1.2ChampionRC10YCC
NKG BKR5EZ
1.216VNGK DCPR8E-N
fig. 6
P4C00308
4C120-143 ING 11-03-2008 12:01 Pagina 135

136
G
WHEELS
AND TYRES
TYRE PRESSURE
Every two weeks and before long
journeys, check the pressure of each
tyre including the spare.
The pressure must be checked when
the tyre is rested and cold.
It is normal for the pressure to rise
when you are driving. If you have to
check or restore the pressure when the
tyres are warm, remember that the
pressure value must be 0.3 bar above
the specified value.Incorrect pressure causes uneven
wear of the tyres (fig. 7):
A- Correct pressure: tyre wears
evenly.
B- Underinflated tyre: shoulder
tread wear.
C- Overinflated tyre: centre tread
wear.Tyres must be replaced when the
tread wears down to 1.6 mm. Comply
with the laws in the country where the
car is being driven.
IMPORTANT
As far as possible avoid sharp brak-
ing and screech starts.
Be careful not to hit the kerb, pot-
holes or other obstacles hard. Driving
for long stretches over bumpy roads
can damage the tyres.
Periodically check that the tyres
have no cuts in the side wall, abnor-
mal swelling or irregular tyre wear. If
any of these occur, have the car seen
to at a LANCIA Dealership.
Avoid travelling with an overloaded
car: this can seriously damage wheels
or tyres.
Remember that road-
holding is also influenced
by correct tyre pressure.
fig. 7
P4C00130
If the pressure is too low
the tyre overheats and this
can cause it serious dam-
age.
4C120-143 ING 11-03-2008 12:01 Pagina 136

137
G
If you get a flat tyre, stop immedi-
ately and change it so as not to dam-
age the tyre, the wheel, the suspension
and the steering.
Tyres age even if they are not used
very much. Cracking of the tread rub-
ber and the side walls are a sign of
this ageing. In any case, if the tyres
have been fitted for more than six
years they should be examined by an
expert who can judge whether they
are still fit for use. Remember to
check the spare tyre particularly care-
fully too.
If a replacement is necessary, always
use new tyres and avoid using ones
the origin of which you are not certain
about.
Lancia Y uses tubeless tyres. Under
no circumstances should an inner
tube be used with these tyres.
If you replace a tyre it is a good idea
to change the inflation valve, too.To ensure the front and rear tyres all
wear evenly, you are advised to
change the tyres over every 10-15
thousand kilometres keeping them on
the same side of the car so as not to
reverse the direction of rotation.RUBBER TUBING
Follow the Service Schedule care-
fully in the case of the braking and
fuel supply systems rubber hoses.
Ozone, high temperatures and long
absence of liquid in the system can in
fact cause the hardening and crack-
ing of the pipes with possible loss of
fluid. A careful check is therefore es-
sential.
Do not change the tyres
over in criss-cross fashion
by moving a tyre from the
left hand side of the car to the right
and vice versa.
4C120-143 ING 11-03-2008 12:01 Pagina 137

138
G
WINDSCREEN/REAR
WINDOW WIPERS
BLADES
Periodically clean the rubber part
with suitable liquid, DP1is recom-
mended.
Change the blades if the rubber edge
is warped or worn out. You should in
any case change them approximately
once a year.Some simple steps can reduce po-
tential damage to the blades:
– If the temperature falls to below
zero, make sure the rubber blade is
not frozen to the windscreen. If nec-
essary, free it with a de-icing com-
pound.
– Remove any snow that has settled
on the glass: besides saving the blades
you will avoid straining the electric
windscreen wiper motor and causing
it to overheat.
– Do not operate the windscreen/
rear window wipers on dry glass.
Changing the windscreen wiper
blades (fig. 8)
1)Lift windscreen wiper arm Aoff
the glass and position the blade so as
to form a right angle with the arm.
2)Press tab Bof the coupling spring
and remove the blade to be replaced
from arm A.3)Fit the new blade by inserting the
tab into the special hole in the arm.
Make sure it is properly locked into
place.
Replacing the rear window
wiper blade (fig. 9)
1)Lift the cover A.
Travelling with worn
wiper blades is dangerous
because it reduces visibil-
ity in bad weather.
fig. 8
P4C00131
fig. 9
P4C00414
4C120-143 ING 11-03-2008 12:01 Pagina 138

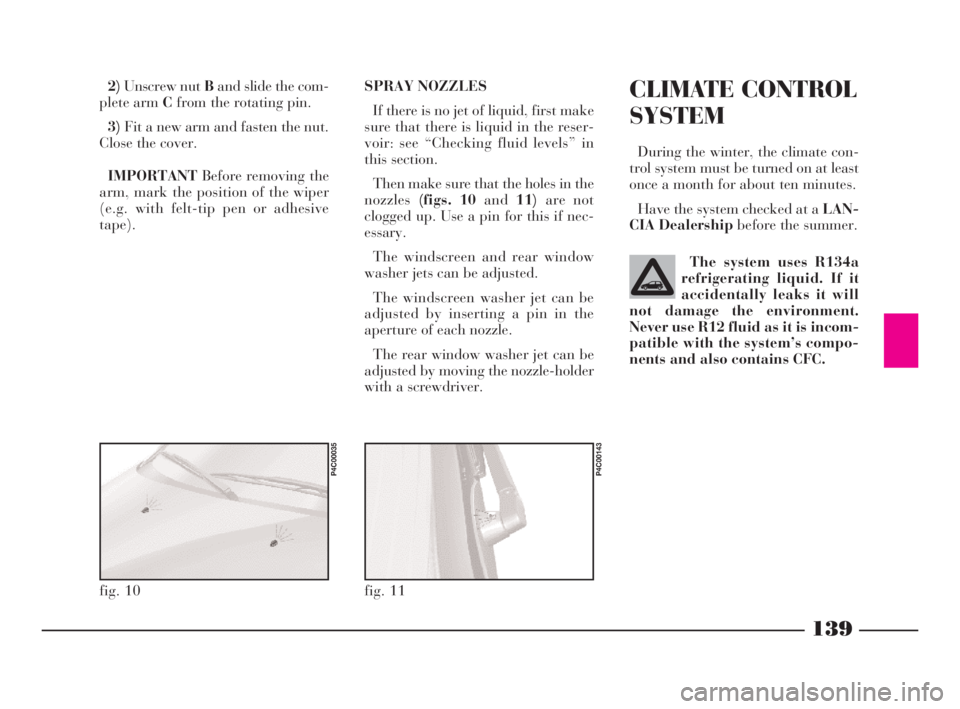

139
G
2)Unscrew nut Band slide the com-
plete arm Cfrom the rotating pin.
3)Fit a new arm and fasten the nut.
Close the cover.
IMPORTANTBefore removing the
arm, mark the position of the wiper
(e.g. with felt-tip pen or adhesive
tape).SPRAY NOZZLES
If there is no jet of liquid, first make
sure that there is liquid in the reser-
voir: see “Checking fluid levels” in
this section.
Then make sure that the holes in the
nozzles(figs. 10 and11)are not
clogged up. Use a pin for this if nec-
essary.
The windscreen and rear window
washer jets can be adjusted.
The windscreen washer jet can be
adjusted by inserting a pin in the
aperture of each nozzle.
The rear window washer jet can be
adjusted by moving the nozzle-holder
with a screwdriver.CLIMATE CONTROL
SYSTEM
During the winter, the climate con-
trol system must be turned on at least
once a month for about ten minutes.
Have the system checked at a LAN-
CIA Dealershipbefore the summer.
The system uses R134a
refrigerating liquid. If it
accidentally leaks it will
not damage the environment.
Never use R12 fluid as it is incom-
patible with the system’s compo-
nents and also contains CFC.
fig. 10
P4C00035
fig. 11
P4C00143
4C120-143 ING 11-03-2008 12:01 Pagina 139

140
G
BODYWORK
PROTECTING THE CAR FROM
ATMOSPHERIC ELEMENTS
The main causes of rust are:
– atmospheric pollution;
– salt and humidity in the atmos-
phere (coastal e or very hot and hu-
mid areas);
– environmental conditions that are
specific to the season.
In addition, the abrasiveness of dust
in the atmosphere and sand carried
by the wind as well as mud and stones
thrown up by other cars must not be
underestimated.
For your Lancia Y, Lancia has used
leading-edge technological solutions
to effectively protect the body from
rust.
These are the main ones:
– Painting systems and products
that make the car particularly resis-
tant to rust and scratching.– The use of zinc-plated (or pre-
treated) sheet steel which is highly re-
sistant to rust.
– The spraying of the underbody,
engine compartment, inside the whee-
larches and other parts with wax-
based products with a high protective
capacity.
– Spraying plastic-coating materials
to protect the most exposed points:
under the door, inside the wings,
edges etc.
– The use of “open” box sections to
prevent condensation and water from
building up and rusting the inside of
the parts.
BODY AND UNDERBODY
GUARANTEE
Your Lancia Y is covered by guar-
antee against any original structural
or body part being holed by rust. Re-
fer to the “LANCIA Warranty Book-
let” for the general conditions of this
guarantee.TIPS FOR KEEPING THE BODY
IN GOOD CONDITION
Paintwork
The paintwork is not only to make
your car look attractive but also to
protect the steel.
If your car is scuffed or scratched
deeply you are therefore recommended
to touch up the paintwork as necessary
to prevent rust from forming.
Only use original products when
touching up the paintwork (see the
“Technical specifications” section).
Ordinary maintenance of the paint-
work involves in washing it. The fre-
quency you should do this depends on
the conditions and the environment
the car is driven in. For example if
you drive in areas with a high level of
air pollution, or on roads sprinkled
with road salt, or if you park under
resinous trees, it is a good idea to
wash the car more often.
4C120-143 ING 11-03-2008 12:01 Pagina 140

141
G
IMPORTANTCars with optional
“Kaleidos” options (non-standard
personalised paint colours), can be re-
paired in exactly the same way as
other cars painted with standard
colours at your LANCIA Dealership.To wash the car properly:
1)Remove the aerial from the roof
to prevent damaging it when washing
the car in an automatic carwash.
2)Wet the body using a low pressure
jet of water.
3)Wipe a sponge with a slightly
soapy solution over the bodywork,
frequently rinsing the sponge.
4)Rinse well with water and dry
with a jet of air or a chamois leather.
When drying the car, be careful to
get at those parts which are not so
easily seen e.g. the door frames, bon-
net and around the headlights where
water can most readily collect. You
are advised not to take the car into a
closed area immediately, but to leave
it out in the open so any water left can
evaporate more easily.
Do not wash the car after it has been
parked in the sun or while the bonnet
is hot: it could take the shine off the
paint.
External plastic parts must be
cleaned following the usual car wash-
ing procedure. As far as possible avoid parking your
car under trees; the resinous sub-
stances which often drop from certain
types of trees could dull the paint and
increase the possibility of rusting.
IMPORTANTBird droppings must
be washed off immediately and with
great care as their acid is particularly
aggressive.
Detergents pollute water.
For this reason, the car
must be washed in an area
equipped for the collection and
purification of the liquids used
while washing.
IMPORTANTWashing is to be car-
ried out with the engine cold and the
ignition key on STOP. After washing
make sure that the various protections
(rubber sheaths and other guards)
have not moved from their positions
or been damaged.
4C120-143 ING 11-03-2008 12:01 Pagina 141
