94
G
into the catalytic exhaust
pipe and damage it beyond
repair.
BUMP
STARTING
Bump starting by pushing, towing
or rolling downhill must be
avoided at all costs. This way of
starting could cause a rush of fuelRemember that as long as
the engine is not running,
the brake booster and
power steering do not work. You
therefore have to use considerably
more effort on both the brake
pedal and the steering wheel.
IF A TYRE
IS
PUNCTURED
GENERAL INDICATIONS
The following precautions must be
observed when changing a wheel and
using the jack and the space-saver
spare wheel.
4C090-119 ING 11-03-2008 12:00 Pagina 94

95
G
Signal that the car is sta-
tionary as per the highway
code: hazard lights, warn-
ing triangle, etc.
Any passengers must get out of
the car, especially if it is heavily
laden, and keep out of the way of
traffic while the wheel is being
changed.
If the ground is sloping or
bumpy, place wedges or other suit-
able material under the wheels to
stop the car from moving.The space-saver spare
wheel is specific to the ve-
hicle; do not use it on other
models and do not use spare
wheels designed for other models
on your car.
If you change the type of wheels
fitted (alloy rims instead of steel
ones), you must also change the se-
curing bolts for others of suitable
dimensions.
The space-saver spare wheel
must only be used in the event of
an emergency, and then only for as
little as possible and at no more
than 80 km/h. Driving will feel dif-
ferent with the space-saver spare
wheel fitted. Avoid sharp braking
and acceleration, sudden swerving
and fast cornering.The space-saver spare wheel has
a life-span of about 3000 km after
which the tyre should be replaced
with another of the same type.
4C090-119 ING 11-03-2008 12:00 Pagina 95

96
G
Never fit a standard tyre to a rim
to be used for the space-saver
spare wheel. Have the punctured
tyre repaired and fitted back on as
soon as possible.
No more than one space-saver
spare wheel must be used at the
same time.
Do not grease the bolt threads be-
fore fitting them, they could un-
screw themselves.
The jack must only be used to
change wheels on the vehicle with
which it is supplied or on vehicles
of the same model. All other uses,
for example raising other vehicles,
must be excluded. Under no cir-
cumstances use the jack to carry
out repairs under the vehicle.
If the jack is not used correctly,
the raised vehicle may fall.Do not use the jack to lift weights
above that indicated on the label
attached to the jack itself.
Never start the engine while the
car is raised by the jack. If travel-
ling with a trailer, detach the
trailer before raising the car.
Snow chains cannot be fitted to
the spare wheel, consequently if a
front tyre is punctured (front drive)
and snow chains need to be fitted,
a standard wheel must be removed
from the back axle and the space-
saver spare wheel fitted in its
place. In this way there will be two
standard wheels on the front and
the snow chains can be fitted.
Incorrect fitting of the wheel hub
could result in the hub coming off
when the vehicle is travelling.Never tamper with the inflation
valve.
Do not insert any type of tool be-
tween the rim and the tyre.
Periodically check the tyre pres-
sure including that of the spare-
saver spare wheel as per the val-
ues given in “Technical Specifica-
tions”.
fig. 3
P4C00401
fig. 2
P4C00400
4C090-119 ING 11-03-2008 12:00 Pagina 96

97
G
1. STOP THE CAR
– Stop the car so it is not a danger
for on-coming traffic and in such a
position that the tyre can be changed
in safety. The ground must be flat and
adequately firm. During the night,
chose a lit area, if possible.
– Turn engine off and engage the
handbrake.
– Engage first or reverse gear.
– Signal that the car is stopped ac-
cording to traffic regulations: hazard
lights, warning triangle, etc.
Any passengers must leave the car
and watch out for traffic while the
tyre is being changed.
If the ground is sloping or bumpy,
place wedges or other suitable mate-
rial for stopping the car under the
wheels.2. TAKE OUT THE TOOLS,
JACK AND SPARE WHEEL
(space-saver wheel)
They are in the boot.
– Lift the carpeting.
– Unscrew the fastener A (fig. 2)
and take out the tool holder.
The tool holder contains:
B- vehicle tow ring;
C- jack handle;
D- wheel bolt wrench;
E- screwdriver;F- extension for screwing wheel
bolts and inflation valve cap;
G- jack.
fig. 4
P4C00402
fig. 5
P4C00045
4C090-119 ING 11-03-2008 12:00 Pagina 97

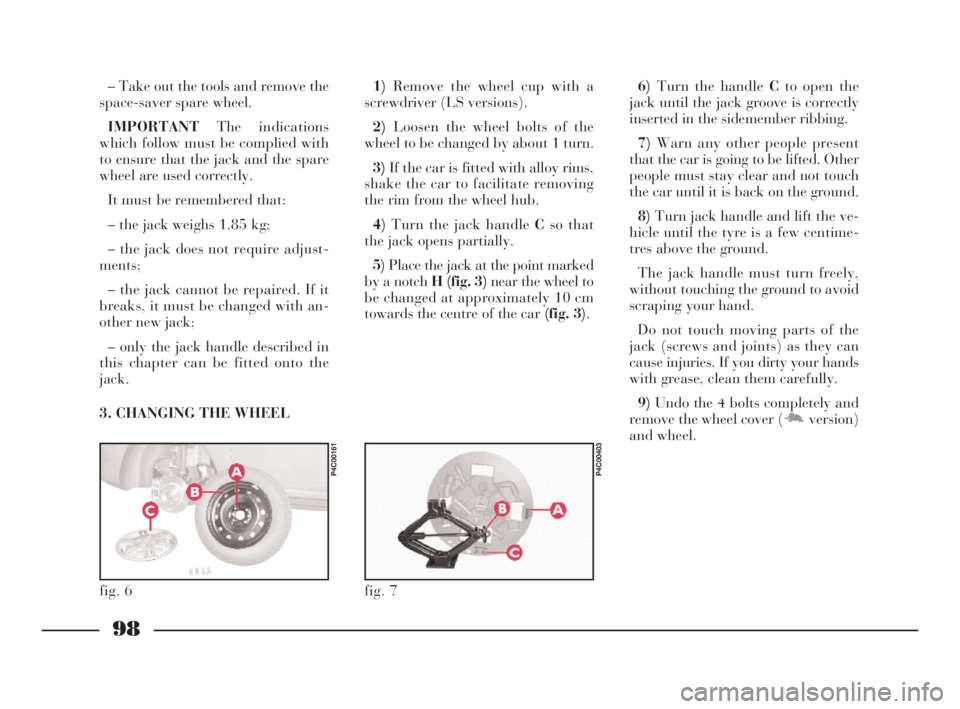

98
G
– Take out the tools and remove the
space-saver spare wheel.
IMPORTANTThe indications
which follow must be complied with
to ensure that the jack and the spare
wheel are used correctly.
It must be remembered that:
– the jack weighs 1.85 kg;
– the jack does not require adjust-
ments;
– the jack cannot be repaired. If it
breaks, it must be changed with an-
other new jack;
– only the jack handle described in
this chapter can be fitted onto the
jack.
3. CHANGING THE WHEEL1)Remove the wheel cup with a
screwdriver (LS versions).
2)Loosen the wheel bolts of the
wheel to be changed by about 1 turn.
3)If the car is fitted with alloy rims,
shake the car to facilitate removing
the rim from the wheel hub.
4)Turn the jack handle Cso that
the jack opens partially.
5)Place the jack at the point marked
by a notch H (fig. 3)near the wheel to
be changed at approximately 10 cm
towards the centre of the car (fig. 3).6)Turn the handle Cto open the
jack until the jack groove is correctly
inserted in the sidemember ribbing.
7)Warn any other people present
that the car is going to be lifted. Other
people must stay clear and not touch
the car until it is back on the ground.
8)Turn jack handle and lift the ve-
hicle until the tyre is a few centime-
tres above the ground.
The jack handle must turn freely,
without touching the ground to avoid
scraping your hand.
Do not touch moving parts of the
jack (screws and joints) as they can
cause injuries. If you dirty your hands
with grease, clean them carefully.
9)Undo the 4 bolts completely and
remove the wheel cover (Nversion)
and wheel.
fig. 6
P4C00161
fig. 7
P4C00403
4C090-119 ING 11-03-2008 12:00 Pagina 98

99
G
10)Ensure that the support surfaces
of the spare wheel are clean and free
from impurities which could succes-
sively cause the wheel bolts to loosen.
Mount the spare wheel so that the
holesI (fig. 4) coincide with the rela-
tive pinsL.
IMPORTANTDo not fit the wheel
cover on the space-saver spare wheel.
11)Tighten the 4 securing bolts.
12)Turn the jack handle to lower
the car, and remove the jack.
13)Tighten up the wheel bolts com-
pletely in criss-cross fashion following
the order shown in(fig. 5).
14)Put the punctured wheel in the
spare wheel compartment.The spare wheel is narrower than
normal wheels and must only be used
to travel to the nearest service station
so that the original tyre can be re-
paired.
Depending on whether the type of
wheels normally fitted to the car are
alloy or steel, the spare wheel (which
always has a steel rim) will differ in
construction so that it is compatible
with the wheel bolts which are specific
to each type of wheel.
If you wish to change the type of
wheel (alloy instead of steel and vice-
versa) the wheel bolts and a new
spare wheel must be employed.
Modifications or repairs
to the electrical system
carried out incorrectly and
without bearing the features of the
system in mind can cause mal-
functions with the risk of fire. REFITTING THE STANDARD
WHEEL
1)Following the above procedure,
raise the car and take off the space-
saver wheel.
4)Fit the wheel cover (1.2
16VM Nblueversion), mak-
ing sure that slit C (fig. 6)
corresponds with the inflation valve.
5)Insert the other three bolts, using
extensionF (fig. 2)(1.2
16VM Nblue
version).
6)Tighten the bolts using the spe-
cial wrench D (fig. 2).
fig. 8
P4C00404
4C090-119 ING 11-03-2008 12:00 Pagina 99

100
G
7)Lower the car and re-
move the jack.
8)Tighten up the bolts com-
pletely in the order given previously in
(fig. 5).
9)Fit the wheel cover (LS version)
making sure that the inflation valve
seat is positioned correctly; press the
cover with the palm of your hands (do
not bang) against the rim shoulder
and ensure that all the retaining flaps
are inserted into the rim.
When you have finished:
– Put the space-saver spare
wheel into its special recess in
the boot.
– Refit the jack in its support mak-
ingA (fig. 7)coincide with the ring B
on the jack and positioning the base
of the jack to match C.
– Refit the tools you used on the sup-
port.
– Arrange the support and close the
fastenerA (fig. 8).
IMPORTANTCheck the inflation
pressure of the tyres and the spare
wheel regularly.
fig. 9
P4C00301
IMPORTANTIf the type of wheel is
to be changed (alloy wheels in place
of steel wheels and vice-versa) all the
wheel bolts must be replaced with
others of a suitable length and a spe-
cific spare wheel employed with dif-
ferent construction characteristics.
The original wheel bolts though,
should be kept in case you wish to
change back to the original wheels at
a later date.
To unscrew/screw the inflation valve
cap, use extension F (fig. 2).
4C090-119 ING 11-03-2008 12:00 Pagina 100

101
fG
C Tubular bulbs
Release these bulbs from rela-
tive contacts to remove them.
D Halogen bulbs
Release the securing spring
from its seat to remove the
bulb.BULB Fig. 9 TYPE POWER
Main beam headlights
Dipped beam headlights
Front side lights
Front direction indicators
Side direction indicators
Rear direction indicators
Foglights
Reverse lights
Rear brake and side lights
Rear side lights
Rear fog lights
Third brake light
Number plate
Ceiling light (1.2 16VM Nblue- LS versions)
Ceiling light:
– with courtesy light
– with map light
BootD H3 12V-55W
D H7 12V-55W
A W5W 12V-5W
B PY21W 12V-21W
A W5W 12V-5W
B PY21W 12V-21W
D H1 12V-55W
B P21W 12V-21W
B R5W 12V-21/5W
B R5W 12V-21W
B P21W 12V-21W
A W5W 12V-5W
C C5W 12V-5W
C – 12V-10W
C – 12V-10W
A – 12V-6W
C C5W 12V-5W
