2001 CHEVROLET VENTURE light

1-51

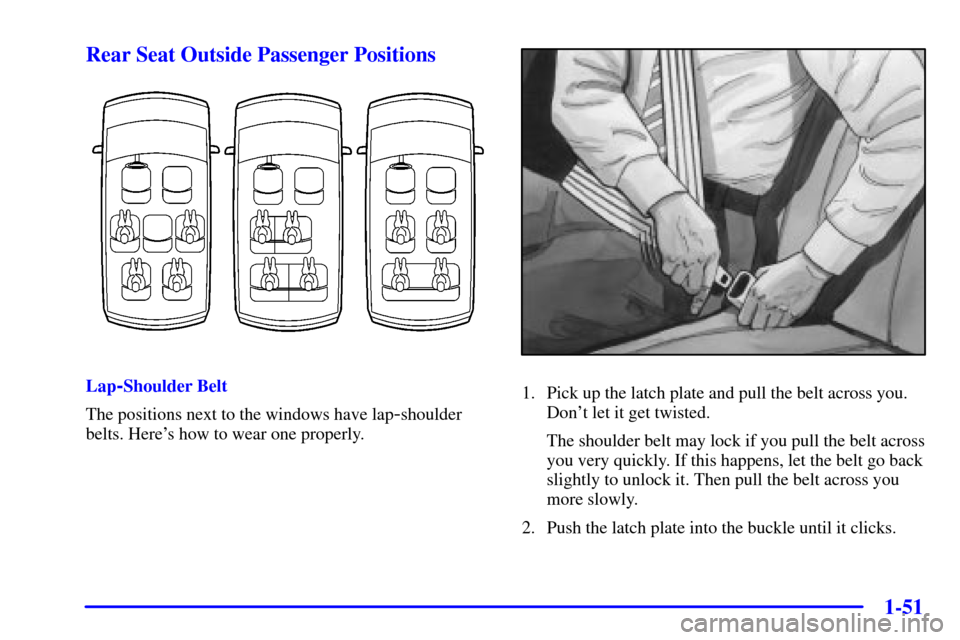

Rear Seat Outside Passenger Positions
Lap-Shoulder Belt
The positions next to the windows have lap
-shoulder
belts. Here's how to wear one properly.
1. Pick up the latch plate and pull the belt across you.
Don't let it get twisted.
The shoulder belt may lock if you pull the belt across
you very quickly. If this happens, let the belt go back
slightly to unlock it. Then pull the belt across you
more slowly.
2. Push the latch plate into the buckle until it clicks.

1-100
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach
it to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. If your vehicle has a
built
-in child restraint, also periodically make sure the
harness straps, latch plates, buckle, clip, child head
restraint and anchorages are working properly. Look for any other loose or damaged safety belt and
built
-in child restraint system parts. If you see anything
that might keep a safety belt or built
-in child restraint
system from doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is torn or frayed, get a new one right away.
If your vehicle has the built
-in child restraint, torn or
frayed harness straps can rip apart under impact forces
just like torn or frayed safety belts can. They may not
protect a child in a crash. If a harness strap is torn or
frayed, get a new harness right away.
Also look for any opened or broken air bag covers,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-5 Keys
2
-7 Door Locks
2
-10 Remote Keyless Entry System (Option)
2
-16 Multifunction Alarm Locks and Lighting Choices
2
-26 Dual Sliding Doors
2
-28 Power Sliding Door (Option)
2
-36 Liftgate
2
-37 Theft
2
-38 Content Theft-Deterrent (Option)
2
-41 PASS-Key
III
2
-43 New Vehicle ªBreak-Inº
2
-43 Ignition Positions
2
-45 Starting Your Engine
2
-46 Engine Coolant Heater (If Equipped)
2
-48 Automatic Transaxle Operation
2
-52 Parking Brake
2
-53 Shifting Into PARK (P)2
-56 Shifting Out of PARK (P)
2
-56 Parking Over Things That Burn
2
-57 Engine Exhaust
2
-57 Running Your Engine While You're Parked
2
-59 Turn Signal/Multifunction Lever
2
-66 Exterior Lamps
2
-67 Interior Lamps
2
-72 Storage Compartments
2
-84 Accessory Inflator System (Option)
2
-86 Accessory Power Outlets
2
-87 OnStar
System (If Equipped)
2
-90 HomeLink
Transmitter (Option)
2
-94 The Instrument Panel -- Your
Information System
2
-98 Warning Lights, Gages, Messages and Indicators
2
-108 Message Center
2
-116 Driver Information Center (DIC) (Option)
2
-119 Rear Parking Assist (Option)

2-9
Last Door Closed Locking
The last door closed locking feature makes it easier to
use your power door locks to lock all the doors and the
liftgate when leaving your vehicle.
The first time you attempt to lock the doors using the
power lock switch or the optional remote keyless entry
transmitter, three chimes will signal that last door closed
locking is being used when any door or the liftgate is
open. All doors and the liftgate can be re
-opened for up
to five seconds from the time the last door is closed.
Five seconds after the last door is closed, all the doors
will lock. You can lock the doors immediately using the
power door lock switch or the optional remote keyless
entry transmitter a second time.
If the ignition is in RUN or ACCESSORY, this feature
will not lock the doors.
To turn the last door closed locking feature off or on, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
Automatic Door Locks
All of the doors will lock automatically when you move
your shift lever out of PARK (P). All doors will unlock
automatically when the ignition is turned off while the
shift lever is in PARK (P).If someone needs to get out while you're not in
PARK (P), have that person use the manual lever or the
power door lock switch. When the door is closed again,
it will not lock automatically. Use the manual lever or
the power door lock switch to lock the door.
To change the way the auto door locks operate, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
With the automatic door locks feature, you can lock or
unlock the doors at any time, either manually or using
the power door lock switches.
Sliding Door Delayed Locking
If either sliding door is open when you use the power door
locks to lock the vehicle, the sliding door that is open will
not lock. Normally the last door closed locking feature will
be used to lock the sliding door after it has been closed.
When the ignition is on or if the last door closed locking
feature has been overridden or programmed to be off,
the sliding door delayed locking feature will lock your
sliding door for you. Three seconds after either sliding
door is closed, all the doors will lock.

2-10 Lockout Deterrent
The lockout deterrent feature makes it difficult for you
to lock your keys in your vehicle. If the driver's door is
open while the keys are in the ignition, a chime will
sound and you will not be able to use your power door
lock switch to lock the vehicle.
If you don't leave the keys in the ignition or if you use
the manual door lock, you could still lock your keys in
your vehicle. Always remember to take your keys
with you.
To turn this feature off or on, see ªMultifunction Alarm
Locks and Lighting Choicesº in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from the inside. Then get out and
close the door.
Remote Keyless Entry
System (Option)
If your vehicle has this
feature, you can lock and
unlock your doors and the
liftgate from about 3 feet
(1 m) up to 30 feet (9 m)
away using the remote
keyless entry transmitter
supplied with your vehicle.
Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.

2-11
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
Remote Driver's Door and All Door Unlock
When you press UNLOCK on the remote keyless entry
transmitter, only the driver's door will unlock. If you
press UNLOCK again within five seconds, all the doors
and the liftgate will unlock. If you would like all the
doors to unlock the first time you press UNLOCK, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
If your vehicle has the optional content theft
-deterrent
system, the UNLOCK button on the remote keyless
entry transmitter will disarm the system. See ªContent
Theft
-Deterrentº in the Index for more details.
Remote All Door Lock
To lock all doors, press LOCK on the remote keyless
entry transmitter. See ªPower Door Locksº in the Index
for more details on the power door lock features. If your
vehicle has the optional content theft
-deterrent system,
the LOCK button may arm the system. See ªContent
Theft
-Deterrentº in the Index for more details.

2-12
Remote Lock Confirmation (Option)
If your vehicle has the optional content theft
-deterrent
system, your remote keyless entry transmitter will have
this feature.
When you use the remote keyless entry transmitter to
lock your vehicle, the parking lamps will flash to let you
know the command has been received. If you press the
LOCK button again, within five seconds, the horn will
sound and the parking lamps will flash to let you know
the vehicle is already locked.
If you would like to change the way the parking lamps
and horn operate with remote lock confirmation, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.Remote Unlock Confirmation (Option)
If your vehicle has the optional content theft-deterrent
system, your remote keyless entry transmitter will have
this feature.
When you use your remote keyless entry transmitter to
unlock your vehicle or to operate the optional power
sliding door(s), the parking lamps will flash to let you
know the command was received.
If you would like to change the way the parking
lamps operate with remote unlock confirmation, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
Remote Alarm (Option)
When you press the horn button on the remote keyless
entry transmitter, the parking lamps will flash and the
horn will sound. This will allow you to attract attention,
if needed.
Press the horn button to stop the alarm from sounding.

2-16
Multifunction Alarm Locks and Lighting Choices
Your vehicle's locks and lighting systems can be programmed with several different features. The features you can
program depend on the options that came with your vehicle. The following chart shows the features that can be
programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the
programming mode.
