2001 CHEVROLET IMPALA clock

3-36
VOL: Turn this knob clockwise to increase volume when
RDS interrupts regular play. Turn it counterclockwise to
decrease volume.
INFO: If the current station has a message, INFO will
appear on the display. These text messages are from the
RDS broadcaster to the listening public and may be
general information such as artist and song title, call in
phone numbers, etc. Press this button to see the
message. If the whole message does not appear on
the display, parts of the message will appear every
three seconds until the message is completed. To scroll
through the message at your own speed press the INFO
button again for less than one second. A new group
of words will appear on the display. Once the complete
message has been displayed, INFO will disappear from
the display until another new message is received. The
old message can be displayed by pressing the INFO
button until a new message is received or a different
station is tuned to.P-TYPE LIST: Turn this knob clockwise or
counterclockwise to select the Program Type (PTY) you
want to listen to. TYPE and a PTY will appear on the
display. Press the SEEK TYPE button and the radio
will seek to the first RDS broadcaster of the selected
P
-TYPE. If the radio cannot find the desired P-TYPE,
NONE will appear on the display and the radio will
return to the last station you were listening to.
SEEK TYPE: Press this button to go to a station with
the last selected PTY. TYPE and the last selected PTY
will appear on the display, if it is not already showing.
Press SEEK TYPE a second time to seek. If a station
with the selected PTY is not found, the radio will return
to the original station and display NONE.
ALERT!: This type of announcement warns of national
or local emergencies. You will not be able to turn off alert
announcements. ALERT! appears on the display when an
alert announcement plays. When an alert announcement
comes on the tuned radio station, you will hear it, even if
the volume is muted or a cassette tape or compact disc
is playing. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.
This function will only work during actual emergency
broadcasts, and will not work during tests of the
emergency broadcast system. This feature is not
supported by all RDS stations.

3-37
ALTERNATE FREQUENCY: This RDS feature
allows the radio to automatically switch frequencies to
the best quality station with the same programming.
AF is off by default from the factory. Press and hold
AM FM for two seconds to turn alternate frequency on
or off. AF ON or AF OFF will appear on the display
and the radio will beep once. The radio will not
automatically switch to other stations when AF is off.
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in this
player. The longer side with the tape visible should face
to the right. If the ignition is on, but the radio is off,
the tape can be inserted and will begin playing. A tape
symbol is shown on the display whenever a tape is
inserted. If you hear nothing but a garbled sound, the
tape may not be in squarely. Press EJT to remove the
tape and start over.
While the tape is playing, use the VOL, FADE, BAL,
TREB, BASS and SEEK controls just as you do
for the radio. The display will show TAPE and an
arrow showing which side of the tape is playing.If you want to insert a tape when the ignition is off,
first press EJT or DISP.
If CHK TAPE appears on the radio display, the tape
won't play because of an error.
CHK TAPE may be displayed when the tape is tight and
the player can't turn the tape hubs. Remove the tape.
Hold the tape with the open end down and try to turn
the right hub counterclockwise with a pencil. Turn the
tape over and repeat. If the hubs do not turn easily,
your tape may be damaged and should not be used in
the player. Try a new tape to make sure your player is
working properly.
CHK TAPE may be displayed when the tape is broken.
Try a new tape.
CHK TAPE may be displayed when the tape is wrapped
around the tape head. Attempt to get the cassette out.
Try a new tape.
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.

4-13
An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o'clock positions, you can
turn it a full 180 degrees very quickly without removing
either hand. But you have to act fast, steer quickly, and
just as quickly straighten the wheel once you have
avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving
at all times and wear safety belts properly.
Off-Road Recovery
You may find that your right wheels have dropped
off the edge of a road onto the shoulder while
you're driving.
If the level of the shoulder is only slightly below the
pavement, recovery should be fairly easy. Ease off the
accelerator and then, if there is nothing in the way, steer
so that your vehicle straddles the edge of the pavement.
You can turn the steering wheel up to one
-quarter turn
until the right front tire contacts the pavement edge. Then
turn your steering wheel to go straight down the roadway.

5-17
The radiator pressure cap is located in the front of the
engine compartment on the passenger's side, near the
diagonal cross brace. See ªEngine Compartment
Overviewº in the Index for more information on location.
1. You can remove the radiator pressure cap when the
cooling system, including the radiator pressure cap
and upper radiator hose, is no longer hot. Turn the
pressure cap slowly counterclockwise until it first stops.
(Don't press down while turning the pressure cap.)
If you hear a hiss, wait for that to stop. A hiss means
there is still some pressure left.2. Then keep turning the pressure cap, but now push
down as you turn it. Remove the pressure cap.
CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Don't spill coolant on a hot engine.

5-18
3. If you have the 3800 V6 engine, remove the
3800 Series II V6 engine cover shield to access the
bleed valve.
A. Clean the area around the engine oil fill tube and
cap before removing. Twist the oil fill tube, with
cap attached, counterclockwise and remove it.
B. Lift the engine cover shield at the front, slide the
catch tab out of the engine bracket and remove
the cover shield.
C. Put the oil fill tube, with cap attached, in the valve
cover oil fill hole until you're ready to replace the
cover shield.
3400 V6 Bleed Valve #1 3400 V6 Bleed Valve #2
4. After the engine cools,
open the coolant air
bleed valve or valves.
3800 Series II V6
Bleed Valve

5-19
3400 V6 engine: There are two bleed valves. One is
located on the thermostat housing. The other is
located on the thermostat bypass tube.
3800 V6 engine: There is one bleed valve.
It is located on the thermostat housing.5. Fill the radiator with the proper DEX-COOL

coolant mixture, up to the base of the filler neck.
See ªEngine Coolantº in the Index for more
information about the proper coolant mixture.
If you see a stream of coolant coming from an air
bleed valve, close the valve. Otherwise, close the
valves after the radiator is filled.
6. Rinse or wipe any spilled coolant from the engine
and the compartment.
7. If you have the 3800 V6 engine, replace the
3800 Series II V6 engine cover shield.
A. Remove the oil fill tube, with cap attached,
from the valve cover.
B. Insert the catch tab on the cover shield under
the bracket on the engine.
C. Place the hole in the cover shield over the hole
in the valve cover. Install oil fill tube and cap by
twisting clockwise.

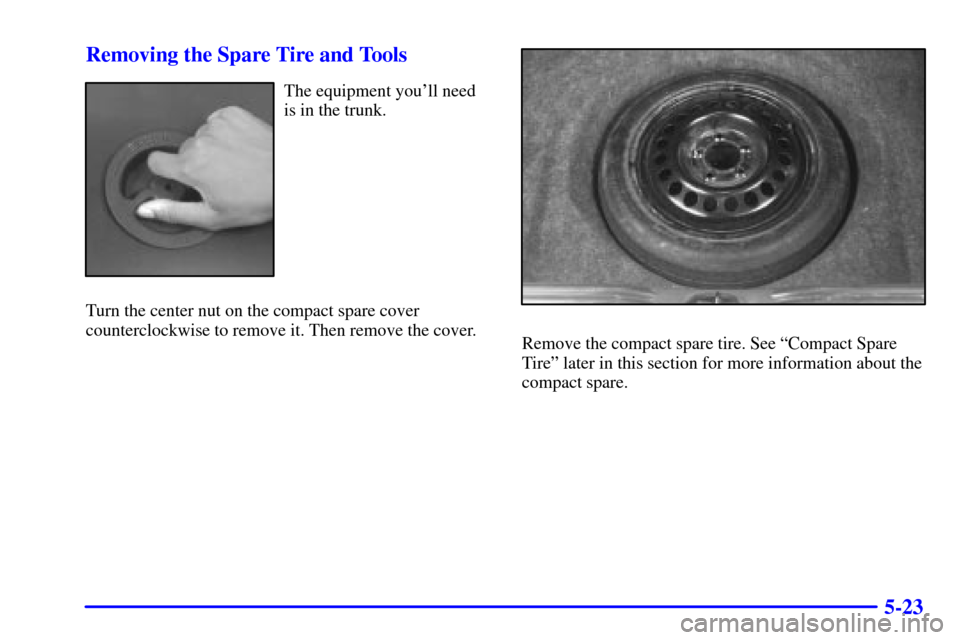

5-23 Removing the Spare Tire and Tools
The equipment you'll need
is in the trunk.
Turn the center nut on the compact spare cover
counterclockwise to remove it. Then remove the cover.
Remove the compact spare tire. See ªCompact Spare
Tireº later in this section for more information about the
compact spare.

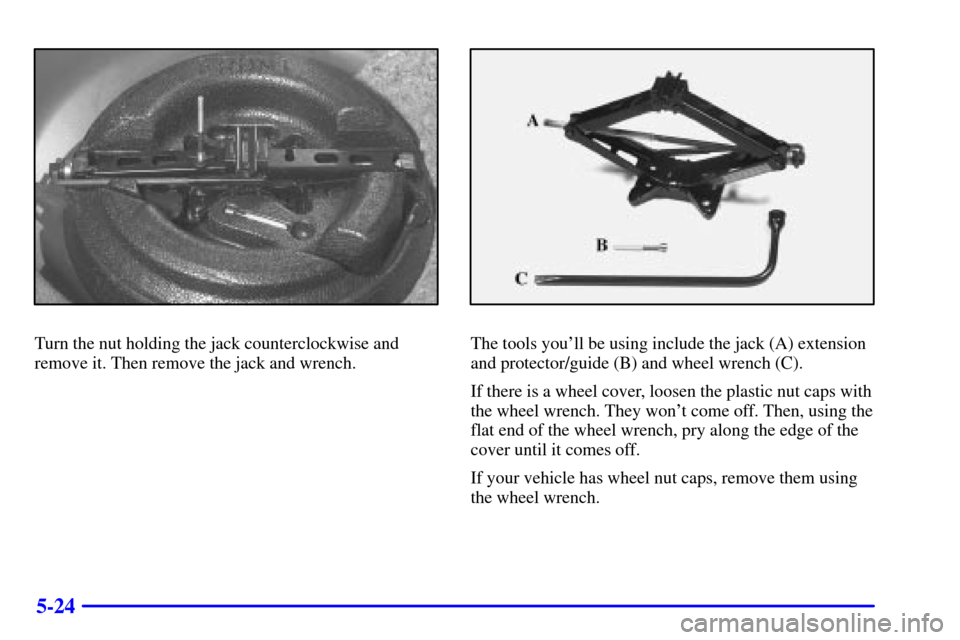

5-24
Turn the nut holding the jack counterclockwise and
remove it. Then remove the jack and wrench.The tools you'll be using include the jack (A) extension
and protector/guide (B) and wheel wrench (C).
If there is a wheel cover, loosen the plastic nut caps with
the wheel wrench. They won't come off. Then, using the
flat end of the wheel wrench, pry along the edge of the
cover until it comes off.
If your vehicle has wheel nut caps, remove them using
the wheel wrench.
