2001 CHEVROLET CAMARO keyless

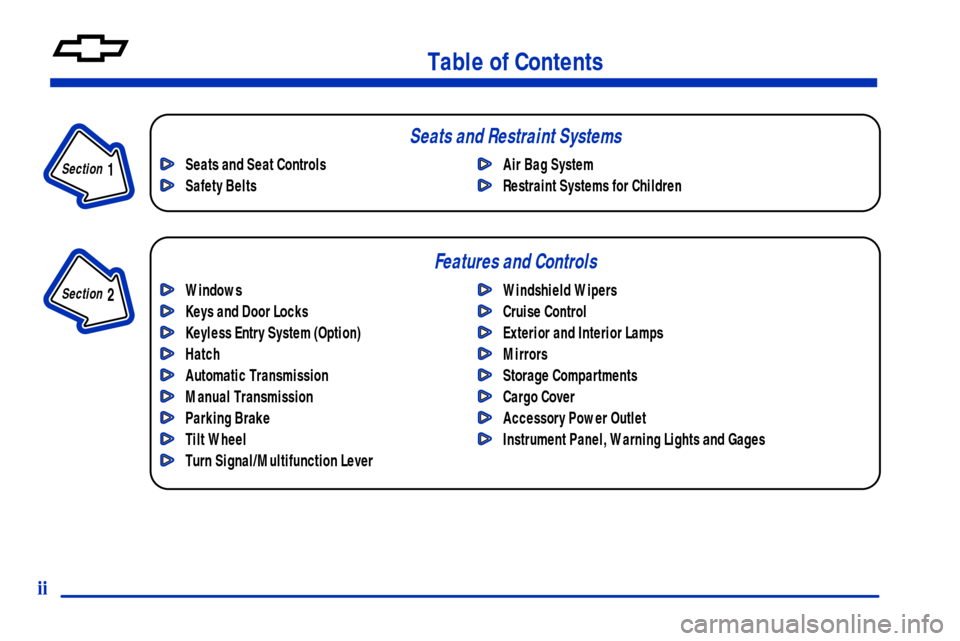

Table of Contents
Windows
Keys and Door Locks
Keyless Entry System (Option)
Hatch
Automatic Transmission
Manual Transmission
Parking Brake
Tilt Wheel
Turn Signal/Multifunction LeverWindshield Wipers
Cruise Control
Exterior and Interior Lamps
Mirrors
Storage Compartments
Cargo Cover
Accessory Power Outlet
Instrument Panel, Warning Lights and Gages Seats and Seat Controls
Safety BeltsAir Bag System
Restraint Systems for Children
Section
1
Section
2
Seats and Restraint Systems
Features and Controls
ii

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-8 Keyless Entry System (Option)
2
-13 Hatch
2
-15 Theft
2
-16 Content Theft-Deterrent/Alarm System (Option)
2
-19 PASS-Key
II
2
-28 New Vehicle ªBreak-Inº
2
-29 Ignition Positions
2
-31 Starting Your Engine
2
-34 Engine Coolant Heater (Canada Only)
2
-35 Automatic Transmission Operation
2
-39 Manual Transmission Operation
2
-42 Parking Brake
2
-44 Shifting Into PARK (P)
(Automatic Transmission Only)
2
-46 Shifting Out of PARK (P)
(Automatic Transmission Only)2
-46 Parking Your Vehicle
(Manual Transmission Models Only)
2
-47 Parking Over Things That Burn
2
-47 Engine Exhaust
2
-48 Running Your Engine While You're Parked
(Automatic Transmission)
2
-49 Limited-Slip Rear Axle
2
-49 Tilt Wheel
2
-50 Turn Signal/Multifunction Lever
2
-56 Exterior Lamps
2
-58 Interior Lamps
2
-59 Mirrors
2
-61 Storage Compartments
2
-65 T-Top Roof Panels (Option)
2
-72 Convertible Top (If Equipped)
2
-80 The Instrument Panel -- Your
Information System
2
-84 Warning Lights, Gages and Indicators

2-8 Lockout Prevention (If Equipped)
To protect you from locking your keys in the vehicle,
this feature stops the power door locks from locking
when the keys are in the ignition and a door is open.
If the power lock switch is pressed when a door is open,
a chime will sound five times as a reminder to take the
keys out of the ignition before locking the door.
The vehicle is shipped from the factory with this feature
turned on. If you would like to turn this feature off, see
ªFeature Customizationº in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Keyless Entry System (Option)
If your vehicle has this feature, you can lock and unlock
your doors or unlock your trunk from about 3 feet (1 m)
up to 30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.

2-9
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-10 Operation
The driver's door will unlock automatically when UNLOCK
is pressed on the transmitter. If UNLOCK is pressed again
within five seconds, the passenger's door will also unlock.
All doors will lock when LOCK is pressed.
The hatch will unlock when the REAR 2X button on
the transmitter is pressed twice within five seconds
(pause slightly between presses) and as long as the
ignition is turned to OFF. If the ignition is on, the
REAR 2X button will only work if the transmission is
in PARK (P) for an automatic transmission, or if the
parking brake is set on a manual transmission.
The system will turn on the interior lamps for about
40 seconds (or until the ignition is turned to RUN),
when you unlock the doors or hatch. The interior lamps
will go off when you lock the doors.
Operating the remote keyless entry transmitter may
interact with the content theft
-deterrent/alarm
system (option). See ªContent Theft
-Deterrent/Alarm
Systemº in the Index.Alarm/Panic Mode
If you are involved in a panic situation, press the horn
symbol button on your remote keyless entry transmitter
and the horn will sound and the parking lamps will
flash. This will draw needed attention to you and your
vehicle. To turn this feature off, either push the horn
symbol button again or turn the ignition key to RUN.
This feature will not work if your ignition is on or if
the transmitter is 30 feet (9 m) or more away from
your vehicle.
Transmitter Verification (If Equipped)
This feature provides feedback to the holder of the
remote keyless entry transmitter that a command has been
received by the keyless entry receiver. The parking lamps
will flash on every lock and unlock command and the
horn will sound only if the LOCK button is pressed twice
within five seconds. This allows for silent operation of
locking and unlocking, unless a confirming horn chirp is
desired. Other options may be selected for this feature
(see ªFeature Customizationº in the Index).

2-11 Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Have each transmitter you intend to match ready for the
next steps. To match transmitters to your vehicle, do
the following:
1. Turn the ignition key to RUN, then to OFF.
This will disarm the content theft
-deterrent/alarm
system (option).
2. Remove the RADIO fuse. This fuse is located in the
main fuse block which is located on the left side of
your instrument panel. See ªFuses and Circuit
Breakersº in the Index.3. Turn the ignition key from OFF to RUN three times
quickly (within five seconds). The vehicle will respond
by locking the doors, unlocking the driver's door and
releasing the hatch. Your transmitter is now ready to
match the vehicle. Leave the ignition in RUN.
4. Press and hold the LOCK and UNLOCK buttons on
the first transmitter for 15 seconds. The vehicle will
respond as in Step 3.
5. Repeat Step 4 for the remaining transmitters.
6. When you have finished matching all of your
transmitters, replace the RADIO fuse.
7. Check that all transmitters work by pressing
the buttons.
If the transmitters don't work, or if you'd rather not
match the transmitters yourself, see your dealer.

2-12 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery in the remote keyless entry
transmitter, do the following:
1. Carefully pry off the cover by inserting a coin
(or similar object) in the slot between the covers
and twist.
2. Lift off the back cover.
3. Remove and replace the battery. Use one battery,
type CR2032, or a similar type. Put the new battery
in printed side down.
4. Put the back cover on. Make sure the cover is on
tight so water won't get in.
5. Check the transmitter operation. If the transmitter
does not work after battery replacement, it may need
to be resynchronized or matched to your vehicle. See
ªResynchronizationº following.

2-13 Resynchronization
Resynchronization may be necessary due to the security
method used by the remote keyless entry system. The
transmitter does not send the same signal twice to the
receiver. The receiver will not respond to a signal that has
been sent previously. This prevents anyone from recording
and playing back the signal from the transmitter.
To resynchronize the transmitter with the receiver, do
the following:
1. Stand close to the vehicle.
2. Press and hold the LOCK and UNLOCK buttons
on the transmitter at the same time for about
eight seconds.
The door locks should cycle and the interior lamps
should flash to confirm resynchronization.
If this does not happen, you may need to replace the
battery in your transmitter or match the transmitter
to your vehicle. See ªMatching Transmitter(s) to
Your Vehicleº in the Index.
Hatch
CAUTION:
It can be dangerous to drive with the hatch open
because carbon monoxide (CO) gas can come into
your vehicle. You can't see or smell CO. It can
cause unconsciousness and even death.
If you must drive with the hatch open or if
electrical wiring or other cable connections must
pass through the seal between the body and
the hatch:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
