2000 YAMAHA YZF600 Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU00057
Turn indicator light “ ”
This indicator flashes when the turn
switch is moved to the left or right.
EAU00063
High beam indicator light “ ”
This indicator comes on when the
headlight high beam is used.1. Neutral indicator light “ ”
2. Oil level indicator light “ ”
3. Fuel indicator light “ ”
4. Turn indicator light “ ”
5. High beam indicator light “ ”E_4tv_Functions.fm Page 3 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00071
Oil level indicator circuit check
CB-48E
Turn the main switch to “ON” and
the engine stop switch to “ ”.
Oil level indicator light
does not come on.
Oil level indicator light
comes on.Check engine oil level.
Oil level indicator light
comes on.
Oil level indicator light
does not come on.
Engine oil level and
electrical circuit are OK.
Go ahead with riding.
Put the transmission in neutral or
apply the clutch lever, then push
the start switch.
Oil level
is OK.
Supply
engine oil.Oil level
is low.
Ask a Yamaha dealer to
inspect electrical circuit.
E_4tv_Functions.fm Page 4 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00085
Fuel indicator circuit check
CB-46E
Turn the main switch to “ON” and the
engine stop switch to “ ”.
Fuel indicator light does
not come on.
Fuel indicator light
comes on.Check the fuel level.
Fuel indicator light
comes on.
Fuel indicator light
does not come on.
Fuel level and electrical
circuit are OK.
Go ahead with riding.
Put the transmission in neutral or
apply the clutch lever, then push
the start switch.
Fuel level
is OK.
Supply fuel.Fuel level
is low.
Ask a Yamaha dealer to
inspect electrical circuit.
E_4tv_Functions.fm Page 5 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00095
SpeedometerThe speedometer shows riding speed.
This speedometer is equipped with an
odometer and trip odometer. The trip
odometer can be reset to “0” with the
reset knob. Use the trip odometer to
estimate how far you can ride on a tank
of fuel. This information will enable you
to plan fuel stops in the future.
EAU00101
TachometerThis model is equipped with an electric
tachometer so the rider can monitor the
engine speed and keep it within the
ideal power range.
EC000003
CAUTION:@ Do not operate in the red zone.
Red zone: 13,200 r/min and above @
1. Odometer
2. Reset knob
3. Trip odometer
1. Tachometer
2. Red zone
E_4tv_Functions.fm Page 6 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU00105
Diagnosis deviceThis model is equipped with a self diag-
nosis for the following circuits:l
Throttle Position Sensor (T.P.S.)
circuit
l
Fuel indicator light circuit
If some trouble should occur in any of
these circuits, the tachometer will re-
peatedly display as follows:
CB-53EUse this chart to identify what circuit is
faulty according to the specified r/min
displayed.CB-60E
If the tachometer displays as described
above, take note of the specified r/min
and then take your motorcycle to a
Yamaha dealer for repair.
EC000004
CAUTION:@ To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if the tachometer dis-
plays a repeated change in r/min. @
EAU00109
Antitheft alarm (optional)An antitheft alarm can be equipped to
this motorcycle. Consult your Yamaha
dealer to obtain and install the alarm.
Specified r/min
Faulty circuit
3,000 r/min
Throttle Position Sensor
(T.P.S.)
8,000 r/min
Fuel indicator light
0 r/min
for
3 seconds
Specified r/min for
the faulty circuit
for 2.5 seconds
(see chart below)
Current
engine
r/min for
3 seconds
E_4tv_Functions.fm Page 7 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU01652
Coolant temperature gaugeThis gauge indicates the coolant tem-
perature when the main switch is on.
The engine operating temperature will
vary with changes in weather and en-
gine load. If the needle points to the red
zone or higher, stop your motorcycle
and let the engine cool. (See page 6-41
for details.)
EC000002
CAUTION:@ When the engine is overheated, do
not continue riding. @
EAU00118
Handlebar switches
EAU00120
Pass switch “PASS”
Press the switch to operate the passing
light.
EAU00121
Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
Horn switch “ ”
Press the switch to sound the horn.
1. Coolant temperature gauge
2. Red zone
1. Pass switch “PASS”
2. Dimmer switch
3. Turn signal switch
4. Horn switch “ ”
E_4tv_Functions.fm Page 8 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00138
Engine stop switch
The engine stop switch is a safety de-
vice for use in an emergency such as
when the motorcycle overturns or if
trouble occurs in the throttle system.
Turn the switch to “ ” to start the en-
gine. In case of emergency, turn the
switch to “ ” to stop the engine.
EAU00134
Lights switch
Turning the light switch to “ ”, turns
on the auxiliary light, meter lights and
taillight. Turning the light switch to
“ ” turns the headlight on also.
EAU00143
Start switch “ ”
The starter motor cranks the engine
when pushing the start switch.
EC000005
CAUTION:@ See starting instructions prior to
starting the engine. @
EAU00152
Clutch leverThe clutch lever is located on the left
handlebar, and the ignition circuit cut-
off system is incorporated in the clutch
lever holder. Pull the clutch lever to the
handlebar to disengage the clutch, and
release the lever to engage the clutch.
The lever should be pulled rapidly and
released slowly for smooth clutch oper-
ation. (Refer to the engine starting pro-
cedures for a description of the ignition
circuit cut-off system.)
1. Engine stop switch
2. Lights switch
3. Start switch “ ”
1. Clutch lever
E_4tv_Functions.fm Page 9 Wednesday, September 1, 1999 11:10 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU00157
Shift pedalThis motorcycle is equipped with a con-
stant-mesh 6-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
EAU00161
Front brake leverThe front brake lever is located on the
right handlebar and is equipped with a
brake lever adjusting dial. To activate
the front brake, pull the lever toward
the handlebar.
To adjust the front brake lever position,
turn the brake lever adjusting dial while
pulling the lever forward. Make sure the
setting on the brake lever adjusting dial
is aligned with the arrow mark.
EAU00162
Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.

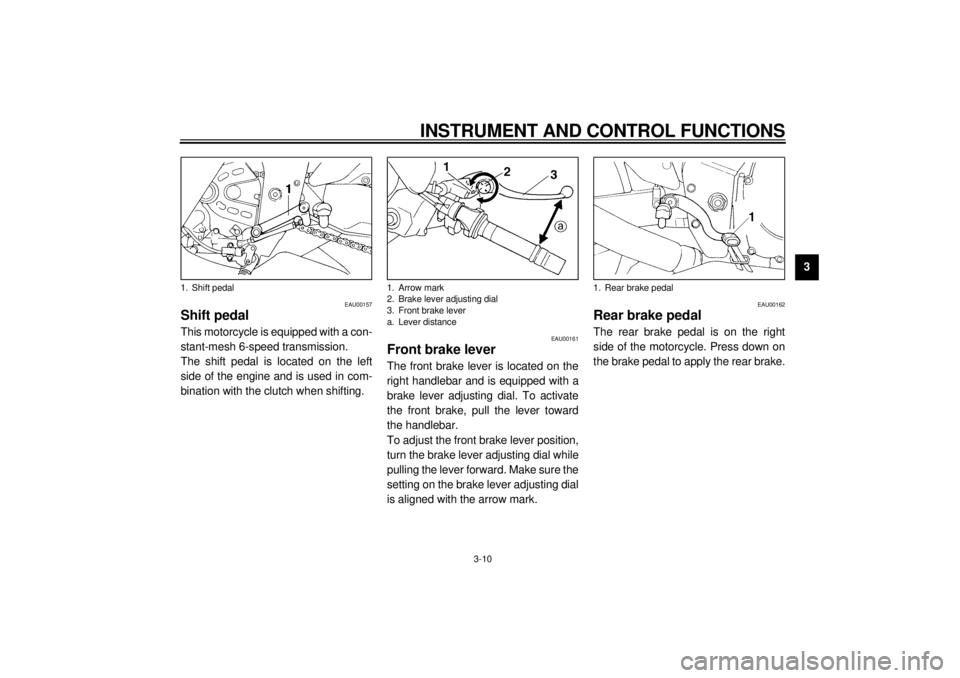

1. Shift pedal
1. Arrow mark
2. Brake lever adjusting dial
3. Front brake lever
a. Lever distance
1. Rear brake pedal
