2000 YAMAHA YZF1000 brake

DESCRIPTION
2-2
2
Right view12. Tail/brake light (page 6-30)
13. Passenger seat (page 3-14)
14. Coolant reservoir tank (page 6-11)
15. Rider seat (page 3-13)
16. Rear shock absorber spring preload
adjusting ring (page 3-17)
17. Fuel tank (page 3-11)
18. Front fork spring preload adjusting bolt (page 3-15)19. Front fork rebound damping force
adjusting screw (page 3-16)
20. Headlight (page 6-29)
21. Rear brake pedal (page 3-11)
22. Rear shock absorber rebound damping
force adjusting knob (page 3-18)
23. Rear brake fluid level check window
E_4sv_Description.fm Page 2 Tuesday, August 31, 1999 3:41 PM

DESCRIPTION
2-3
2
Controls/Instruments24. Clutch lever (page 3-9)
25. Left handlebar switches (page 3-8)
26. Speedometer (page 3-6)
27. Main switch/steering lock (page 3-1)
28. Tachometer (page 3-6)
29. Coolant temperature gauge (page 3-7)
30. Right handlebar switches (page 3-9)
31. Throttle grip (page 6-15)
32. Front brake lever (page 3-10)E_4sv_Description.fm Page 3 Tuesday, August 31, 1999 3:41 PM

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock ...................................... 3-1
Indicator lights ...................................................... 3-2
Oil level indicator circuit check .............................. 3-3
Fuel indicator circuit check ................................... 3-5
Speedometer ........................................................ 3-6
Tachometer ........................................................... 3-6
Diagnosis device................................................... 3-7
Coolant temperature gauge .................................. 3-7
Handlebar switches .............................................. 3-8
Clutch lever ........................................................... 3-9
Shift pedal ........................................................... 3-10
Front brake lever ................................................. 3-10
Rear brake pedal ................................................ 3-11Fuel tank cap ..................................................... 3-11
Fuel .................................................................... 3-12
Fuel tank breather hose (for Germany only) ...... 3-13
Starter (choke) “ ” .......................................... 3-13
Seats .................................................................. 3-13
Helmet holder..................................................... 3-14
Storage compartment ........................................ 3-15
Front fork adjustment ......................................... 3-15
Rear shock absorber adjustment ....................... 3-17
Luggage strap holders ....................................... 3-19
EXUP (EXhaust Ultimate Powervalve) ............... 3-19
Sidestand ........................................................... 3-19
Sidestand/clutch switch operation check............ 3-20
E_4sv_FunctionsTOC.fm Page 1 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3 To adjust the distance between the
clutch lever and the handlebar grip,
turn the clutch adjusting dial while
pushing the lever forward. Make sure
the setting on the clutch lever adjusting
dial is aligned with the arrow mark.
EAU00157
Shift pedalThis motorcycle is equipped with a con-
stant-mesh 5-speed transmission.
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch when shifting.
EAU00161
Front brake leverThe front brake lever is located on the
right handlebar and is equipped with a
brake lever adjusting dial. To activate
the front brake, pull the lever toward
the handlebar.
To adjust the front brake lever position,
turn the brake lever adjusting dial while
pulling the lever forward. Make sure the
setting on the brake lever adjusting dial
is aligned with the arrow mark.
1. Shift pedal
1. Lever position adjusting dial
2. Arrow mark
a. Lever distance
E_4sv_Functions.fm Page 10 Tuesday, August 31, 1999 3:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU00162

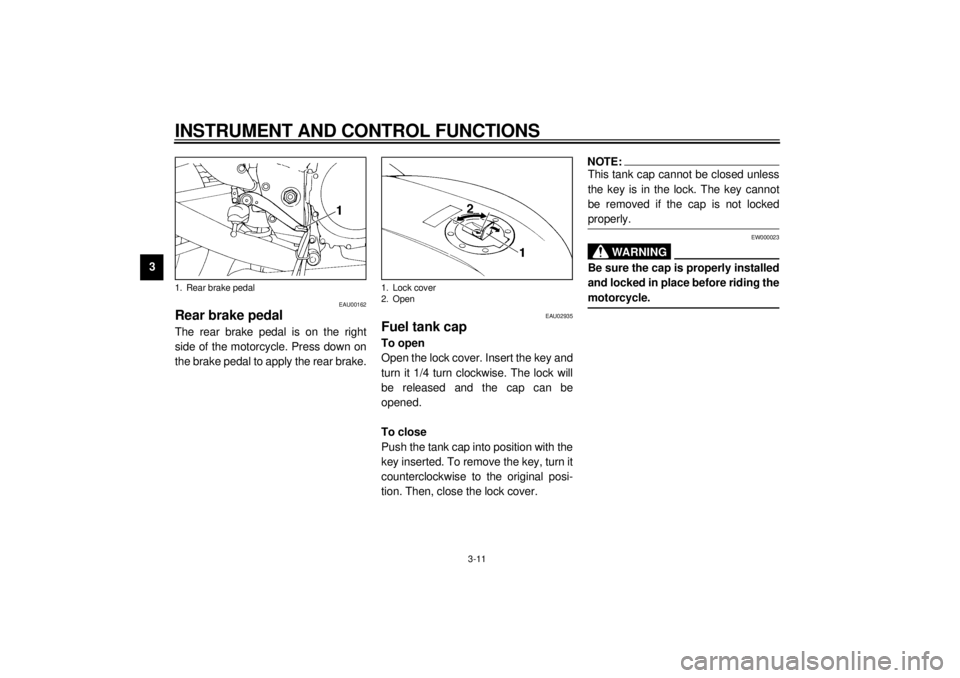

Rear brake pedalThe rear brake pedal is on the right
side of the motorcycle. Press down on
the brake pedal to apply the rear brake.
EAU02935
Fuel tank capTo open
Open the lock cover. Insert the key and
turn it 1/4 turn clockwise. The lock will
be released and the cap can be
opened.
To close
Push the tank cap into position with the
key inserted. To remove the key, turn it
counterclockwise to the original posi-
tion. Then, close the lock cover.
NOTE:@ This tank cap cannot be closed unless
the key is in the lock. The key cannot
be removed if the cap is not locked
properly. @
EW000023
WA R N I N G
@ Be sure the cap is properly installed
and locked in place before riding the
motorcycle. @
1. Rear brake pedal
1. Lock cover
2. Open
E_4sv_Functions.fm Page 11 Tuesday, August 31, 1999 3:42 PM

4-1
4
EAU01114
4-PRE-OPERATION CHECKSOwners are personally responsible for their vehicle’s condition. Your motorcycle’s vital functions can start to deteriorate
quickly and unexpectedly, even if it remains unused (for instance, if it is exposed to the elements). Any damage, fluid leak or
loss of tire pressure could have serious consequences. Therefore, it is very important that, in addition to a thorough visual in-
spection, you check the following points before each ride.
EAU00340
PRE-OPERATION CHECK LIST
ITEM CHECKS PAGE
Front brake
• Check operation, free play, fluid level and fluid leakage.
• Fill with DOT 4 brake fluid if necessary.6-19 ~ 6-22
Rear brake
6-19 ~ 6-22
Clutch• Check operation, fluid level and fluid leakage.
• Fill with DOT 4 brake fluid if necessary.6-21 ~ 6-22
Throttle grip and housing• Check for smooth operation.
• Lubricate if necessary.6-15
Engine oil• Check oil level.
• Fill with oil if necessary.6-9 ~ 6-11
Coolant reservoir tank• Check coolant level.
• Fill with coolant if necessary.6-11 ~ 6-12
Drive chain• Check chain slack and condition.
• Adjust if necessary.6-23 ~ 6-24
Wheels and tires
• Check tire pressure, wear and damage. 6-16 ~ 6-19
Control and meter cable• Check for smooth operation.
• Lubricate if necessary.6-24
Brake and shift pedal
shafts• Check for smooth operation.
• Lubricate if necessary.6-24
Brake and clutch lever
pivots• Check for smooth operation.
• Lubricate if necessary.6-25
E_4sv_Preop.fm Page 1 Tuesday, August 31, 1999 3:44 PM

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Tool kit................................................................... 6-1
Periodic maintenance and lubrication ................... 6-2
Cowling removal and installation .......................... 6-5
Cowling A.............................................................. 6-5
Cowling B.............................................................. 6-5
Cowling C ............................................................. 6-6
Spark plugs........................................................... 6-7
Engine oil .............................................................. 6-9
Coolant ............................................................... 6-11
Air filter ............................................................... 6-12
Carburetor adjustment ........................................ 6-14
Idle speed adjustment ........................................ 6-15
Throttle cable free play inspection ...................... 6-15
Valve clearance adjustment ................................ 6-16
Tires .................................................................... 6-16
Wheels................................................................ 6-19
Brake light switch adjustment ............................. 6-19
Checking the front and rear brake pads.............. 6-20
Inspecting the brake fluid level............................ 6-21
Brake fluid replacement ...................................... 6-22
Drive chain slack check ...................................... 6-23Drive chain slack adjustment ............................. 6-23
Drive chain lubrication........................................ 6-24
Cable inspection and lubrication ........................ 6-24
Brake and shift pedal lubrication ........................ 6-24
Brake and clutch lever lubrication ...................... 6-25
Sidestand lubrication.......................................... 6-25
Rear suspension lubrication............................... 6-25
Front fork inspection ........................................... 6-26
Steering inspection ............................................ 6-26
Wheel bearings .................................................. 6-27
Battery................................................................ 6-27
Fuse replacement .............................................. 6-28
Headlight bulb replacement ............................... 6-29
Tail/brake light bulb replacement ........................ 6-30
Turn signal light bulb replacement...................... 6-30
Front wheel removal ........................................... 6-31
Front wheel installation ...................................... 6-31
Rear wheel removal ........................................... 6-32
Rear wheel installation ....................................... 6-33
Troubleshooting .................................................. 6-34
Troubleshooting chart......................................... 6-35
E_4sv_PeriodicTOC.fm Page 1 Tuesday, August 31, 1999 3:45 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU00473
PERIODIC MAINTENANCE AND LUBRICATION
CP-01ENO. ITEM CHECKS AND MAINTENANCE JOBSINITIAL
(1,000 km)EVERY
6,000 km
or
6 months
(whichever
comes first)12,000 km
or
12 months
(whichever
comes first)
1
*Fuel line• Check fuel hoses and vacuum hose for cracks or damage.
• Replace if necessary.ÖÖ
2*Fuel filter• Check condition.
• Replace if necessary.Ö
3 Spark plugs• Check condition.
• Clean, regap or replace if necessary.ÖÖÖ
4*Valves• Check valve clearance.
• Adjust if necessary.Every 42,000 km or 42 months
(whichever comes first)
5 Air filter
• Clean or replace if necessary.ÖÖ
6*Clutch• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)
• Correct accordingly. ÖÖÖ
7*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)
• Correct accordingly.
• Replace brake pads if necessary.ÖÖÖ
8*Rear brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)
• Correct accordingly.
• Replace brake pads if necessary.ÖÖÖ
9*Wheels• Check balance, runout and for damage.
• Rebalance or replace if necessary.ÖÖ
10*Tires• Check tread depth and for damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.ÖÖ
E_4sv_Periodic.fm Page 2 Tuesday, August 31, 1999 3:45 PM
