2000 YAMAHA XVZ1300TF turn signal

2-1
2
EAU00026

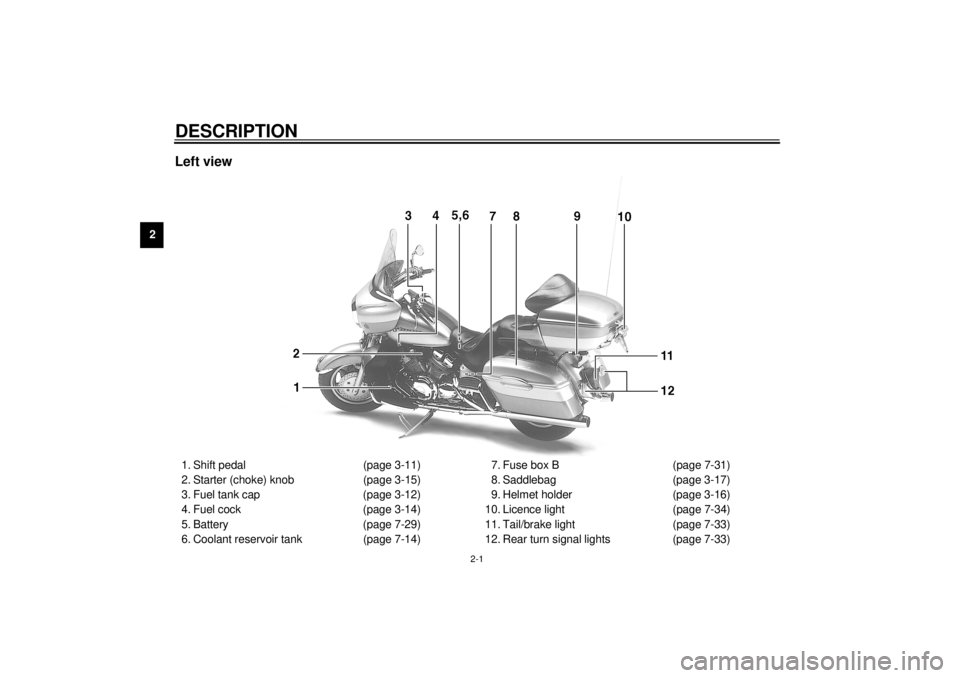

2-DESCRIPTIONLeft view1. Shift pedal (page 3-11)
2. Starter (choke) knob (page 3-15)
3. Fuel tank cap (page 3-12)
4. Fuel cock (page 3-14)
5. Battery (page 7-29)
6. Coolant reservoir tank (page 7-14)7. Fuse box B (page 7-31)
8. Saddlebag (page 3-17)
9. Helmet holder (page 3-16)
10. Licence light (page 7-34)
11. Tail/brake light (page 7-33)
12. Rear turn signal lights (page 7-33)
E_5jc_Description.fm Page 1 Saturday, October 16, 1999 1:07 PM

DESCRIPTION
2-2
2

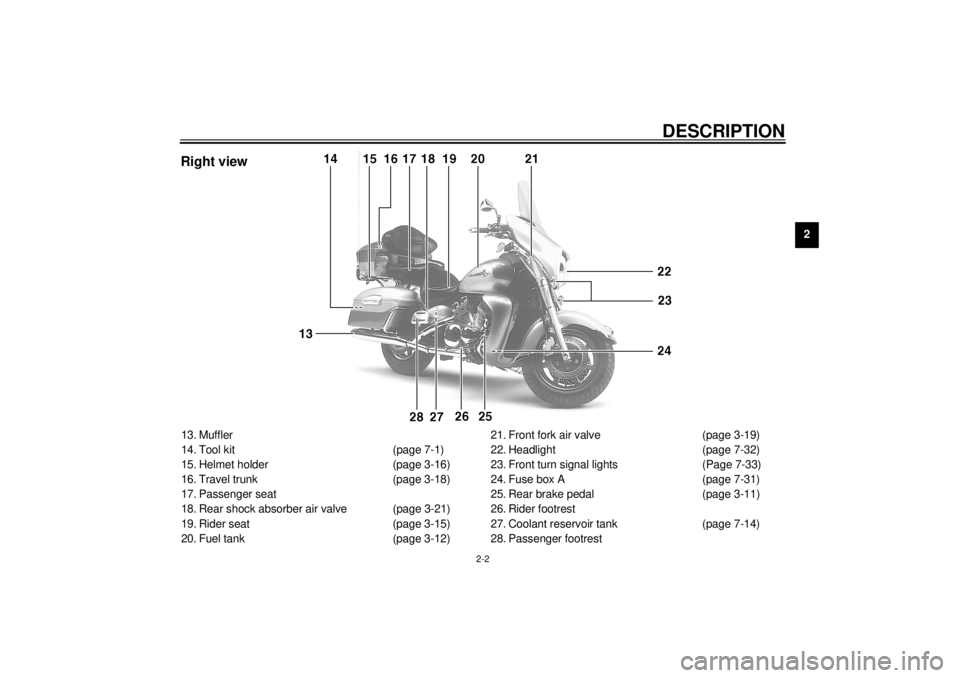

13. Muffler
14. Tool kit (page 7-1)
15. Helmet holder (page 3-16)
16. Travel trunk (page 3-18)
17. Passenger seat
18. Rear shock absorber air valve (page 3-21)
19. Rider seat (page 3-15)
20. Fuel tank (page 3-12)21. Front fork air valve (page 3-19)
22. Headlight (page 7-32)
23. Front turn signal lights (Page 7-33)
24. Fuse box A (page 7-31)
25. Rear brake pedal (page 3-11)
26. Rider footrest
27. Coolant reservoir tank (page 7-14)
28. Passenger footrestRight view
E_5jc_Description.fm Page 2 Saturday, October 16, 1999 1:07 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU01779
Fuel gaugeThe fuel gauge indicates the quantity of
the remaining gasoline in the tank. The
segments in the fuel gauge disappear
towards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, add fuel as soon as possi-
ble.
This fuel gauge is equipped with a self-
diagnosis system. If there is a problem
in an electric circuit, first the segments
and then either “E” or “F” flash. In this
case, be sure to consult a Yamaha
dealer as soon as possible.
EAU00118
Handlebar switches
EAU00119
1. Pass switch “ ”
Press the switch to operate the passing
light.
EAU00121
2. Dimmer switch
Turn the switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00127
3. Turn signal switch
To signal a right-hand turn, push the
switch to “ ”. To signal a left-hand
turn, push the switch to “ ”. Once the
switch is released it will return to the
center position. To cancel the signal,
push the switch in after it has returned
to the center position.
EAU00129
4. Horn switch “ ”
Press the switch to sound the horn.
1. Fuel gaugeE_5jc_Functions.fm Page 9 Saturday, October 16, 1999 1:08 PM

7
PERIODIC MAINTENANCE AND MINOR REPAIR
Tool kit................................................................... 7-1
Periodic maintenance and lubrication ................... 7-3
Cowling and panel removal and installation.......... 7-6
Cowling A.............................................................. 7-6
Cowling B.............................................................. 7-7
Panel C ................................................................. 7-8
Panel D ................................................................. 7-8
Panel E ................................................................. 7-9
Spark plug inspection ......................................... 7-10
Engine oil ............................................................ 7-11
Final gear oil ....................................................... 7-13
Coolant ............................................................... 7-14
Air filters .............................................................. 7-15
Carburetor adjustment ........................................ 7-17
Idle speed adjustment ........................................ 7-17
Throttle cable free play inspection ...................... 7-18
Valve clearance adjustment ................................ 7-18
Tires .................................................................... 7-19
Wheels ................................................................ 7-21
Clutch lever free play adjustment........................ 7-22Front brake lever free play adjustment ............... 7-23
Rear brake pedal height adjustment .................. 7-23
Brake light switch adjustment ............................. 7-24
Checking the front and rear brake pads ............. 7-25
Inspecting the brake fluid level ........................... 7-25
Brake fluid replacement ..................................... 7-26
Brake and shift pedal lubrication ........................ 7-27
Brake and clutch lever lubrication ...................... 7-27
Sidestand lubrication.......................................... 7-28
Front fork inspection ........................................... 7-28
Steering inspection ............................................ 7-29
Battery................................................................ 7-29
Fuse replacement .............................................. 7-31
Headlight bulb replacement ............................... 7-32
Turn signal and tail/brake light bulb
replacement ..................................................... 7-33
License light bulb replacement........................... 7-34
Troubleshooting .................................................. 7-34
Troubleshooting charts ....................................... 7-35
E_5jc_PeriodicTOC.fm Page 1 Saturday, October 16, 1999 1:10 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
7-31
7
EAU01801
Fuse replacementIf a fuse is blown, turn off the main
switch and the switch of the circuit in
question. Install a new fuse of proper
amperage. Turn on the switches and
see if the electrical device operates. If
the fuse immediately blows again, con-
sult a Yamaha dealer.
EC000103
CAUTION:@ Do not use fuses of higher amper-
age rating than those recommend-
ed. Substitution of a fuse of
improper rating can cause extensive
electrical system damage and pos-
sibly a fire. @
Fuse box A
Fuse box A is located behind
cowling A. (See page 7-6 for removal
and installation procedures.)Fuse box B
Fuse box B is located behind panel D.
(See page 7-8 for removal and installa-
tion procedures.)1. Cruise control fuse
2. Carburetor heater fuse
3. Auxiliary DC terminal fuse
4. Auxiliary DC jack fuse
5. Audio system fuse
6. Spare fuse (´ 2)
Specified fuses:
Cruise control fuse: 10 A
Carburetor heater fuse: 10 A
Auxiliary DC terminal fuse: 5 A
Auxiliary DC jack fuse: 5 A
Audio system fuse: 10 A
1. Ignition fuse
2. Signaling system fuse
3. Headlight fuse
4. Radiator fan fuse
5. Odometer fuse
6. Spare fuse (´ 2)
Specified fuses:
Ignition fuse: 10 A
Signaling system fuse: 15 A
Headlight fuse: 15 A
Radiator fan fuse: 10 A
Odometer fuse: 10 A
E_5jc_Periodic.fm Page 31 Saturday, October 16, 1999 1:10 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
7-33
7
EC000106
CAUTION:@ Avoid touching the glass part of the
bulb. Keep it free from oil; other-
wise, the transparency of the glass,
life of the bulb, and illuminous flux
will be adversely affected. If oil gets
on the bulb, thoroughly clean it with
a cloth moistened with alcohol or
lacquer thinner. @4. Install the bulb holder cover and
connect the headlight connector.
If the headlight beam adjustment is
necessary, ask a Yamaha dealer to
make that adjustment.
EAU00855*
Turn signal and tail/brake light
bulb replacement1. Remove the screws and the lens.
2. Push the bulb inward and turn it
counterclockwise.3. Place a new bulb in the socket.
Push the bulb inward and turn it
clockwise until it engages into the
socket.
4. Install the lens and the screws.
EC000108
CAUTION:@ Do not over-tighten the screws as
the lens may break. @
1. Don’t touch
1. Screw (´ 2)
1. Screw (´ 3)
E_5jc_Periodic.fm Page 33 Saturday, October 16, 1999 1:10 PM

SPECIFICATIONS
9-4
9
Headlight typeQuar tz bulb (halogen)
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 4 W ´ 1
Licence light 12 V, 5 W ´ 2
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Oil level indicator light 12 V, 1.7 W ´ 1
Turn indicator light 12 V, 1.7 W ´ 2
Fuel level indicator light 14 V, 3 W ´ 1
Coolant temperature indicator
light 12 V, 1.7 W ´ 1
Engine trouble indicator light 12 V, 1.7 W ´ 1
Overdrive indicator light 12 V, 1.7 W ´ 1
Cruise control “SET” indicator
light 12 V, 1.7 W ´ 1
Cruise control “RES” indicator
light 12 V, 1.7 W ´ 1
Cruise control “ON” indicator
light 12 V, 1.7 W ´ 1Audio system amplifier
Output power
Speaker 14 W ´ 4
Headset 1 W ´ 2
Auto-volume range 5 steps
Output impedance
Speaker 4 W
Headset 8 W ~ 16 W
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 15 A
Ignition fuse 10 A
Radiator fan fuse 10 A
Odometer fuse 10 A
Cruise control fuse 10 A
Carburetor heater fuse 10 A
Audio system fuse 10 A
Auxiliary DC jack fuse 5 A
Auxiliary DC terminal fuse 5 A
E_5jc_Spec.fm Page 4 Saturday, October 16, 1999 1:12 PM

11-INDEXAAir filters................................................. 7-15
Antitheft alarm (optional) ..........................3-8
Auxiliary audio source operation ............ 4-17
Auxiliary DC jack and terminal ............... 3-23BBattery ................................................... 7-29
Brake and clutch lever lubrication........... 7-27
Brake and shift pedal lubrication ............ 7-27
Brake fluid replacement ......................... 7-26
Brake light switch adjustment ................. 7-24CCarburetor adjustment ........................... 7-17
Care.........................................................8-1
Cassette deck operation ..........................4-8
CD changer (optional) operation ............ 4-16
Checking the front and
rear brake pads ................................... 7-25
Clutch lever ............................................ 3-10
Clutch lever free play adjustment ........... 7-22
Controls/Instruments ................................2-3
Control unit ..............................................4-3
Coolant .................................................. 7-14
Coolant temperature indicator light...........3-4
Cowling A .................................................. 7-6
Cowling B .................................................. 7-7
Cowling and panel removal and
installation .............................................7-6
Cruise control indicator lights ...................3-4
Cruise control switches .......................... 3-10
Cruise control system ..............................3-7
DDimmer switch ......................................... 3-9EEngine break-in ....................................... 6-4
Engine oil .............................................. 7-11
Engine stop switch................................. 3-10
Engine trouble indicator light.................... 3-4FFinal gear oil .......................................... 7-13
Front brake lever ................................... 3-11
Front brake lever free play
adjustment .......................................... 7-23
Front fork adjustment............................. 3-19
Front fork inspection .............................. 7-28
Fuel ....................................................... 3-13
Fuel cock ............................................... 3-14
Fuel gauge .............................................. 3-9
Fuel level indicator light ........................... 3-4
Fuel tank breather hose ......................... 3-13
Fuel tank cap ......................................... 3-12
Fuse replacement.................................. 7-31GGive safety the right of way ..................... 1-1HHandlebar switches ................................. 3-9
Cruise control switches .................... 3-10
Dimmer switch ................................... 3-9
Engine stop switch ........................... 3-10
Horn switch ........................................ 3-9
Light switch ...................................... 3-10
Pass switch ........................................ 3-9
Start switch .......................................3-10
Turn signal switch ...............................3-9
Headlight bulb replacement....................7-32
Headsets (optional) ..................................4-2
Helmet holders .......................................3-16
High beam indicator light ..........................3-3
Horn switch ..............................................3-9
IIdentification number records .................10-1
Idle speed adjustment ............................7-17
Indicator lights ..........................................3-3
Coolant temperature indicator light .....3-4
Cruise control indicator lights ..............3-4
Engine trouble indicator light ...............3-4
Fuel level indicator light ......................3-4
High beam indicator light ....................3-3
Neutral indicator light ..........................3-4
Oil level indicator light .........................3-3
Overdrive indicator light ......................3-4
Turn indicator lights ............................3-3
Inspecting the brake fluid level ...............7-25KKey identification number .......................10-1LLeft view...................................................2-1
License light bulb replacement ...............7-34
Light switch ............................................3-10
Location of parts ......................................4-1MMain switch/steering lock .........................3-1
Making basic settings ...............................4-4
E_5jcIX.fm Page 1 Saturday, October 16, 1999 1:12 PM
