2000 TOYOTA COROLLA door lock

2000 Corolla(U)
158
Before starting the engine
1. Check the area around the vehicle be-
fore entering it.
2. Adjust seat position, seatback angle,
head restraint height and steering
wheel angle.
3. Adjust the inside and outside rear view
mirrors.
4. Lock all doors.
5. Fasten seat belts.1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3.Manual transmission: Press the clutch
pedal to the floor and shift the trans-
mission into neutral. Hold the clutch
pedal to the floor until the engine is
started. A starter safety device will pre-
vent the starter from operating if the
clutch pedal is not fully depressed.
Automatic transmission: Put the se-
lector lever in Pº. If you need to re-
start the engine while the vehicle is
moving, put the selector lever in Nº.
A starter safety device will prevent the
starter from operating if the selector
lever is in any drive position.
4.Automatic transmission only: De-
press the brake pedal and hold it to
the floor until driving off.
(b) Starting the engine
Before starting the engine, be sure to fol-
low the instructions in (a) Before crank-
ingº.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
air- fuel mixture for starting. You can start
a cold or hot engine as follows:
1. With your foot off the accelerator ped-
al, crank the engine by turning the key
to STARTº. Release it when the en-
gine starts.
2. After the engine runs for about 10 se-
conds, you are ready to drive.
If the weather is below freezing, let the
engine warm up for a few minutes before
driving.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See If your vehicle will not startº in Sec-
tion 4.
How to start the engineÐ
(a) Before cranking
ProCarManuals.com

2000 Corolla(U)
160

Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has high- speed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are high- speed capability tires or
not before driving at such speeds.

Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Winter driving tips
Make sure you have a proper freeze
protection of engine coolant.
Your coolant must contain ethylene- glycol
type coolant for a proper corrosion
protection of aluminum components. Use
TOYOTA Long Life Coolantº or equivalent.
See Section 7- 2 for details about coolant
type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about -50C
(- 58F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7- 3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge.Make sure the engine oil viscosity is
suitable for the cold weather.
See Section 7- 2 for recommended viscos-
ity. Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota deal-
erÐhe will be pleased to help.
Keep the door locks from freezing.
Squirt lock de- icer or glycerine into the
locks to keep them from freezing. To open
a frozen lock, try heating the key before
inserting it.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer 's directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle's paint.
ProCarManuals.com

2000 Corolla(U)
186
3. Insert your finger into the hole to
push down the shift lock override
button. You can shift out of Pº
position only while pushing the but-
ton.
4. Shift into Nº position.
5. Insert the cover.
6. Start the engine. For your safety,
keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible.
If you lose your keys
You can purchase a new key at your
Toyota dealer if you can give them the
key number.
See the suggestion given in Keysº in
Section 1- 2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
ProCarManuals.com

2000 Corolla(U)
195
If you are a skilled do- it- yourself mechan-
ic, the Toyota service manuals are recom-
mended. Please be aware that do- it- your-
self maintenance can affect your warranty
coverage. See Owner 's Warranty Informa-
tion Bookletº or Owner 's Manual Supple-
mentº for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only where ade-
quate ventilation can be obtained if
you run the engine.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
Section 7- 2 for additional information.Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See Section 7- 2 for
additional information. When checking the
tires, make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tires every 12000 km (7500
miles). See Section 7- 2 for additional in-
formation.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
ProCarManuals.com

2000 Corolla(U)
234
Engine compartment
13. DRL 7.5 A: Daytime running light sys-
tem
14. HEAD RH- LWR 10 A: Right- hand
headlight
15. HEAD LH- LWR 10 A: Left- hand head-
light
16. CDS 30 A: Electric cooling fan
17. TURN 7.5 A: Turn signal lights, emer-
gency flashers
18. GAUGE 10 A: Gauge and meters,
buck- up lights, air conditioning system,
power windows, rear window defogger,
power door lock system
Instrument panel
19. WIP 20 A: Windshield wipers and
washer
20. DEF I- UP/M- HTR 10 A: Rear window
defogger, multiport fuel injection sys-
tem/sequential multiport fuel injection
system
21. ECU- IG 10 A: Starting system, electric
cooling fan, automatic transmission
shift lock system, anti- lock brake sys-
tem, cruise control system, theft deter-
rent system
22. IGN 7.5 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, charging system, SRS airbag
system, seat belt pretensioners23. STOP 15 A: Stop lights, high mounted
stoplight, anti- lock brake system, auto-
matic transmission shift lock system,
cruise control system, multiport fuel in-
jection system/sequential multiport fuel
injection system
24. TAIL 15 A: Tail lights, gauges and me-
ters, instrument panel light control, cig-
arette lighter, clock, car audio system,
rear window defogger, license plate
lights, electronically controlled automat-
ic transmission system, multiport fuel
injection system/sequential multiport
fuel injection system, air conditioning
system, emergency flashers
25. OBD 7.5 A: On- board diagnosis sys-
tem
26. ECU- B 7.5 A: SRS airbag system,
seat belt pretensioners
27. ST 5 A: Starter system, multiport fuel
injection system/sequential multiport
fuel injection system
28. D/L 30 A: Power door lock system
29. FOG 15 A: No circuit
30. S- HTR 15 A: No circuit
ProCarManuals.com

2000 Corolla(U)
2
Instrument panel overview
1. Rear view mirror remote control levers
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switch and
personal light
6. Power door lock switches
(vehicles without power windows)
7. Glove box
8. Power door lock switches
(vehicles with power windows)
9. Power window switches
10. Automatic transmission selector lever
or manual transmission gear shift lever
11. Parking brake lever
12. Hood lock release lever
13. Window lock switch
ProCarManuals.com

2000 Corolla(U)
7
Indicator symbols on the instrument panel
(type A)
(type B)
(type A)
(type B)Brake system warning light*
1
Seat belt reminder light*
1
Discharge warning light*
1
Malfunction indicator lamp*
1
Low oil pressure warning light*
1
Anti- lock brake system warning light*
1
Open door warning light*
1
SRS warning light*
1
Low windshield washer fluid level warning
light*
1
Low fuel level warning light*
1
Turn signal indicator lights Headlight high beam indicator light
Overdrive- off indicator light
Cruise control indicator light
*
2
Rear window defogger indicator light
*
1: For details, see Service reminder indicators and warning
buzzersº in Section 1- 5.
*
2: If this light flashes, see Cruise controlº in Section 1- 6.
ProCarManuals.com

2000 Corolla(U)
10

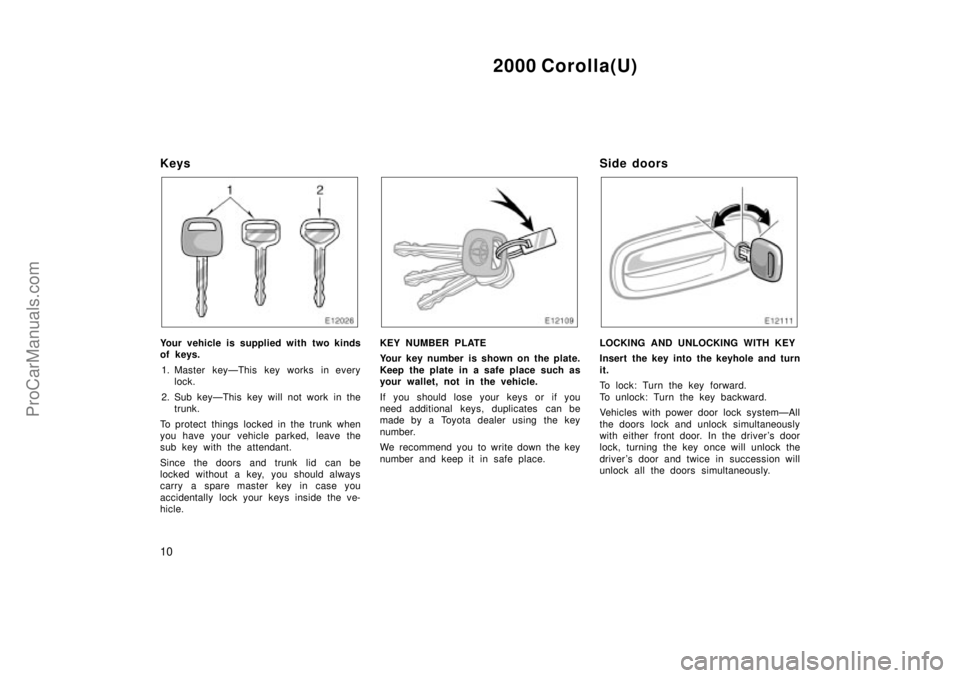

Keys
Your vehicle is supplied with two kinds
of keys.
1. Master keyÐThis key works in every
lock.
2. Sub keyÐThis key will not work in the
trunk.
To protect things locked in the trunk when
you have your vehicle parked, leave the
sub key with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Side doors
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock systemÐAll
the doors lock and unlock simultaneously
with either front door. In the driver 's door
lock, turning the key once will unlock the
driver's door and twice in succession will
unlock all the doors simultaneously.
ProCarManuals.com
